2 | PARTS AND FEATURES

PARTS AND FEATURES

PARTS AND ACCESSORIES

Motor Head Attachment Hub

Attachment Knob

Speed Control

Lever

Beater Height

Adjustment Screw

Bowl Support

Locating Pins

Flat Beater

Spiral Dough

Hook

Wire Whip

Bowl

Bowl Lift Lever

(not shown)

Bowl Handle

(style may vary

depending on

model)

Beater Shaft

W10410027D_EN_v07.indd 2 7/9/15 2:27 PM

ENGLISH

STAND MIXER SAFETY | 3

STAND MIXER SAFETY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always

be followed, including the following:

1. Read all instructions.

2. To avoid risk of electrical shock, do not put Stand Mixer in water or other liquid.

3. Close supervision is necessary when any appliance is used by or near children.

4. Unplug Stand Mixer from outlet when not in use, before putting on or taking

off parts, and before cleaning.

5. Avoid contacting moving parts. Keep hands, hair, and clothing, as well as

spatulas and other utensils away from beater during operation to reduce

the risk of injury to persons and/or damage to the Stand Mixer.

6. Do not operate Stand Mixer with a damaged cord or plug or after the Stand

Mixer malfunctions, or is dropped or damaged in any manner. Call the

KitchenAid Customer Satisfaction Center at 1-800-541-6390 for more

information.

7. The use of attachments not recommended or sold by KitchenAid may cause

re, electrical shock, or injury.

8. Do not use the Stand Mixer outdoors.

W10410027D_EN_v07.indd 3 7/9/15 2:27 PM

4 | STAND MIXER SAFETY

STAND MIXER SAFETY

9. Do not let the cord hang over edge of table or counter.

10. Remove Flat Beater, Wire Whip, or Spiral Dough Hook from Stand Mixer

before washing.

SAVE THESE INSTRUCTIONS

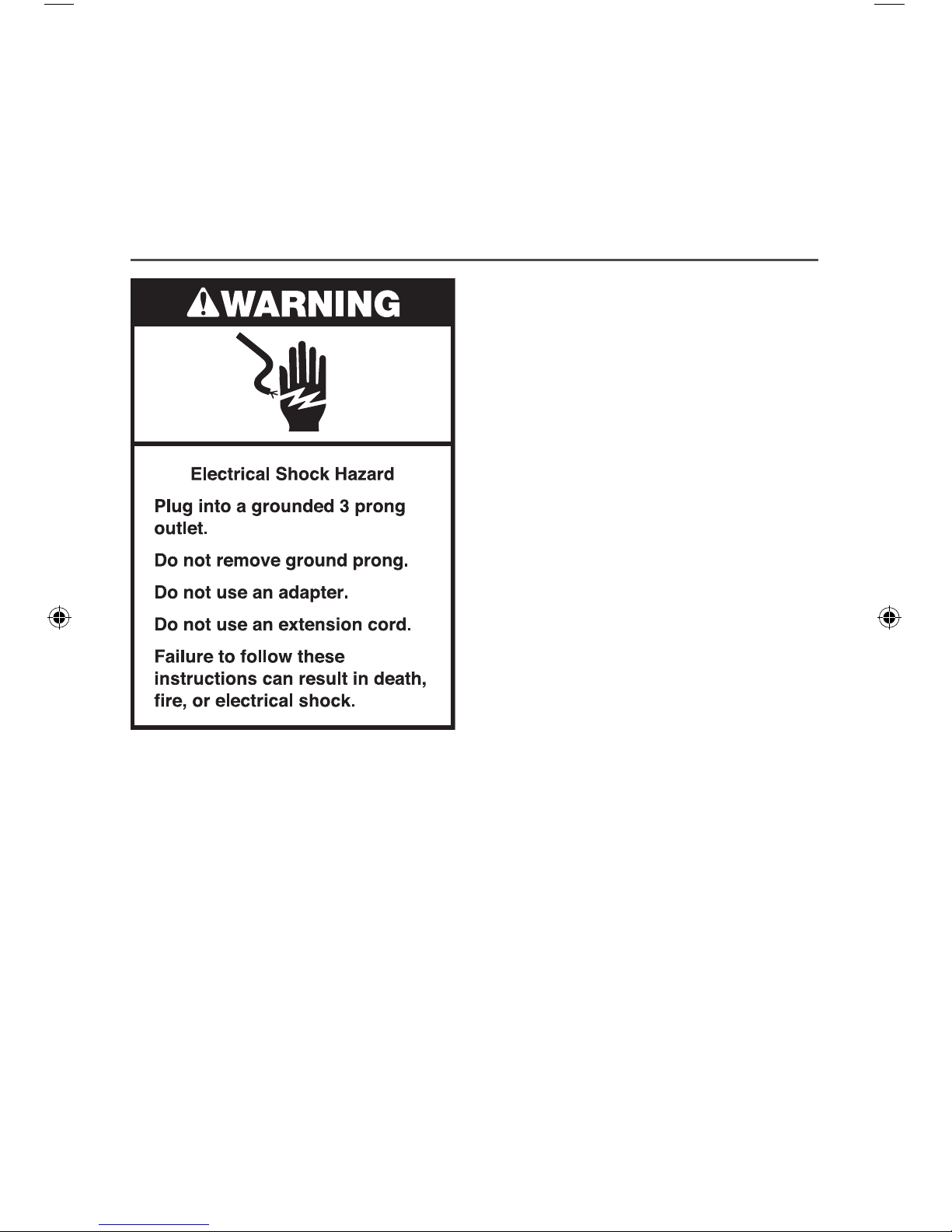

ELECTRICAL REQUIREMENTS

Volts: 120 A.C.

Hertz: 60 Hz

NOTE: The power rating for your Stand

Mixer is printed on the serial plate.

Do not use an extension cord. If the

power supply cord is too short, have a

qualied electrician or serviceman install

an outlet near the appliance.

The maximum rating is based on the

attachment that draws the greatest

load (power). Other recommended

attachments may draw signicantly

less power.

W10410027D_EN_v07.indd 4 7/9/15 2:27 PM

ENGLISH

USING THE STAND MIXER | 5

All speeds have the Soft Start®feature

that automatically starts the Stand Mixer

at a lower speed to help avoid ingredient

splash-out and “our puff” at start-up, then

quickly increases to the selected speed for

optimal performance.

SPEED CONTROL GUIDE - 10 SPEED STAND MIXERS

USING THE STAND MIXER

SPEED USED FOR ATTACHMENT DESCRIPTION

Stir Stirring For slow stirring, combining, mashing, starting

all mixing procedures. Use to add ﬂour and dry

ingredients to batter, and add liquids to dry

ingredients. Do not use STIR speed to mix

or knead yeast doughs.

2 Slow Mixing,

Kneading

For slow mixing, mashing, faster stirring. Use

to mix and knead yeast doughs, heavy batters,

and candies; start mashing potatoes or other

vegetables; cut shortening into ﬂour; mix thin

or splashy batters.

4 Mixing, Beating

For mixing semi-heavy batters, such as cookies.

Use to combine sugar and shortening and to

add sugar to egg whites for meringues. Medium

speed for cake mixes. Use with: Food Grinder,

Rotor Slicer/Shredder, Pasta Roller, and Fruit/

Vegetable Strainer.

6 Beating,

Creaming

For medium-fast beating (creaming) or

whipping. Use to ﬁnish mixing cake, doughnut,

and other batters. High speed for cake mixes.

8-10 Fast Beating,

Fast Whipping,

Whipping

For whipping cream, egg whites, and boiled

frostings. For whipping small Whipping amounts

of cream, egg whites or for ﬁnal whipping of

mashed potatoes.

NOTE: Use Speed 2 to mix or knead

yeast doughs. Use of any other speed

creates high potential for Stand Mixer

failure. The PowerKnead™ Spiral Dough

Hook efficiently kneads most yeast dough

within 4 minutes.

CAPACITY CHART

6-6.5 Quart

(5.67-6.15 L) 5-5.5 Quart

(4.73-5.20 L)

Flour 13-14 cups 10-12 cups

Bread 8 1/4loaves 6 loaves

Cookies 13 dozen 9 dozen

Mashed

Potatoes 8 lbs 6.5 lbs

W10410027D_EN_v07.indd 5 7/9/15 2:27 PM

6 | USING THE STAND MIXER

USING THE STAND MIXER

FOR DETAILED INFORMATION ON USING THE STAND MIXER

Visit KitchenAid.com for additional Instructions with videos, inspiring recipes, and tips

on how to use your Stand Mixer.

For best performance, please go through these quick steps before using your Stand Mixer.

GETTING STARTED WITH YOUR NEW BOWL-LIFT STAND MIXER

IMPORTANT: If bowl is not securely

snapped into place, it will be unstable

and wobble during use.

1Make sure Stand Mixer is turned to

the OFF position and is unplugged. 2

Attach the Bowl to the Stand Mixer.

Fit Bowl Supports over Locating

Pins and press down on back of the

bowl until Bowl Pin snaps into Spring

Latch.

Spring Latch

Locating Pin

3Attach Flat Beater. Slip Flat Beater

onto the Shaft. Turn left, hooking

beater over the Pin. 4

Raise Bowl to mixing position.

Rotate Bowl Lift Lever counter-

clockwise to the straight up position.

The bowl must always be in the

raised position when mixing.

W10410027D_EN_v07.indd 6 7/9/15 2:27 PM

ENGLISH

USING THE STAND MIXER | 7

USING THE STAND MIXER

Test Beater to Bowl Clearance.

Check the proximity of the Flat

Beater to the bowl. The beater

should just clear the bottom of the

bowl but should not touch it. Plug

Stand Mixer into a grounded 3

prong outlet. Turn Stand Mixer ON

and test each speed making sure

the beater does not touch the bowl

during operation. If the beater is

too far away from the bottom, or is

hitting the bowl, proceed to step 6

to make the necessary adjustments.

Adjusting your Beater to Bowl

Clearance. Unplug Stand Mixer.

Lower the bowl to the down

position. Adjust the Beater Height

Adjustment Screw to lower or raise

the bowl. Repeat Steps 2-5

with the Wire Whip and Spiral

Dough Hook. Your Stand Mixer is

now set up and ready for use. Ce

mélangeur sur socle est désormais

installé et prêt à être utilisé.

Raise Bowl Lower Bowl

IMPORTANT: The Stand Mixer may

become warm during use. Under heavy

loads with extended mixing time periods,

you may not be able to comfortably

touch the top of the Stand Mixer. This is

normal. The Stand Mixer motor may emit

a pungent odor during initial operation.

This is common with electric motors.

W10410027D_EN_v07.indd 7 7/9/15 2:27 PM

8 | CARE AND CLEANING

CARE AND CLEANING

The Bowl, Coated Metal Flat Beater, and Coated Metal Spiral Dough Hook may be

washed in an automatic dishwasher. Or, clean them thoroughly in hot sudsy water and

rinse completely before drying. Do not store beaters on shaft.

NOTE: Always be sure to unplug Stand Mixer before cleaning. Wipe Stand Mixer with a

soft, damp cloth. Do not use household/commercial cleaners. Do not immerse in water.

Wipe off Beater Shaft frequently, removing any residue that may accumulate.

ACCESSORIES BURNISHED

METAL COATED METAL STAINLESS

STEEL

Burnished metal

beater and dough

hook should be

hand washed. May

discolor if used in

dishwasher.

White or silver

coated metal

beaters are

dishwasher-safe.

(Available on most

models)

Not applicable

Not applicable Not applicable All wire whips are

stainless steel and

should be hand

washed only.

Not applicable Not applicable All metal bowls are

stainless steel and

dishwasher-safe.

(Available on all

bowl-lift models)

FOR DETAILED INFORMATION ON CLEANING THE STAND MIXER

Visit kitchenaid.com/quickstart for additional Instructions with videos, inspiring recipes,

and tips on how to use your Stand Mixer.

W10410027D_EN_v07.indd 8 7/9/15 2:27 PM

ENGLISH

TIPS FOR GREAT RESULTS | 9

TIPS FOR GREAT RESULTS

MIXING TIME

MIXER USE

Your KitchenAid®Stand Mixer will mix faster and more thoroughly than most other

electric stand mixers. Therefore, the mixing time in most recipes must be adjusted to

avoid over beating. With cakes, for example, beating time may be half as long as with

other stand mixers.

To help determine the ideal mixing time, observe the batter or dough and mix only until

it has the desired appearance described in your recipe, such as “smooth and creamy.”

To select the best mixing speeds, use the “Speed Control Guide” section.

NOTE: Do not scrape bowl while Stand

Mixer is operating.

Adding Ingredients

Always add ingredients as close to side of

bowl as possible, not directly into moving

beater.

Adding Nuts, Raisins, or Candied Fruits

Follow individual recipes for guidelines on

including these ingredients. In general,

solid materials should be folded in the last

few seconds of mixing on STIR Speed. The

batter should be thick enough to keep the

fruit or nuts from sinking to the bottom of

the pan during baking. Sticky fruits should

be dusted with our for better distribution

in the batter.

Liquid Mixtures

Mixtures containing large amounts of

liquid ingredients should be mixed at

lower speeds to avoid splashing. Increase

speed only after mixture has thickened.

NOTE: If ingredients in very bottom of

bowl are not thoroughly mixed, then the

beater is not far enough into the bowl.

See the “Using the Stand Mixer” section.

W10410027D_EN_v07.indd 9 7/9/15 2:27 PM

10 | TIPS FOR GREAT RESULTS

TIPS FOR GREAT RESULTS

Place room temperature egg whites in

clean, dry bowl. Attach Bowl and Wire

Whip. To avoid splashing, gradually turn

to designated speed and whip to desired

stage. See chart below.

AMOUNT SPEED

1 egg white ................GRADUALLY to 10

2-4 egg whites...............GRADUALLY to 8

6 or more egg whites......GRADUALLY to 8

Whipping Stages

With your KitchenAid®Stand Mixer, egg

whites whip quickly. So watch to avoid

over whipping. This list tells you what to

expect.

Frothy

Large, uneven air bubbles.

Begins to Hold Shape

Air bubbles are ne and compact;

product is white.

Soft Peak

Tips of peaks fall over when

wire whip is removed.

Almost Stiff

Sharp peaks form when Wire

Whip is removed, but whites

are actually soft.

Stiff but not Dry

Sharp, stiff peaks form when wire whip

is removed. Whites are uniform in color

and glisten.

Stiff and Dry

Sharp, stiff peaks form when wire

whip is removed. Whites are speckled

and dull in appearance.

WHIPPING TIPS FOR EGG WHITES

WHIPPING TIPS FOR WHIPPED CREAM

Pour cold whipping cream into chilled

bowl. Attach Bowl and Wire Whip.

To avoid splashing, gradually turn to

designated speed and whip to desired

stage. See chart below.

AMOUNT SPEED

1/4 cup (50 mL) ............... GRADUALLY to 10

1/2 cup (125 mL) ............. GRADUALLY to 10

1 cup (250 mL)................. GRADUALLY to 8

1 pint (500 mL) ................ GRADUALLY to 8

Whipping Stages

Watch cream closely during whipping.

Because your KitchenAid®Stand Mixer

whips so quickly, there are just a few

seconds between whipping stages.

Look for these characteristics:

Begins to Thicken

Cream is thick and custard-like.

Holds its Shape

Cream forms soft peaks when Stainless

Steel Whip is removed. Can be folded

into other ingredients when making

desserts and sauces.

Stiff

Cream stands in stiff, sharp

peaks when Wire Whip is

removed. Use for topping on

cakes or desserts, or lling

for cream puffs.

W10410027D_EN_v07.indd 10 7/9/15 2:27 PM

Indice

Lingue:

Altri manuali KitchenAid Miscelatore

KitchenAid

KitchenAid *521.004 Manuale utente

KitchenAid

KitchenAid 5KSM7990X Manuale utente

KitchenAid

KitchenAid 5K45 Series Manuale utente

KitchenAid

KitchenAid 5KSM7586P Manuale utente

KitchenAid

KitchenAid KEA25A Manuale utente

KitchenAid

KitchenAid KSM8990ER Manuale utente

KitchenAid

KitchenAid KEA26 Series Manuale utente

KitchenAid

KitchenAid KSM180RP Series Manuale utente

KitchenAid

KitchenAid KSM55 Manuale utente

KitchenAid

KitchenAid G Manuale operativo e di manutenzione

KitchenAid

KitchenAid 9KSM160FGA Manuale utente

KitchenAid

KitchenAid 5KFP0919EAC Manuale utente

KitchenAid

KitchenAid 5KSM1JA Manuale utente

KitchenAid

KitchenAid 5KSM156 Manuale utente

KitchenAid

KitchenAid 5KSM7990XEWH Manuale utente

KitchenAid

KitchenAid KSM150PS - Artisan Series Mixer Manuale utente

KitchenAid

KitchenAid KSM152PSCP - Custom Metallic 5-qt. Stand... Manuale utente

KitchenAid

KitchenAid KSM7990WH Manuale utente

KitchenAid

KitchenAid KSM95SM - Ultra Power Stand Mixer Manuale utente

KitchenAid

KitchenAid KHM3WH5 Manuale utente

KitchenAid

KitchenAid KSM150PSAC1 Manuale utente

KitchenAid

KitchenAid K4SS Istruzioni operative

KitchenAid

KitchenAid KP2671XAC - Professional Stand Mixer Manuale utente

KitchenAid

KitchenAid KN1PS Manuale utente

Manuali Miscelatore popolari di altre marche

Bosch

Bosch GRW 9 Manuale utente

MULTIQUIP

MULTIQUIP Whiteman WM45E Guida

Jay-Lor

Jay-Lor 5050 Manuale utente

Sunbeam

Sunbeam FPSBSM210X Manuale utente

MULTIQUIP

MULTIQUIP Whiteman MC94S Guida

Thinky

Thinky ARE-250 Manuale utente

Midas

Midas XL4 Manuale utente

bianco

bianco PURO 4 Manuale utente

Paso

Paso DAG9200 Manuale utente

Sima

Sima SFX-9A Manuale utente

better chef

better chef IM-815WC Istruzioni per l'installazione

ALLEN & HEATH

ALLEN & HEATH GR1 Manuale utente

Lacor

Lacor 69083 Scheda tecnica

M-Audio

M-Audio Midiman SAM Manuale utente

Buffalo

Buffalo CP921 Manuale utente

Pentair

Pentair HYPRO Cleanload 3376-0870 Istruzioni operative

Cuisinart

Cuisinart SM50WHE Manuale utente

Hobart

Hobart HCM-300 Manuale utente
