KitchenAid KSM55 Manuale utente

Stand Mixer - Bowl Lift

KSM55

KSM60

KSM70

7KSM60

7KSM70

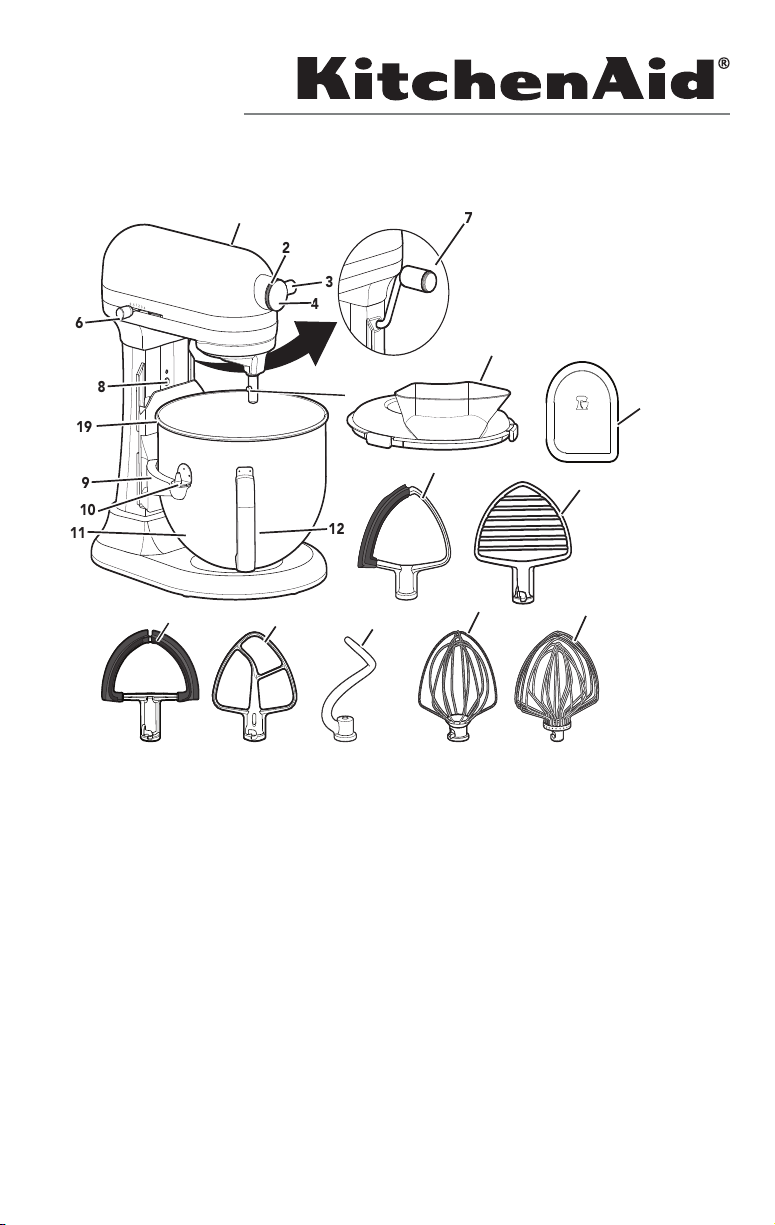

1Motor Head

2Attachment Hub

3Attachment Knob

4Hub Cover

5Beater Shaft

6Speed Control Lever

7Bowl-Lift Lever

8Beater Height Adjustment Screw

9Bowl Support

10 Locating Pins

11 Bowl*

12 Bowl Handle*

13 Double Flex Edge Beater**

14 Flat Beater

15 Spiral Dough Hook

16 Wire Whip**

17 11-Wire Stainless Steel Elliptical

Whip**

18 Pouring Shield**

19 Spring Latch and Bowl Pin

(Not Shown)

20 Pastry Beater**

21 Flex Edge Beater**

22 Scraper** ***

*Bowl type may vary. Bowls are also available for purchase as separate accessories.

**Included with select models. Picture/Style may vary from product depending on model.

***Can also be used to scrape your Bowl.

0 .5 1 2 3 4 5 6 7 8 9 10

11 12

13 14 15 16 17

522

PRODUCT SAFETY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always

be followed, including the following:

1. Read all instructions.

2. To protect against the risk of electrical shock do not put Stand Mixer in water or

other liquid.

3. This appliance is not intended for use by persons (including children) with

reduced physical, sensory, or mental capabilities, or lack of experience and

knowledge unless they are closely supervised and instructed concerning the

use of the appliance by a person responsible for their safety. Close supervision

is necessary when any appliance is used by or near children. Children should

be supervised to ensure that they do not play with the appliance.

4. Turn the appliance to “0” (OFF), then unplug from the outlet when not in use,

before assembling or disassembling parts and before cleaning. To unplug,

grasp the plug and pull from the outlet. Never pull from the power cord.

5. Avoid contacting moving parts. Keep hands, hair, clothing, as well as spatulas

and other utensils, away from beater during operation to reduce the risk of

injury to persons, or damage to the mixer.

6. Do not operate any appliance with a damaged cord or plug, or after the

appliance malfunctions, or is dropped or damaged in any manner. Return

appliance to the nearest Authorized Service Facility for examination, repair, or

electrical or mechanical adjustment.

7. The use of accessories or attachments not recommended or sold by the

manufacturer may cause re, electric shock or injury.

8. Do not use the Stand Mixer outdoors.

9. Do not let the cord hang over the edge of table or counter.

10. Allow the appliance to cool completely before putting on or taking off parts, and

before cleaning the appliance.

ENGLISH

11. Remove the Flat Beater, Wire Whip, Pastry Beater, Flex Edge Beater, Double

Flex Edge Beater or Spiral Dough Hook from the Stand Mixer before washing.

Important Security Measures required for compliance with regulations in

Mexico:

12. If the power cord is damaged, it must be replaced by the manufacturer or its

service agent or by qualified personnel to avoid any risk.

13. The appliance is not intended for use by persons (including children) who suffer

from reduced physical, sensory or mental capabilities or who lack the necessary

experience or knowledge unless such persons are supervised or trained by a

person authorized to operate the appliance.

14. Children must be supervised to ensure that they do not use the appliance as a

toy.

15. To protect against the risk of electric shock, do not immerse the cord,

plug/socket, or appliance in water or other liquids.

16. Do not use the device for any other use other than that for which it was

designed. Improper use of the appliance may lead to possible personal injury.

17. This appliance is intended for use in the home and for similar applications, such

as the following:

a) By kitchen staff in retail areas, offices and other work environments;

b) Country houses;

c) By clients in hotels, motels or other residential-type settings;

d) Bedroom or dining room settings.

18. Do not use the appliance for any other use other than that for which it was

designed. It could lead to possible injury.

PRODUCT SAFETY

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong

outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions

can result in death, fire, or

electrical shock.

ELECTRICAL REQUIREMENTS

Voltage: 120 V~

Frequency: 60 Hz

NOTE: The power rating for your Stand

Mixer is printed on the serial plate.

Do not use an extension cord. If the

power supply cord is too short, have a

qualified electrician or service person

install an outlet near the appliance.

The maximum rating is based on the

attachment that draws the greatest

load (power). Other recommended

attachments may draw significantly less

power.

ACCESSORY/SPEED GUIDE

ACCESSORY USE FOR DESCRIPTION SPEED

Flat Beater

Mixing and

folding

ingredients

Folding delicate ingredients, egg

whites, cream, etc. Mixing cakes,

frostings, cookies, etc.

1∕2speed for folding

Speeds 1-6 for mixing

Flex Edge Beater*,

Double Flex Edge

Beater*

Mixing and

creaming

ingredients

Creaming butter and sugar, mixing

cakes, frostings, cookies, etc. Speeds 1-6

Spiral Dough Hook Kneading Breads, rolls, pizza dough, etc. Speed 2

Wire Whip/11-Wire

Elliptical Whip* Whipping Eggs, Egg whites, cream, etc. Speeds 4-10

Pastry Beater*

Cutting butter

into ﬂour,

mashing fruits/

vegetables,

shredding

meats

Pie dough and other pastries;

mashed potatoes/fruits/vegetables,

shredded chicken

Pastries (Cutting

butter into ﬂour):

Speed 1-3,

Mashing fruits/

Vegetables: Up to

Speed 2

Mashing potatoes,

Shredding Meat:

Speed 2

NOTE: Use Speed 2 to mix or knead yeast doughs. Use of higher speed creates high potential for Stand

Mixer failure. The PowerKnead™ Spiral Dough Hook efficiently kneads most yeast dough within 4 minutes.

The use of a lower speed might slow down the unit and not thoroughly knead the dough.

*Available as an accessory purchase with selected models only.

PRODUCT SAFETY

ENGLISH

PRODUCT ASSEMBLY

IMPORTANT: If the Bowl is not securely snapped into place, it will be unstable and

wobble during use.

To attach the Accessory: Slip the

accessory onto the shaft. Turn to hook it

over the Pin on the shaft.

To Remove the Accessory: Turn Stand

Mixer to “0” (OFF) then unplug. Press

accessory upward and turn to the left. Pull

down the accessory from Beater Shaft.

Turn the Stand Mixer to “0” (OFF) and

then Unplug.

To attach the Bowl: Fit the Bowl

Supports over Locating Pins and press

down on back of the Bowl

until Bowl Pin

snaps into Spring Latch.

Spring Latch

Locating Pin

0 .5 1 2 3 4 5 6 7 8 9 10

To Remove Bowl: Place Bowl-Lift Lever

in the down position. Grasp Bowl Handle

and lift straight up and off Locating Pins.

To raise the Bowl: Rotate the

Bowl-Lift Lever to the straight up

position. The Bowl must always be in the

raised position when mixing.

Test the Beater to Bowl Clearance: Turn

Stand Mixer ON and test each speed,

making sure the beater does not touch

the Bowl during operation. If the Beater

is too far away from the bottom or is

hitting the Bowl, proceed to next step to

make adjustments.

(OPTIONAL) To adjust Beater to

Bowl Cearance: Lower the Bowl to the

down position. Turn the screw slightly

counterclockwise (left) to raise the beater,

or clockwise (right) to lower it. Adjust the

beater so that it just clears the surface of

the Bowl. Check again the clearance of

the beater to the Bowl.

Raise BowlRaise Bowl

Lower BowlLower Bowl IMPORTANT: When properly adjusted,

the Flat Beater will not strike on the

bottom or sides of the Bowl. If the Flat

Beater or the Wire Whip is so close that

it strikes the bottom of the Bowl, coating

may wear off the beater or wires on the

whip may wear.

*Available with select models only and available as an accessory purchase.

PRODUCT USAGE

1. Turn the Stand Mixer to “0” (OFF) and then Unplug.

2. Attach Bowl and Flat Beater, Dough Hook, or Wire Whip to the mixer. Attach Bowl

and raise into locked position.

3. Place the shield onto the Bowl so that the Motor Head covers the U-shaped gap in

the shield. This will position the pouring chute just to the right of the Attachment Hub

as you face the Mixer. Press lightly so that the tabs snap the shield onto the Bowl.

4. Pour ingredients into the Bowl through the Pouring Chute.

USING THE POURING SHIELD*

DISASSEMBLING THE PRODUCT

1. Turn the Stand Mixer to “0” (OFF) and then Unplug.

2. Lift the front of the Pouring Shield* clear of the rim of the Bowl. Pull away from the

Stand Mixer. Lower the Bowl and scrape.

PRODUCT ASSEMBLY

ENGLISH

PRODUCT USAGE

WARNING

Injury Hazard

Unplug mixer before touching

beaters.

Failure to do so can result in

broken bones, cuts, or bruises.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong

outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions

can result in death, fire, or

electrical shock.

1. Plug the Stand Mixer into a grounded

3 prong outlet. Start with lower speed

to avoid splashing and increase it

gradually. Refer to the “Speed Control

Guide”.

2. Do not scrape the Bowl while operating.

Scraping the Bowl once or twice during

mixing is usually sufﬁcient.

OPTIONAL ATTACHMENTS

KitchenAid offers a wide range of optional attachments such as the Spiralizer, Pasta Cutters,

or Food Grinder that may be attached to the Stand Mixer attachment power hub.

Turn the Stand Mixer to “0” (OFF) and

then unplug. Unscrew Attachment

Hub Cover. Insert attachment into

Attachment Hub, making certain that

attachment power shaft ﬁts into the

square Attachment Hub socket.

Tighten the Attachment Knob by turning

it clockwise until the attachment is

secured to the Stand Mixer.

NOTE: See the “Use and Care Guide” of each specific attachment for more details.

IMPORTANT: Do not immerse the Stand Mixer body in water or other liquids.

Allow the appliance to cool completely before putting on or taking off parts, and

before cleaning the appliance.

CARE AND CLEANING

1. Turn the Stand Mixer to “0” (OFF) and then Unplug.

2. Wipe the Stand Mixer Body with a soft, damp cloth.

3. The Bowl is full dishwasher-safe.

The following parts are dishwasher-safe, top rack only: Flat Beater, Flex Edge Beater*,

Double Flex Edge Beater*, Spiral Dough Hook, 11 Wire Elliptical Whip*, Pastry Beater*,

Scraper* ** and Pouring Shield*.

4. The following part should be hand-washed only, using warm, soapy water and drying

thoroughly: Wire Whip only.

*Available with select models only and available as an accessory purchase.

**Can also be used to scrape your Bowl.

ENGLISH

TROUBLESHOOTING GUIDE

PROBLEM SOLUTION

If Stand Mixer warms up during

use:

Under heavy loads with extended mixing time periods, you

may not be able to comfortably touch the top of the Stand

Mixer. This is normal.

If Stand Mixer emits a pungent

odor during initial use: This is normal. This is common with electric motors.

If the Flat Beater hits the Bowl: Stop the Stand Mixer. See the “Product Assembly” section

and adjust the Beater to Bowl Clearance.

The Speed Control Lever does

not move smoothly or easily: To move the Speed Control Lever with ease, lift slightly up

as you move it across the settings in either direction.

If your Stand Mixer should fail

to operate, please check the

following:

Is the Stand Mixer plugged in?

Is the fuse in the circuit to the Stand Mixer in working

order? If you have a circuit breaker box, be sure the circuit

is closed.

Turn off the Stand Mixer for 10-15 seconds, then turn it

back on. If the Stand Mixer still does not start, allow it to

cool for 30 minutes before turning it back on.

If product shuts off after

extensive use:

Motor has automatic sensor that will keep motor from

overheating by shutting it off. If this occurs, turn speed

switch to off and let Stand Mixer rest for 30 minutes before

restarting.

If mixer is slowing down or

appearing to struggle:

Are you using the appropriate beater and speed? See

“Accessory/Speed Guide“ for more information. Using

1/2 Speed or Speed 1 for bread doughs and heavy loads

might slow down the unit. Breads should knead with the

dough hook at Speed 2. If you have slowdown with heavy

loads at 1/2 Speed, increase to Speed 1 or 2.

If the problem cannot be

corrected:

See the “Warranty and Service” section.

Do not return the Stand Mixer to the retailer; retailers do

not provide service.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or

electrical shock.

For customers in the US, please visit kitchenaid.com/pinch-of-help for additional product help.

WARRANTY AND SERVICE

KITCHENAID®STAND MIXER WARRANTY FOR THE 50 UNITED

STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND CANADA

This warranty extends to the purchaser and any succeeding owner for Stand Mixers

operated in the 50 United States, the District of Columbia, Puerto Rico, and Canada.

Length of Warranty: One Year Full Warranty from date of purchase.

KitchenAid Will Pay

for Your Choice of: Hassle-Free Replacement of your Stand Mixer. See

the next page for details on how to arrange for

service, or call the Customer eXperience Center

toll-free at 1-800-541-6390.

The replacement parts and repair labor costs to correct

defects in materials and workmanship. Service must be

provided by an Authorized KitchenAid Service Center.

KitchenAid Will

Not Pay for: A. Repairs when your Stand Mixer is used in other

than normal single family home use.

B. Damage resulting from accident, alteration,

misuse or abuse.

C. Any shipping or handling costs to deliver your

Stand Mixer to an Authorized Service Center.

D. Replacement parts or repair labor costs for

Stand Mixer attachments operated outside the

50 United States, District of Columbia, Puerto

Rico, and Canada.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES

OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED

TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY

BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD

ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS

OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY

OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY

TO YOU.

IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER’S SOLE AND

EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE

TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA

DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL

DAMAGES. This warranty gives you speciﬁc legal rights and you may also have other

rights which vary from state to state or province to province.

Altri manuali per KSM55

Indice

Altri manuali KitchenAid Miscelatore

KitchenAid

KitchenAid Professional 600 Series Manuale utente

KitchenAid

KitchenAid 5KSM7586P Manuale utente

KitchenAid

KitchenAid KP2671XAC - Professional Stand Mixer Guida rapida

KitchenAid

KitchenAid 5KPM5EWH Manuale utente

KitchenAid

KitchenAid 5KSM55 Manuale utente

KitchenAid

KitchenAid KSMC895 Manuale utente

KitchenAid

KitchenAid Pro Line Series Manuale utente

KitchenAid

KitchenAid KHM720OB Manuale utente

KitchenAid

KitchenAid 5KSM180LE Manuale utente

KitchenAid

KitchenAid 5K45SS Manuale utente

KitchenAid

KitchenAid 5KSM7591X Manuale utente

KitchenAid

KitchenAid KSMCB5 Manuale utente

KitchenAid

KitchenAid KSM3316XWH0 Manuale utente

KitchenAid

KitchenAid K5-A Manuale utente

KitchenAid

KitchenAid KSM95BU0 Manuale utente

KitchenAid

KitchenAid K5SSWH - Heavy Duty Series Stand Mixer Guida rapida

KitchenAid

KitchenAid 3KSM55 Manuale utente

KitchenAid

KitchenAid KV25G0XWW - Professional 5 Plus Series Stand... Manuale utente

KitchenAid

KitchenAid 5KSM7990X Manuale utente

KitchenAid

KitchenAid 4KP26M1XBS4 Manuale utente

KitchenAid

KitchenAid 5K45 Series Manuale utente

KitchenAid

KitchenAid KSM7581BZ Manuale utente

KitchenAid

KitchenAid KSM170 Guida all'installazione

KitchenAid

KitchenAid W10399721A Manuale utente

Manuali Miscelatore popolari di altre marche

Bosch

Bosch GRW 9 Manuale utente

MULTIQUIP

MULTIQUIP Whiteman WM45E Guida

Jay-Lor

Jay-Lor 5050 Manuale utente

Sunbeam

Sunbeam FPSBSM210X Manuale utente

MULTIQUIP

MULTIQUIP Whiteman MC94S Guida

Thinky

Thinky ARE-250 Manuale utente

Midas

Midas XL4 Manuale utente

bianco

bianco PURO 4 Manuale utente

Paso

Paso DAG9200 Manuale utente

Sima

Sima SFX-9A Manuale utente

better chef

better chef IM-815WC Istruzioni per l'installazione

ALLEN & HEATH

ALLEN & HEATH GR1 Manuale utente

Lacor

Lacor 69083 Scheda tecnica

M-Audio

M-Audio Midiman SAM Manuale utente

Buffalo

Buffalo CP921 Manuale utente

Pentair

Pentair HYPRO Cleanload 3376-0870 Istruzioni operative

Cuisinart

Cuisinart SM50WHE Manuale utente

Hobart

Hobart HCM-300 Manuale utente
