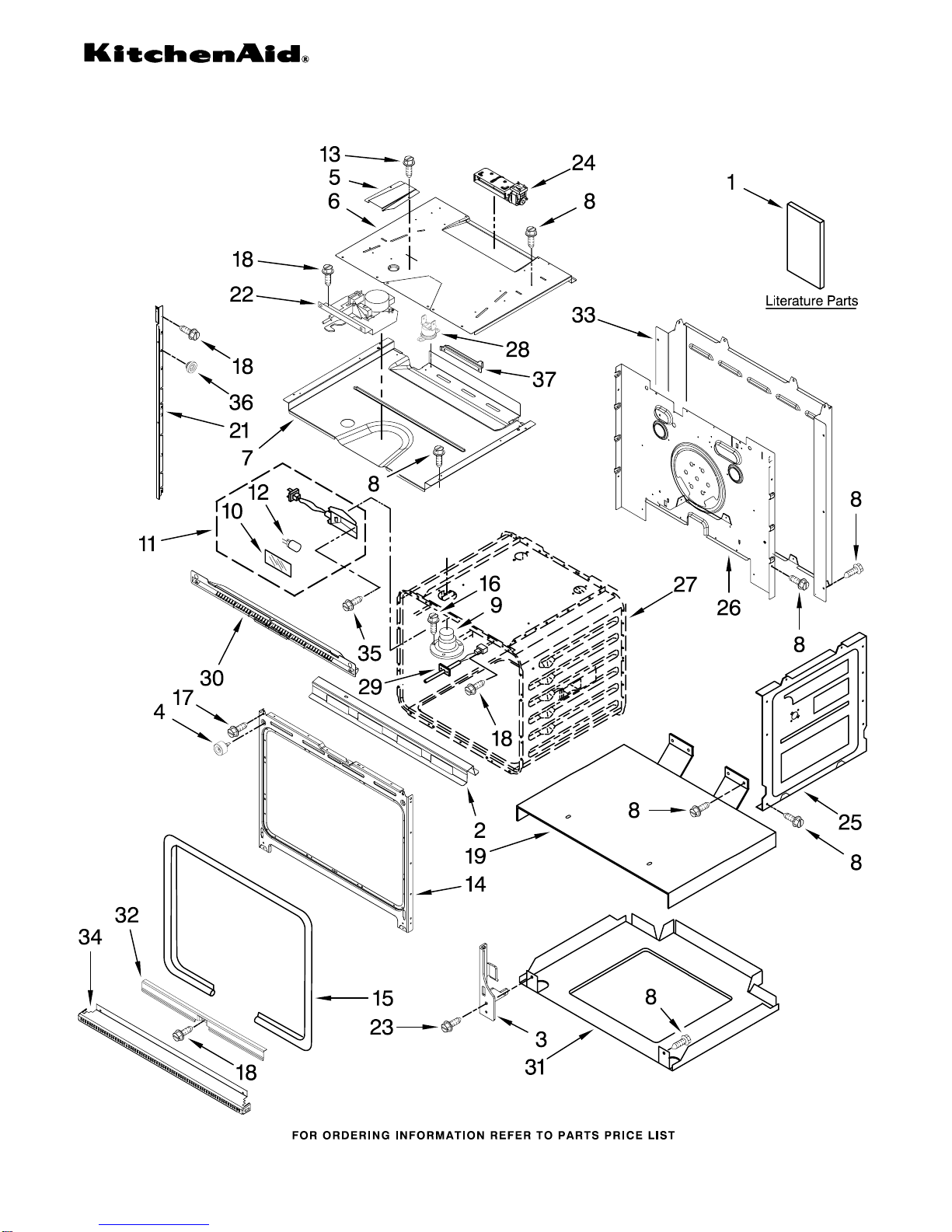

OVEN PARTS

For Models:KEBS208SBL04, KEBS208SWH04, KEBS208SSS04

(Black) (White) (Stainless)

6−10 Litho in U.S.A. (amd)(bay) Part No. W10269265 Rev. B

30" BUILT−IN ELECTRIC

DOUBLE OVEN

THERMAL CONVECTION

OVEN PARTS

For Models:KEBS208SBL04, KEBS208SWH04, KEBS208SSS04

(Black) (White) (Stainless)

W10269265

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8304336 Installation

Instructions

W10162180

Use & Care Guide

Tech Sheet

W10220954

English

W10220955

French

8304335 Easy Set Guide

Safer Cooking Tips

9762761 English

W10065852

French

W10153090

Bracket, Base

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door (2)

5 8303829 Exhaust,Vent Slope

W10181196

Divider, Vent

W10204470

Top Chassis

8 4449809 Screw

9 4452158 Tube, Vent

W10169756

Lens, Light

W10307114

Oven Light

Assembly

W10307114

Bulb, Light

13 3400832 Screw (2)

W10115861

Frame, Front

15 8304493 Gasket, Door

16 3196176 Screw

17 4449040 Screw

18 4449154 Screw

19 4451478 Support, Insulation

21 Mounting Rail,Side

Right

8303677BL

Black

8303677WH

White

Left

8303678BL

Black

8303678WH

White

W10195935

Latch, Mortorized

23 4449743 Screw

24 8303972 Blower

25 4455641 Side, Chassis

26 8304303 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 8304452 Thermal Fuse 105C

W10131825

Sensor

30 8303685 Vent, Center

31 8303516 Base, Chassis

32 8304478 Retainer, Gasket

33 8303517 Cover, Back

34 Trim, Bottom Vent

8303705BL

Black

8303705WH

White

W10216230

Stainless

35 4449748 Screw

36 4448444 Mounting Grommet,

Rail

W10169348

Bracket,

Thermostat

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

8303965 Insulation, Wrap

8303967 Insulation, Back

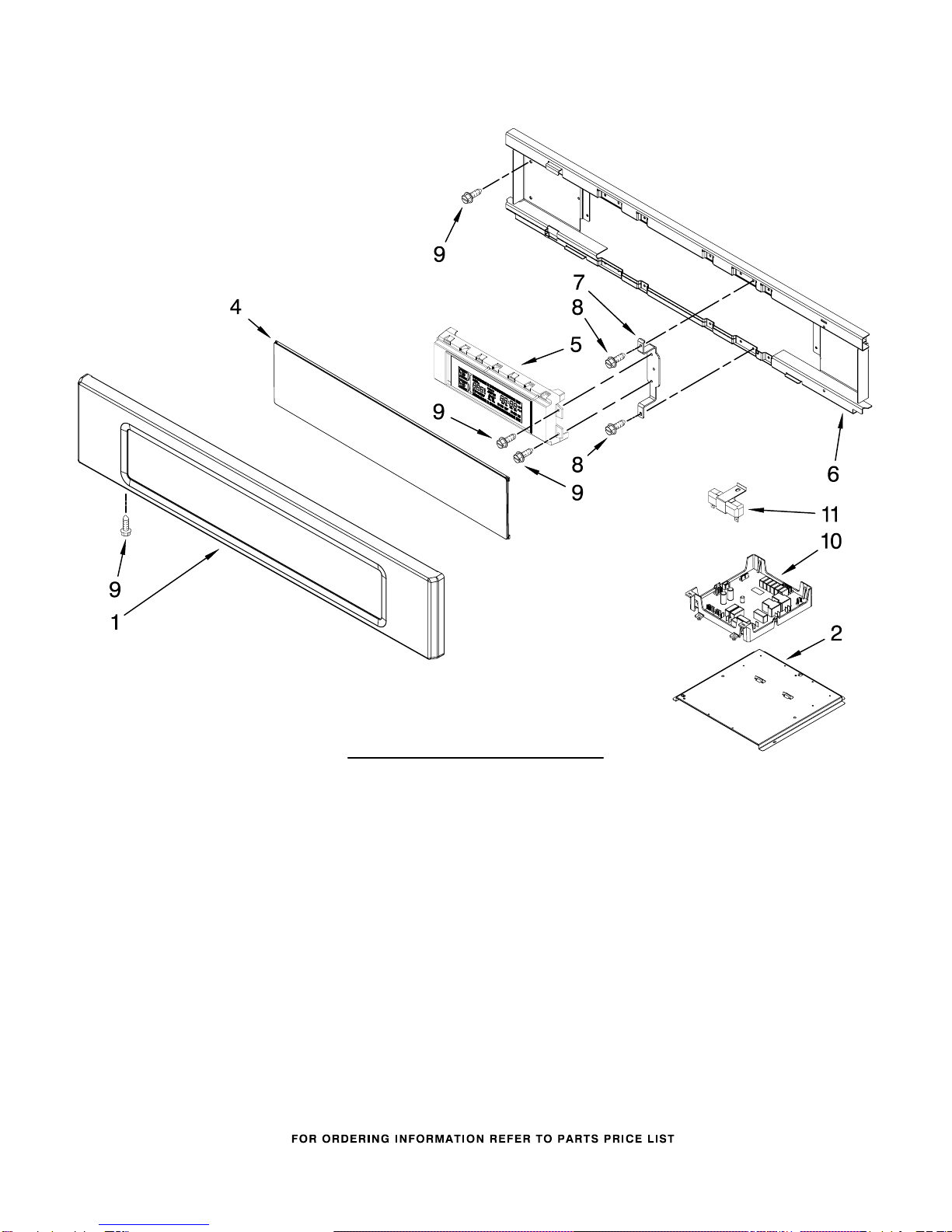

CONTROL PANEL PARTS

For Models:KEBS208SBL04, KEBS208SWH04, KEBS208SSS04

(Black) (White) (Stainless)

W10269265

Illus. Part

No. No. DESCRIPTION

1 Panel, Control

8303716BL

Black

8303716WH

White

W10216219

Stainless

2 8303687 Support, Appliance

Manager

4 8303880 Control Panel,

Glass Touch

W10312205

User Inferface

6 8303719 Backer, Control

7 8303887 Bracket,Enclosure

8 4449154 Screw

9 3400832 Screw

W10119142

Appliance Manager

11 8304441 Resistor, Drop

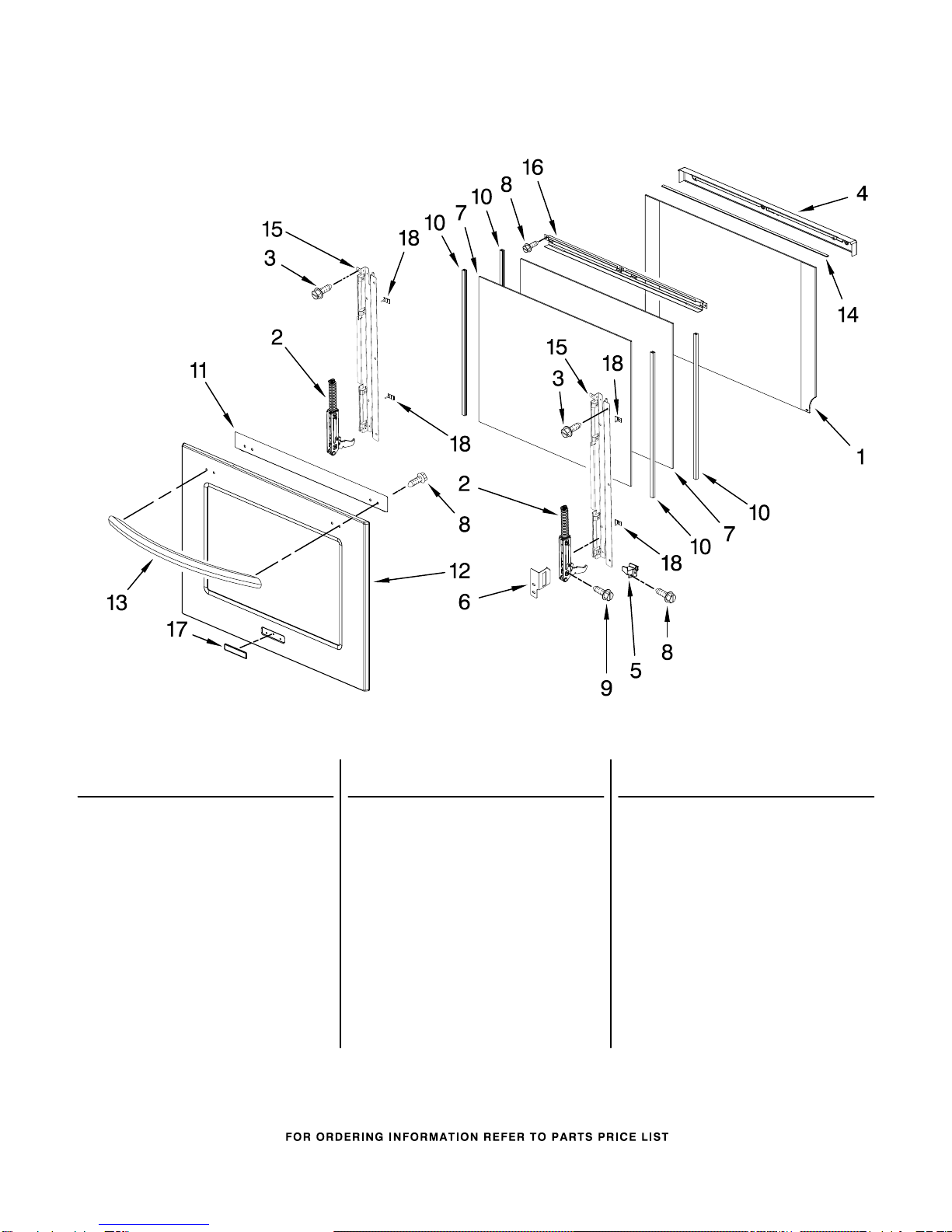

OVEN DOOR PARTS

For Models:KEBS208SBL04, KEBS208SWH04, KEBS208SSS04

(Black) (White) (Stainless)

W10269265

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

8303737BL

Door Liner

W10174285

Hinge, Door (2)

3 3196183 Screw

8304581BL

Vent, Door Top

5 Bracket, Door

8304377 Right

8304378 Left

6 Cover, Hinge

W10137044

Right

W10137043

Left

7 8303731 Glass, Inner

8 4449743 Screw

W10143950

Screw

10 8304523 Seal

8304360BL

Bracket, Handle

12 Door Glass, Assy

Lower Includes #17

8303993 Black

8303995 White

W10237350

Stainless

Door Glass, Assy

Upper No Nameplate

8303994 Black

8303996 White

W10237351

Stainless

13 Door Handle

W10292381

Black

W10292382

White

W10292380

Stainless

W10253472

Seal

8303745BL

Frame,Door Side(2)

16 8303746 Door, Top

Bracket

17 Nameplate

(Lower Door)

8304603BL

Black

8304603WH

White

8304603SS

Stainless

18 8304522 Bumper, Glass

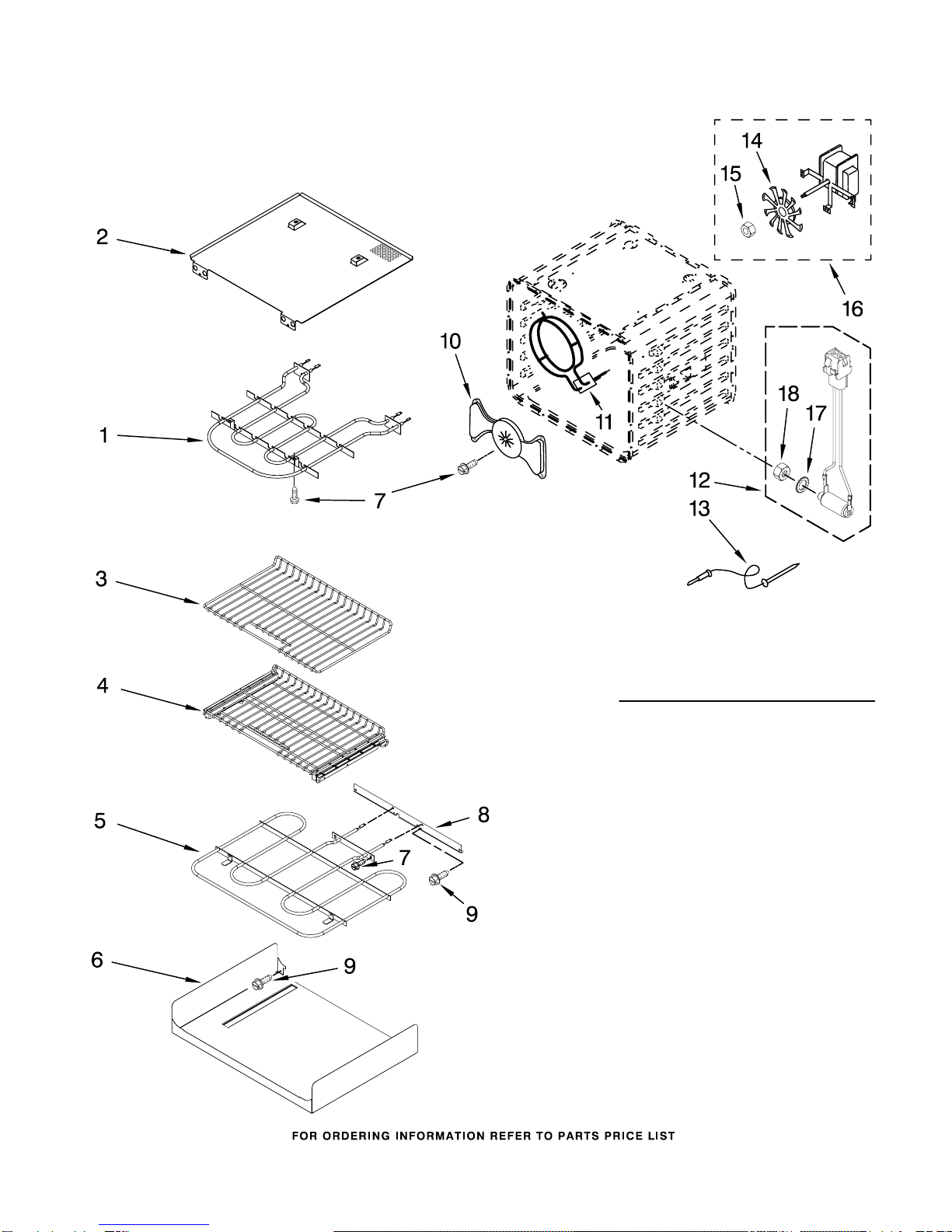

INTERNAL OVEN PARTS

For Models:KEBS208SBL04, KEBS208SWH04, KEBS208SSS04

(Black) (White) (Stainless)

W10269265

Illus. Part

No. No. DESCRIPTION

1 9760774 Element, Broil

2 8304602 Shield, Broil

Element

W10284950

Rack, Oven

W10208155

Oven Rack

W10207398

Element, Bake

6 4455037 Tray, Bake

7 4449154 Screw

8 4450039 Cover, Bake Tray

9 4449809 Screw

8303962BU

Cover, Fan

11 9760769 Element

Convection

12 9755543 Jack, Meat Probe

13 9755542 Probe, Meat

W10116351

Blade, Fan

W10116349

Nut

W10116228

Fan, Convection

17 9755547 Washer, Lock

18 9755546 Nut, Hidden

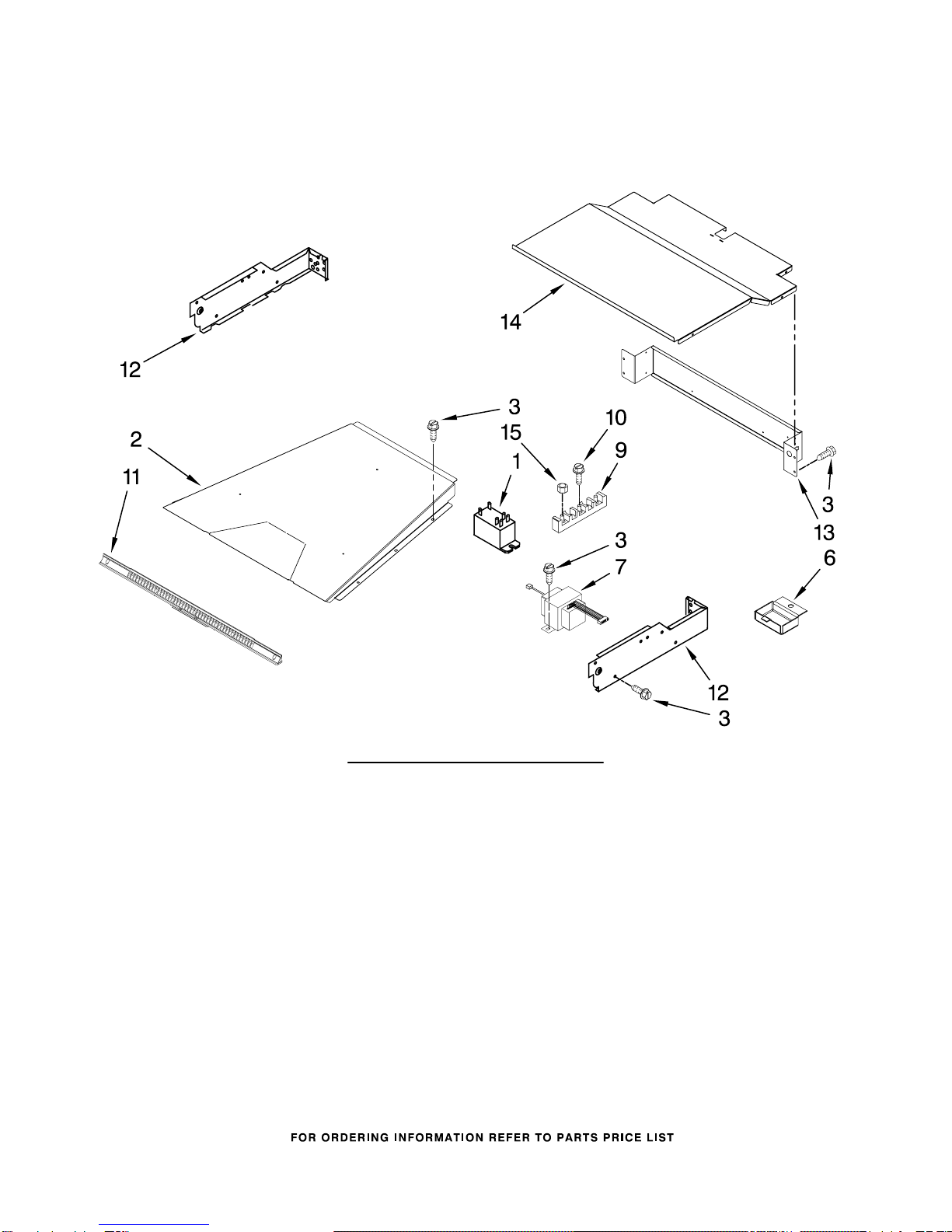

TOP VENTING PARTS

For Models:KEBS208SBL04, KEBS208SWH04, KEBS208SSS04

(Black) (White) (Stainless)

W10269265

Illus. Part

No. No. DESCRIPTION

1 9752759 Relay (2)

2 8304643 Duct, Air Outlet

3 4449809 Screw

6 8285593 Connector, Cover

W10111628

Transformer,

Control

7401P039−60

Block, Terminal

10 3400080 Screw

11 8303684 Vent, Control

Panel

12 Side, Control Top

8303518 Right

8304255 Left

13 8303520 Back, Control

14 8304219 Cover, Top

7103P027−60

Nut (3)

OPTIONAL PARTS

For Models:KEBS208SBL04, KEBS208SWH04, KEBS208SSS04

(Black) (White) (Stainless)

W10269265

Illus. Part

No. No. DESCRIPTION

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

WIRING HARNESS PARTS

W10231531

Harness, Door

Latch

W10237644

Connector, Flex

W10171560

Harness, GOC

98997 Clip

8304051 Harness, Main

8304439 Conduit, Double

4450800 Screw,Ground

Miscellaneous

4448950 Screw, Install (4)
