KitchenAid KESO-140S Manuale utente

ELECTRIC BUILT-IN

SINGLE & DOUBLE OVENS

MODELS (singles).

KESO- 74OW 4%/l 7OS/175S

SCO- 1243/2433/l 27312733

MODELS (doubles):

KED0-24OSE/245SS/270SE/275SS

SCO-2243124431227312743

INSTALLATION

INSTRUCTIONS

INSTALLER: FINAL CHECK LIST

IMPORTANT:

LEAVE THESE INSTRUCTIONS FOR USE BY LOCAL ELECTRICAL INSPECTOR

PLACEMENT OF UNIT

0 1. Properly positioned-level, aligned and square with cabinet opening.

0 2. Anchored securely to cabinet.

0 3. Installation debris removed.

ELECTRICAL

0 1. Oven properly grounded.

0 2. Separate 120/240 volt (or 120/208 volt for special ordered units), 60 hertz, single

phase branch of proper ampacity and protected by a fuse or circuit breaker with

approved rating.

0 3. All connections made in accordance with local and/or National Electrical Code.

OPERATIONAL

0 1. Oven racks installed and slide freely in all positions.

0 2. Knobs securely in place and rotate freely without rubbing edges of control panel glass

holes.

0 3. All lights function properly.

0 4. Clock timer buzzer operates.

0 5. Doors properly adjusted, open and close smoothly.

6. Selector switch functions in all modes.

0 7. Unless instructed to leave for owner, remove all tags, labels and internal packing

materials.

0 8. Oven has been wiped clean to remove fingermarks and other smudges.

THANK YOU INSTALLER:

1. Complete Installation Check List.

2. Leave all literature for customer.

3. Notify dealer that installation is completed.

FORDETAILEDINSTRUCTIONS,FOLLOWMETHODSDESCRIBEDIN THISFOLDER.

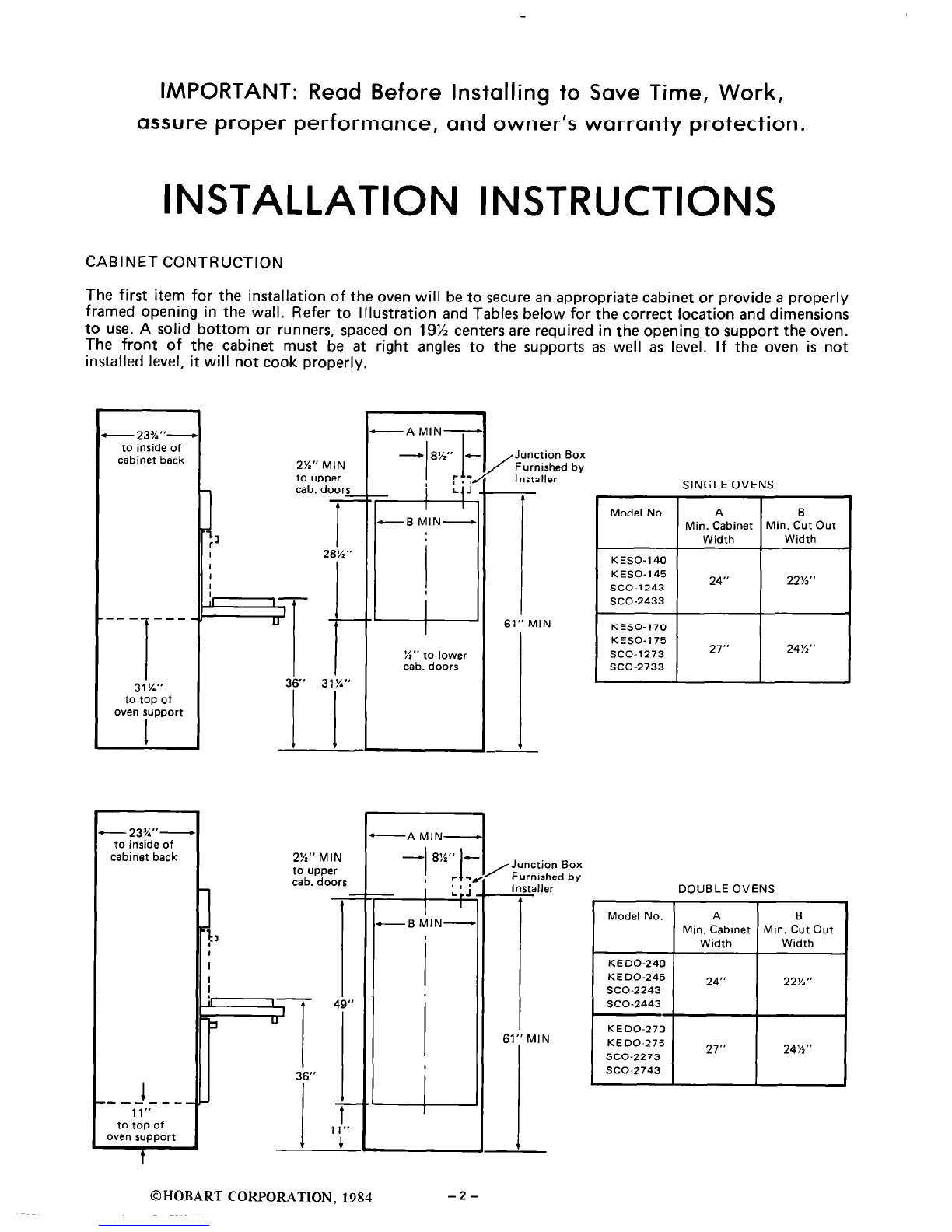

IMPORTANT: Read Before Installing to Save Time, Work,

assure proper performance, and owner’s warranty protection.

INSTALLATION INSTRUCTIONS

CABINET CONTRUCTION

The first item for the installation of the oven will be to secure an appropriate cabinet or provide a properly

framed opening in the wall. Refer to Illustration and Tables below for the correct location and dimensions

to use. A solid bottom or runners, spaced on 19% centers are required in the opening to support the oven.

The front of the cabinet must be at right angles to the supports as well as level. If the oven is not

installed level, it will not cook properly.

-23%"-

to inside of

cabinet back

-mm -a-

31%"

to top of

oven support

23%"-

to inside of

cabinet back

----em_

11”

to top of

oven sumort

2'/1" MIN

to upper

cab. doors

‘,I I

28%"

I I

36" 31%"

-A MIN,-A MIN,

l-8 MIN-

%” to lower

cab. doorscab. doors

,yr

. c

-A MIN -I

61” MIN

ction Box

T.i.b.“A I-..,

61" MIN

SINGLE OVENS

..::_I

DOUBLE OVENS

Model No. A B

Min. Cabinet Min. Cut Out

Width Width

KEDO-240

KEDO-245 24" 22%"

SCO-2243

SCO-2443

KEDO-270

KEDO-275

SCO-2273 27" 24%"

SCO-2743

@HOBART CORPORATION, 1984

-2-

ELECTRICAL

It is necessary to provide an appropriate junction box as shown on the previous page. The installation of

this junction box and the wiring connecting it to the house wiring should be done by a qualified electrician.

All wiring must be done in accordance with the National Electrical Code and/or any other applicable local

codes or ordinances.

The power supply to the junction box must be 120/240 volt (or 120/208 for special ordered unit), 60 hertz

A.C. single phase, 3 wire. Do not connect the oven to a D.C. power supply as serious damage to the

components will result. Refer the TABLE 1 for fuse or circuit breaker size for the model being installed.

Remember that the oven must have a separate circuit. Do not operate other electrical equipment on the

same circuit.

TABLE 1

Model No. Maximum Wattage

KESO-140/170 I

KESO-145/175

SCO- 1243/l 273 3.8 KW @ 240 V

SCO-243312733

KE DO-240/270 I 6.0 KW@ 240 V

KE DO-245/275

SCO-224312273 7.5 KW @ 240 V

SCO-244312743

Fuse or Breaker

Size Required

30 AMPS

40 AMPS

UNPACKING THE UNIT

The oven should be left on the carton base until it is ready to

put into the cabinet. It is also recommended that the pads over

the door(s) be left in place. These precautions will reduce the

possibility of damage to the front of the unit and the bottom of

the front frame.

Prior to installation,, ,test the electrical service to assure that it

agrees with the specrfrcations on the oven data plate.

Remove all cords, tape and wire used to hold various parts in

position during shipment. Remove oven racks from the inside of

the oven and put to one side while oven is being installed in

cabinet. Take broiler pan and grid from packing on top of the

oven and keep with literature packet in a location where they

will be retained by the owner.

ELECTRICAL CONNECTION

4 ;I:/

-\ i _--&,w

-\I : _ 1 ,. _ 7

&\ -‘& 2.

, !:w

To Remove Oven Racks

Slide rack forward until bar on back of rack

touches first stop.

Lift front of rack until

rear

portion of rack

slides out between front two stops.

WARNING: ELECTRICAL AND GROUNDING CONNECTIONS MUST COMPLY WITH THE APPLI-

CABLE PORTIONS OF THE NATIONAL ELECTRICAL CODE AND/OR OTHER LOCAL ELECTRICAL

CODES.

WARNING: DISCONNECT ELECTRICAL POWER SUPPLY AND PLACE A TAG AT THE DISCON-

NECT SWITCH INDICATING THAT YOU ARE WORKING ON THE CIRCUIT.

Connect the conduit from the oven to the junction box and properly connect to the power supply leads.

GROUNDING -THE OVEN MUST BE GROUNDED,

Do not work on the oven wiring until the oven has been positively grounded.

The oven frame is grounded through the base grounding wire. Connect it to ground in accordance with local

codes. Connect the white neutral to the service neutral wire at the junction box.

-3-

INSTALLING THE UNIT IN CABINET

The doors should be removed to decrease the weiaht of the oven and provide a better hand hold on the

oven while lifting it into the cabinet.

A. To Remove Doors (See Fig. 1)

Use caution! Oven door is heavy.

1. Open door completely.

2. Depress finger tab in oven door hinge area. Push tab toward

oven. Lift tab away from door liner and slide toward top of

oven door.

3. Repeat step 2 for other side of door.

4. Close door until approximately 5 inches from fully closed

position.

5. Slide door off the hinge arm assemblies.

6. Repeat steps 1 through 5 for other door on double ovens.

Be sure that mica spacers at either side of oven are in place to pro-

vide proper air flow between cabinet and oven.

When oven has been placed into cabinet, the bottom trim strip is

placed on lower edge of front frame. This is done by loosening the

three screws at the bottom of the front frame. Slide the trim strip

under the screw heads until the strip meets the lower corners of the

front frame (See Fig. 2). Tighten screws to hold to front frame.

Secure oven to cabinet with #8 flat head screws supplied with oven.

Disregard any excess screws.

B. Replace Oven Racks in Oven Cavity.

C. Reinstall The Door(s) (See Fig. 1)

1. Slide door hinge arms until firmly seated.

2. Lower door to full open position.

3. Push finger tabs to back. Depress the tabs and slide forward.

4. Close and reopen door slowly to make sure it has been

replaced properly.

5. Repeat steps 1 through 4 for other door on double oven.

DOOR ADJUSTMENT CHECK

NEWSPAPER STRIPS

TOP OF DOOR

NE WSPAPER STRIPS>

8tDTTOM OF DOOR

DOOR IN FULL

OPEN POSITION

Place 2” x 18” strips of newspaper in lo-

cations indicated by illustration. Allow one

end of the paper to extend into the oven

cavity. Pull gently at each piece of paper. If

door is properly adjusted, each piece of

paper will offer firm resistance when pulled.

When door is out of adjustment, slide unit

out far enough to expose hinges on each

side. Loosen screws and move bottom of

door to a proper fit. After completing ad-

rustment tiqhten all screws in hinges.

ADJUST UP OR DOWN>

TO ALIGN DOOR

Specifications Subject to Change Without Notice

FORM 15457 (6-84) \HOBARTI

TROY, OHIO 45374

PRINTED IN U.S.A.
