KitchenAid KGSK901SBL02 Manuale utente

COOKTOP PARTS

For Models: KGSK901SBL02, KGSK901SWH02, KGSK901SSS02

(Black) (White) (Stainless)

4−09 Litho in U.S.A. (amd) (psw) Part No. W10269050 Rev. A

30" Freestanding

GAS OVEN

CONVECTION

COOKTOP PARTS

For Models: KGSK901SBL02, KGSK901SWH02, KGSK901SSS02

(Black) (White) (Stainless)

W10269050

Illus. Part

No. No. DESCRIPTION

1 Literaturre Parts

W10118262

Installation

Instructiions

W10162198

Use & Care Guide

W10221015

Tech Sheet

9757680 Anti−Tip

Instructions

Safe Cooking Tips

9762761 English

W10065852

French

9763467 Guide Easy Set

W102088808

Burner Box

3 9761784 Bracket, Mounting

4 Cooktop

W10175854

Black/Stainless

W10175855

White

5 3196537 Screw

6 3400843 Screw

7 9763445 Bracket, Burner

8 9756821 Support, Wiring

9 Grate, Burner

Right

9761555CB

Coal Black

9761555SD

Satin Cumberland

10 Grate, Burner

Left

9761556CB

Coal Black

9761556SD

Satin Cumberland

11 9759944 Thermostat (60c)

12 Vent, Center

9760225BL

Black

9760225WH

White

13 Cap, Burner

LR,RF (Auxi)

8284669 Coal Black

9761562SD

Satin Cumberland

RR (Rapide)

9761563CB

Coal Black

9761563SD

Satin Cumberland

LF (Turbo)

9761564CB

Coal Black

9761564SD

Satin Cumberland

14 4449809 Screw

15 3196160 Screw

16 9759627 Cover, Cooktop

Rear

17 9763436 Cover, Top Rear

18 Head, Burner

8286181 LR,RF (Auxi)

8286182 RR (Rapide)

9762553 LF (Turbo)

W10109920

Gasket (Tape)

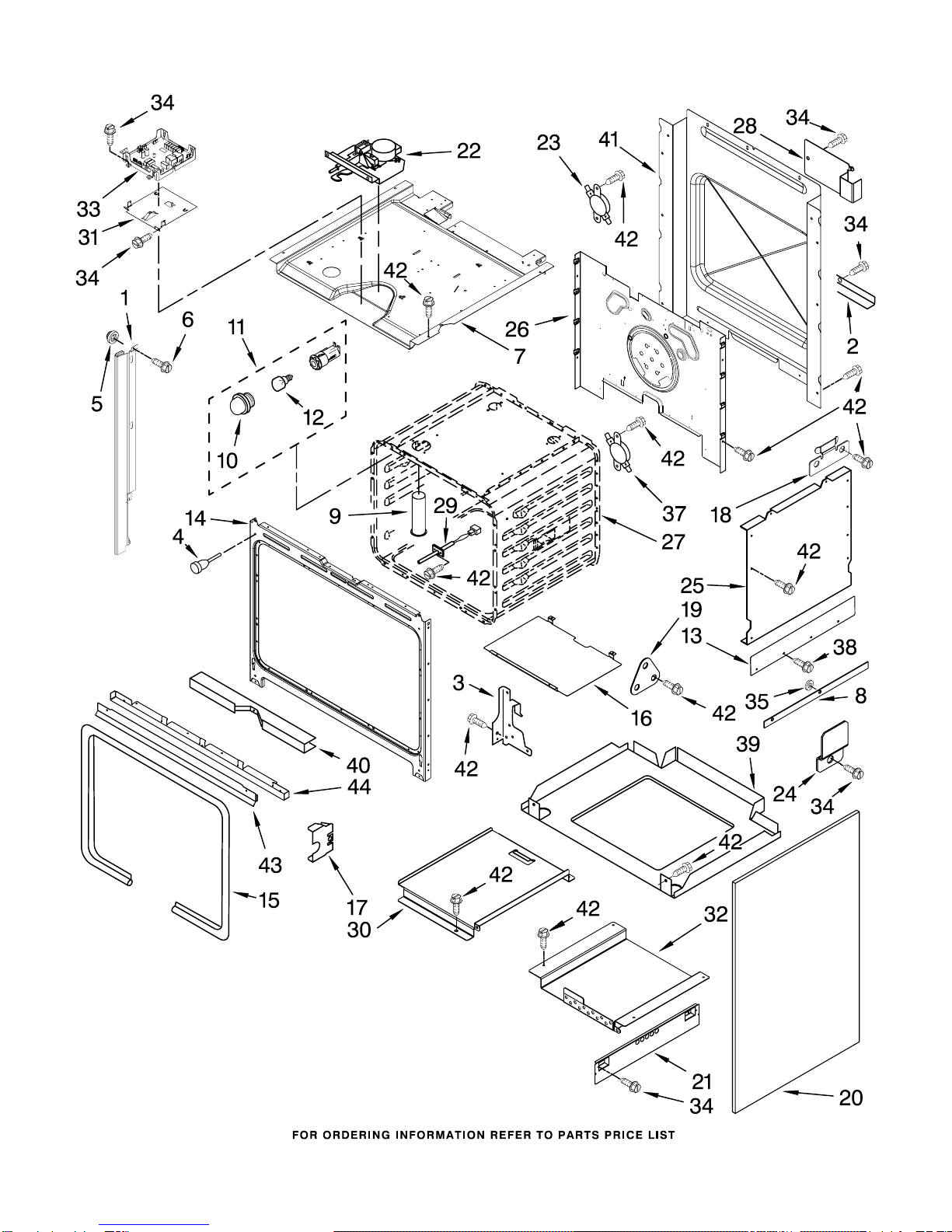

OVEN PARTS

For Models: KGSK901SBL02, KGSK901SWH02, KGSK901SSS02

(Black) (White) (Stainless)

W10269050

OVEN PARTS

For Models: KGSK901SBL02, KGSK901SWH02, KGSK901SSS02

(Black) (White) (Stainless)

W10269050

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Side

Right

W10109540

Black

W10109570

White

W10140548

Stainless

Left

W10109490

Black

W10109520

White

W10140547

Stainless

2 8053971 Brace, Main Back

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door

5 4448444 Grommet

6 3400832 Screw

7 8303099 Top Chassis

8 9759722 Insulation, Body

Side Trim

9 9761666 Tube, Vent

W10067870

Lens, Light

W10009930

Assembly, Oven

Light

12 4452166 Bulb, Light

13 9757732 Shield, Heat

W10115831

Frame, Front

W10074200

Gasket, Door

16 9757070 Plate, Relectance

17 4452152 Bracket, Mounting

18 9757685 Guide, Side Panel

19 9757461 Bracket,Side Panel

20 Oven, Side Panel

9760723PB

Black

9760723PW

White

21 9757811 Brace, Side Panel

W10195934

Latch, Motorized

23 9757807 Thermostat

24 9759890 Clip, Side Panel

25 4455641 Side, Chassis

26 9759762 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 9759945 Standoff, Rear

W10131825

Sensor

30 9756454 Bracket, GOC

31 9760223 Slide, DSI

W10083460

Slide, GOC

33 9762774 Central, Appliance

34 3196537 Screw

35 9760481 Washer, Insulation

Body Side Trim

37 9759242 Thermostat (TOD)

38 4449743 Screw

W10110534

Base, Chassis

40 4448933 Retainer, Gasket

41 9758583 Cover, Back

42 4449809 Screw

43 Vent, Bottom Upper

9756481BL

Black

9756481WH

White

9756481SS

Stainless

44 Trim, Lower Vent

W10153486

Black

W10153488

White

W10154789

Stainless

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

9756817 Insulation, Wrap

W10095410

Insulation, Cover

Back, Top

W10095400

Insulation, Cover

Back, Side

9756470 Insulation, Back

DOOR PARTS

For Models: KGSK901SBL02, KGSK901SWH02, KGSK901SSS02

(Black) (White) (Stainless)

W10269050

DOOR PARTS

For Models: KGSK901SBL02, KGSK901SWH02, KGSK901SSS02

(Black) (White) (Stainless)

W10269050

Illus. Part

No. No. DESCRIPTION

1 9759413 Panel, Door

2 9757706 Glass, Inner

3 4451722 Insulation, Door

4 4457132 Retainer, Glass

5 Hinge, Oven Door

9760579 Right

9760580 Left

6 9759225 Glass, Inner

7 4457114 Shield, Heat

Bottom

8 9759229 Bracket, Glass

Side

9 4457104 Shield, Heat Top

10 9759225 Glass, Inner Door

11 9759230 Bracket, Central

12 Bracket, Handle

9763497 Right

9763496 Left

13 8522415 Seal, Window

14 Assembly, Door

Kit

W10131888

Black

W10131889

White

15 Handle, Door

8303774BL

Black

8303774WH

White

8303774SS

Stainless

16 3196184 Screw

17 4448520 Bumper, Door (3)

18 Badge

8304603BL

Black

8304603WH

White

8304603SS

Stainless

DRAWER PARTS

For Models: KGSK901SBL02, KGSK901SWH02, KGSK901SSS02

(Black) (White) (Stainless)

W10269050

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3400805 Screw

9763501BL

Support, Front

& Rear

3 Brace, Drawer

4453720 Right

4453721 Left

4 9759965 Braket, Base

Side (2)

5 Side, Base

9759953 Right

9759954 Left

W10058460

Foot

7 9759943 Brace, Base Front

8 3196037 Foot Assembly

9 Rail, Storage

9756836 Right

9756838 Left

10 9757806 Drawer

11 Guide, Roller

Includes Roller

9756841 Right

9756842 Left

12 9760592 Panel, Drawer

13 Front, Drawer

W10203760

Black

W10203762

White

W10140545

Stainless

14 Handle, Drawer

9761573BL

Black

9761573WH

White

9761573SS

Stainless

15 3196537 Screw

TOP VENTING PARTS

For Models: KGSK901SBL02, KGSK901SWH02, KGSK901SSS02

(Black) (White) (Stainless)

W10269050

Illus. Part

No. No. DESCRIPTION

W10203758

Front, Air Duct

2 Top, Air Duct

W10068590

Right

W10068600

Left

3 9759320 Blower

4 4451758 Block, Foam

5 9757829 Bracket,

Transformer

W10111628

Transformer

7 3196537 Screw

8 4449040 Screw

9 4449809 Screw

INTERNAL OVEN PARTS

For Models: KGSK901SBL02, KGSK901SWH02, KGSK901SSS02

(Black) (White) (Stainless)

W10269050

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9752980 Shield, Flame

2 9757779 Fitting, Broiler

W10179152

Rack, Oven

4 9760776 Element, Broil

5 4453957 Pan Support, Bake

6 9760229 Electrode, Bake

7 9760228 Burner, Bake Log

8 9752737 Shield, Oven

9 4453984 Shield, Bake Flame

3196176 Screw

10 9763716 Valve, Assemble

11 9756831 Tube, Broil

W10111219

Burner, Broil

13 8054129 Ignitor, Broil

14 4454009 Cover, Ignitor

15 4453920 Pan, Oven Bottom

W10153101

Diverter, Air

17 3196176 Screw

18 4449154 Screw

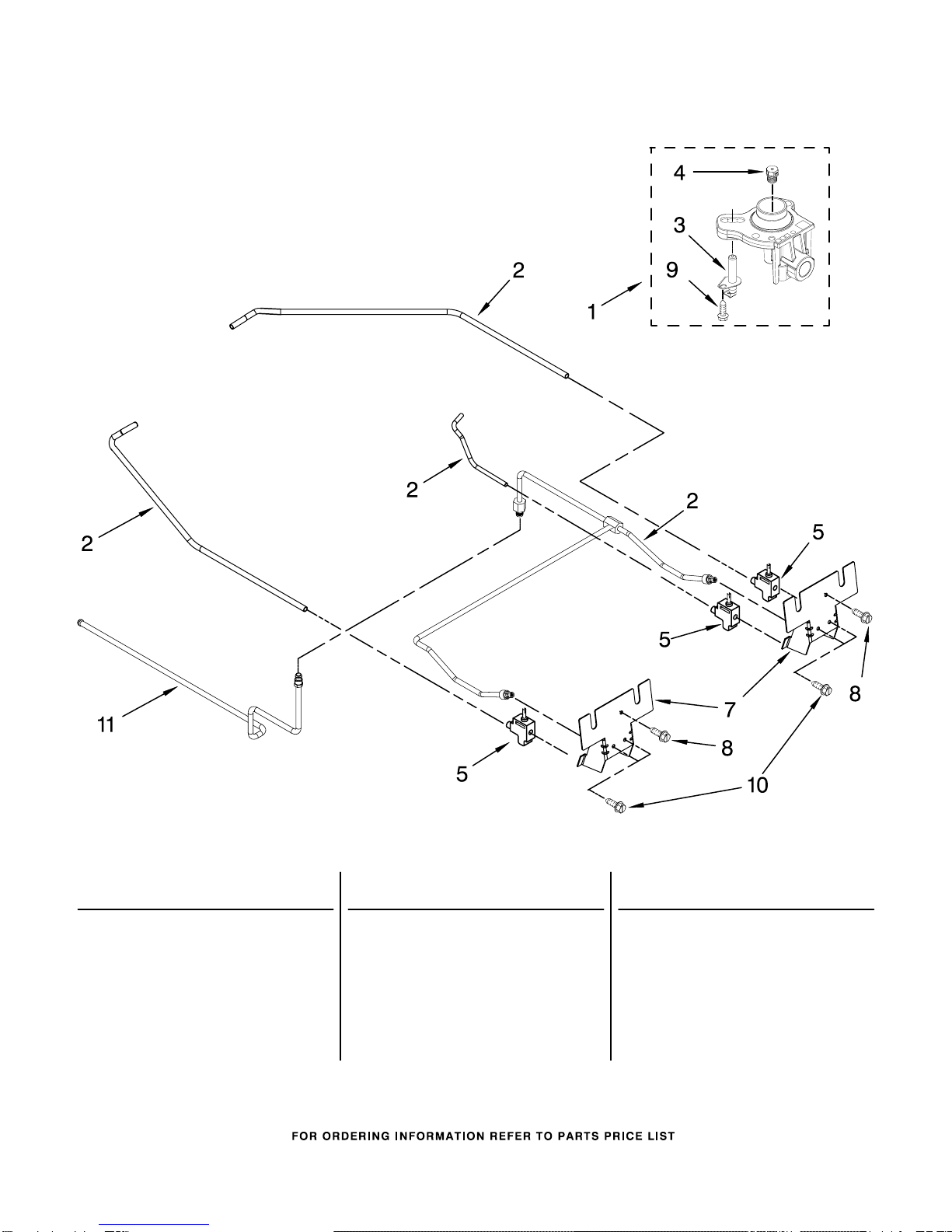

COOKTOP BURNER PARTS

For Models: KGSK901SBL02, KGSK901SWH02, KGSK901SSS02

(Black) (White) (Stainless)

W10269050

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Burner Base

W10128446

LR,RF (Auxi)

W10128455

RR (Rapide)

W10128456

LF (Turbo)

2 Tubing, Burner

9761068 LR (Auxi)

9761561 LF (Turbo)

9761070 RR (Rapide)

9761069 RF (Auxi)

W10110378

Ingiter, Orifice

Orifice, Spud

4 9762937 LR,RF (Auxi)

9762938 RR (Rapide)

9762939 RF (Turbo)

5 Valve, Burner

4456816 LR,RF (Auxi)

4456818 LF (Turbo)

4456817 RR (Rapide)

7 9761642 Manifold, Cooktop

8 3196537 Screw

9 8273062 Screw

10 8523704 Bolt, Valve (4)

11 4453754 Tubing

GDS to Manifold
