UPPER OVEN PARTS

For Model: KEBS276BBL0, KEBS276BWH0

(BLACK) (WHITE)

5−94 Litho in U.S.A.(jcn) Part No. 4174374

SUPERBA

27" BUILT−IN ELECTRIC

DOUBLE OVEN

Self Clean Upper and Lower Oven

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

UPPER OVEN PARTS

OPTIONAL PARTS (NOT INCLUDED)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

For Model: KEBS276BBL0, KEBS276BWH0

(BLACK) (WHITE)

4174374

1 3185085 Button, Plug

2 3177545 Bracket, Mounting

3 3177623 Cabinet, Back

3185647 Screw

6 3178143 Cabinet, Top

3185647 Screw

7 3183748 Top, Module

3185647 Screw

8 Side, Cabinet

3177440 Left Hand

3177438 Right Hand

9 3181699 Tube, Vent

3185648 Screw (3)

10 3150505 Oven Light Assy.

11 3184533 Gasket, Light

12 311255 Bulb, Oven

Light

14 3185861 Frame, Front

15 3179813 Seal, Door

16 3179848 Clip, Oven Seal

17 3177681 Bracket, Switch

18 3177923 Insulator, Switch

19 3177621 Bottom, Module

20 3179220 Rail, Support (2)

3185647 Screw

21 Side Trim,

Door (2)

3187875 Black Model

3187878 White Model

22 3177434 Support, Oven

3185647 Screw

23 3178612 Shield, Radiation

3185647 Screw

24 3177433 Bracket, Hinge

3179795 Screw (6)

3185647 Screw

26 3177560 Back, Module

3185647 Screw

27 3185562 Liner, Oven

28 3178298 Hinge, Door (2)

31 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

33 3179587 Retainer, Seal

34 Vent, Middle Trim

3187883 Black Model

3187885 White Model

3180022 Screw (6)

4168863 Screw (6)

35 3183791 Vent, Tube

39 4168203 Cover, Cap Tube

4159445 Screw

40 4163883 Plate, Cover

41 3183752 Bracket, Mounting

Control Panel

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

3185551 Insulation, Wrap

3177872 Insulation, Back

SPLICING WIRES−−25FT.

LENGTH

18 Ga. 80 c Rating

350806 Yellow

16 Ga. 80 c Rating

242829 Blue

14 Ga. 150 c Rating

242820 Black

242821 Blue

242822 Brown

242823 Green

242824 Orange

242825 Red

242826 White

242827 Yellow

14 Ga. 200 c Rating

242830 Brown

242831 Red

242832 Yellow

12 Ga. 150 c Rating

242828 Black

242829 Red

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

72110 Harvest Gold

72112 Toast

72113 Platinum

72032 Black

261869 Citrine White

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350956 Almond

261890 Harvest Gold

285365 Toast

285366 Platinum

830864 Black

350942 Primer

350941 Leveler (Primer)

PAINT, BULK (1 qt.)

799344 White

978883 Almond

261891 Harvest Gold

285367 Toast

285368 Platinum

ADHESIVE

482338 Sealer, Silastic

(3 Oz.)

591014 Adhesive, Loctite

(1/3 Oz.)

ACCESSORY PARTS

799832 Kit, Porcelain

Repair (White)

832985 Rack, Cooking

(Bi−Level)

LOWER OVEN PARTS

For Model: KEBS276BBL0, KEBS276BWH0

(BLACK) (WHITE)

4174374

Illus. Part

No. No. DESCRIPTION

LOWER OVEN PARTS

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

For Model: KEBS276BBL0, KEBS276BWH0

(BLACK) (WHITE)

4174374

3 3183748 Top, Module

3185647 Screw

4 3181699 Tube, Vent

3185648 Screw (3)

5 3185562 Liner, Oven

7 311255 Bulb, Oven Light

8 3184533 Gasket, Light

9 3150505 Oven Light Assy.

12 3188161 Frame, Front

13 3179813 Seal, Door

14 3177681 Bracket, Switch

3177991 Screw (2)

15 3177923 Insulator, Switch

16 3177551 Bottom, Oven

17 3179220 Rail, Support (2)

3185647 Screw

18 3177433 Bracket Hinge (2)

3179795 Screw (6)

3185647 Screw

19 3177621 Bottom, Module

20 3178612 Shield, Radiation

3179795 Screw (6)

3185647 Screw

21 3177434 Support, Oven

3185647 Screw

22 3177560 Back, Module

3185647 Screw

24 3179848 Clip, Seal (3)

25 3178298 Hinge, Door (2)

26 3182814 Button, Plug

27 3185085 Button, Plug

28 3182159 Tube, Vent (Male)

3185647 Screw

29 3182160 Tube, Vent (Female)

30 4173553 Switch, Door

4159117 Nut (2)

313489 Screw (2)

32 3179587 Retainer, Seal

33 4168203 Cover, Cap Tube

34 Trim, Lower Vent

3177783 Black Model

3187957 White Model

35 4163883 Plate, Cover

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

3185551 Insulation, Wrap

3177872 Insulation, Back

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

CONTROL PANEL PARTS

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

For Model: KEBS276BBL0, KEBS276BWH0

(BLACK) (WHITE)

4174374

1 Membrane, Switch

3181779 Black Model

3184778 White Model

2 3181889 Bracket, Mounting

Switch Membrane

3 3181706 Microcomputer

4 3183705 Retainer, Bracket

3182939 Screw

5 3182985 Clip, Retainer

6 3182162 Trim, Door (2)

7 Door, Latch Handle

3182151 Black Model

3182154 White Model

3179847 Screw

8 3183702 Trim, Panel

3185647 Screw

9 3184321 Bracket

3182939 Screw

10 Frame, Control

Panel

3187954 Black Model

3187955 White Model

11 3184567 Clip, Control

Frame

FOLLOWING PARTS

NOT ILLUSTRATED

LITERATURE PARTS

LIT3185963 Tech Sheet

LIT3183659 Installation

Instructions

LIT3188200 Use & Care Guide

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

UPPER AND LOWER OVEN DOOR PARTS

For Model: KEBS276BBL0, KEBS276BWH0

(BLACK) (WHITE)

4174374

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3185497 Liner, Door

3178001 Screw

2 3185462 Gasket, Window

3 3185457 Glass−Clear

4 3185460 Insulation, Door

5 3185437 Insulation

Retainer

4168863 Screw

7 3185458 Glass, Reflective

8 3185438 Plate, Latch

Strike

9 3185439 Retainer, Glass

3185647 Screw

10 3185459 Glass−Clear

11 Frame, Door

3187850 Black Model

3187852 White Model

12 Glass, Door

3187863 Black Model

3187865 White Model

13 Handle, Door

3185986 Black Model

3185987 White Model

14 3182138 Spacer, Door

Handle

15 3188599 Bushing, Door

Handle

3181637 Screw

342043 Screw

16 3188633 Foil−Adhesive

Backed

17 3188635 Foil−Adhesive

LATCH AND VENT PARTS

For Model: KEBS276BBL0, KEBS276BWH0

(BLACK) (WHITE)

4174374

LATCH AND VENT PARTS

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

For Model: KEBS276BBL0, KEBS276BWH0

(BLACK) (WHITE)

4174374

1 3183748 Module, Top

2 258076 Block, Terminal

308043 Screw

3 3183784 Switch, Latch

254225 Screw

4 3178668 Switch, Latch

98106 Screw

254225 Screw

5 3178185 Insulator, Switch

6 3177662 Guard, Latch

7 Handle, Latch

3177969 Upper Oven

3184037 Screw (2)

3181963 Lower Oven

3185414 Screw (2)

3179116 Screw

8 3184039 Knob, Latch Handle

3183294 Screw

9 3184040 Spacer, Latch

Handle

3184037 Screw

10 3178410 Latch Mechanism

11 3177496 Plate, Mounting

3177991 Screw

12 3185455 Baffle

311773 Screw

13 3183954 Nozzle, Vent

Bottom

14 3183955 Nozzle, Vent Top

15 3183999 Box, Vent

4173231 Screw

3179116 Screw

16 3183964 End, Vent Box

17 3183533 Bracket, Mounting

3177991 Screw

18 3183720 Blower, Fan

19 3183791 Tube, Vent

3185647 Screw

20 3149650 SPST Thermostat

3185647 Screw

21 3183785 Shield, Heat

3177991 Screw

22 3183953 Box, Vent

23 3183965 End, Box Vent

3185647 Screw

24 3183793 Tube, Vent

3185647 Screw

25 3183532 Clamp, Tube

3185647 Screw

26 313755 Seal, Foam

27 4159035 Bushing

Illus. Part

No. No. DESCRIPTION

UNIT PARTS

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

For Model: KEBS276BBL0, KEBS276BWH0

(BLACK) (WHITE)

4174374

1 3185562 Liner, Oven

2 661415 Element, Broil

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

5 3185307 Rack, Offset

6 3185308 Rack, Oven

7 661416 Element, Bake

3185648 Screw (2)

8 4167277 Nut, Meat Probe

9 4163975 Gasket, Meat Probe

10 4167266 Probe Cover

11 4159557 Washer

12 3179672 Spacer, Tubing

13 3150107 Meat Probe Jack

14 3150144 Meat Probe

15 313570 Clip, Tubing

19 3180694 Bracket, Element

3185648 Screw (4)

20 3148440 Sensor, Heat

3185648 Screw

21 3149652 SPST Thermostat

3185647 Screw

Illus. Part

No. No. DESCRIPTION

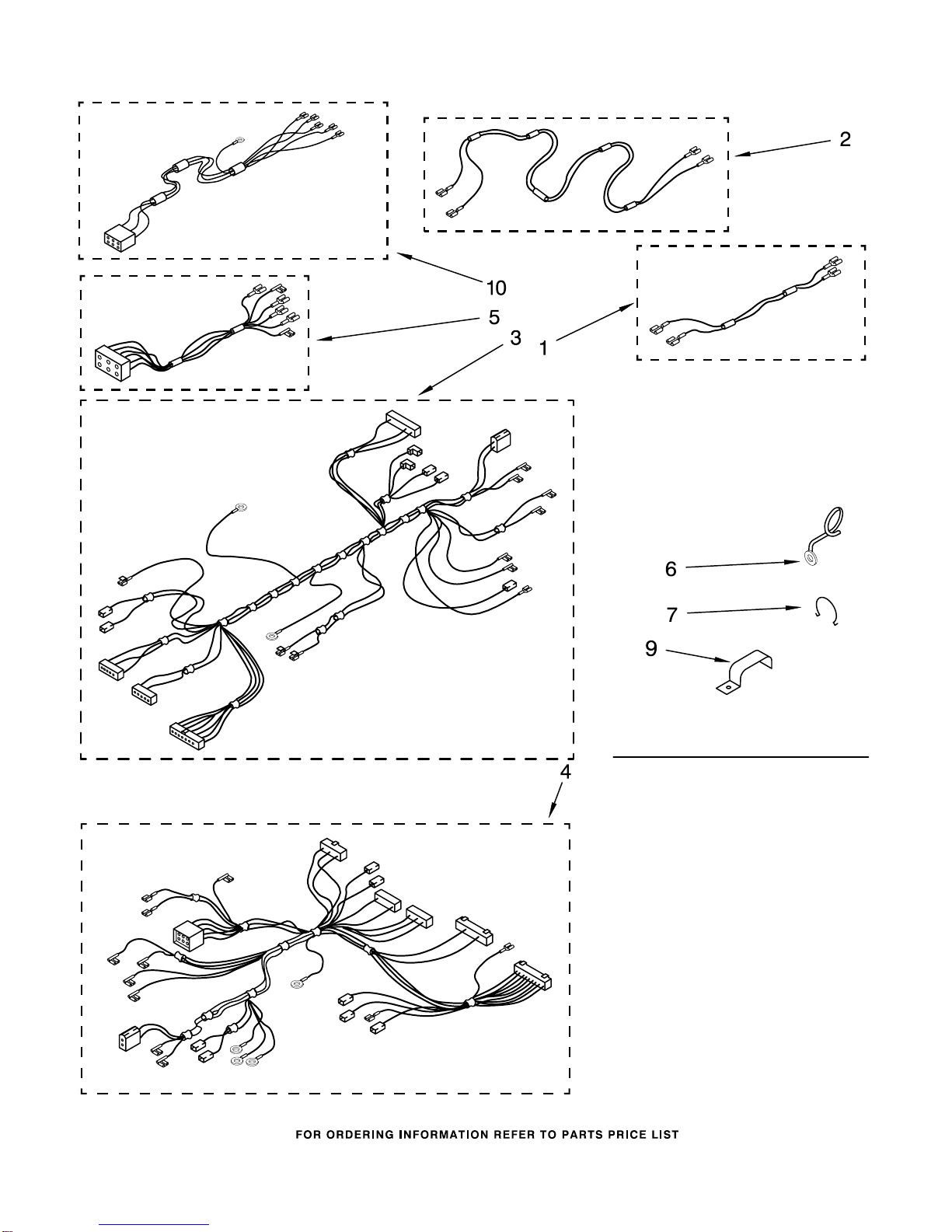

WIRING HARNESS PARTS

For Model: KEBS276BBL0, KEBS276BWH0

(BLACK) (WHITE)

4174374

1 3187607 Harness Wire

(Door Switch

Upper)

2 3183656 Harness Wire

(Door Switch

Lower)

3 3185950 Harness Wire

(Lower Oven)

4 3185965 Harness Wire

(Upper Oven)

5 3185952 Harness, Wire

Latch Assy.

(Upper)

6 3179668 Standoff, Wire

3185647 Screw

7 313438 Clip, Harness

9 4159037 Clamp, Wire

10 3183361 Harness, Wire

Latch Assy.

(Lower)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali KitchenAid Forno

KitchenAid

KitchenAid KEBC167MSS - Architect Series 36'' Single Electric Wall... Manuale utente

KitchenAid

KitchenAid KEBI100 Manuale utente

KitchenAid

KitchenAid KEBC247KBL - Architect Series: 24'' Double Electric Wall... Manuale utente

KitchenAid

KitchenAid KEBI101D Manuale utente

KitchenAid

KitchenAid SUPERBA KEBS276WBL0 Manuale utente

KitchenAid

KitchenAid KEB276 Manuale utente

KitchenAid

KitchenAid SUPERBA KEBS277XBL0 Manuale utente

KitchenAid

KitchenAid Oven Manuale utente

KitchenAid

KitchenAid KEMC377KBL05 Manuale utente

KitchenAid

KitchenAid OVEN KEB246B Manuale utente

KitchenAid

KitchenAid KEBS107D Manuale utente

KitchenAid

KitchenAid SUPERBA KEBS277WBL3 Manuale utente

KitchenAid

KitchenAid KEBS276X Manuale utente

KitchenAid

KitchenAid KEBS276YBL0 Manuale utente

KitchenAid

KitchenAid KOCE500E Manuale utente

KitchenAid

KitchenAid KEBS107SSS04 Manuale utente

KitchenAid

KitchenAid KEBC147KBL - Architect Series: 24'' Single Electric Wall... Manuale utente

KitchenAid

KitchenAid KEBK171SSS - 27" Single Wall Oven Manuale utente

KitchenAid

KitchenAid Architect Series II KEBU208SSS Manuale utente

KitchenAid

KitchenAid KEBS208SBL02 Manuale utente

KitchenAid

KitchenAid KEBS146W Manuale utente

KitchenAid

KitchenAid KEBU107SSS02 Manuale utente

KitchenAid

KitchenAid YKEBS107 Manuale utente

KitchenAid

KitchenAid KEBK276SBL02 Manuale utente

Manuali Forno popolari di altre marche

Bosch

Bosch HVA531NS0 Manuale utente

Electrolux

Electrolux EOF6P46X Manuale utente

NEFF

NEFF B44S32 5GB Series Manuale utente

Combi

Combi BLODGETT BC142GDS Manuale utente

AEG

AEG COMPETENCE 311704300 Manuale utente

Falcon

Falcon DOMINATOR PLUS G3106 Series Guida utente

Rational

Rational SCC WE 61G Manuale utente

Smeg

Smeg DOSPA38X Manuale di installazione e funzionamento

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuale utente

Miele

Miele HR 1954-2 Manuale utente

KHIND

KHIND OT50 Manuale utente

Henny Penny

Henny Penny Smoker Box Manuale utente

Lang

Lang ECOD-AP Manuale utente

AEG

AEG BEK455310M Manuale utente

Frigidaire

Frigidaire FNGE90JGR Manuale utente

Hotpoint

Hotpoint FE9 S831 JSH IX Manuale utente

GE Advantium SCB2000 Manuale utente

AEG

AEG DE401301DM Manuale utente
