KitchenAid KDRP767RSS01 Manuale utente

OVEN PARTS

For Model: KDRP767RSS01

(Stainless Steel)

05−07 Litho in U.S.A. (cre) Part No. 8186472

36" KITCHENAID

FREE STANDING RANGE

DUAL FUEL STEAM

OVEN PARTS

For Model: KDRP767RSS01

(Stainless Steel)

8186472

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9758978 Installation

Instructions

9763071 Use & Care Guide

9758979 Tech Sheet

9759441 Conversion

Instructions

3191638 Safer Cooking Tips

9759133 Safer Cooking Tips

9762575 Cook Book

2 4449809 Screw, 8−18 x 3/8

3 4449743 Screw, 8−32 X 3/8

4 9758595 Retainer, Gasket

5 9761101 Pump, Drain (120v)

(Includes Clamps)

6 4450118 Nut,(U−Type Clip)

7 9761161 Top, Chassis

8 4448520 Bumper, Door

9 4452158 Tube, Vent

10 4452163 Lens, Light

11 4448972 Oven Light Assy

4449748 Screw

12 4452164 Bulb, Light

13 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

14 9762238 Frame, Front

15 8300142 Gasket, Door

16 4452152 Bracket, Mounting

17 4452260 Spacer, Foam

18 9758598 Boiler

19 8300184 Support, Insulation

20 9761145 Reservoir

(Includes Clamps)

21 4455510 Bracket, Support

22 9762243 Gasket, Sensor

23 9761107 Sensor, Level

24 9760889 Latch, Motorized

25 4455641 Side, Chassis

26 9761160 Back, Chassis

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

30 4449154 Screw, 8−32 x .440

31 4449040 Screw, 8−18 x 3/8

32 3196176 Screw (2)

33 9758597 Orifice, Boiler

34 9758596 Cover, Orifice

Boiler

35 9762138 Hose, (Blue)

(Pump to Outlet)

36 9762139 Hose (Gray)

(Boiler to Pump)

37 4450249 Thermostat (TOD)

(150c) SPST

38 9761154 Hose (Green)

(Boil’r to Resv’r)

39 9761147 Clamp

40 9761146 Clamp

41 9762844 Screw

43 8300965 Base, Chassis

50 9758583 Cover, Back

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

8300158 Insulation, Wrap

8300159 Insulation, Back

OVEN DOOR PARTS

For Model: KDRP767RSS01

(Stainless Steel)

8186472

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8300152 Door Liner

2 Hinge, Door

9760579 R.Side

9760580 L.Side

3 4449259 Glass, Inner

4 8300797 Insulation, Door

5 8300190 Retainer, Glass

7 4449263 Glass, Inner

8 4449743 Screw, 8−32 x 3/8

9 9759634 Retainer, Glass

11 9759635 Spacer, Glass

12 8300162 Assy, Door Glass

13 4455852 Door Handle

14 Bracket, Handle

4455803 Right Hand

4455804 Left Hand

15 8302092 Bracket(2nd Glass)

16 3400832 Screw, 8−18 x 3/8

18 8301084 Shield, Top Heat

(Addition) (2)

19 8300971 Shield, Top Heat

20 4449809 Screw, 8−18 x 3/8

21 8300153 Seal, Door Top

22 9762144 Heat Shield (Btm)

24 3196184 Screw, 8−32 x .548

25 8302094 Bracket(3rd Glass)

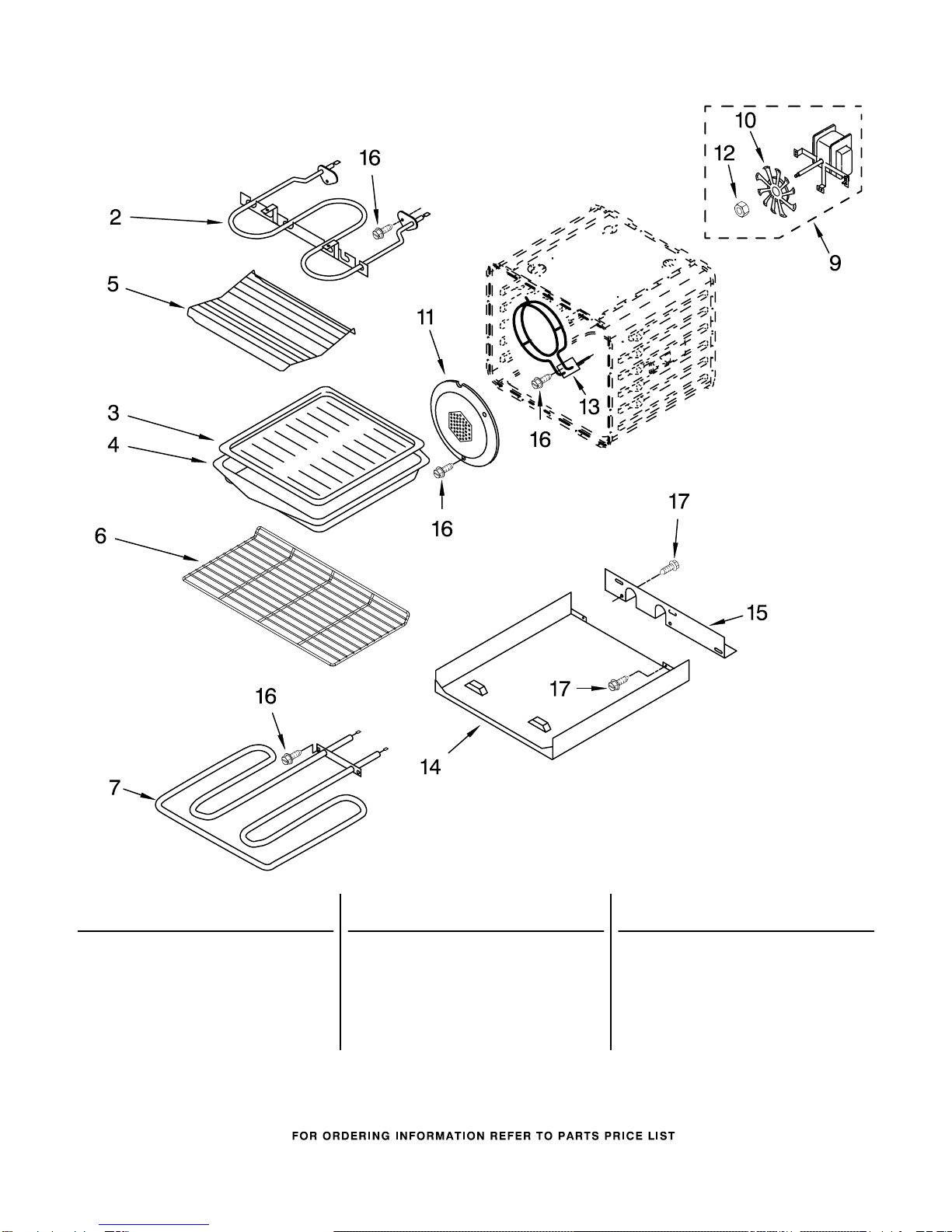

INTERNAL OVEN PARTS

For Model: KDRP767RSS01

(Stainless Steel)

8186472

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 4456105 Element, Broil

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

5 3181534 Rack, Roasting

6 9759437 Rack, Oven

7 8300204 Element, Hidden

Bake

9 4451583 Motor, Convection

10 4452226 Blade, Fan

11 4448418 Cover, Fan

12 4452227 Nut

13 9762242 Element,

Convection

14 8300799 Tray, Hidden

Bake

15 8300800 Cover, Access

16 4449154 Screw, 8−32 x .440

17 4449809 Screw, 8−18 x 3/8

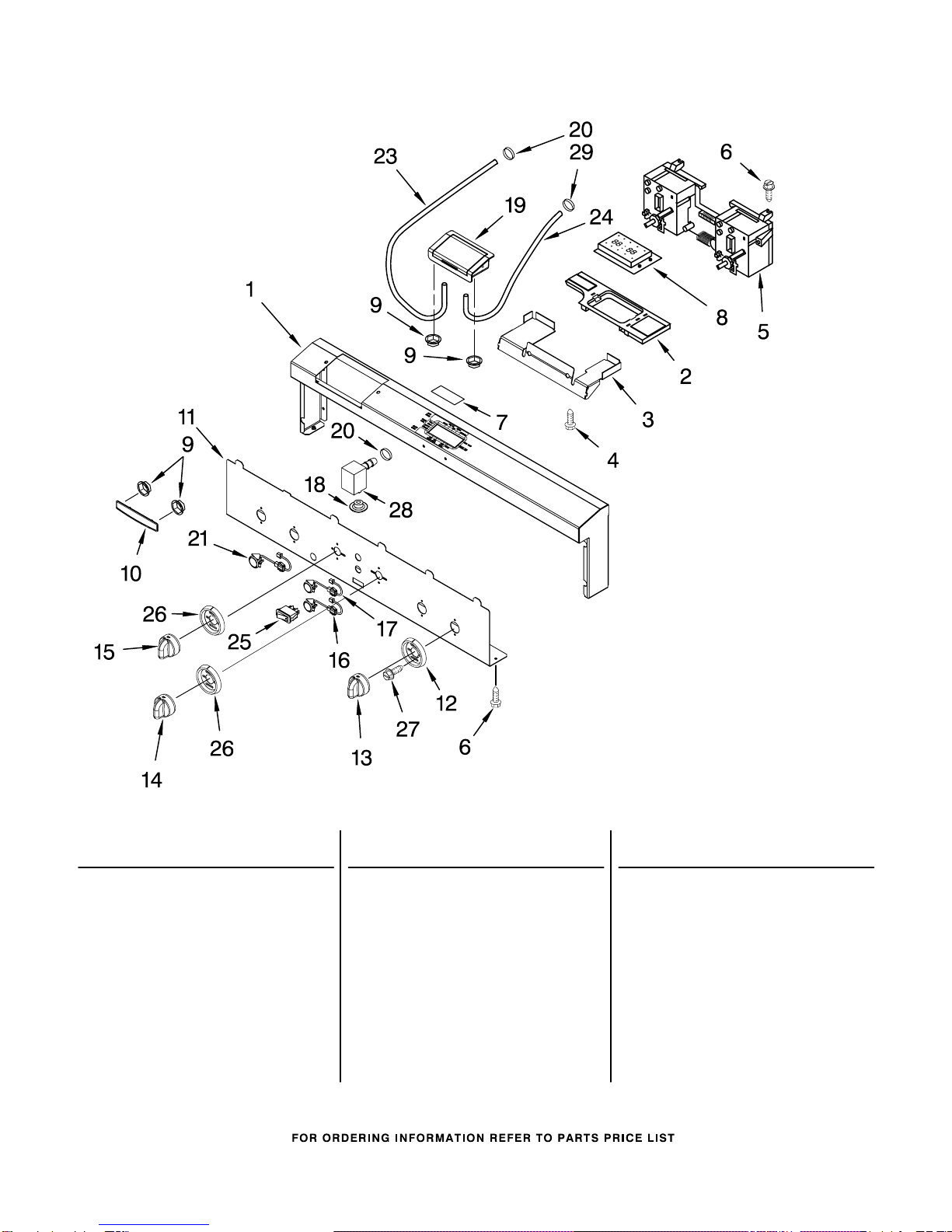

CONTROL PANEL PARTS

For Model: KDRP767RSS01

(Stainless Steel)

8186472

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9758958 Panel, Control

(Inc.Nuts,Clamps)

2 4453000 Bracket, Display

3 9758961 Bracket, Display

Mounting

4 3196537 Screw, 8−18 x 3/8

5 9761103 Control, Zodiac

6 3196184 Screw, 6−19 x 1

7 4455806 Glass,

Control Panel

8 9758960 Module, Display

9 2004333 Palnut

10 2005292 Nameplate

11 9758968 Face, Control

Panel

12 4455192 Bezel, Knob

13 4454970 Knob, Control

14 4455115 Knob, Temp/Time

15 9758966 Knob, Selector

16 4457218 Switch, Cancel

4457278 Jumper

17 4452997 Switch, Enter

18 9758974 Button, Drain

19 9761600 Water, Inlet

(Inc.Nuts,Clamps)

20 9761146 Clamp

21 4457218 Switch, Cancel

(Drain Pump)

23 9761149 Hose(Red)W/Clamps

(Inlet to Resrv’r)

24 9761151 Hose(Clear)W/Clmps

(Inlet to Valve)

25 4452842 Switch, Oven Light

26 4457152 Bezel, Temp Knob

27 3196178 Screw

28 9762136 Fitting, Drain

(Includes Clamp)

29 9762671 Clamp

TOP VENTING PARTS

For Model: KDRP767RSS01

(Stainless Steel)

8186472

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9758955 Vent, Exhaust

2 9758954 Vent−Top

3 9759837 Blower 60MM

4 9758953 Vent−Bottom

5 4452104 Transformer, Light

6 8300642 Transformer,

Control

7 4449809 Screw, 8−18 x 3/8

8 9758956 Bracket, Blower

9 9758999 Fuse−Thermo

105c 15a/120vac

11 4449868 Block, Terminal

14 4452442 Side, Control Top

24 9761156 Control, Taurus

(Appliance Mngr)

25 8302143 Suppressor

26 9758985 Control, Steam

27 4450800 Screw, 8−32 x 3/8

COOKTOP PARTS

For Model: KDRP767RSS01

(Stainless Steel)

8186472

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9760871 Cooktop

2 Burner Head

4455849 Turbi (4)

4455979 Auxi (6K) (2)

3 3368921 Screw, 7−18 x 3/4

4 Cap, Burner

4455243 14k (4)

8284669 6K (2)

5 Orifice Holder

4456622 Turbi (4)

4456920 Auxi (2)

(Incl.Orifice &

Ignitor)

6 3177991 Screw, 8−18 x 1/4

7 4457331 Grate, Burner (3)

9 4454962 Trim, Island

10 9762603 Support,

Backsplash

11 9762605 Trim, Backsplash

12 3400837 Screw, 8−18 x 3/8

13 9782116 Ignitor

14 4449743 Screw

15 4455109 Plate, Simmer

BURNER BOX AND MANIFOLD PARTS

For Model: KDRP767RSS01

(Stainless Steel)

8186472

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8300231 Tubing, Gas

Burner − RF

2 8300230 Tubing, Gas

Burner − RR

3 8300187 Tubing, Gas

Burner − LF

4 8300188 Tubing, Gas

Burner − LR

5 8300229 Tubing, Gas

Burner − CF

6 3400843 Screw, 8−18 x 3/8

7 4457248 Manifold

8 Valve, Burner

4456818 Turbi (4)

(Bronze)

4456816 Small (2)

(Red)

9 8523704 Bolt,Gas Valve (6)

10 4456903 Burner Switch &

Harness Assembly

11 9759091 Pressure Regulator

12 9762135 Box, Burner

13 3192439 Seal, Switch

14 4449809 Screw, 8−18 x 3/8

15 Side, Burner Box

8285607 Right Side

8285606 Left Side

16 9759140 Support, Rear

17 9758987 Support, Cooktop

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 9758964 Bracket, Valve

21 8301252 Tube, Manifold

22 9762133 Cover, Manifold

23 Adaptr,Compression

4453116 1/2" Male

4453115 1/2" Female

24 8284964 Cover, Burner

Box

25 8522427 Module, Spark

26 9761102 Valve, Overflow

27 3196184 Screw, 8−32

28 9761150 Hose (White)

(Valve to Resrv’r)

29 9761147 Clamp

30 3191387 Seal, Switch

31 4453191 Seal, Panel

32 4167077 Nut (2)

33 8300216 Bracket,

Panel Support

34 8284796 Plug, Manifold

35 8300232 Tubing, Gas

Burner − CR

36 4454974 Rail, Support

CHASSIS PARTS

For Model: KDRP767RSS01

(Stainless Steel)

8186472

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4452803 Vent, Bottom

Lower

2 4449809 Screw, 8−18 x 3/8

5 4452801 Deflector, Center

6 9761914 Vent, Center

7 4453327 Gasket

8 3196537 Screw, 8−18 x 3/8

9 9759092 Bracket, Mounting

Regulator

10 9759117 Foot

11 3400518 Screw,

5/16−12 x 5/8

12 4455644 Gusset

13 4455648 Support, Channel

W10015720

Brace, Rear

15 Trim, Front

4452804 Right Side

4453205 Left Side

16 3400837 Screw, 8−18 x 3/8

17 Side Chassis

9761934 Right Side

9761933 Left Side

18 9759118 Plate

19 9762143 Tray, Drip

OPTIONAL PARTS

For Model: KDRP767RSS01

(Stainless Steel)

8186472

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

4453192 Seal, Ribbon

Cable

4453191 Seal, Access

Panel

2261590 Cleaner, S.steel

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

9763620 Harness, Sensor

9758951 Harness, Wire

(Main)

3196896 Clip, Wire

4456628 Harness, Wire

(Ignitor 39")

4456627 Harness, Wire

(Ignitor 28")

9761098 Harness, Signal

9761106 Wire, Jumper

(Oven Light)

9762508 Harness, Wire

(DSI, 36", Steam)

3191506 Bushing, Conduit

1129449 Bushing

8301668 Conduit

4449809 Screw

112432 Nut

4450800 Screw, Ground

Miscellaneous

8301282 Conv. Kit (LP)

4453141 Bracket,

Anti−Tip (1")

4453202 Bracket,

Anti−Tip (1 3/4")

Altri manuali per KDRP767RSS01

Altri manuali KitchenAid Allineare

KitchenAid

KitchenAid KDRP487MSS03 Manuale utente

KitchenAid

KitchenAid KGRK806PBT02 Manuale utente

KitchenAid

KitchenAid KEDC205B Manuale utente

KitchenAid

KitchenAid KFGG500ESS Manuale utente

KitchenAid

KitchenAid KDRU707 Manuale utente

KitchenAid

KitchenAid KDRP462L Istruzioni utente

KitchenAid

KitchenAid GAS RANGE Manuale utente

KitchenAid

KitchenAid KFGD500EWH Manuale utente

KitchenAid

KitchenAid KDRP407HSS12 Manuale utente

KitchenAid

KitchenAid KGRK201 Manuale utente

KitchenAid

KitchenAid 30" Freestanding Range Manuale utente

KitchenAid

KitchenAid KFES530ESS Manuale utente

KitchenAid

KitchenAid KDRS483 Manuale utente

KitchenAid

KitchenAid KERS807SBB Manuale utente

KitchenAid

KitchenAid KSEG950ESS Manuale utente

KitchenAid

KitchenAid KDRP467KSS0 Manuale utente

KitchenAid

KitchenAid KSGB900ESS Manuale utente

KitchenAid

KitchenAid KDRU707 Manuale utente

KitchenAid

KitchenAid 9761936 Manuale utente

KitchenAid

KitchenAid YKERI201 Manuale utente

KitchenAid

KitchenAid KSGB900ESS4 Manuale utente

KitchenAid

KitchenAid KGRS807SBT - GAS RANGES Manuale utente

KitchenAid

KitchenAid KERC506 Manuale utente

KitchenAid

KitchenAid KDRP407HSS - 30" Pro-Style Dual-Fuel Range Manuale utente

Manuali Allineare popolari di altre marche

Samsung

Samsung FCQ321HTUW Manuale utente

Kenmore

Kenmore 790.45712 Manuale utente

Wolf

Wolf CHR CHSSR Manuale utente

Smeg

Smeg Built-in Microwave Oven Manuale di istruzioni

Zanussi

Zanussi ZCG054G Manuale utente

Whirlpool

Whirlpool 8575985-W Manuale elenco delle parti

Frigidaire

Frigidaire 316000635 Manuale utente

GE JCSS630 Manuale utente

Samsung

Samsung NX58M9960P series Manuale utente

Hotpoint

Hotpoint RB524R Guida all'installazione

Whirlpool

Whirlpool Roper FGP305KW3 Manuale utente

Amana

Amana ART6610 SERIES Manuale utente

Maytag

Maytag MERH770WB Manuale utente

Fulgor Milano

Fulgor Milano SOFIA Manuale utente

Premier

Premier EF-4358GH Manuale utente

Kenmore

Kenmore 790.9010 Series Manuale utente

Frigidaire

Frigidaire FFEF3012LS Guida utente

Diamond

Diamond G65/2F4T Manuale utente
