KitchenAid KERH507 Manuale utente

PART NO. 9780936 Rev. A

KITCHENAID®

THERMAL-CONVECTION™Electric Ranges

Models: KERC507

KERH507

A Note to You............... 2

Range Safety............. 3-5

Getting to Know

Your Range .................. 6

Using and Caring

for Your Cooktop......... 9

Using and Caring

for Your Oven............. 15

Using the Self-

Cleaning Cycle........... 47

If You Need

Assistance or

Service........................ 51

Warranty..................... 56

1-800-422-1230

Call us with questions

or comments.

FOR THE WAY IT’S MADE.TM

Use and Care Guide

Thank you for buying a KITCHENAID®appliance!

KitchenAid designs the best tools for the most important room in your house. To

ensure that you enjoy many years of trouble-free operation, we developed this Use

and Care Guide. It contains valuable information concerning how to operate and

maintain your new appliance properly and safely. Please read it carefully.

Also, please complete and mail the enclosed Product Registration Card.

Please record your model’s information.

Whenever you call our Consumer

Assistance Center at 1-800-422-1230 or

request service for your appliance, you need

to know your complete model number and

serial number. You can find this information

on the model and serial number plate (see

diagram on page 6 for location of plate).

Please also record the purchase

information.

NOTE: You must provide proof of purchase

or installation date for in-warranty service.

Keep this book and the sales slip together in a safe place for future reference.

Model Number __________________________

Serial Number __________________________

Purchase/

Installation Date ________________________

Builder/Dealer

Name _________________________________

Address _______________________________

Phone _________________________________

ANote to You

General

•Read all instructions before using

the range.

•Install or locate the range only

in accordance with the provided

Installation Instructions. The

range must be installed by a

qualified installer. The range must

be properly connected to electri-

cal supply and grounded.

•WARNING: To reduce the risk

of tipping the appliance, the

appliance must be secured by a

properly installed anti-tip bracket.

To check if the bracket is installed

properly, see “The anti-tip bracket”

on page 8.

•CAUTION: Do not store things

children might want above the

range. Children could be burned

or injured while climbing on it.

•Do not leave children alone or

unattended in area where the

range is in use. They should

never be allowed to sit or stand

on any part of the range. They

could be burned or injured.

Your safety is important to us.

This guide contains safety symbols and

statements. Please pay special attention to

these symbols and follow any instructions

given. Here is a brief explanation of the use

of the symbol.

wWARNING To reduce the risk of fire, electrical

shock, injury to persons, or damage

when using the range, follow basic

precautions, including the following:

IMPORTANT SAFETY INSTRUCTIONS

•Do not use the range for warming

or heating the room. Persons could

be burned or injured, or a fire could

start.

•Use the range only for its intended

use as described in this manual.

•Do not touch surface units, areas

near units, heating elements, or

interior surfaces of oven. Surface

units and heating elements may

be hot even though they are dark

in color.

Areas near surface units

and interior surfaces of an oven be-

come hot enough to cause burns.

During and after use, do not touch,

or let clothing or other flammable

materials contact surface units,

areas near units, heating elements,

or interior surfaces of oven until

they have had sufficient time to

cool. Other surfaces of the range,

such as the oven vent opening, the

surface near the vent opening, the

cooktop, and the oven door and

window, could also become hot

enough to cause burns.

Range Safety

continued on next page

This symbol alerts you to

hazards such as fire,

electrical shock, or

other injuries.

•Do not operate the range if it is

damaged or not working properly.

•Do not wear loose or hanging

garments when using the range.

They could ignite if they touch a

hot surface unit and you could

be burned.

•Use only dry pot holders. Moist or

damp pot holders on hot surfaces

could result in burns from steam.

Do not let pot holder touch hot

heating elements. Do not use a

towel or bulky cloth for a pot

holder. It could catch on fire.

•Keep range vents unobstructed.

•Do not heat unopened containers.

They could explode. The hot

contents could cause burns and

container particles could cause

injury.

•Use only cookware approved for

oven use. Follow cookware manu-

facturer’s instructions, especially

when using glass or plastic

cookware.

•Do not store flammable materials

on or near the range. The fumes

could create an explosion and/or

fire hazard.

•Do not repair or replace any part

of the range unless specifically

recommended in this manual. All

other servicing should be referred

to a qualified technician.

•Disconnect the electrical supply

before servicing the range.

When using the cooktop

•Do not cook on a broken ceramic

glass cooktop. If cooktop should

break, cleaning solutions and

spillovers could penetrate the

broken cooktop and create a risk

of electrical shock. Contact a

qualified technician immediately.

•Select a pan with a flat bottom

that is about the same size as the

surface unit. If pan is smaller than

the surface unit, some of the

heating element will be exposed

and could result in the igniting of

clothing or pot holders. Correct

pan size also improves cooking

efficiency.

•Check to be sure glass cookware

is safe for use on the range. Only

certain types of glass, glass-

ceramic, ceramic, earthenware,

or other glazed cookware are

suitable for cooktops without

breaking due to the sudden

change in temperature.

•Never leave surface units un-

attended at high heat settings.

A boilover could result and cause

smoking and greasy spillovers

that could ignite.

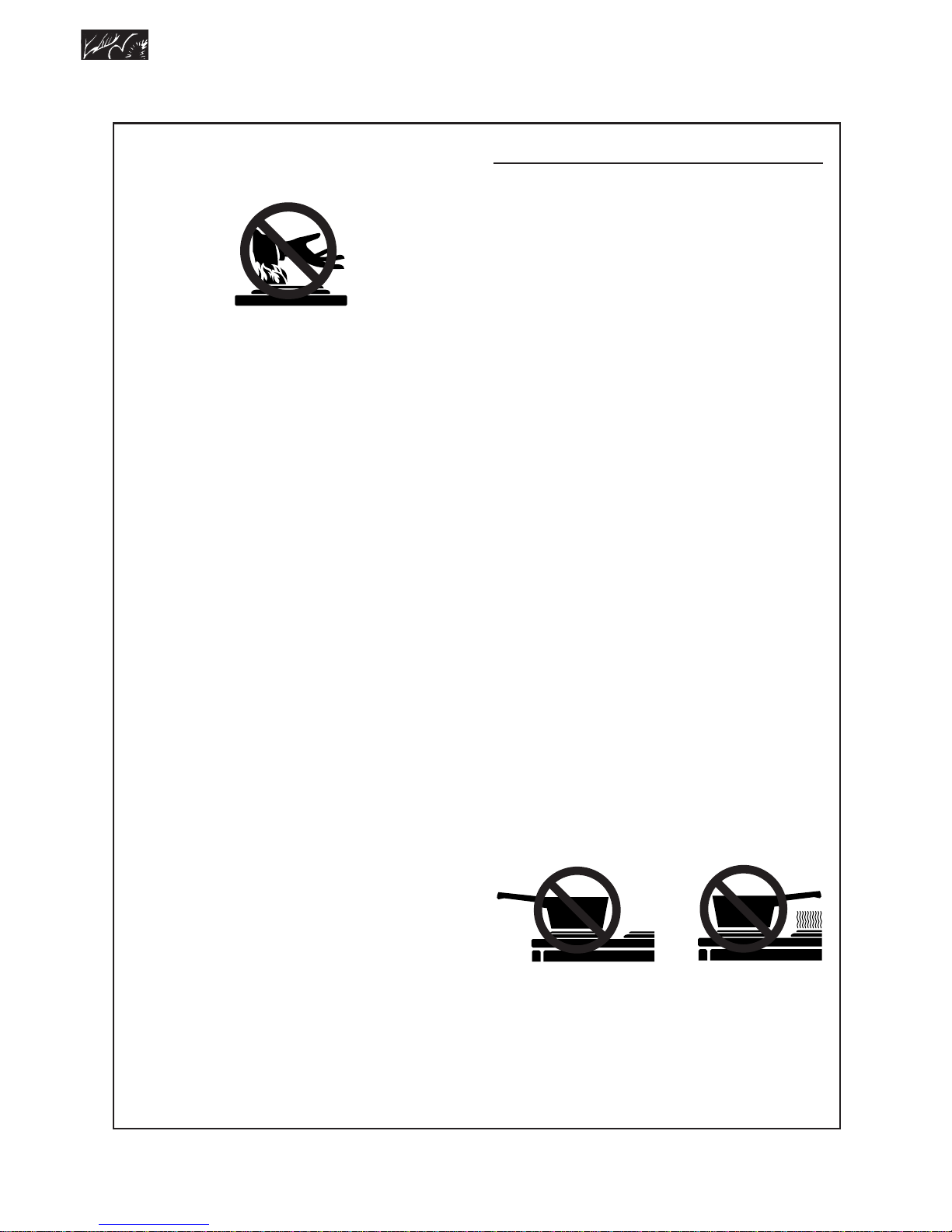

•Turn pan handles inward, but not

over other surface units. This will

help reduce the chance of burns,

igniting of flammable materials,

and spills due to bumping of

the pan.

Range Safety

•Grease is flammable. Do not

allow grease to collect around

cooktop or in vents. Wipe spill-

overs immediately.

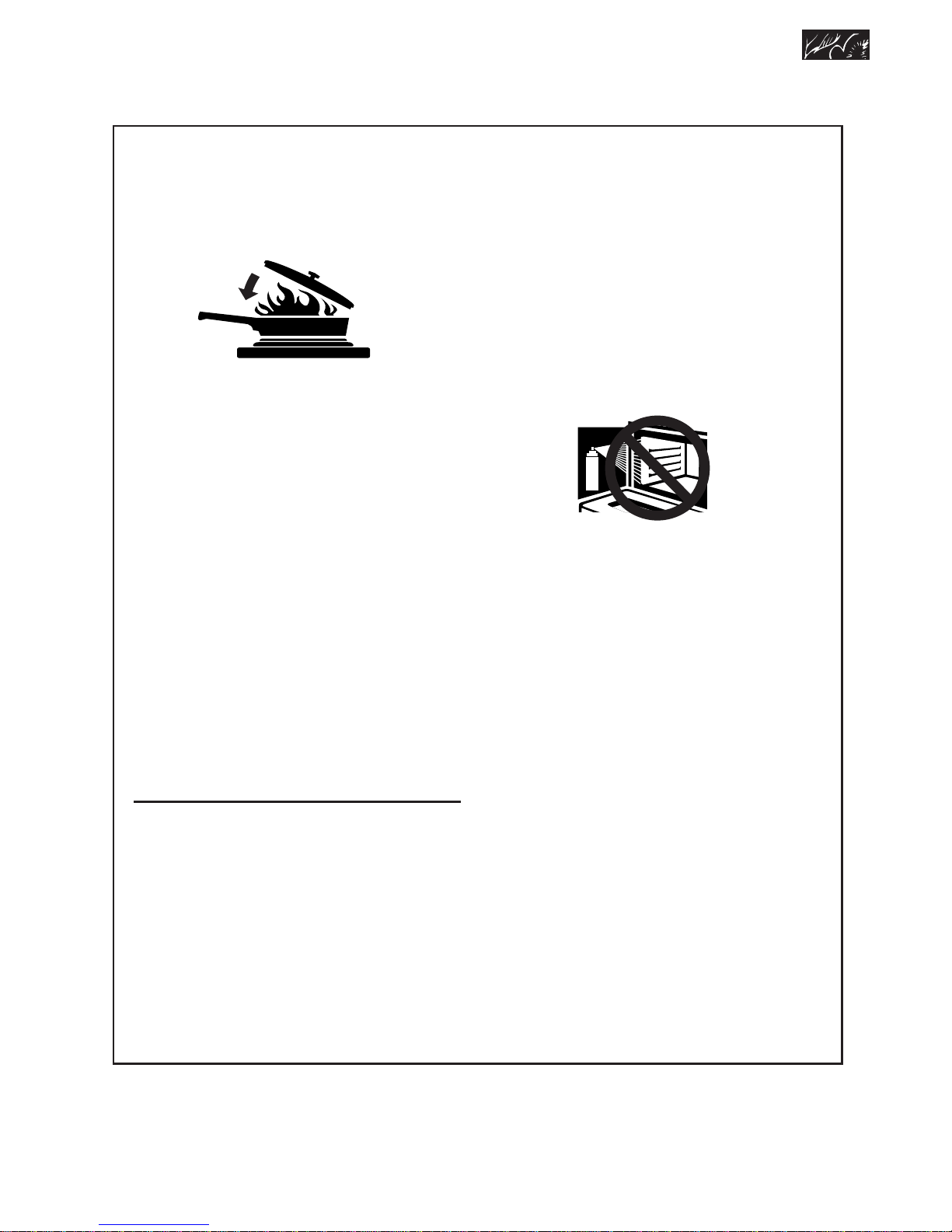

•Do not use water on grease fires.

Never pick up a flaming pan.

Smother flaming pan on range

by covering with a well-fitting lid,

cookie sheet, or flat tray. Flaming

grease outside of pan can be

extinguished with baking soda

or, if available, a multipurpose

dry chemical orfoam-type

extinguisher.

•Clean ceramic glass cooktop

with care. Some cleaners could

produce noxious fumes if applied

to a hot surface. If a wet paper

towel is used to wipe spills on a

hot cooking area, be careful to

avoid steam burns.

When using the oven

•Always position oven rack(s) in

desired location while oven is

cool. If a rack must be removed

while oven is hot, do not let pot

holder contact hot heating ele-

ments in oven.

•Use care when opening oven door.

Let hot air or steam escape before

removing or replacing food.

•Small amounts of formaldehyde

and carbon monoxide are given

off in the Self-Cleaning cycle from

fiberglass insulation and food

decomposition. Significant expo-

sure to these substances could

cause cancer or reproductive

harm. Exposure can be minimized

by venting with a hood or open

window and wiping out excess

food spills prior to self-cleaning.

•Do not use oven cleaners. No

commercial oven cleaner or oven

liner protective coating of any kind

should be used in or around any

part of the oven.

•Before self-cleaning the oven,

remove broiler pan, broiler grid,

oven racks, and other cookware.

Do not use your oven to clean

miscellaneous parts unless you

are instructed to do so in this Use

and Care Guide.

•Do not clean door gasket. It is

essential for a good seal. Care

should be taken not to rub, dam-

age, or move the gasket. Clean

only parts recommended in this

Use and Care Guide.

– SAVE THESE INSTRUCTIONS –

Range Safety

123

456

789

START

CANCEL

ENTER

OFF

•MAXI

•• ECONO

BAKE BROIL CLEAN

BAKE BROIL ROAST

AUTO

SET TEMP

PROBE

CONVECTION

START

TIME CLOCK

SET

STOP

TIME OVEN

LIGHT CANCEL

•MIN

•• HRS

SET

DELAY/TIMED KITCHENTIMERKITCHENTIMER

DELAY

CLEAN

DEHYD

TIMED

LOCKED

ROTIS

START?

MIN

START STOP TIMER

SEC

MIN

CLEAN

ONON

TOPLIGHTTOPLIGHT

FRONT

REAR

FRONT

REAR

Left rear

control knob

Right front

control knob

Electronic

oven control

QuickSet guide

Control panel

Surface unit

Automatic oven

light switch

Broil element

(not shown)

Bake element

Cooktop light

Oven vent

Model and serial

number plate

Anti-tip floor

bracket

Removable

storage drawer

(containing broiler

pan and grid)

Control panel

Cooktop

light switch

Right rear

control knob

Getting to Know Your Range

This section tells you what features your range has and where they are located. It also

discusses some safety and convenience features that you should know about, but

which are not needed to operate the range. Please review this information before using

your range.

Feature locations

Display

Left front

control knob

The oven vent

Hot air and moisture escape from the oven

through a vent on the lower left side of the

backguard. Do not block the vent by using

large pans or covers. Poor baking/roasting

can result.

The storage drawer

You can remove the storage drawer to make

it easier to clean under the range and to

check for installation of the anti-tip bracket.

Use care when handling the drawer.

Removing the storage drawer:

1. Empty drawer of any pots and pans

before removing drawer. Use recessed

area on top edge of drawer to pull drawer

straight out to the first stop. Lift front and

pull out to the second stop.

2. Lift back slightly and slide drawer all the

way out.

wWARNING

Burn Hazard

Use pot holders when touching items

left near oven vent.

Failure to do so can result in burns.

Getting to Know Your Range

Replacing the storage drawer:

1. Fit ends of drawer slide rails into the

drawer guides on both sides of opening.

2. Lift drawer front and press in until metal

stops on drawer slide rails clear white

stops on drawer guides. Lift drawer front

again to clear second stop and slide

drawer closed.

Drawer slide

rail

Oven vent

The anti-tip bracket

The range will not tip during normal use. However, tipping can occur if you apply too much

force or weight to the open door without the anti-tip bracket properly secured.

Getting to Know Your Range

wWARNING

Tip Over Hazard

Connect anti-tip bracket to the range.

Reconnect anti-tip bracket, if the range is moved.

Do not push down on the open oven door.

Follow the Installation Instructions.

Do not let children climb onto the oven door.

Failure to follow these instructions can result in death, burns,

or other injury.

To verify the anti-tip bracket is

engaged:

•Remove the storage drawer. (See page 7.)

•Look to see if the anti-tip bracket is attached

to floor with screws.

•Make sure left rear leveling foot is positioned

under the anti-tip bracket.

•See Installation Instructions for further details.

Rear

leveling

foot

Using and Caring for Your

Cooktop

This section tells you how to operate the controls to the cooktop. It also discusses

how the ceramic glass cooktop works, and includes tips on how to cook with and

maintain the cooktop.

IN THIS SECTION

Using the surface units .......................9

Cookware tips .................................... 11

Using the surface units

Control knobs

Push in control knobs before turning them

to a setting. Set them anywhere between HI

and OFF.

Power on lights

Each control knob has a Power On Light.

When you use a control knob to

turn on a surface unit, the Power

On Light by that knob will glow.

Hot surface indicator lights

The Hot Surface Indicator Lights on the

cooktop surface will glow

when the surface units get

hot. The Indicator Lights will

continue to glow as long as

the surface units are too hot

to touch, even after they are

turned off.

Caring for your cooktop ................... 12

Using and replacing the

cooktop light...................................... 14

HOT CHAUD

(“CHAUD” is

French for

“HOT”)

SETTING RECOMMENDED USE

HI •To start foods cooking.

•To bring liquids to a boil.

6MED HI5•To hold a rapid boil.

•To fry chicken or

pancakes.

MED •For gravy, pudding, and

icing.

•To cook large amounts

of vegetables.

3MED LO2•To keep food cooking

after starting it on a

higher setting.

LO •To keep food warm until

ready to serve.

wWARNING

Fire Hazard

Turn off all controls when done

cooking.

Failure to do so can result in death,

fire, or burns.

Control setting guide

For best results, start cooking at the high

setting; then turn the control knob down to

continue cooking.

FRONT

Using the dual-size surface unit

(some models)

You can use the left front surface unit as

either a small diameter, lower wattage

element or large diameter, full wattage

element.

To use the small element

(for smaller pans):

•Push in and turn the control knob to the

left (counterclockwise) to the desired

setting in the area marked “SINGLE.”

To use both elements

(for larger pans):

•Push in and turn the control knob to the

right (clockwise) to the desired setting in

the area marked “DUAL.”

NOTE: You can turn the control knob in

either direction to reach “OFF.”

The ceramic glass cooktop

Using and Caring for Your Cooktop

Dual element

(some models) Hot surface

indicator

lights

Standard

elements Halogen

elements

(Model

KERH507

only)

Cooking on the ceramic glass cooktop is

almost the same as cooking on coil surface

units. There are, however, a few differences:

•The cooking surface area will glow red

when the element is turned on. You will

see the element cycling on and off – even

on the HI setting – to help the area stay at

the temperature setting you choose.

•Make sure the bottoms of pots and pans

are clean and dry before cooking. Food

and water particles left on the bottoms can

leave deposits on the cooktop when it is

heated.

•Wiping off the cooktop before and after

each use will help keep the surface free

from stains and give you the most even

heating. See pages 12 and 13 for care

and cleaning suggestions.

•Do not cook foods directly on the cooktop.

•Lift pots and pans onto and off of the

cooktop. Sliding pots and pans on the

cooktop could leave marks that are difficult

to remove or could leave permanent marks.

•Do not cook popcorn that comes in

prepackaged aluminum containers on the

cooktop. The container could leave alumi-

num marks on the cooktop that cannot be

removed completely.

•Model KERH507: The surface units on the

right side of the cooktop feature halogen

elements. These elements light up as soon

as you turn them on, and are brighter than

conventional coil elements.

Use both elements

for larger pans

Use small element

for smaller pans

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali KitchenAid Allineare

KitchenAid

KitchenAid KESI901PBL Manuale utente

KitchenAid

KitchenAid ARCHITECT SERIES II Manuale utente

KitchenAid

KitchenAid 8053714 Manuale utente

KitchenAid

KitchenAid 4317266 Guida all'installazione

KitchenAid

KitchenAid KDRP467KSS03 Manuale utente

KitchenAid

KitchenAid YKGRTS07 Manuale utente

KitchenAid

KitchenAid KSDB900ESS Manuale utente

KitchenAid

KitchenAid W10044930B Manuale utente

KitchenAid

KitchenAid Architect II KDRS505XSS Manuale utente

KitchenAid

KitchenAid KDRS407 Manuale utente

KitchenAid

KitchenAid YKFID500ESS Manuale utente

KitchenAid

KitchenAid FOR THE WAY THAT IT'S MADE KEDC205Y Manuale utente

KitchenAid

KitchenAid KGRA806, KGRK806, KGSI901, KGS Manuale utente

KitchenAid

KitchenAid YKSIB900ESS0 Manuale utente

KitchenAid

KitchenAid KDRP407HSS - 30" Pro-Style Dual-Fuel Range Manuale utente

KitchenAid

KitchenAid KGRK201 Manuale utente

KitchenAid

KitchenAid KDRP462L Istruzioni utente

KitchenAid

KitchenAid KDRS407VSS01 Manuale utente

KitchenAid

KitchenAid YKERC608LS0 Manuale utente

KitchenAid

KitchenAid KERS807SBL - 30 Inch Electric Range Manuale utente

KitchenAid

KitchenAid KEDS200Y Manuale utente

KitchenAid

KitchenAid KGRS308XSS Manuale utente

KitchenAid

KitchenAid KFEG500EWH Manuale utente

KitchenAid

KitchenAid YKSDB900ESS Manuale utente

Manuali Allineare popolari di altre marche

Samsung

Samsung FCQ321HTUW Manuale utente

Kenmore

Kenmore 790.45712 Manuale utente

Wolf

Wolf CHR CHSSR Manuale utente

Smeg

Smeg Built-in Microwave Oven Manuale di istruzioni

Zanussi

Zanussi ZCG054G Manuale utente

Whirlpool

Whirlpool 8575985-W Manuale elenco delle parti

Frigidaire

Frigidaire 316000635 Manuale utente

GE JCSS630 Manuale utente

Samsung

Samsung NX58M9960P series Manuale utente

Hotpoint

Hotpoint RB524R Guida all'installazione

Whirlpool

Whirlpool Roper FGP305KW3 Manuale utente

Amana

Amana ART6610 SERIES Manuale utente

Maytag

Maytag MERH770WB Manuale utente

Fulgor Milano

Fulgor Milano SOFIA Manuale utente

Premier

Premier EF-4358GH Manuale utente

Kenmore

Kenmore 790.9010 Series Manuale utente

Frigidaire

Frigidaire FFEF3012LS Guida utente

Diamond

Diamond G65/2F4T Manuale utente
