KitchenAid KGRS205TWH - 30" Gas Range Manuale utente

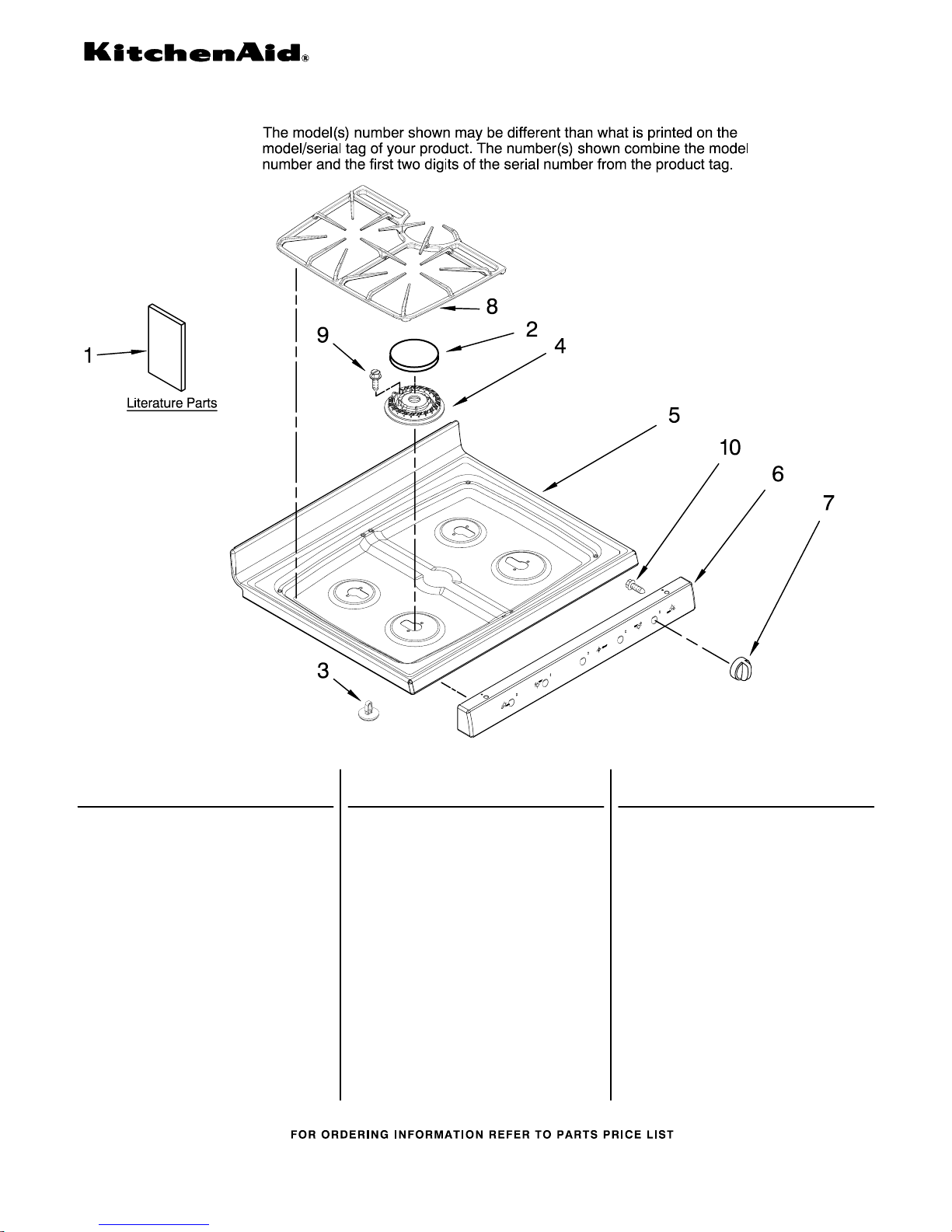

COOKTOP PARTS
1
For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0
(White) (S.Steel) (Black) (Biscuit)
30" GAS FREESTANDING
SELF CLEAN RANGE
SEALED BURNER
CONVECTION
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10188242
Installation
Instructions
W10185364
Owners Manual
W10168001
Wiring Diagram
2 Cap, Burner
(RF)
W10177376
Black
W10177370
Gray
(LF)
W10177375
Black
W10177368
Gray
(RR & LR)
W10168355
Black
W10168351
Gray
(CTR)
W10177366
Gray
W10177373
Black
3 74008761 Spacer, Snap−In
4 Burner
74007411 (CTR)
74007698 (LF)
74009900 (RR & LR)
74007413 (RF)
5 Cooktop
W10182781
Black
W10182784
White
W10160620
Biscuit
6 Panel, Manifold
W10168240
Black
W10168241
White
W10168242
Biscuit
7 Knob, Control (5)
W10160374
Black
W10160372
White
W10160375
S.Steel
W10160373
Biscuit
8 Grate, Burner (2)
W10168266
Black
W10168265
Gray
9
7101P685−60
Screw (8)
10 74001530 Screw
3−10 Litho In U.S.A. (JMJ) (psw) Part No. W10206096 Rev.D

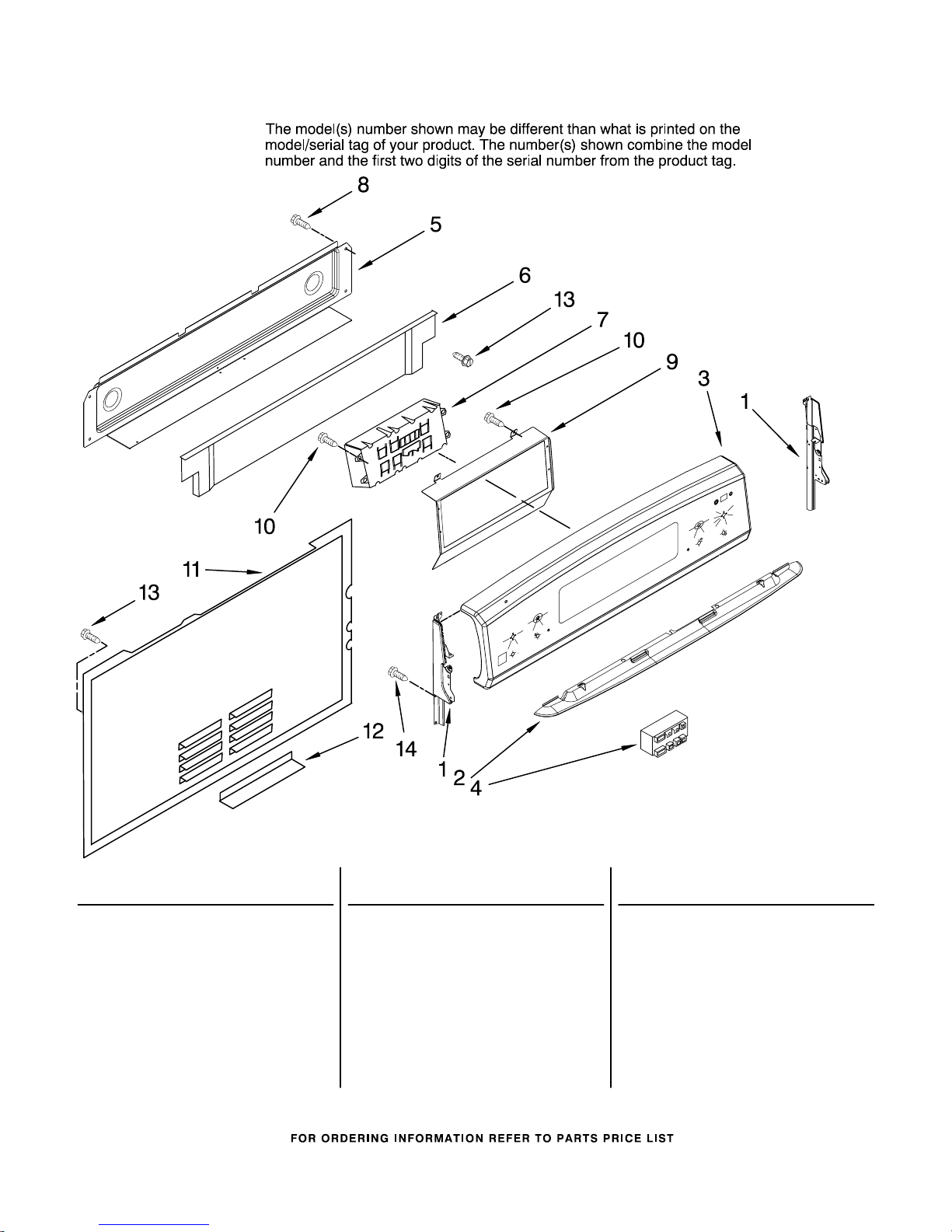

CONTROL PANEL PARTS
2
For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0
(White) (S.Steel) (Black) (Biscuit)
W10206096
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Endcap, Left Hand
74009023 Black
74009079 White
74009080 Biscuit
Endcap, Right Hand
74009022 Black
74009077 White
74009078 Biscuit
2 Heat Shield,Visor
74010577 Black
74010578 White
74010579 Biscuit
3 Panel, Backguard
& Switch Assy
W10218262
Black
W10218265
White
W10218264
S.Steel
W10218263
Biscuit
4 74009098 Module, Spark
5 74010983 Cover, Upper
6 74009444 Shield, Vent
7
W10178396
Control
8 Y700502 Screw
9
3801F945−51
Bracket, Control
10 74003976 Screw
11 74009652 Cover, Main Wire
12 74008867 Bottom, Wire Cover
13 71001394 Screw
14 74002979 Screw

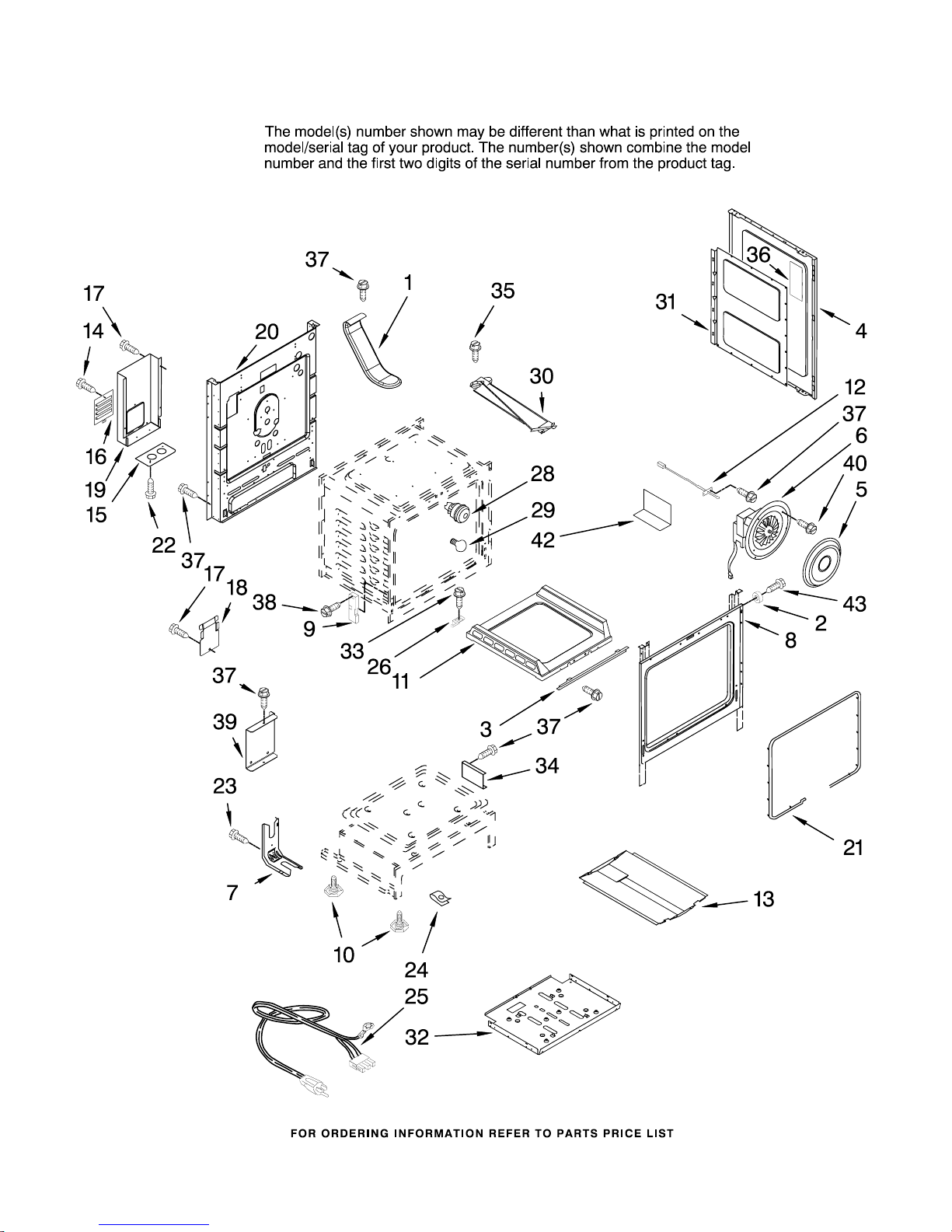

CHASSIS PARTS
3
For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0
(White) (S.Steel) (Black) (Biscuit)
W10206096
CHASSIS PARTS
4
For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0
(White) (S.Steel) (Black) (Biscuit)
W10206096
Illus. Part
No. No. DESCRIPTION
1 74008817 Vent, Oven
2 74008690 Spacer, Side Panel
3
3807P680−45
Support, Oven
Bottom
4 Panel, Side (2)
74008710 Black
74008709 White
74008708 Biscuit
5 74005783 Plate, Convect
6 74009142 Fan, Convect
7 74005564 Bracket, Anti−Tip
8 Frame, Front
(Not Serviced)
9 74010551 Hinge, Receiver
10 74002373 Foot, Leveler (4)
11 74008741 Bottom, Oven
12 74004944 Sensor, Oven
13 74008846 Baffle, Burner
14
7101P338−60
Screw
15
3605F146−51
Plate, Conduit
16 74008340 Panel, Access
17 71001394 Screw (2)
18 74009653 Cover, Broil
19 31955101 Cover, Lower Wire
20 74011911 Back, Main
21
W10162385
Seal, Oven
22
7101P336−60
Screw
23
7101P352−60
Screw
24 74008835 Clip (4)
25 74008876 Cord, Power
26 74008694 Bracket, Oven
Bottom
28 74011278 Light Assembly
29
7407P103−60
Bulb, Oven Light
30
8002P104−60
Latch, Door Lock
31
3804F316−51
Retainer,
Insulation
32
3604P409−51
Shield, Heat
33 74003976 Screw (2)
34 74011187 Bracket, Oven
35 74003975 Screw
36
7002P494−60
Insulation
37 74002979 Screw
38
7101P282−60
Screw (4)
39
3801P798−51
Bracket, Oven
Support
40 74005401 Screw
42 74008704 Insulator, Shield
43 74008798 Screw
INSULATION
74008700 Insulation, Wrap
7002P492−60
Insulation, Back

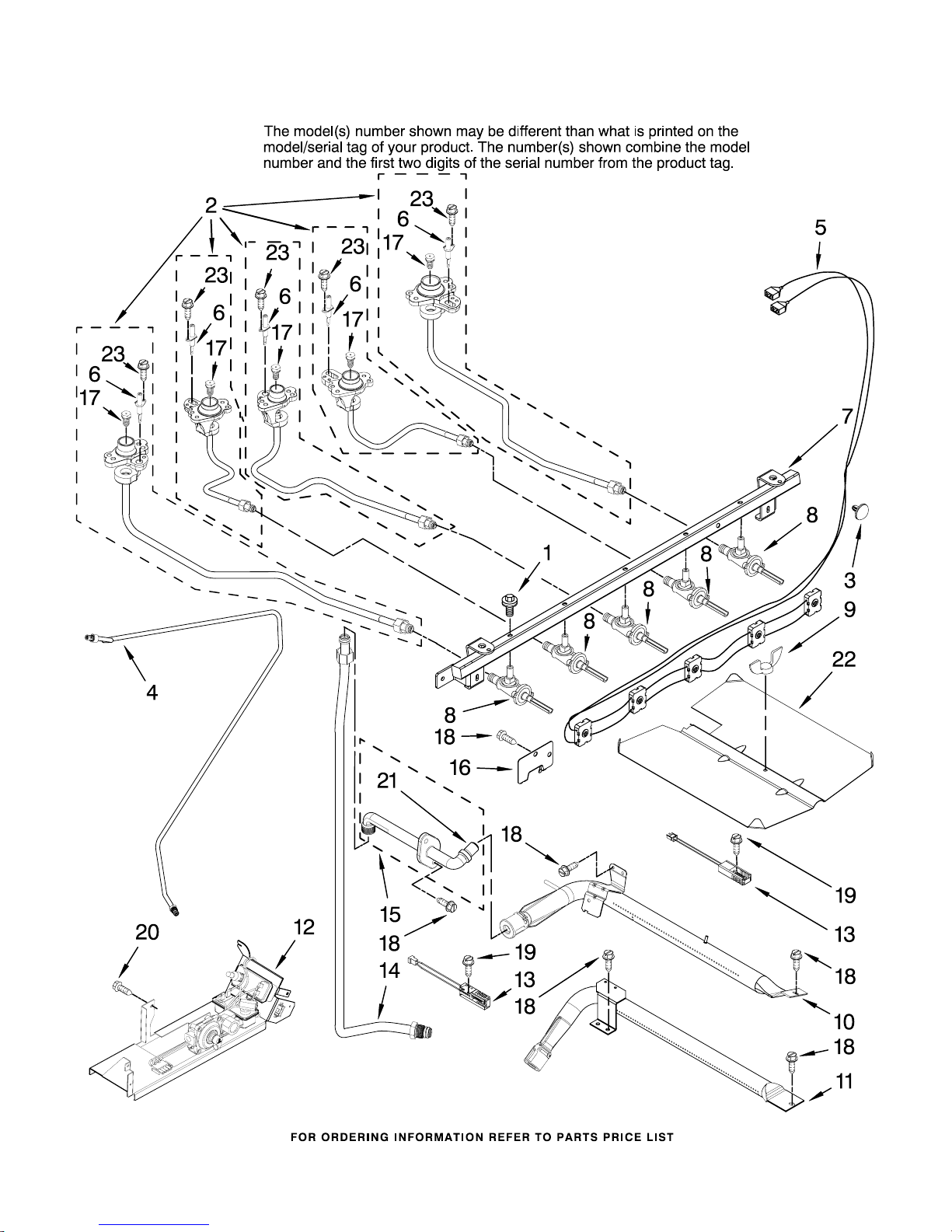

MANIFOLD PARTS
5
For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0
(White) (S.Steel) (Black) (Biscuit)
W10206096
MANIFOLD PARTS
6
For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0
(White) (S.Steel) (Black) (Biscuit)
W10206096
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 71003231 Screw, Valve
2 Holder, Orifice
74009099 (RF)
W10154209
(RR)
7527P125−60
(LR)
7527P101−60
(LF)
7527P097−60
(CTR)
3 74008761 Spacer, Snap−In
4 74008829 Tubing,
Main Supply
5
7403P983−60
Harness, Igniter
Includes Switches
6 74009958 Ignitor, Top
Burner (4)
7
7513P499−60
Pipe, Manifold
8 Valve
74010751 (RF)
74010752 (LR/RR/CTR)
74010629 (LF)
9 790431 Nut
10 74008820 Burner, Broiler
11 31945701 Burner, Bake
12 74010218 Valve/Regulator
13 Igniter
74007498 Broil
74008064 Bake
14 74008830 Tubing (Broiler
Fitting To Valve)
15 74008818 Fitting, Broiler
16
4005F421−45
Cover, Igniter
17 Orifice, Burner
7509P123−60
Left Front
7509P122−60
(LR/RR)
7509P124−60
Right Front
7509P120−60
Center
18 74002979 Screw
19
7101P282−60
Screw
20
7101P027−60
Screw
21 74008834 Orifice
22
W10156134
Baffle,
Broil Burner
23 8273062 Screw
Following Parts Not Illustrated
74008871 Spuds, LP Gas
(Kit of 5)

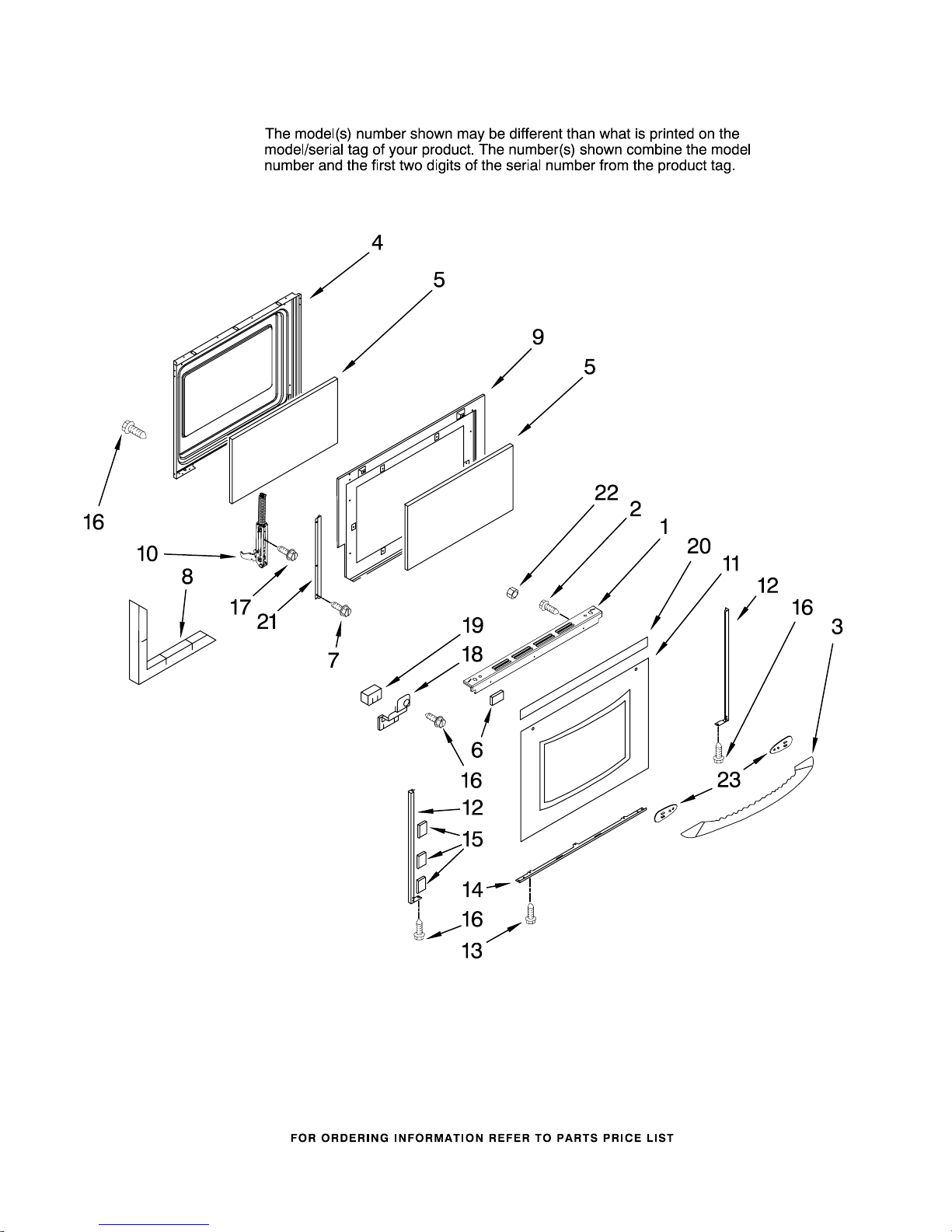

DOOR PARTS
7
For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0
(White) (S.Steel) (Black) (Biscuit)
W10206096
DOOR PARTS
8
For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0
(White) (S.Steel) (Black) (Biscuit)
W10206096
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Trim, Top
3608F139−70
Black
3608F139−71
White
3608F139−78
Biscuit
2
W10176584
Screw
3 Handle, Door
W10153015
Black
W10153013
White
W10153016
S.Steel
W10153014
Biscuit
4 74008926 Liner, Door
5 74003645 Glass, Inner (2)
6 74004224 Tape (White)
7 74002979 Screw
8 74003647 Insulation, Door
9
3601F380−51
Retainer,
Insulation
10 74010546 Hinge, Door
11 Glass, Outer Door
W10182773
Black
W10182776
White
W10183574
Biscuit
12 Trim, Door Side
74010560 Black
74010561 White
74010562 Biscuit
13 74009537 Screw
14 Trim, Lower Door
74008889 Black
74008757 White
74008758 Biscuit
15 Tape, Double Sided
74009025 Black
74009014 White
16 Y706189 Screw
17
7101P282−60
Screw
18 Bracket, Handle
3801P857−45
Right
3801P858−45
Left
19
7002P484−60
Insulation, Corner
20
8270P090−60
Tape, Foil (3")
21 74011458 Bracket, Window(2)
22 Y311426 Nut
23 Spacer, Handle
W10169553
White
W10169552
Black
W10169554
Biscuit

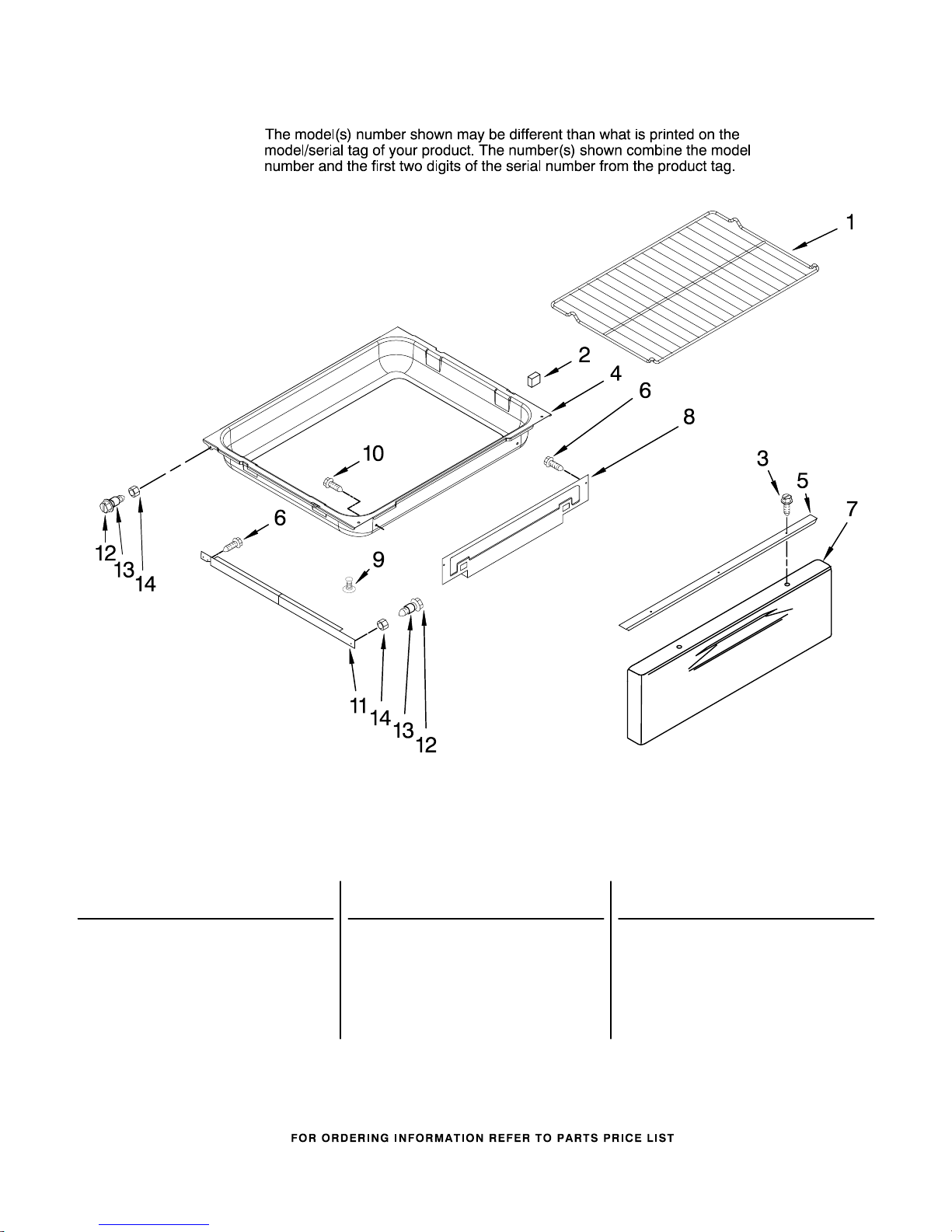

DRAWER AND RACK PARTS
9
For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0
(White) (S.Steel) (Black) (Biscuit)
W10206096
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 74008763 Rack, Oven (3)
2 74005546 Spacer, Bumper
3 74009268 Screw
4 74008877 Drawer
5 74008908 Handle, Drawer
6 74002979 Screw
7 Panel, Drawer Frnt
W10159224
Black
W10159223
White
W10159225
Biscuit
8 74009519 Panel, Inner
9 74008688 Drawer, Stop
10
7101P072−60
Screw
11
3406P034−51
Rail, Drawer
12 74005231 Shaft, Storage
Drawer Roller
13 74004078 Roller, Drawer
14
7103P082−60
Nut
OPTIONAL PARTS (NOT INCLUDED)
10
For Models: KGRS205TWH0, KGRS205TSS0, KGRS205TBL0, KGRS205TBT0
(White) (S.Steel) (Black) (Biscuit)
W10206096
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150 c
242821 Wire, Blue
14 Ga. 150 c
242822 Wire, Brown
14 Ga. 150 c
242830 Wire, Brown
14 Ga. 200 c
242823 Wire, Green
14 Ga. 150 c
242824 Wire, Orange
14 Ga. 150 c
242825 Wire, Red
14 Ga. 150 c
242831 Wire, Red
14 Ga. 200 c
242827 Wire, Yellow
14 Ga. 150 c
REFINISHING MATERIAL
799832 Kit, Porcelain
Repair (White)
242756 Touch−Up
Self−Clean(1/2 Pt)
261582 Grease
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
72032 Black
511873 White Porcelain
(2 Oz.)
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
4392901 Biscuit
350939 Black
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit (Uncut)
799340 Black (Uncut)
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
WIRING HARNESS PARTS
5171P893−60
Harness, Main
74006784 Clip, Harness
7101P027−60
Screw, Ground
74006784 Clip, Wire
