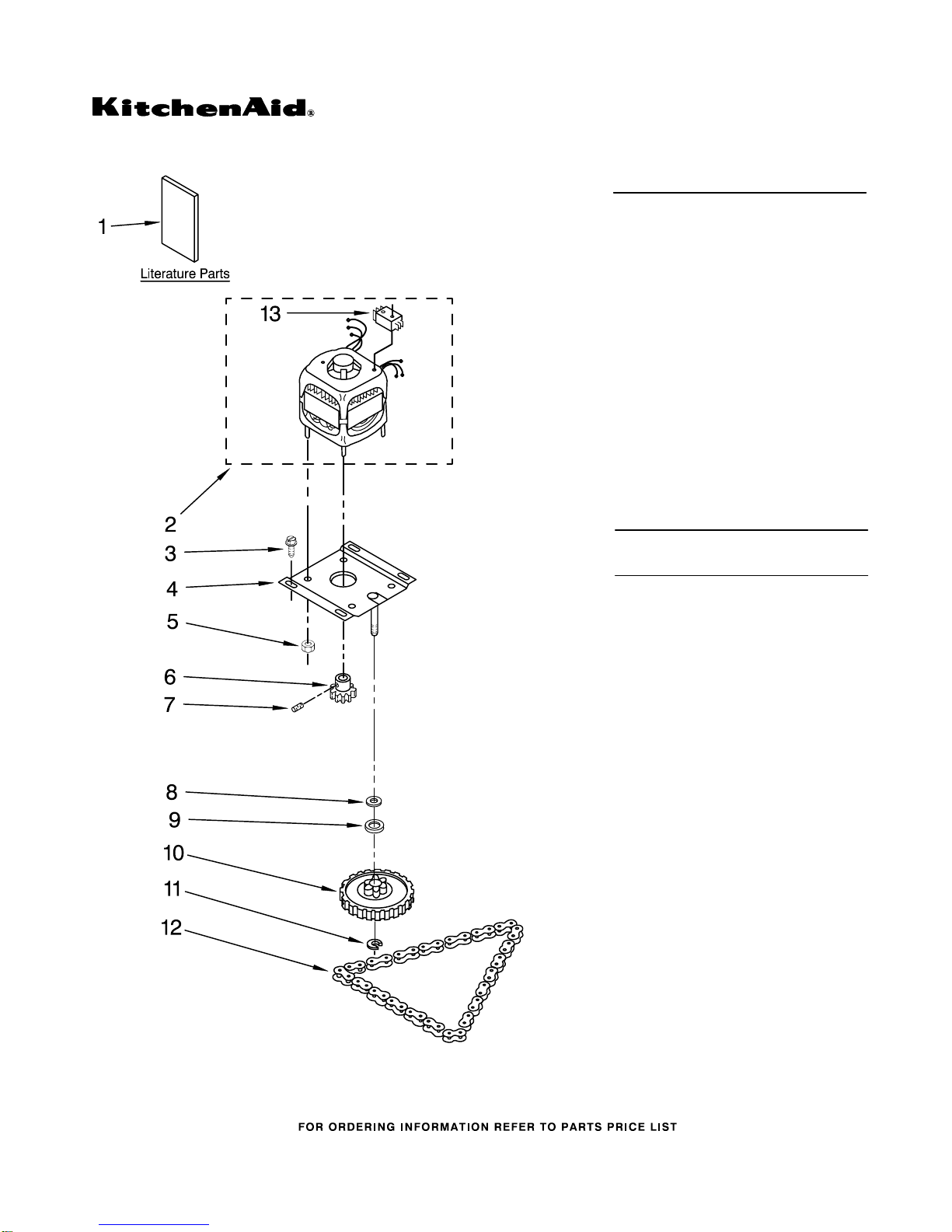

MOTOR AND DRIVE PARTS

For Models: KUCS03FSSS0

(Stainless)

5−06 Litho in U.S.A. (ebk) Part No. 882798

TRASH COMPACTOR

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9871923 Tech Sheet

9872215 Guide, Use & Care

2 9870343 Motor, Drive

(Includes No. 13)

3 9871067 Screw,

1/4−20 x 3/4 (4)

4 776327 Plate, Drive

Mount

5 776338 Locknut, 10−32 (4)

6 4149667 Gear, Drive

7 454512 Pin, Slotted

Spring

8 776035 Washer, Wave

9 297462 Washer, Thrust

10 777124 Gear, Driven

11 776036 Clip, Ring

12 780477 Chain, Drive

13 777971 Switch, Motor

Parts Not Illustrated and

Optional Parts (Not Included)

9870118 Undercounter

Conversion Kit

FRAME PARTS

For Models: KUCS03FSSS0

(Stainless)

882798

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Frame (Not A

Serviceable Part)

2 9870867 Shield, Slide

Track (2)

3 9870976 Frame, Slide (R.H.)

9870975 Frame, Slide (L.H.)

4 4153788 Bearing, Roller (2)

5 776356 Locknut,

3/8−24 (2)

6 777458 Screw,

6−32 x 3/8 (4)

7 3400938 Nut

8 9870167 Pan, Bottom

9 489478 Screw, 8 x 1/2

10 4149659 Shield, Harness

11 777070 Screw,

8−32 x 5/16

12 780434 Cover, Motor

13 608009 Plate, Motor

Cover

14 9872154 Insulation

15 4149377 Switch, Drawer

Safety

16 775668 Anble, Top

Support

18 777811 Switch, Top

Limit &

Directional

19 777849 Screw,

6−20 x 1" (2)

20 777850 Plate, Nut

21 9872118 Wiring Harness &

Power Cord

22 776119 Bushing, Cord

23 777035 Clamp, Wire

24 776118 Grommet, Motor

Cover

25 775526 Leveler,

Front (2)

27 9870585 Wheel,

Leveler (2)

28 780034 Screw,

10−24 x 3/8 (2)

30 9870444 Panel, Inner

33 777180 Spring,

Container

POWERSCREW AND RAM PARTS

For Models: KUCS03FSSS0

(Stainless)

882798

Illus. Part

No. No. DESCRIPTION

1 9870500 Screw, Power

Complete

Assembly (2)

2 Screw, Power

(Available Only

As Complete

Assembly)

3 779121 Plate, Bearing (2)

4 775482 Bearing, Needle (2)

5 776941 Hub, Power

Screw (2)

6 775481 Race, Thrust (2)

7 777385 Sprocket,

Washer (2)

8 4154842 Nut, Power

Screw (2)

9 777332 Washer, Cone (2)

10 9871067 Screw,

10−24 x 3/4 (4)

11 9871251 Ram Assembly

12 9870163 Nut, Power (2)

14 9870187 Stud (2)

16 9870037 Stop, Ram (2)

17 9870498 Bracket, Top Limit

Switch

18 489399 Screw, (2)

19 9870775 Cap, Stop (2)

20 9870169 Slide, Ram (4)

CONTAINER PARTS

For Models: KUCS03FSSS0

(Stainless)

882798

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4152204 Screw (2)

2 9871976 Actuator Switch

3 489290 Screw

4 9872232S Panel, Container

Front

5 9870996 Container

Assembly

W10021850

Nameplate

7 Pedal, Foot

9871989B Black

8 780263 Screw, Shoulder

#8−32 x 3/8 (2)

9 776395 Guide, Rear Latch

10 9870066 Latch Assembly

11 2004333 Nut

12 9871125 Spring,

Safety Switch

13 9872206S Handle

14 3196175 Screw

15 246131 Screw

16 9871602 Container, Bearing

Roller

17 776356 Locknut,

3/8−24 (2)

18 Plate, Toe Guard

777328 Black

19 9871563 Spacer, Handle

20 776654 Pin

21 775736 Spring, Latch

22 775735 Ring, ‘‘E’’

23 775665 Plate, Latch

24 9872153 Insulation

25 4147703 Retainer, Bag

(Contains 4 Each)

PANEL AND CONTROL PARTS

For Models: KUCS03FSSS0

(Stainless)

882798

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Panel, Front

Frame

9871977 Black

2 608572 Cover, Top

3 9871993 Bracket, Retainer

4 9871893 Fan Mount Assembly

5 780239 Bracket, Retainer

(Alternate) (2)

6 489478 Screw,

8 x 1/2AB (6)

7 Escutcheon,

Control

9871906B Black

8 246131 Screw,

6−20 x 3/8 (2)

9 4152703 Strap, Fan

10 9871971 Switch, Rotary

Start−Run

11 9871920 Knob, Rotary

Switch

12 777383 Nut, Rotary

Switch

13 9871829 Switch,

Drawer

14 9871984 Switch, Pushbutton

15 4151442 Compartment,

Air Freshener

17 780034 Screw,

10−24 x 3/8

18 Switch Assembly

9871973 Black

19 Cover,

Air Freshener

9871099 Black

20 4151750 Filter,

Charcoal

23 9871051 Fan,

Filter

24 4151897 Clip,

Wire

25 4151897 S−Clip

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

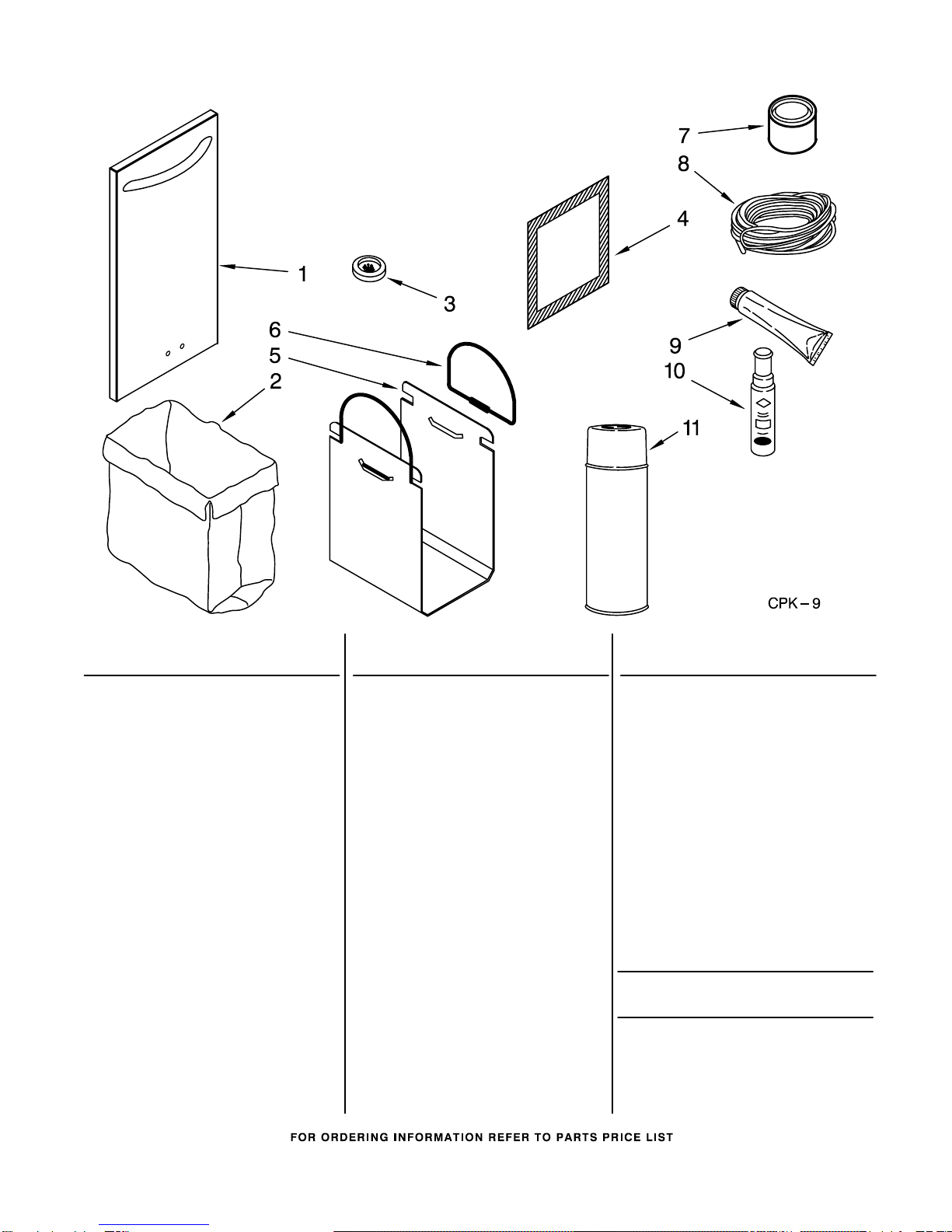

ACCESSORY PARTS

The Accessory Parts Listed Below

May or May Not Be Included With

Your Compactor.

1 Panel, Container

Front/Handle

4396297 White/White

4396296 Black/Black

4396298 Biscuit/Biscuit

4396299 Cobalt Blue/SSt.

4396300 Empire Red/SSt.

9871805 Majestic Yellow

w/SSt. Handle

2 Bag, Trash

(15" Plastic)

4318921 15 Pack

4318922 60 Pack

94318921 12 Boxes of

15 Pack

(15" Paper)

675186 12 Pack

882652 48 Pack

3 777635 Deodorizer,

Solid Stick−Ups

(2−Pack)

4 Deodorizer Block

9872166LG

Lemongrove

9872166GA

Green Apple

9872166L Lavender

5 13030 Carrier, Bag

(Includes No. 6)

6 777108 Handle, Bag

Carrier

7 675351 Grease, 4 Oz.

(Use on Power

Screw & Ram

Pressure Pads

8 Wire, 25’ Roll

10875 Blue 16 Ga.

242820 Black 14 Ga.

242825 Red 14 Ga.

242826 White 14 Ga.

47261 Black 12 Ga.

299885 Red 12 Ga.

47263 White 12 Ga.

9 279368 Adhesive,

Insulation

(2oz Tube)

10 Paint,

Touch−Up 1/2 Oz.

72107 Almond

72017 White

72032 Black

4892899 Biscuit

8171571 Cobalt Blue

8171651 Hunter Green

8171652 Empire Red

8171653 Majestic Yellow

11 Paint,

Spray 13 Oz.

350956 Almond

285006 Black

4392901 Biscuit

350930 White

OPTIONAL PARTS

NOT ILLUSTRATED

Framed Trim Kits

9871382 White

9871383 Black

9871600 Biscuit

For Models: KUCS03FSSS0

(Stainless)

882798
