KitchenAid KHTU100K Istruzioni utente

Wall venting

3-1/4" x 10"

(8.3 cm x 25 cm)

vent through

the wall

wall

cap

Roof venting

3-1/4

x 10

(8.3 cm x 25 cm)

vent through

the roof

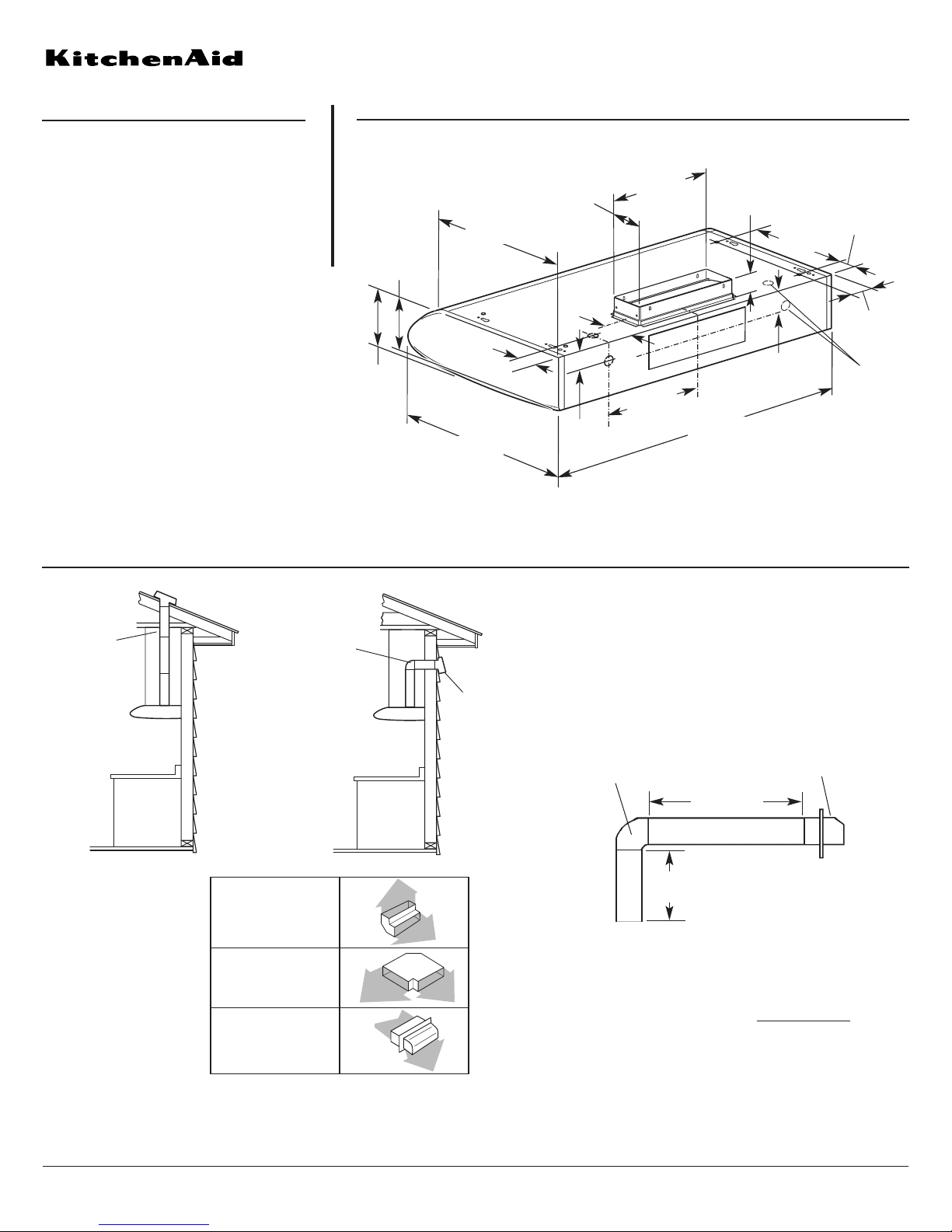

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

VENTING REQUIREMENTS

KHTU160K

KHTU100K

Electrical: 120-volt, 60-Hz, AC-only, 15-amp.

electrical supply. Use copper wire only. A time-

delay fuse or circuit breaker and separate circuit

is recommended.

30" and 36" Traditional Series Vented and Non- Vented

Range Hoods

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 8284977

08-20-02

3-1/4" x 10”

(8.3 cm x 25 cm)

90° elbow

wall

cap

Maximum length = 26 ft. (8 m)

1 — 90° elbow = 5 ft. (1.5 m)

9 ft. (2.8 m) straight = 9 ft. (2.8 m)

1 — wall cap = 0 ft. (0 m)

Length of 3-1/4" x 10"

(8.3 cm x 25 cm)

system = 14 ft. (4.3 m)

6 ft. (1.8 m)

3 ft.

(0.93 m)

3-1/4" x 10"

(8.3 cm x 25 cm)

ent system

Recommended vent system length

Use 3 1/4" x 10" (8.3 cm x 25 cm) vent with maximum length of

26 feet (8 m) for vent system. For best performance, use no more

than three 90° elbows. To calculate the length of system you need,

add the equivalent feet (meters) for each vent piece used in the

system. See the following example.

Recommended

standard fittings

3-1/4" x 10"

(8.3 cm x 25 cm)

90° elbow

= 5 ft. (1.5 m)

3-1/4" x 10"

(8.3 cm x 25 cm)

flat elbow

= 12 ft. (3.7 m)

3-1/4" x 10"

(8.3 cm x 25 cm)

wall cap

= 0 ft. (0 m)

7-3/4"

(19.6 cm)

9-15/16"

(25.2 cm)

3-3/16"

(8.1 cm)

Note: Underside of hood must be a minimum of

24" (61 cm) from cooking surface.

2-11/32"

(6.0 cm)

1-3/4"

(4.4 cm)

Do not

use these

knockouts

1-13/16"

(4.6 cm)

2-9/16"

(6.5 cm)

1-9/16"

(4.0 cm)

1-3/16"

(3.0 cm)

1-3/16"

(3.0 cm)

4-3/4"

(12.1 cm)

5-1/16"

(12.9 cm)

9-27/32"

(25.0 cm)

17-3/4"

(45.1 cm)

13-3/8"

(34.0 cm)

30" (76.2 cm)

36" (91.4 cm)

Roof-vented model shown.
