Installation Instructions

HOME APPLIANCES

Before installing your Wine Cellar...

Important: Observe all governing codes and ordinances.

Check that you have everything necessary for correct

installation. Proper installation is your responsibility.

✔Parts supplied for installation

Check that all parts were included.

• grille • literature package

✔Tools needed for installation

• Phillips screwdriver • level

• 7/32” hex driver and • gloves

rachet wrench

✔Location for proper performance

This appliance may be installed as a freestanding or

built-in unit. The location must provide the following:

• Grounded electrical outlet located within 4 feet of

the lower left rear corner of the wine cellar.

• Sturdy floor

to support the weight of the wine

cellar (110 lb.) and contents.

• Door clearance

large enough for door to open 90°

minimum. (See “Door swing dimensions.”)

• Proper room temperature:

Room temperature

should not fall below 55°F. Do Not install wine

cellar near an oven, radiator, or other heat source.

• Protection from weather, water and direct

sunlight.

• Open space in front of the grille.

Blocking air flow

in front of the wine cellar could cause wine cellar

to malfunction. Do Not install wine cellar in a

closet or behind a cabinet door.

23-7/8”

width

23” overall

depth without

handle

34” min.

height;

35” with

leveling legs

extended 1”

Built-in installation:

Additional clearance is not needed for air

movement. However, a 1/8” minimum clearance on sides,

top and rear of unit is recommended for ease of removal or

servicing.

Keep cardboard shipping piece or plywood under wine cellar

until it is installed in the operating position to prevent

damage to floor covering.

Top front of

wine cellar

handle

door

90°

23-1/4”

Wine Cellar

Refrigerated Wine Storage System

Important:

Read and save these instructions.

• Installer: Leave Installation Instructions

with the homeowner.

• Homeowner: Keep Installation Instructions for

future reference.

• Save these Installation Instructions for the local

electrical inspector’s use.

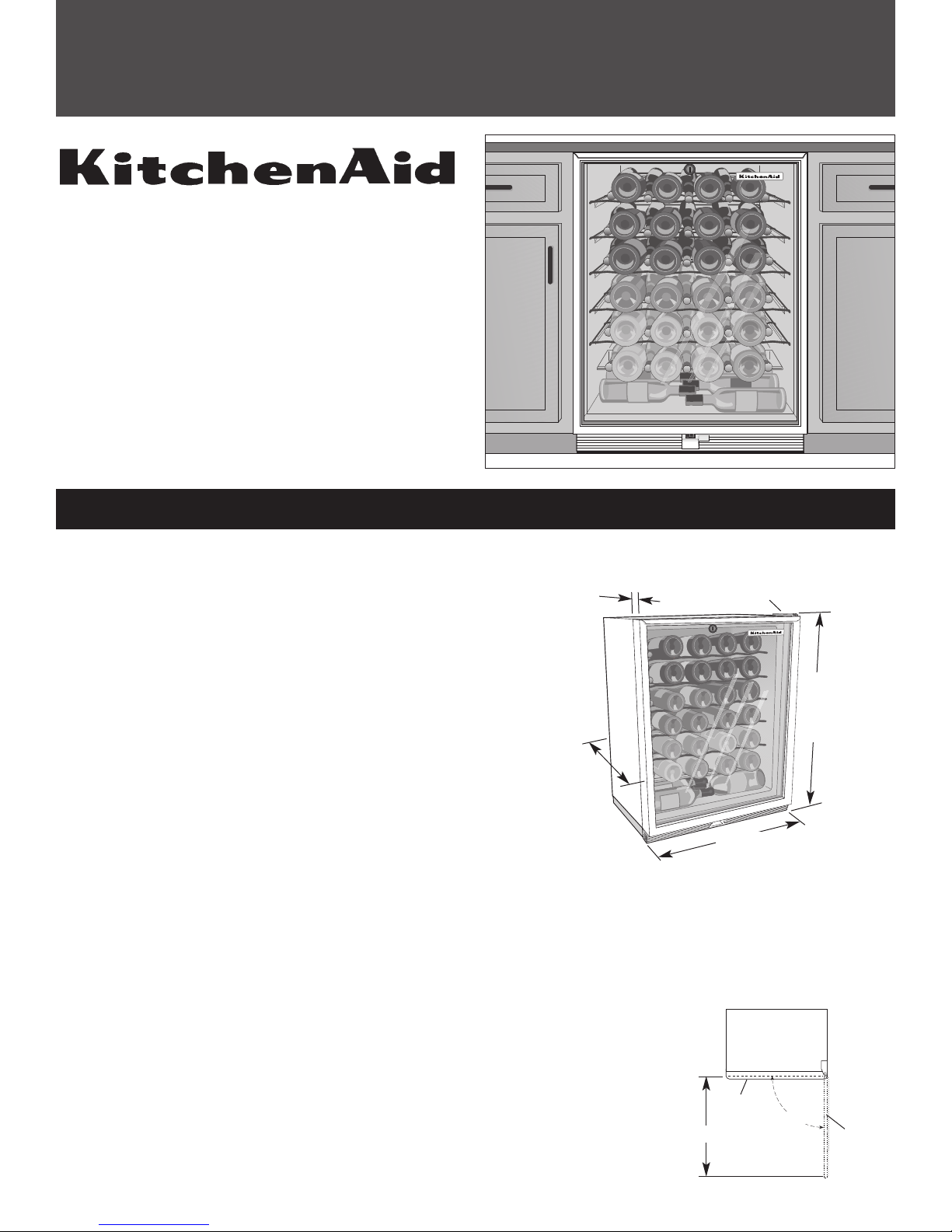

✔Product dimensions

top hinge

2" door

thickness

without

handle

✔Door swing dimensions

Electrical

Requirements

A. Prepare wine cellar

for installation

If codes permit and a separate

grounding wire is used, it

recommended that a qualified

electrician determine that the

grounding path is adequate.

3-prong grounding-

type wall receptacle

3-prong

grounding

plug

power

supply cord grounding

prong

A 120-volt, 60-Hz, AC-only, 15- or 20-

ampere, fused, electrical supply is

required. A time-delay fuse or circuit is

recommended. It is recommended that

a separate circuit serving only this wine

cellar be provided.

This wine cellar is equipped with a

power supply cord having a 3-prong

grounding plug. To minimize possible

shock hazard, the cord must be plugged

into a mating 3-prong, grounding-type

wall receptacle, grounded in accordance

with all national and local codes and

ordinances.

Now start...

WARNING

Because of the weight and size of

the wine cellar, two or more

people are required to install it.

All four leveling legs must contact

the floor to support and stabilize

the weight of the wine cellar and

contents.

Failure to follow these

instructions could result in injury.

Injury Hazard

WARNING

Electrical Shock Hazard

Electrical ground is required.

Do Not ground to a gas pipe.

Do Not change the power supply

cord plug. If it does not fit the

outlet, have a proper outlet

installed by a qualified electrician.

Do Not have a fuse in the neutral

or grounding circuit.

Do Not use an extension cord.

Check with a qualified electrician if

you are not sure wine cellar is

properly grounded.

It is the customer’s responsibility

to contact a qualified electrical

installer; and to assure that the

electrical installation is adequate

and in conformance with all

national and local codes and

ordinances.

Failure to follow these instructions

could result in death or electrical

shock.

Important: Observe all governing codes

and ordinances.

Do not lift the wine cellar by the door

handle.

Slide wine cellar onto cardboard or

hardboard before moving to prevent

floor damage.

Do Not touch the sharp condenser fins.

Remove tape, grille and

literature/parts packages from wine cellar.

Wipe interior with damp cloth to remove

any dust.

Put on protective gloves.

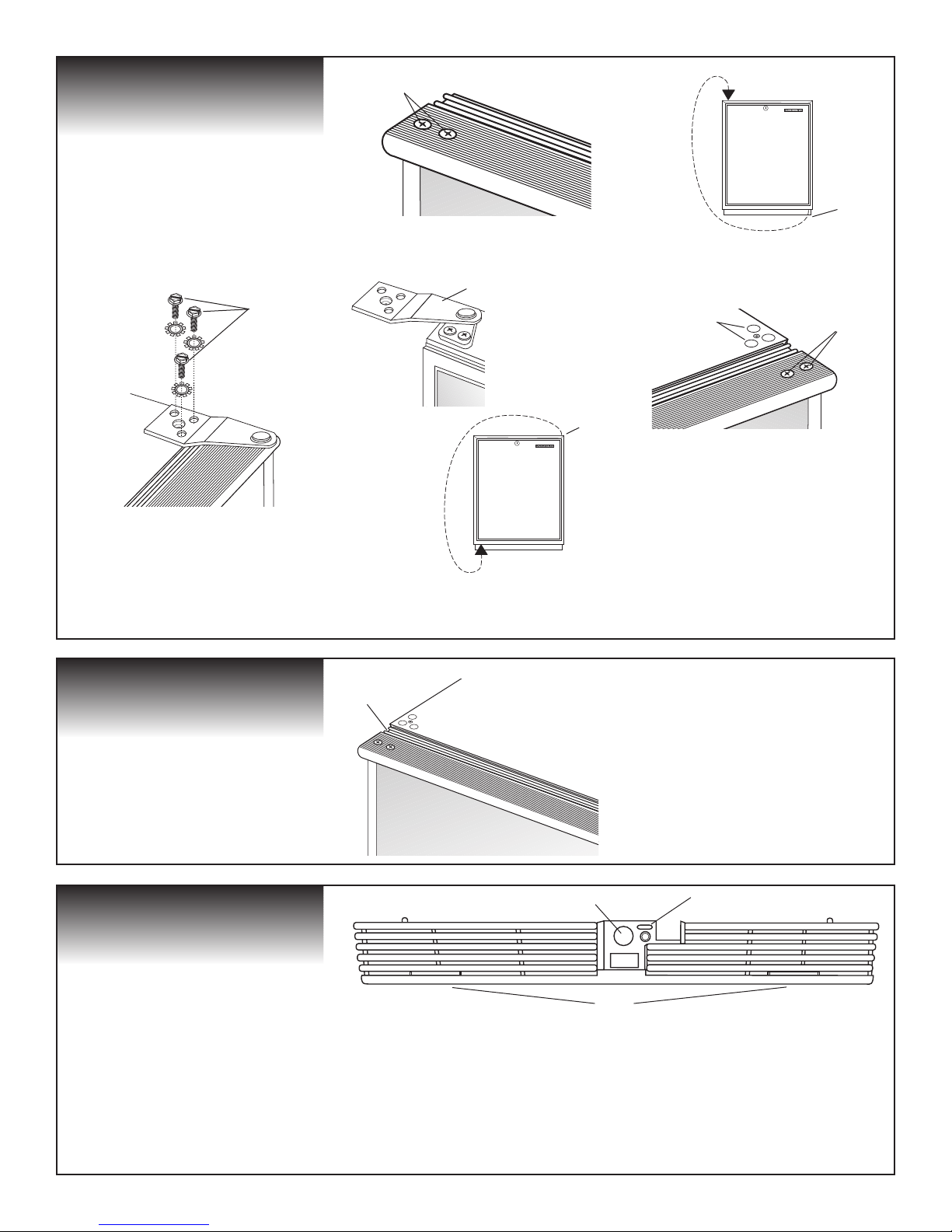

B. Reverse door swing

(optional)

C. Check door seal

D. Attach grille

If not changing door swing, go to

“C. Check door seal.”

Be careful not to scratch or chip paint.

Place a large towel or soft cloth on

top of wine cellar.

Remove the handle screws from top

of door.

Remove top hinge from door. Turn top

hinge upside down and attach it on bottom

of door opposite the bottom hinge.

Install handle screws in holes where

hinges were removed from door.

Remove screw hole plugs from top

hinge holes in cabinet. Insert screw hole

plugs in hinge holes on opposite side of

cabinet.

Grasping sides of door, align hinge

with holes in cabinet. Attach door at

top and then at bottom with screws.

hinge

screws

top

hinge

bottom

hinge

With wine cellar door closed, first

remove bottom hinge screws and then

top hinge screws from cabinet with a

rachet wrench. Grasp sides of door and

lift door off cabinet. Do Not lift door by

handle. Carefully set door on top of

wine cellar with handle side up.

handle

screws

plugs

Slowly open and close door to

check for proper seal and to make sure

door looks level. If door is not level:

• Loosen (do not remove) the top hinge

screws.

• Realign door so that it is squared to

cabinet.

• Tighten hinge screws.

Door must be squared to the cabinet

to ensure proper seal.

Pull control knob to remove.

Use a 7/16” rachet wrench to remove

the screw next to control knob.

Hook two tabs on bottom of grille

over edge of wine cellar base. Push grille

into place.

Reinstall grille screw.

Align openings in control knob with

rods on wine cellar base. Push control

knob into place. Do Not force the control

knob.

tabs

control knob

hole screw hole

handle

screws

Remove bottom hinge from door.

Turn bottom hinge upside down and

attach it on the top, opposite corner of

door.

door

seal

hinge

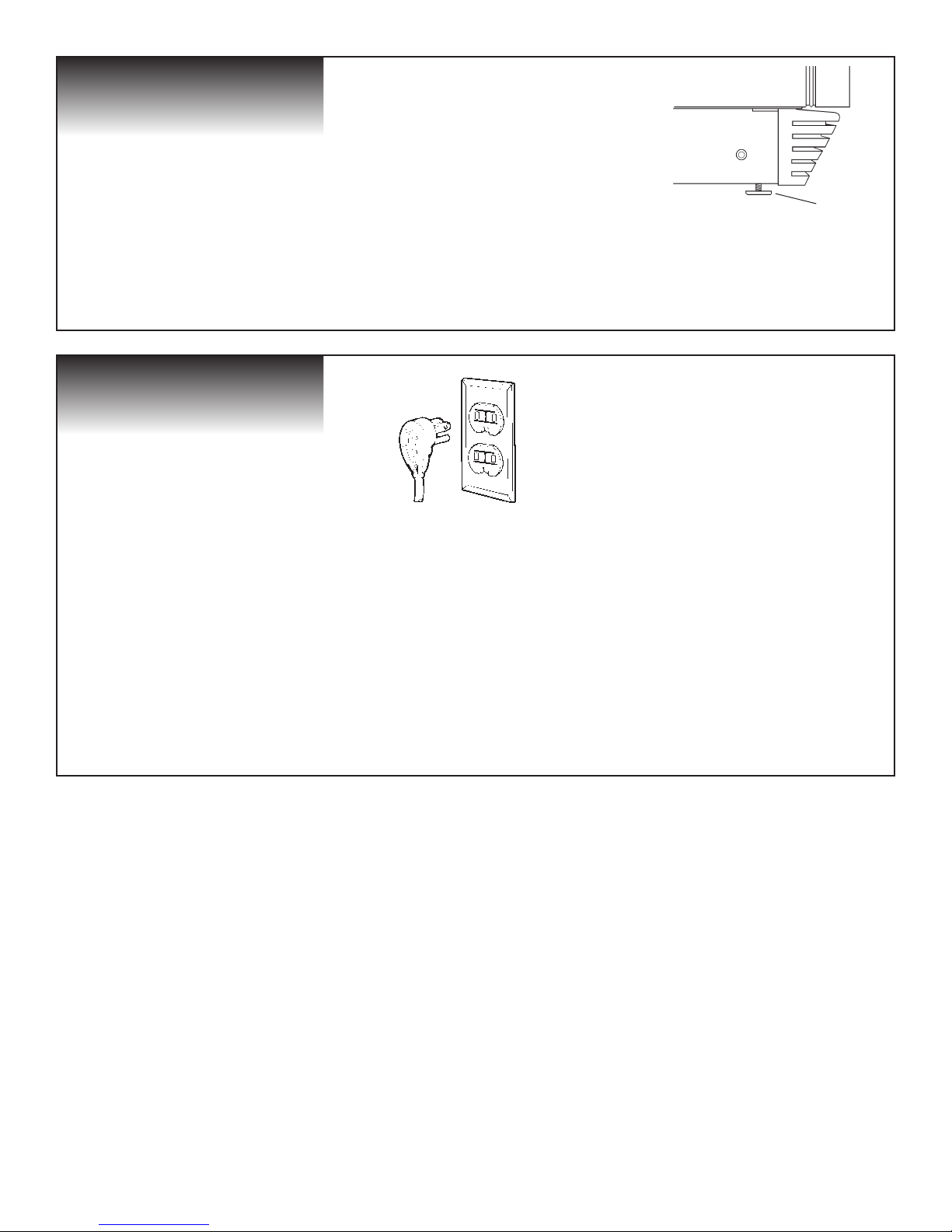

E. Level wine cellar

F. Check operation

Move wine cellar close to its final

location. Remove cardboard or hardboard

from under wine cellar.

Check levelness of wine cellar by

placing a level on top of wine cellar, first

side to side, then front to back. If wine

cellar is not level, turn wine cellar legs

clockwise to raise wine cellar;

counterclockwise to lower it.

leveling

leg

Check that you:

✔

Did not skip any steps.

✔

Installed all parts.

✔

Leveled wine cellar.

✔

Have all the tools you started with.

Plug power supply cord into

grounded outlet. Slide wine cellar into

final position. Turn power supply on.

Read the Use and Care Guide to fully

understand your new wine cellar.

If wine cellar does not operate properly,

check the following:

✔

Power supply cord is plugged in.

✔

House fuse is intact and tight; or

circuit breaker has not tripped.

Need assistance or service?

Call a KitchenAid-authorized service

company. To get the name and

telephone number of your nearest

KitchenAid-authorized service company:

• Call the dealer from whom you

purchased the appliance; or

• Check the Yellow Pages of your

telephone directory under “Appliances

— Household — Major — Service or

Repair;” or

• Call the KitchenAid Consumer

Assistance Center toll-free telephone

number: (800) 422-1230.

When you call, you will need the wine

cellar model number and serial

numbers. Both numbers are on the

model/serial rating plate located on the

inside right wall of the wine cellar

cabinet.

Part No. 4344601

®Registered Trademark of KitchenAid, U.S.A. Printed in U.S.A.

Wine cellar must be level to assure

proper performance and prevent

tipping.

Prepared by KitchenAid, Benton Harbor, Michigan
