Kitronik MOVE mini Manuale utente

:MOVE LINE

FOLLOW BOARD

FOR BBC MICRO:BIT

STAY ON TRACK WITH THIS

For Original :MOVE mini

To use with the :MOVE mini,

please see ‘Use with :MOVE

mini’ on the following page.

If you wish to use this board

separately connect the line

follow board to the interface

board in the order shown.

GND 0V

P15 R

3V3 3V

P16 L

GND 0V

BUILD INSTRUCTIONS

To use the Line Following board

with the Interface board, ﬁrst

complete the build instructions

provided with the Interface Board.

NOTE: This kit includes ﬁxings for both the original

:MOVE mini and :MOVE mini Mk2, so there may be spare

components left over after the build.

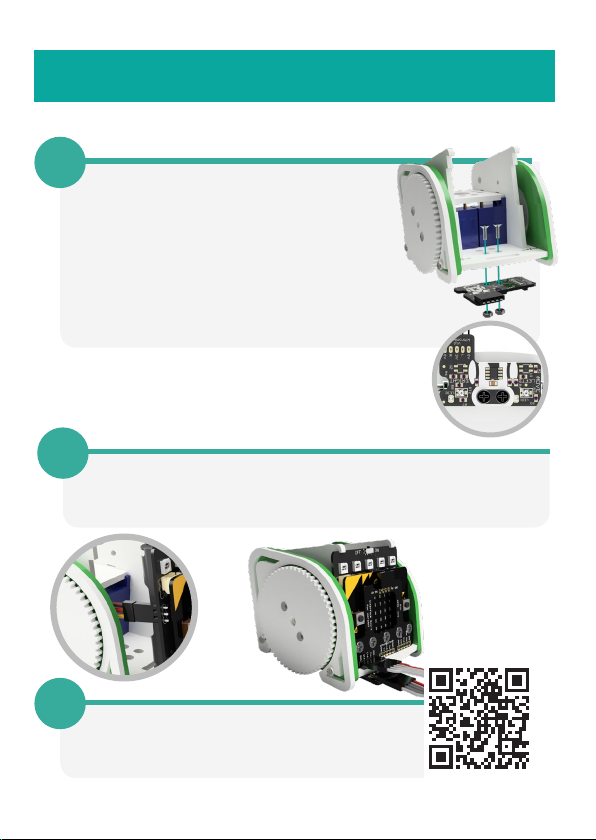

Remove both the front ‘:MOVE’ piece

and the SERVO:lite board from the

:MOVE mini. Fix the Line Follow board to

the chassis using the two SHORTER M3

countersunk screws. Insert the screws

from above and ﬁx in place with two M3

nuts. The remaining spacers, screws and

:MOVE panel are no longer needed.

Connect the servos and install the Servo:Lite/Interface board

assembly into the :MOVE mini. Reconnect the cables, refer to

step 2 from the ‘Build instructions’ on the previous page.

GET CODING!

Visit kitronik.co.uk/5659 for help. See

the online datasheet for a tuning guide.

USE WITH :MOVE MINI

NOTE: Make sure you use the board the

correct way up, with the larger Kit robot

visible from below and the pins pointing

out of the front of the :MOVE mini.

NOTE: This instruction book is for :MOVE mini Mk1. If you have a Mk2

:MOVE mini, visit www.kitronik.co.uk/5659-mk2.

For more information on RoHs and CE please visit kitronik.co.uk/

rohs-ce. Children assembling this product should be supervised by

a competent adult. The product contains small parts so should be

kept out of reach of children under 3 years old.

Example

Use

STOCK CODE:

5659

TOOLS REQUIRED:

- Small Phillips screwdriver

Add line following to your micro:bit buggy/

robots with the compact Kitronik :Move

Line Following Board For BBC micro:bit,

also fully compatible with :MOVE mini.

KIT REQUIRES:

- 1 x BBC micro:bit

- 1 x :MOVE Sensor Interface

board (optional)

- 1 x :MOVE mini buggy kit

(optional)

INSTRUCTIONS:

This booklet contains build instructions.

For more detailed resources please visit

our website at www.kitronik.co.uk/5659
