Instructions for use and warranty details

BBQ Cooktop Deep Fryer

Model No.: DCTBBQ Model No.: DCTDF

Your new Kleenmaid appliance has been

designed and manufactured to give you

years of reliable performance.

For best results, carefully read the

instructions on how to install your new

appliance. Correct installation will avoid

delays and unnecessary service call costs.

Once installation is complete, please read

this entire instruction manual carefully and

get to know the controls and the features

of your new Kleenmaid appliance.

Again, congratulations and thank you for

choosing Kleenmaid.

Congratulations on the purchase

of your new Kleenmaid appliance.

THIS PRODUCT IS DESIGNED FOR DOMESTIC

USE. THE MANUFACTURER DECLINES ALL

RESPONSIBILITY FOR PERSONAL INJURY

OR PROPERTY DAMAGE DERIVING FROM

INCORRECT INSTALLATION OR IMPROPER,

ERRONEOUS OR UNSUITABLE USE. THE

APPLIANCE MUST NOT BE USED BY PEOPLE

(INCLUDING CHILDREN) WITH PHYSICAL,

SENSORIAL OR MENTAL IMPAIRMENTS,

OR BY PEOPLE WITHOUT THE NECESSARY

Technical data

Power 230 V

Power (Barbecue) 2400 W

Power (Fryer) 2300 W

Power supply cable H05RR-F ( 3X1.5 mm²)

H05RN-F (3X1.5 mm²)

EXPERIENCE OR KNOWLEDGE, UNLESS

THEY ARE SUPERVISED OR INSTRUCTED

IN THE USE OF THE APPLIANCE BY A

PERSON RESPONSIBLE FOR THEIR

SAFETY. CHILDREN MUST BE SUPERVISED

TO ENSURE THAT THEY DO NOT PLAY WITH

THE APPLIANCE.

Dear Customer,

We would like to thank you and congratulate

you on your choice. This new product has

been carefully designed and built using top

quality materials, and meticulously tested

to ensure that it meets all your culinary

requirements. Please read and observe

these simple instructions, which will enable

you to achieve excellent results from the

very ﬁrst time you use it. This state-of-the-

art appliance comes to you with our very

best wishes.

THE MANUFACTURER

Installation

All installation operations (electrical connection) must

be carried out by people qualiﬁed in compliance with

the laws in force. For speciﬁc instructions, see the

installation section.

Use

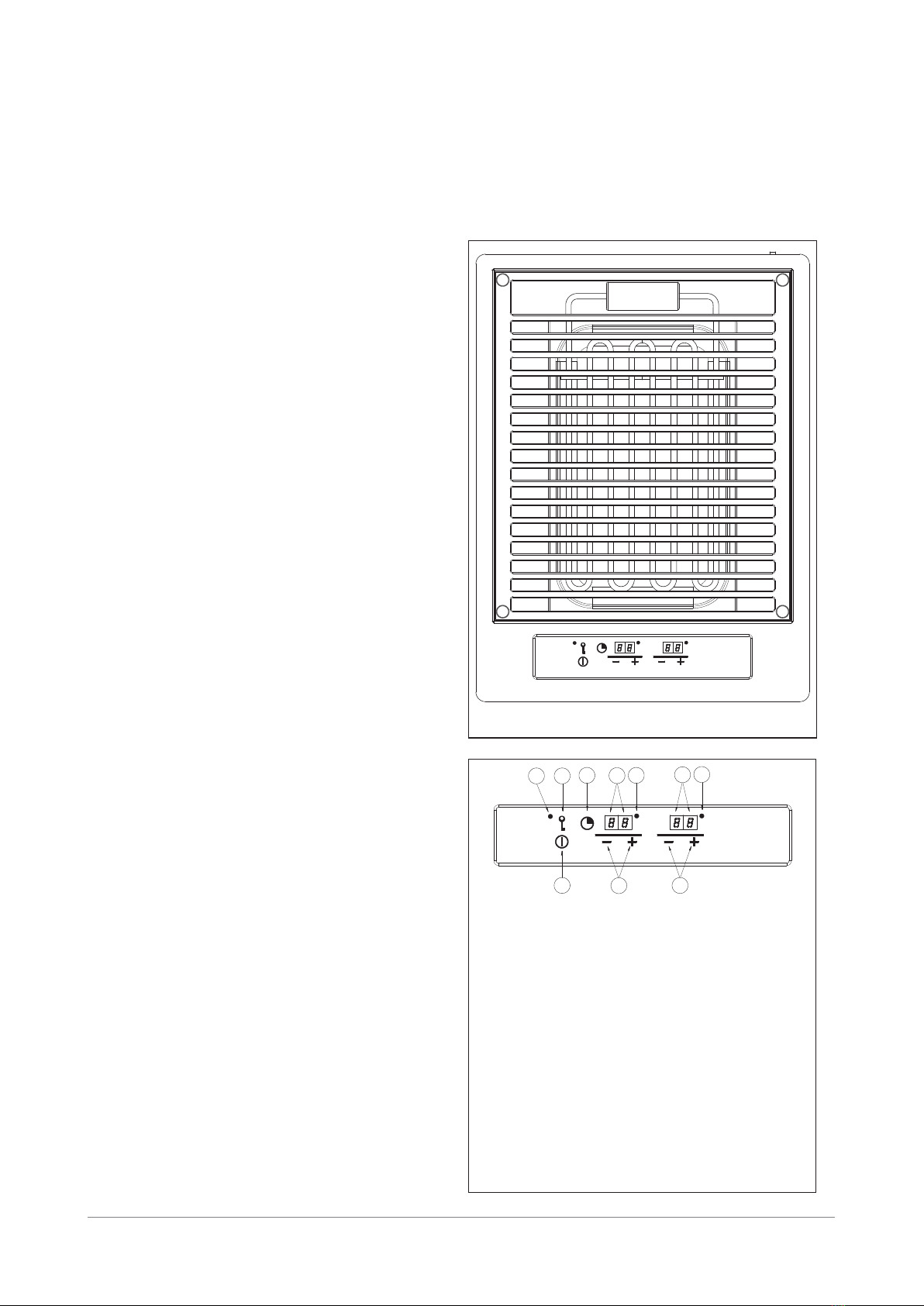

Barbecue (Fig. 1)

The barbecue is used for quick cooking on the grill.

Pressing the Touch Control commands turns on the

heating element (see the paragraph “Touch Control

instructions”), which can cook more or less quickly

depending on the level chosen from 1 a 12.

To use the grill, select power level 12.

This doesn’t mean that you can’t achieve excellent

results cooking on the grill even with the intermediate

power levels. These levels are recommended for cooking

delicate foods or when you want uniform cooking of the

food even inside.

The lava rocks in the tray absorb the drops of oil or

grease that are produced during cooking; Plus, they

accumulate heat as the heating elements are warming

up and, thus, provide more uniform grilling, similar to

the effect of cooking over charcoal briquettes. You

can put water in the tray, in place of the lava rocks (we

recommend a layer 3 cm deep).

Water in the tray eliminates unpleasant odours without

affecting the performance of the barbecue in any way.

So, for best results, we recommend pre-heating the lava

rocks for at least 10 minutes at level 1.

This is especially recommended when you turn on the

appliance for the ﬁrst time because it decreases the

risk that the food will absorb the odours that the heating

element produces the ﬁrst time it is turned on.

Fig. 1

123

Legend:

1 ON/OFF

2 Increase/decrease timer minutes (from 0 to 99)

3Increase/decrease the power level (from 0 to

12)

4 Operating indicator light

5 Power level display

7 Timer running light

8 Timer display

9 Start timer

10 Lock keypad

11 Lock keypad indicator light

User instructions

Fig. 1a

Maintenance

Unplug the appliance before performing any maintenance.

To increase the life of the appliance, it is essential to

periodically perform a general cleaning, keeping the

following in mind:

- the steel parts must be cleaned with a suitable product

(availablein stores)that is not abrasive or corrosive.

Avoid products that contain chlorine (bleach, etc.);

- avoid leaving acid or alkaline substances on the work

surface (vinegar, salt, lemon juice, etc.).

Fig. 2

Use

Fryer (Fig. 2)

The appliance is operated using the Touch Control

commands (see the paragraph “Touch Control“) which

can set a temperature between 80 and 200 °C.

The fryer has a probe that keeps the oil at a constant

temperature. In addition, if the main probe is not working

properly, a safety thermostat intervenes, at about 220°

C, to keep the oil from getting too hot. This device is very

easy to use but, to obtain the best results, you should

follow a few simple rules:

- Before putting oil in it for the ﬁrst time, carefully clean

the steel parts and the heating elements to eliminate

any residues from the manufacturing process.

- Never turn the appliance on with the heating elements

turned outside the tub.

- Never turn the appliance on without oil in the tub.

- Always use vegetable oil suitable for frying: oils made

from sunﬂower and other seeds are not recommended.

- The quantity of oil in the tub can vary from a minimum

of 2 to a maximum of 2.7 litres. If the level of oil drops

below the minimum during frying, you must add fresh

oil. We recommend that you add the same type of oil.

The maximum and minimum levels are etched on the

vertical wall of the tub.

- The oil can be reused several times but we recommend

that you ﬁlter it between one use and the next to

remove any food residues.

- In any case, the oil should be changed very often

because, even if it is well ﬁltered, small food residues

can catch ﬁre during frying.

- Make sure that the food is perfectly dry before putting

in the fryer. Wait until the oil has reached the desired

temperature.

- We recommend that frozen foods be thawed at a low

temperature and then fried at a high temperature. The

temperature setting can vary with the quantity of food

to be cooked and the user’s personal taste but, in

general, you should keep the following chart in mind:

- During cooking, it is often necessary to add salt or

ﬂavouring:

Temperature Level Food

160° C chicken thighs and wings

170° C fritters, ﬁsh

180° C croquettes

190° C French fries

to the extent possible, avoid doing this directly in the fryer

because salt falling in the oil reduces its quality.

- If the fryer malfunctions, before asking for service, try

to reset the thermostat by pressing the little button that

you can see on the inside of the front wall, after you

remove the oil tub and unscrew the protection plug.

123

11 6

Legend

1 ON/OFF

2 Increase/decrease timer minutes (from 0 to 99)

3Increase/decrease the temperature of the oil in

°C (from 40 to 200)

4 Operating indicator light

5 Display the oil temperature

6Indicator that the set temperature has been

reached

7 Timer running light

8 Timer display

9 Start timer

10 Lock keypad

11 Lock keypad indicator light

Touch Control Instructions

Barbecue (Fig. 1)/Fryer (Fig. 2):

Power-on (barbecue)

1 Touch the button (1) to turn on the control: the level

indicator (5) displays “00” and the LED (4) is on.

2 Press the next button within 10 seconds or the device

will automatically turn off.

Power-on (fryer)

1 Touch the button (1) to turn on the control: the level

indicator (5) displays “000” and the led (4) is on.

2 Press the next button within 10 seconds or the device

will automatically turn off.

Operating indicator light (barbecue)

When you turn on the control with the button (1), the

operating indicator light (4) turns on and stays on until

you touch the button (1) again.

Operating indicator lights (fryer)

When you turn on the control with the button (1), the

operating indicator light (4) turns on and stays on until

you touch the button (1) again.

In addition, when you set a certain temperature level,

the indicator light (6) ﬂashes until the oil reaches the

temperature setting; when the temperature setting is

reached, the indicator light stays on without ﬂashing.

Power control (barbecue)

1 Use the “+” and “-” buttons (3) to adjust the power

between level 0 and level 12. Holding down one of

these buttons, lowers or raises the level setting.

Temperature control (fryer)

1 Use the “+” and “-” buttons (3) to adjust the temperature

of the oil from 80 °C to 200 °C. The temperature can

be changed in steps of 10 °C. Holding down one of

these buttons, lowers or raises the level setting.

Turning off the heating element (barbecue/fryer)

1 Lower the setting to 0 using the “-” button (3). The

heating element will turn off after 3 seconds.

Press the “+” and “-” buttons at the same time (3).

Fast turn-off of the heating elements (barbecue/

fryer)

1 To turn the heating element off automatically, press

the “+” and “-” buttons (3) at the same time.

Residual heat (“H”) indicator (barbecue/fryer)

When the appliance is off, the display (5) shows the

symbol “H” (residual heat).

This indicator will remain on for about 40 minutes.

Turning off the appliance (barbecue/fryer)

The appliance can be turned off at any time using the

on/off button (1)

Locking the keypad (key) (barbecue/fryer)

1 The entire appliance can be locked with the keypad

lock or button (10) to prevent unintended operation.

This function also protects children. As long as the

lock is active, touching the buttons has no effect

except to turn off the appliance (1). When the lock is

active, the LED (11) remains lit.

Safety power-off (barbecue/fryer)

1 If the heating element is inadvertently turned on,

the control system automatically turns it off after

the power-on limit has elapsed. In this case, “H” is

displayed. The power-on limit varies depending on

the level set at that time and varies proportionally

from a minimum of 1 hour at the maximum level, to a

maximum of 6 hours at the minimum level.

Fig. 2a

Timer function (barbecue/fryer)

This function simpliﬁes cooking by allowing the cooking

cycle to continue without your presence. When you set

the timer, the heating element is automatically turned off

after the set time has elapsed. If the heating element is

set to 0, the timer just counts minutes (see the chapter

“using the timer to count minutes”).

Turning on the timer function (barbecue)

1 Select a power level between 1 and 12

2Touch the timer button (9), the timer display (8) shows

“00” and the indicator light (7) turns on.

3 Select the cooking time in minutes (from 0 to 99)

using the “+” and “-” buttons (2). The timer function

will turn on in a few seconds and the indicator light (7)

starts ﬂashing to indicate that the function is on. You

can quickly set the cooking time by holding down the

“+” or “-” button (2).

Turning on the timer function (fryer)

1 Select an oil temperature level between 80 °C and

200 °C.

2Touch the timer button (9), the timer display (8) shows

“00” and the indicator light (7) turns on.

3 Select the cooking time in minutes (from 0 to 99)

using the “+” and “-” buttons (2). The timer function

will turn on in a few seconds and the indicator light (7)

starts ﬂashing to indicate that the function is on. You

can quickly set the cooking time by holding down the

“+” or “-” button (2).

Fast turn-off of the heating element and timer

function (barbecue/fryer)

1 When you touch the “+” and “-” buttons (3) at the

same time, the heating element immediately turns off

and the timer function is cancelled.

Turning on the timer function to count minutes

(barbecue/fryer)

If the heating element is set to level 00, the timer can be

used to count minutes

Setting the timer to count minutes (barbecue)

If the appliance is off:

1 Touch the on/off button (1);

2Touch the timer button (9);

3 Set the desired time using the “+” e “-” buttons (2)

If the appliance is on and the heating element is set to a

power level higher than 00:

1 Set the power to 00;

2Touch the timer button (9);

3 Set the desired time using the “+” e “-” buttons (2)

Setting the timer to count minutes (barbecue)

If the appliance is off:

4 Touch the on/off key (1);

5 Touch the timer button (9);

6 Set the desired time using the “+” e “-” buttons (2)

If the appliance is on and the heating element is set to a

temperature level higher than 000:

4 Set the temperature to 000;

5 Touch the timer button (9);

6 Set the desired time using the “+” e “-” buttons (2)

Turning off the minute-counter function (barbecue/

fryer)

When the time has elapsed, a buzzer sounds for 2

minutes.

To cancel the buzzer early, just touch any button.

If you want to interrupt the timer before it runs down:

1 Touch the timer button (9)

2Zero the time by holding down the “-” button (2)

Quickly turning off the minute-counter function

(barbecue/fryer)

Press the “+” and “-” buttons (2) at the same time.

Error messages

- AL0 (BARBECUE/FRYER) If a button is pressed for

more than 90 seconds, the buzzer will sound and AL0

will appear on the 3-digit display.

- AL1 (FRYER) If the probe has a short circuit, AL1 will

appear on the 3-digit display.

- AL2 (FRYER) If the probe is not connected, AL2 will

appear on the 3-digit display after it is on for about 5

minutes.

- AL3 (BARBECUE/FRYER) If the temperature of the

electronic board reaches 85°, AL3 will appear on the

3-digit display.

Installation

These instructions are provided for qualiﬁed installers as

a guide to installation, adjustment and maintenance in

conformity with current laws and standards. Service must

always be performed with the appliance disconnected

from the electricity.

Operation (Fig. 3 and 4)

The appliance is designed to be built in to a work surface

as shown in the ﬁgure. Prepare the edge of the hob with

the sealant provided (Fig. 5).

Electrical connection

Before connecting to the electricity, make sure that:

- the characteristics of the system match the data on

the bottom of the hob;

- the system has an effective earth connection

compliant with current standards and laws. An earth

connection is required by law.

- If the appliance has no cable and/or plug, use

material suitable for the absorption indicated on the

registration plate and for the working temperature.

The cable must not reach a temperature higher than

50 °C above room temperature in any point.

If you want a direct connection to the mains, you must

install an omnipolar switch with a minimum opening

between the contacts of 3 mm, dimensioned for the

load indicated on the plate, and conforming to current

standards (the yellow/green wire must not be interrupted

by the switch). The omnipolar socket or switch must be

easy to reach when the appliance is installed.

Note: The manufacturer declines all liability if the

usual accident prevention standards and the above

instructions are not followed.

Installation instructions

381

511

360

490

R 12

1.5

380

R 11

510 77

Fig. 3

Mod:DCTBBQ

381

511

360

490

R12

1.5

380

510

R11

181

Fig. 4

Mod:DCTDF

Fig. 5

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Kleenmaid Friggitrice

Kleenmaid

Kleenmaid CH311B Manuale utente

Manuali Friggitrice popolari di altre marche

Innsky

Innsky 55SA1US Manuale utente

Falcon

Falcon G350/11 Guida utente

GoWISE USA

GoWISE USA GW22612 Manuale utente

Wolf

Wolf IF15/S Manuale utente

Electrolux

Electrolux Thermetic 9CHG583284 Guida rapida

Gourmia

Gourmia GAF799 Manuale utente

DeLonghi

DeLonghi D677UX Manuale utente

SEVERIN

SEVERIN DEEP FRYER - Guida utente

Toastmaster

Toastmaster TMFG18-NAT Manuale utente

Domo

Domo DO465FR Manuale utente

Henny Penny

Henny Penny PFG-691 Manuale utente

Farberware

Farberware FBW FT 43721 B Manuale utente

GERMANICA

GERMANICA GEAF5L3LD Manuale utente

Roller Grill

Roller Grill MF 120 R Manuale operativo

Philips

Philips HD9211 Manuale utente

Linea 2000

Linea 2000 Domo DO536FR Manuale utente

Lakeland

Lakeland 31796 Manuale utente

Dash

Dash Tasti-Crisp DFAF755 Manuale utente
