cooking collection
Instructions for use and warranty details
Built In Oven
Model No.: OMFP6011
Your new Kleenmaid appliance has been
designed and manufactured to give you
years of reliable performance.
For best results, carefully read the
instructions on how to install your new
appliance. Correct installation will avoid
delays and unnecessary service call costs.
Once installation is complete, please read
this entire instruction manual carefully and
get to know the controls and the features
of your new Kleenmaid appliance.
Again, congratulations and thank you for
choosing Kleenmaid.
Congratulations on the purchase
of your new Kleenmaid appliance.
*%
1
TABLE OF CONTENTS
SAFETY INSTRUCTIONS...............................................................................2
INSTALLATION OF THE OVEN......................................................................3
Electricals........................................................................................................ 3
Connection to the electrical power mains........................................................ 5
INSTRUCTIONS FOR USE.............................................................................6
Oven Racks..................................................................................................... 6
Oven extendable racks (if present)..................................................................7
Cooking functions............................................................................................ 8
Electronic control............................................................................................. 10
DOOR LOCKING SYSTEM............................................................................. 18
Automatic door locking during pyrolytic cycle.................................................. 18
Oven lights.......................................................................................................18
CLEANING AND MAINTENANCE...................................................................19
Self-cleaning cycle (pyrolytic cycles)............................................................... 19
Oven door removal.......................................................................................... 20
Replacement of the oven light......................................................................... 21
GUIDANCE TEMPERATURE AN TIME SCHEDULE FOR COOKING...........22
At the end of the product life cycle, the products equipped with
electronics, which have not gone through a selection process, are
potentially dangerous for the environment and for human health due
to the presence of dangerous materials. This appliance cannot be
thrown in the domestic waste at the end of its life cycle. Therefore it
must be delivered to an authorised waste collecting center tomake
it safe and to recycle its parts in order to respect the environment.
*%
2
SAFETY INSTRUCTIONS
- Do not disassemble any parts prior to having disconnected the oven from the
mains.
- Do not use the appliance if any part is broken (for example a glass).
Disconnect it from the mains and call service.
- Before using the oven, it is recommended to make it operate at noload at the maximum
temperature for an hour to eliminate the insulating material odour.
- In all models, leave the door closed when the grill is used.
- The cooling fan may remain in operation so long as the oven is hot, even after it has
been switched off.
- During the use the appliance becomes very hot; don’t touch the heating elements
inside the oven.
- During the oven operation, the front is heated as well; consequently keep
children clear of the oven, specially during self-cleaning.
- Parents and adults should pay particular attention when using the product in presence
of children.
- Children should be overseen so as to ensure that they don’t play with the equipment.
- This appliance is not intended for use by persons (included children) with reduced
physical sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsable for their safety.
- In order to avoid damage to the oven enamel coat, do not cover the oven muffle sole
with any item (e.g. aluminum foil, pans and the likes).
*%
3
INSTALLATION OF THE OVEN

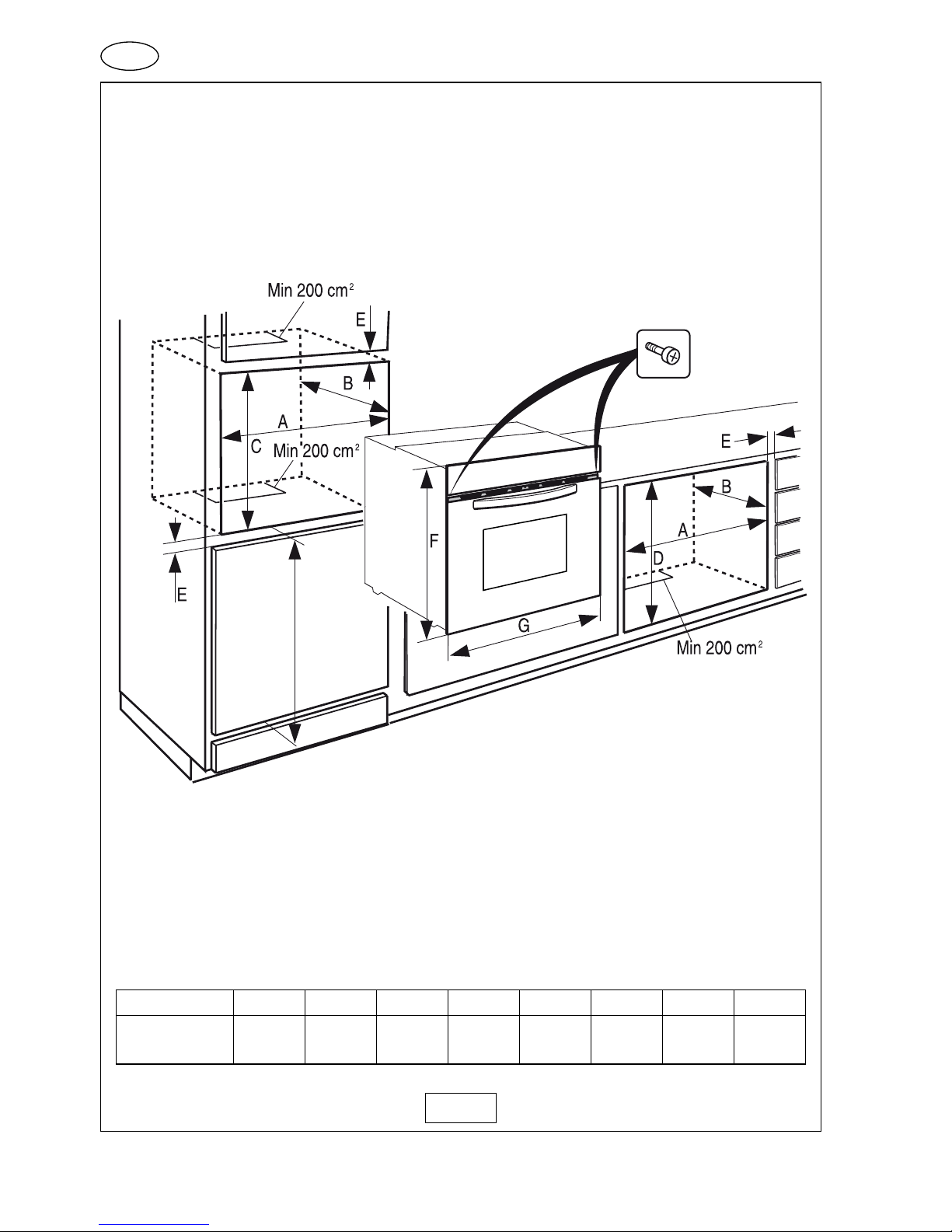

To install the oven into the kitchen a cutout should be made in accordance with the
dimensions shown in Fig. 1.
The apparatus is to be fastened to the top by means of the two screws provided in the kit
through the holes made on the oven uprights.
The cabinet in which the apparatus is installed shall be open on the back side to ensure
a sufficient air circulation and prevent overheating.
Leave a gap of at least 200 cm2 (see Fig. 1) for air circulation if the oven is installed in a
column; this is not necessary if the oven is installed under the work top.
WARNING
As the apparatus is to be fitted in your kitchen furniture, make
sure that all surfaces in contact with the oven can resist a
temperature of approx 90°C.
Electricals
- Absorbed power:
oven top element:................................................................... 2400 W
oven bottom element: ............................................................ 2100 W
round element (hot air): ......................................................... 2300 W (on some models)
roasting jack motor: ............................................................... 4 W (on some models)
lamp: ....................................................................................... 25 W
hot air fan motor:...................................................................... 25 W
cooling fan motor:..................................................................... 25 W
- Maximum absorbed power: (see data plate).
- Supply voltage: (see data plate).
NOTE
This appliance is in compliance with following European directives:
2006/95/CE (LVD), 2004/108/CE (EMC), 2002/95/CE (RoHS),
2002/96/CE (WEEE), 2002/40/CE.
*%
4
H
Appliances A B C D E F G H
Single oven 56 55 58,5 59,5 Min
1,3 58,9 59,5 86,5
Dimensions are in centimeters
Fig. 1
*%
5
Connection to the electrical power mains
WARNING
This apparatus must be earthed.
The oven is only for domestic use.
The feed voltage and the absorbed power are as indicated on the data plate attached to
the left-hand side upright, which can be seen when the oven door is open.
Connecting must be carried out by qualified personnel and in accordance with the
regulations currently in force.
The manufacturer can not be held responsible for any damages to persons or objects
caused by failure to observe these instructions.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
The oven must be connected to the mains through a multipole circuit breaker with
a contact-to-contact gap of at least 3 mm, making sure that the earth wire is not
disconnected. For connecting use a flexible cable of the H05V2V2-F 3x1,5 mm2type
remembering to make it long enough to allow the oven to be removed from its housing
unit when maintenance work is required.

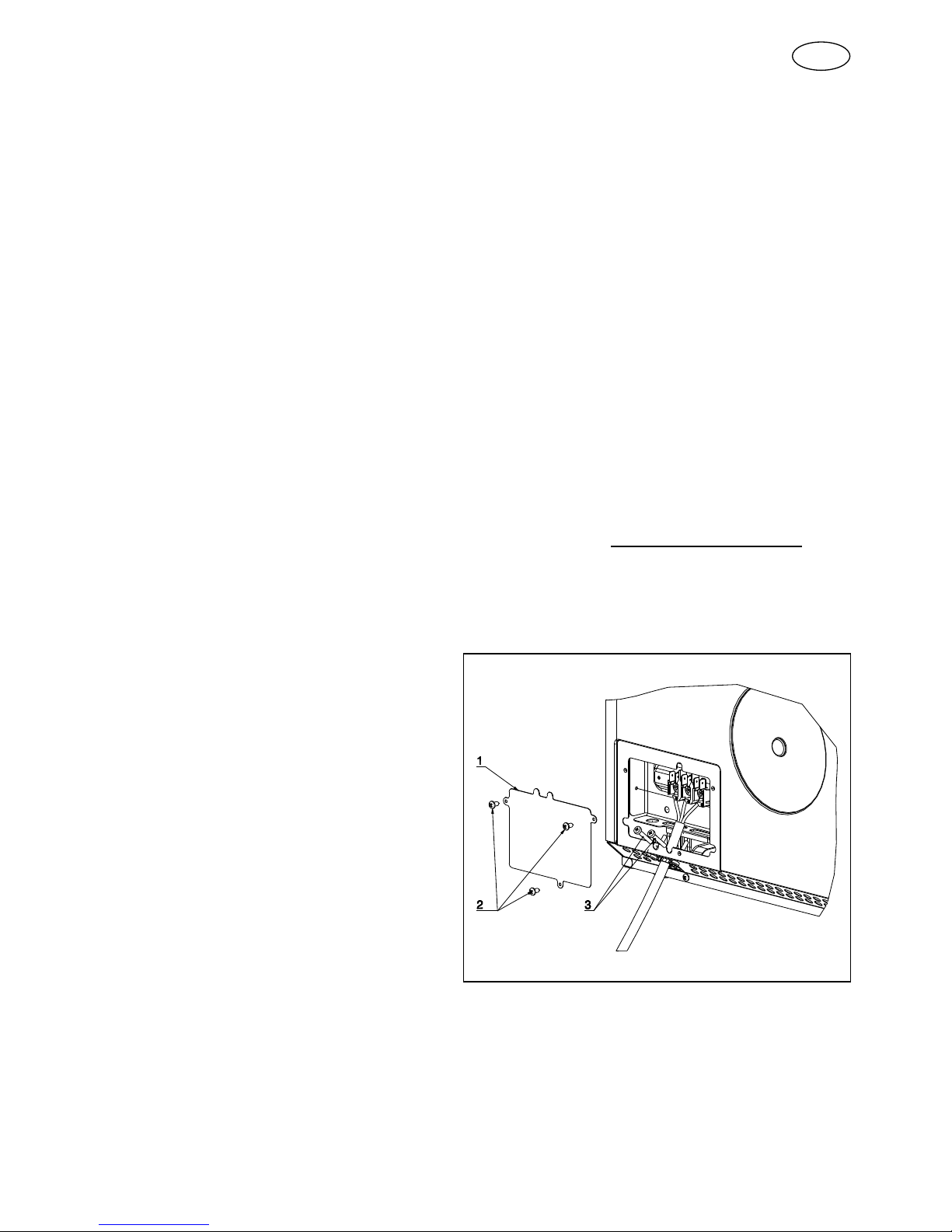

To connect the cable to the oven
proceed as follows (see Fig. 2):
- Remove the lid (1) by unfastening the
three screws (2). Unfasten the two
screws (3) for the cable holder and
feed the cable through the opening
immediately below the cover.
- Remove about 12 cm of the outside
insulation from the cable and
shorten the two active wires (live and
neutral) to 6 cm, leaving long the one
to be connected to the main earth
terminal on the terminal box; remove
about 1 cm of the main insulation
from the three wires and connect
them correctly to the terminal box,
remembering to respect the polarities.
- Tighten the two screws (3) of the cable holder and put the lid (1) back on with the three
screws (2).
Fig. 2
*%
6
INSTRUCTIONS FOR USE
Oven Racks
WARNING
Never use aluminum foil to cover the oven racks or to line the
oven. It can cause damage to the oven liner if heat is trapped
under the foil.
WARNING
Make sure you do not force it to avoid damage to the enamel.
The oven has rack guides at four levels.
Rack positions are numbered from the
bottom rack guide (#1) to the top (#4).
Check cooking charts for best rack
positions to use when cooking.
Each level guide consists of paired
supports formed in the walls on each side of the oven cavity.
Always be sure to position the oven racks before turning on the oven. Make sure that the
racks are level once they are in position.
The racks are designed to stop when pulled forward to their limit.

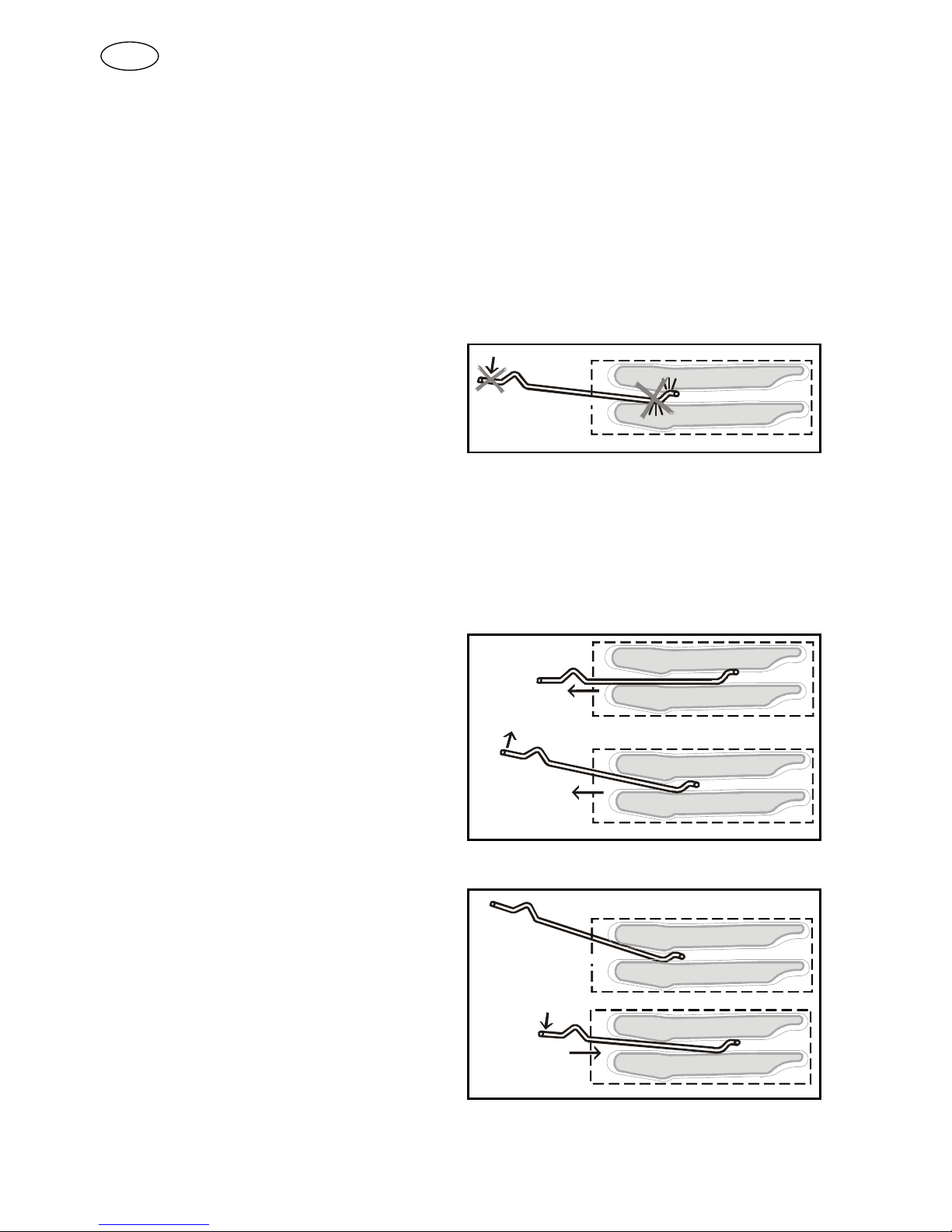

To remove oven rack from the oven (see
Fig. 4):
1 Pull rack forward.
2 Lift rack up at front and then remove it.
To replace an oven rack (see Fig. 5):
1 Place rear of rack between rack level
guides.
2 While lifting front of rack, slide rack in all
the way while lowering the front.
1
2
1
2
Fig. 4
Fig. 5
Fig. 3
*%
7
Oven extendable racks (if present)
The extendable rack allows for easier access to cooking foods. It extends beyond the
standard flat rack bringing he food closer to the user.
WARNING
Make sute that:
• When the rack is outside of the oven, slide arms do not
lock. They could unexpectedly extend if the rack is carried
incorrectly. Extending slide arms could cause injury. Rack
should only be held or carried by grasping the sides.
• To avoid burns, pull rack all the way out and lift pan above
handle when transferring food to and from oven.
NOTE
Always remove the extendable rack before self-cleaning the oven.

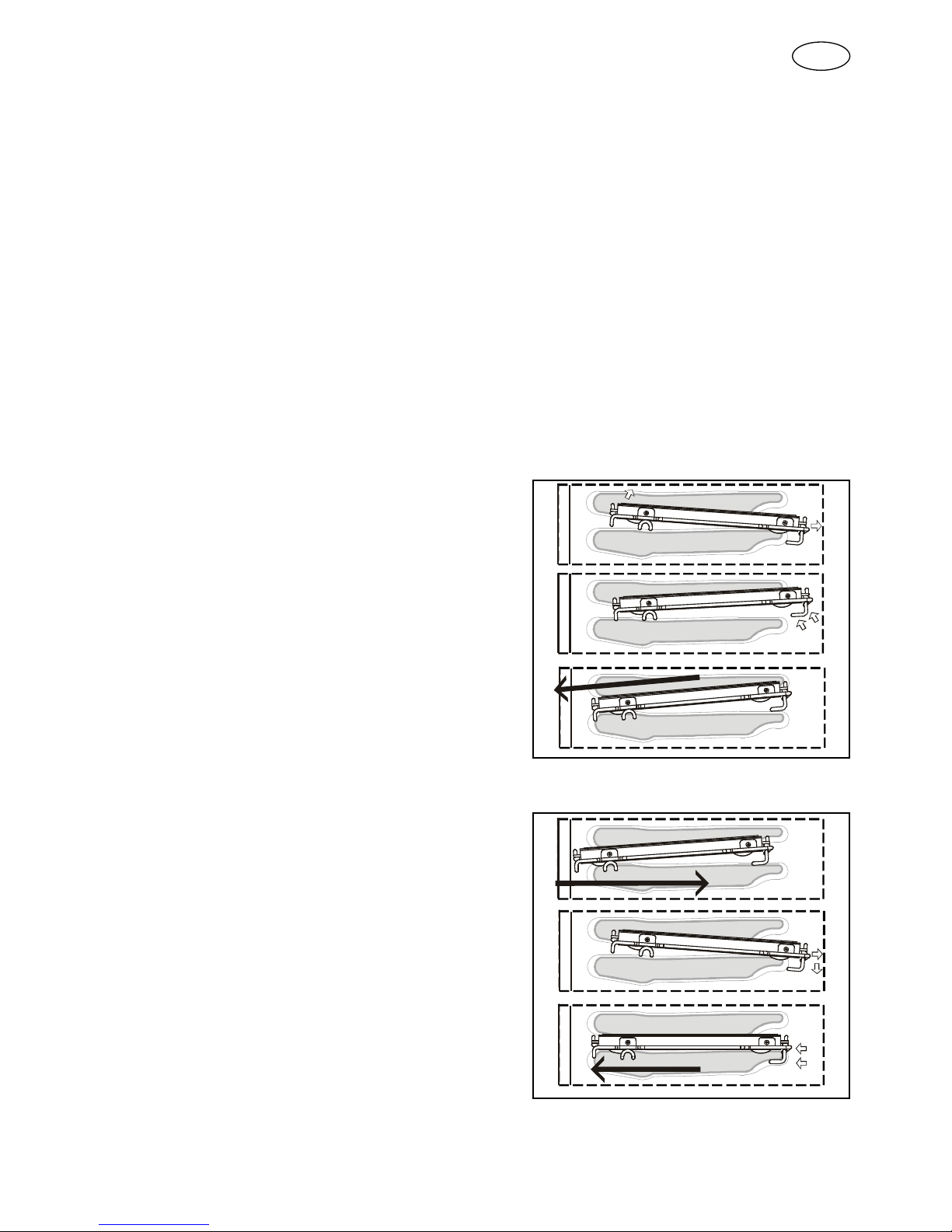

To remove extendable rack from the oven
(see Fig. 6):
1 Lift of rack slightly and push it until the stop
release.
2 Raise back of rack until frame and stop clear
rack guide.
3 Pull rack down and out.
To replace an extendable rack (see Fig. 7):
1 Grasp rack firmly on both sides. Place rack
(including frame) above desired rack guide.
2 Push all the way in until the back of the rack
drops into place.
3 Pull both sections forward until stops
activates. Rack should be straight and flat,
not crooked.
1
2
3
1
2
3
Fig. 6
Fig. 7
*%
8
Cooking functions
Each type of oven is provided for various cooking systems.
Icon Mode Description Used for…
The light is on only. ---
In this mode only the internal oven
convection fan is ON i.e. there is no
oven heating
This mode is used to defrost
deepfrozen food.
Only the lower (bottom) oven heating
element is activated.
This mode is used to keep foods
warm.
In this mode both upper (top)
and lower (bottom) oven heating
elements are used to heat the oven
air. However, no fan is used to
circulate the heat.
This is the traditional mode of cooking
on one shelf. Therefore only one rack
can be used when selecting the Bake
mode. Ideal for Appetizers, Biscuits,
Coffee Cakes and Cookies.
This mode is intended to save energy.
In particular the oven cooling fan
works only when needed e.g. when
the oven is hot and the electronics
require cooling.
Ideal for frozen or precooked food,
and small portions-mealsThe preheat
time is very short and cooking tends
to be slower.It is not recommended
for heavy loads e.g. large portions or
big meal preparation.
The Convection bake mode uses the
upper (top) oven heating element, the
lower (bottom) heating element and
the convection fan inside the oven.
It can also be used for baking-cooking
Appetizers, Biscuits, Coffee Cakes
and Cookies on one or more levels.
The Convection Roast mode uses
the Intense upper (top) oven heating
element, the lower (bottom) heating
element and the convection fan
inside the oven.
Ideal for the roasting of whole
chickens or turkey.
The True Convection Bake mode
uses the circular or third heating
element hidden behind the baffle at
the back wall of the oven. The heat is
circulated throughout the oven by the
convection fan.
Consequently different foods can be
cooked simultaneously (maximum
three levels) and is suitable for
preparing a complete dinner (small
portions). Mixing of flavours is
avoided and an important energy
saving is obtained.
Altri manuali per OMFP6011
1
Indice
Altri manuali Kleenmaid Forno
Kleenmaid
Kleenmaid OFS9021 Guida all'installazione
Kleenmaid
Kleenmaid OMFP6010 Manuale utente
Kleenmaid
Kleenmaid SO4520 Guida all'installazione
Kleenmaid
Kleenmaid G10FF-6SS Guida all'installazione
Kleenmaid
Kleenmaid TO50X Manuale utente
Kleenmaid
Kleenmaid OMF4510 Guida all'installazione
Kleenmaid
Kleenmaid FEC605X Guida all'installazione
Kleenmaid
Kleenmaid KCOMF6010 Guida all'installazione
Kleenmaid
Kleenmaid OMF6030K Guida all'installazione
Kleenmaid
Kleenmaid TO901X Manuale utente
Kleenmaid
Kleenmaid TO5A Manuale utente
Kleenmaid
Kleenmaid OMFP7510 Manuale utente
Kleenmaid
Kleenmaid TO101X Manuale utente
Kleenmaid
Kleenmaid OFS9021 Manuale utente
Kleenmaid
Kleenmaid OMF6014 Guida all'installazione
Kleenmaid
Kleenmaid OMF6022 Guida all'installazione
Kleenmaid
Kleenmaid TO6A Manuale utente
Kleenmaid
Kleenmaid TO100X Manuale utente
Kleenmaid
Kleenmaid FEG 600 X Guida all'installazione
Kleenmaid
Kleenmaid OMFP6010 Manuale utente
