Instructions for Use

and

Warranty Details

SOE100X - Built In Stainless Steel Steam Oven

SOE100A - Built In Aluminium Steam Oven

ongratulations on the purchase of your new

appliance. This appliance has been

designed and manufactured to give you years

of reliable performance.

For best results, carefully read the instructions on

how to install your new appliance. Correct installation

will avoid delays and unnecessary service calls.

Once installation is complete, read this booklet

carefully and get to know the controls and the

features of your new appliance.

We reserve the right to alter the specifications

appliance. This instruction manual cannot be

reason for a claim.

Introduction P.4

Your oven

Oven features P.5

Accessories P.6

Safety instructions

Before using the appliance for the first time P.7

Safety during use P.7

Child safetyP.7

Installing your oven

Electrical connections P.8

Assembly P.8

Changing the bulbs P.9

echnical data P.9

Tips for installing your oven P.10

How to use your oven

The oven programmer P.11

Steam cooking P.12

Keeping food warm P.13

nterrupting the steam cooking process P.13

Displaying the water level/Refilling P.13

Reducing or extending cooking time during the cooking process P.14

Troubleshooting P.15-16

Cooking table

P.17-19

ooking tips P.20-22

Cleaning the oven cavity

Safety during cleaning P.23

Cleaning and maintenance P.23-24

How to contact us

P.24

Contents

Kleenmaid vapeur_GB.qxd 10/07/03 10:28 Page 3

Throughout this manual, indicates safety recommendations,

indicates advice to help you make the

best use of your oven

Introduction

Dear Customer,

Thank you for buying a KLEENMAID oven.

Our design staff have produced a new generation of kitchen equipment, to help

give you free rein to your culinary talents and to enjoy great food every day.

You will find that the clean lines and modern look of your KLEENMAID oven blends

in perfectly with your kitchen décor. It is easy to use and performs to a high

standard.

The KLEENMAID product range also includes a huge choice of ovens,cooktops,

rangehoods, dishwashers, microwave ovens and refrigerators ready to be built

in and coordinated with your new KLEENMAID Steam Oven.

Of course, we make every effort to ensure that our products meet all your

requirements, and our professional Sales Staff are at your disposal, to answer

all your questions and to listen to all your suggestions.

A specialist in the world of cooking equipment, KLEENMAID contributes to your

culinary success, shared pleasures and hospitality, bringing you products that are

ever more efficient, easy to use, environmentally friendly, attractive and reliable.

The KLEENMAID name.

Kleenmaid vapeur_GB.qxd 10/07/03 10:28 Page 4

1234

Your oven

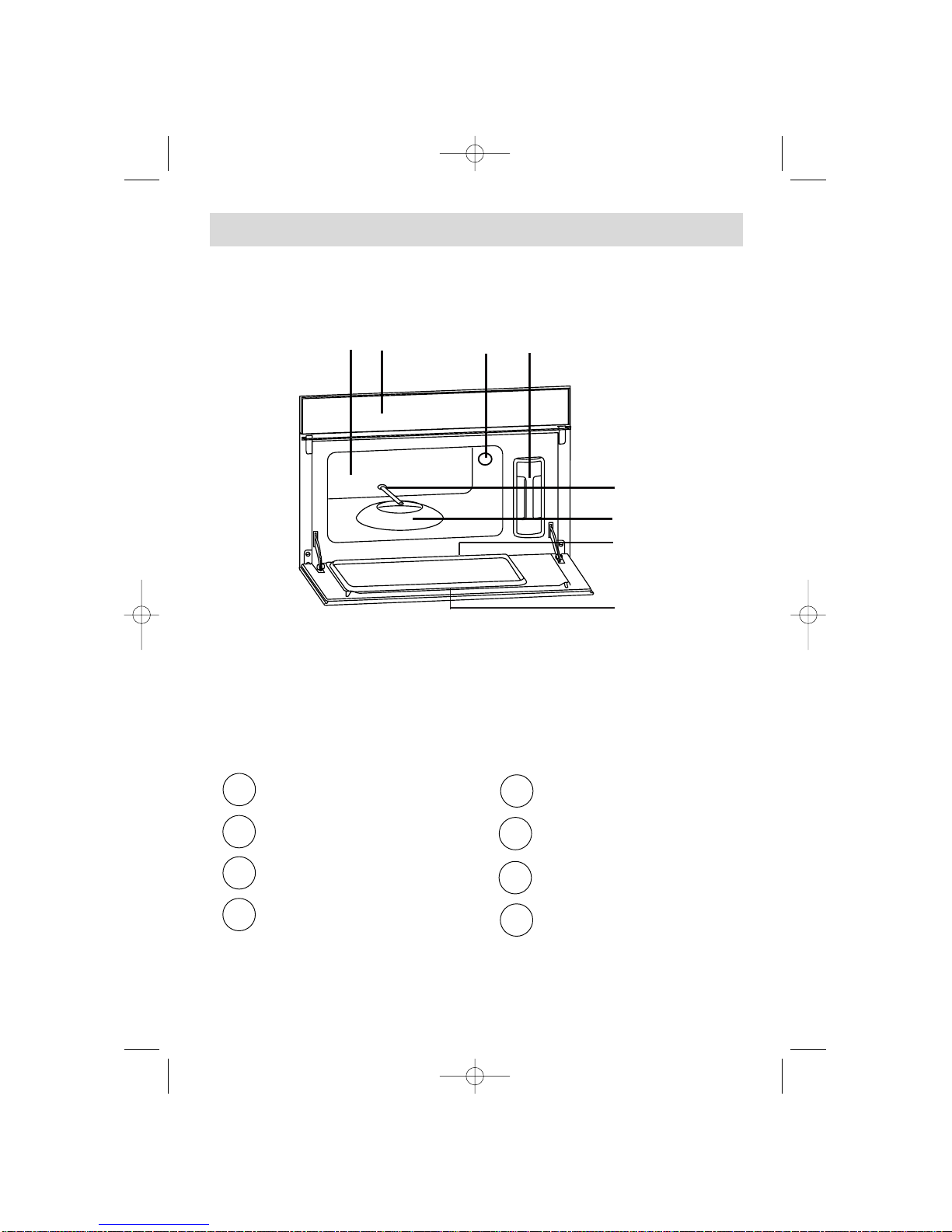

OVEN FEATURES

Water pipe

Steam generator

Drip channel

Door seal

Oven cavity

Control panel

Oven cavity lighting

Water tank 8

Kleenmaid vapeur_GB.qxd 10/07/03 10:28 Page 5

Steam cooking drainer

Steam cooking dripping

pan

Steam cooking shelf for

second level runner

(optional accessory)

Steam cooking shelf

Steam generator

Water pipe

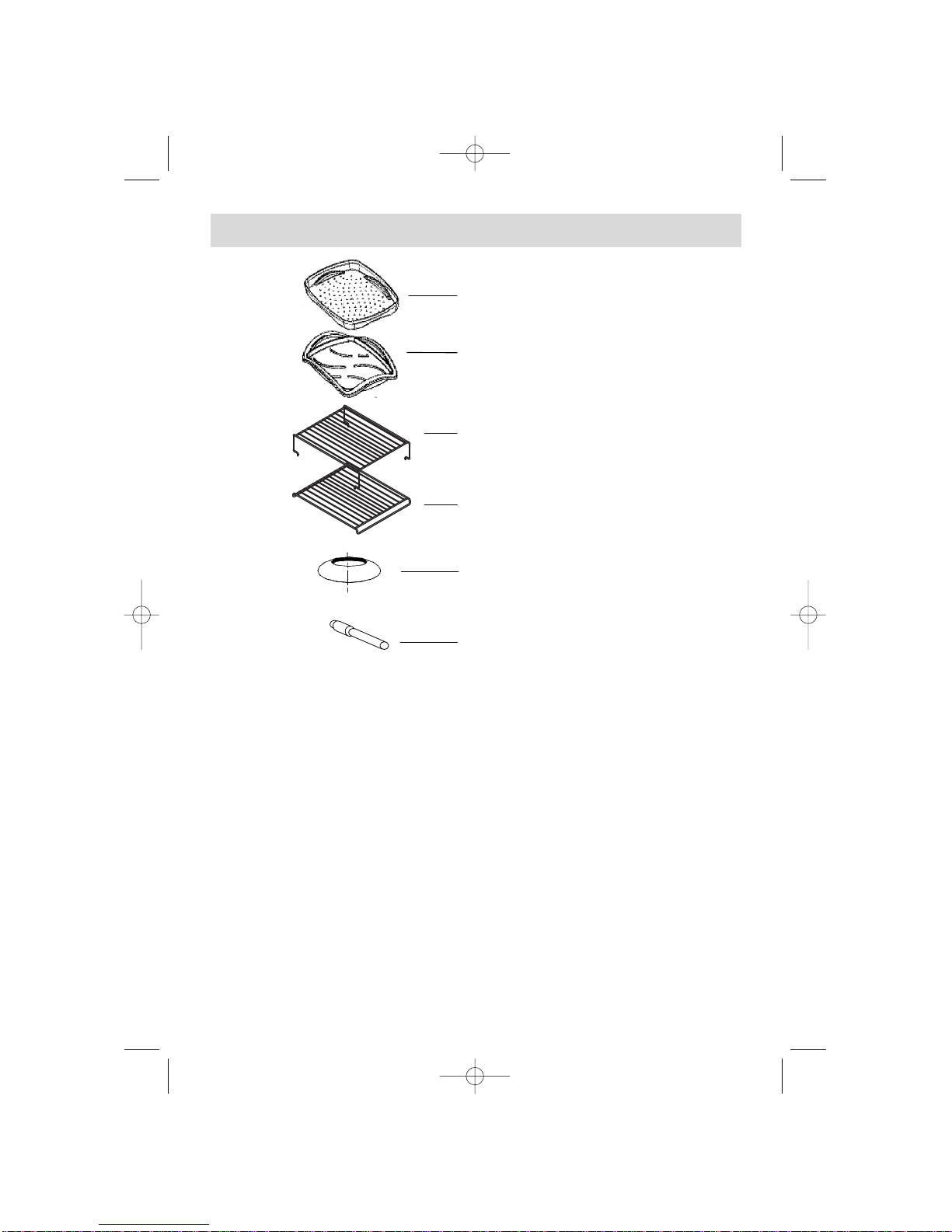

Accessories

Cooking dishes

During cooking, you can use the accessories included with the steam oven.

- Place the food to be cooked in the drainer.

- Use the dripping pan to catch the cooking juices.

These can be used (for example) to make sauces.

Careful! At the end of cooking time the food and steam cooking dishes will be hot!

It is possible to use ceramic, porcelain or heat resistant plastic crockery.Be sure

to observe the manufacturer's recommendations.

For example, asparagus can be cooked on a plate placed in the steam oven and

then seasoned. Do not use the drainer for rice, terrines or pasta dishes. For these

dishes use a non-perforated recipient.

Never use paper or cardboard plates or dishes as these will not withstand humidity.

Kleenmaid vapeur_GB.qxd 10/07/03 10:28 Page 6

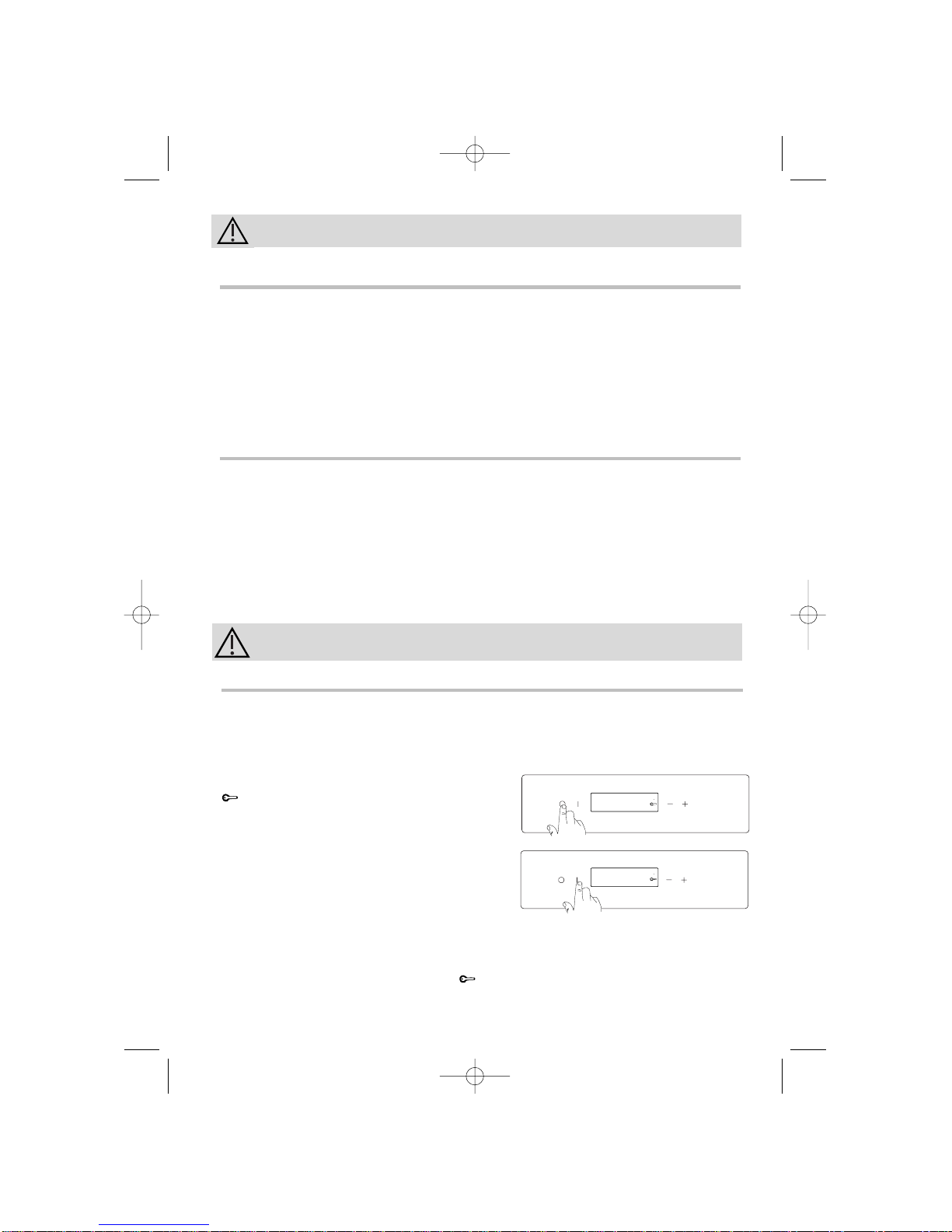

Safety instructions

Remove all objects from the oven cavity and, if necessary, any stickers and

protective sheets placed on the appliance.

Do not remove the identification plate!

Clean and dry the control panel, the oven cavity and the inside of the doors

using a cloth soaked in a mild detergent.

Clean the steam cooking drainer, the dripping pan, the shelf and the steam

generator using a mild detergent.

Before using the appliance for the first time

Child safety

When the appliance is turned off, it is

possible to activate the locking function by

pressing on the (STOP) button for 5 seconds.

An audible signal will be emitted and the

symbol appears on the screen.

To save energy, the display disappears

from the screen after 10 minutes. The

symbol reappears if any other buttons

are pressed.

When the locking function is activated,

it is not possible to turn on the

appliance.

To turn off the locking function, simply press

on the (START) button for 5 seconds.

An audible signal is emitted and the

symbol disappears from the screen.

The steam oven should be turned on for 10 minutes before its first use.

Ensure that ventilation around the appliance is adequate. If necessary use a rangehood.

The steam generator can lead to burns.

When removing cooked and hot food, you should use a dishcloth and wear heat

resistant gloves.

Do not apply excess weight to the open door.Do not sit or climb on it.

Apart from the accessories supplied, you should use only suitable heat resistant

cooking dishes.Be sure to observe the manufacturer's recommendations.

After use, check that the appliance is turned off properly.

Safety during use

Kleenmaid vapeur_GB.qxd 10/07/03 10:28 Page 7

The appliance is not intended for use by children or infirm persons

without supervision.

Installing your oven

The appliance should only be connected by a professional electrician.

To ensure electrical safety, the equipment to be fitted must be inserted

in units fully adapted to this purpose and conforming to standards.

Connecting to the power supply :

- You should use an earthed plug to connect to the power supply. In case of a

direct connection, the main switch terminal should be at least 3 mm apart.

- The electric plug should remain accessible. Do not use an extension lead or

multiple plug.

- We cannot be held responsible for any incident caused by the machine

being badly earthed.

- The machine must be fitted in compliance with the applicable regulations in your

state as well as any extra instructions from the Electricity Company.

- When carrying out maintenance, be sure to unplug the appliance from the

mains!

- Defective appliances should not be used. In the event of problems or defects

becoming apparent, turn off the appliance and/or activate the cutout.

- For safety reasons, any repairs to be carried out on appliances, particularly on

parts conducting electricity, must only be carried out by professional electricians

or technicians from the After Sales Service Department trained in this field, in

view of the risks for the user. In the event of a problem, please contact our After

Sales Service Department directly 1300 652 100.

-The appliance should only be used when it is fully installed. In this way you are

protected against contact with electrical components.

1. Place the appliance in front of the space into which it is to be installed and

plug it into the mains.

2. Insert the steam oven into the space set aside for it.

Ensure that the cable does not become trapped as you insert the appliance.

3. Attach the appliance in various places using a minimum of 2 screws.

Alternatively

If the steam oven is installed along with an oven or a microwave, it should

always be placed in the lowest position.

Electrical connections

Assembly

Kleenmaid vapeur_GB.qxd 10/07/03 10:28 Page 8

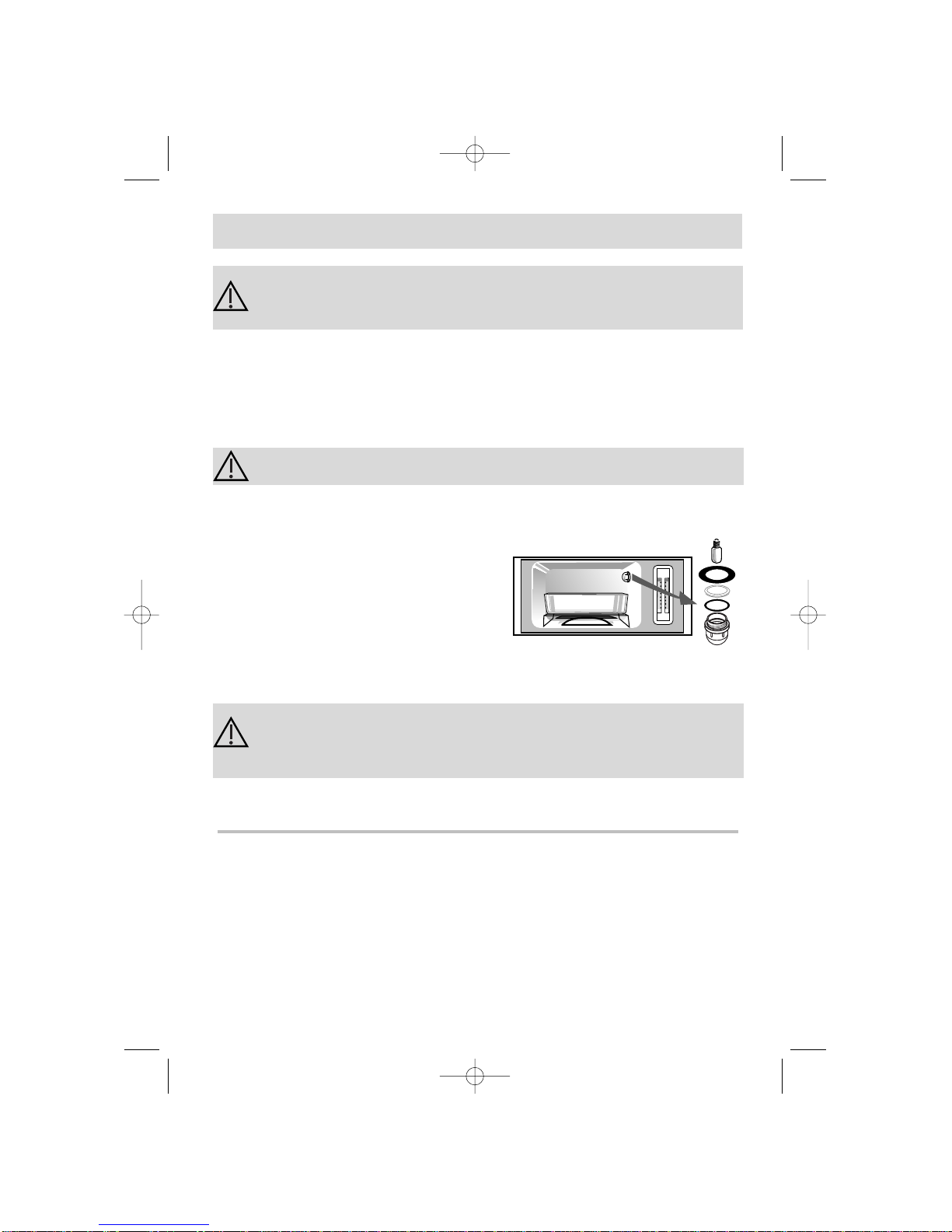

Changing the bulbs

Before removing the bulbs from the housing, be sure to first turn off

the electrical supply to the appliance.

Turn off the oven and/or activate the cutout or unplug the power lead.

You can replace any defective incandescent bulbs yourself.

You need to obtain bulbs able to withstand a temperature of 300º C,25 watts,

230 - 240 volts, E14, which can be purchased from shops specialising in

electrical items.

Caution!

Do not damage the seals!

1. Turn the cover of the lamp to the left.

2. Turn and unscrew the incandescent

lamp in an anticlockwise direction.

3. Replace the incandescent lamp.

4. Reinsert the cover, screwing it in a

clockwise direction.

Ensure that both seals are in the right place.

Caution!

The seals must be in perfect condition. In the event that the seals

are damaged, please contact the After Sales Service Department.

Kleenmaid vapeur_GB.qxd 10/07/03 10:28 Page 9

Technical data

Appliance size

Width 595 mm

Depth 420 mm

Height 388 mm

Size of the space

Minimum width 560±568 mm

Minimum depth 500 mm

Minimum height 380±388 mm

Power consumed

Connection voltage 220-240 V ~50Hz (10 A)

Total power 2.03 kW

The appliance should only be connected up by a professional

electrician.

Tips for installing your oven

Installing your oven
