Kleenmaid KFL850 Manuale utente
Instructions for Use
KFL850
Washing machine
Thank you for your condence in purchasing our
washing machine, and congratulations on the
excellent choice.
Your new washing machine meets the requirements
of modern treatment of laundry. It is rational in the
consumption of energy, water and washing agents.
Our appliances are friendly to the environment.
Some of the materials may be recycled, others
deposited or decomposed. To avoid pollution
on the environment, once your appliance is no
longer useful, take it to your local authorised waste
appliance dealer.
Description of washing machine ..................... 3
Cautions ............................................................. 4
Installation and connection.............................. 6
Operation ........................................................ 10
Tips for washing and saving energy ............. 19
Cleaning and maintenance............................. 21
Failures............................................................. 24
Tables ............................................................... 27
2
3
Dimensions (w x d x h):
600 mm x 600 mm x 850 mm
Depth with door open: 106 cm
Weight (net): 77 kg
Nominal voltage: 240 V, 50 Hz
Power: 2300 W
Max. load: 6.5 kg
Power socket: (240 V, 50 Hz, 10 A)
Water pressure: min. 0,05 MPa, max. 0,8 MPa
Fuse: 10 A

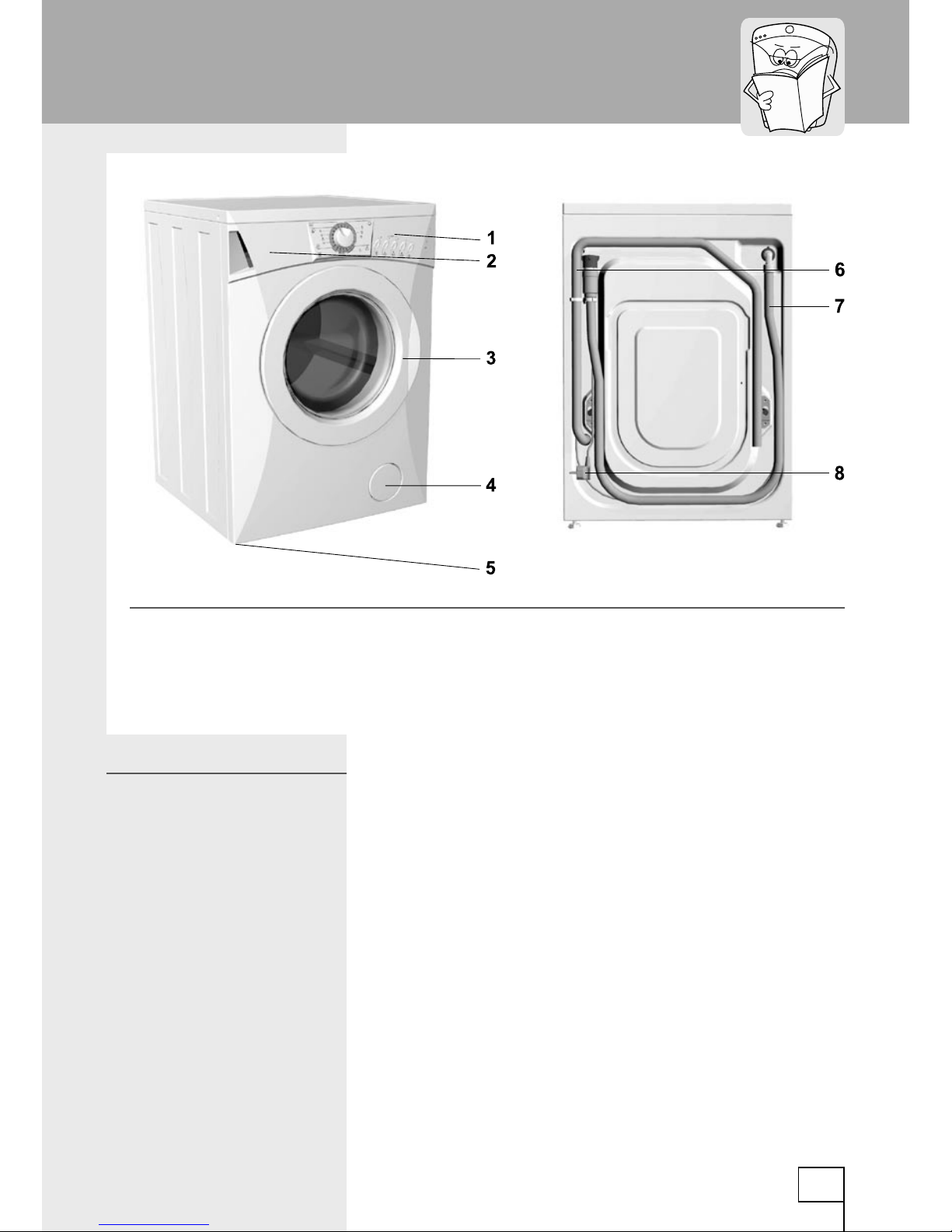

1. Front panel
2. Detergent dispenser
3. Door
4. Filter lid
5. Adjustable legs
6. Water outlet hose
7. Water inlet hose
8. Mains power cable
2
3
Description of washing machine
Technical information
• Be sure to remove transport brackets prior
to rst use of the appliance. Attempted
operation of the blocked machine may result in
irreparable damage which is not covered by the
manufacturer’s warranty!
• When connecting your washing machine to water
supply, be sure to use brand new water inlet hose
and appropriate sealing gaskets (attached).
• Do not locate the machine in a room with
temperature below 0°C. Parts of the machine may
be damaged if frozen.
• Install the washing machine in a perfectly
horizontal position, on solid at concrete oor.
• Follow the instructions for correct installation and
water and mains connections.
• Never immerse the end of the drain hose into the
draining water.
• Prior to starting the washing cycle lock the door
by pressing them at the designated spot.
• Door may not be opened during the washing
cycle.
• Use only detergents and softeners for
machine wash. Manufacturer may not assume
responsibility for any damage and eventual
discoloring of gaskets and plastic components as
a consequence of incorrect use of bleach and/or
colouring agents.
• For removal of lime residues use such agents
with added anti-corrosion agents. Follow the
manufacturer’s instructions. Finish the lime
removal by multiple rinsing to remove completely
eventual acid residues.
• Never use detergents containing solvents, as
there is a danger of creating toxic gasses which
may damage the machine and result in ignition or
explosion.
• Upon completion of washing operation close the
water tap.
4
5
Cautions
• Before any transport, block the machine by
inserting at least one transport blocking rod. Prior
to this operation disconnect the appliance from
the mains power!
• Rating plate with basic information is located
above the opening of the machine.
The symbol on the product or on its
packaging indicates that this product
may not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the recycling
of electrical and electronic equipment.
By ensuring this product is disposed of
correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise
be caused by inappropriate waste
handling of thisproduct. For more detailed
information about recycling of this product,
please contact your local city ofce, your
household waste disposal service or the
shop where you purchased the product.
This appliance is not intended for use by
young children or inrm persons unless
they have been adequately supervised by a
responsible person to ensure that they can
use the appliance safely.
Young children should be supervised
to ensure that they do not play with the
appliance.
4
5
In removing the wrapping, be careful not to
damage the appliance with a sharp object.
• Our appliances are packed in environmentally
friendly materials which may be recycled,
deposited or decomposed without any threat to
the environment.
• To this end all wrappings are marked accordingly.
• Move the hoses.

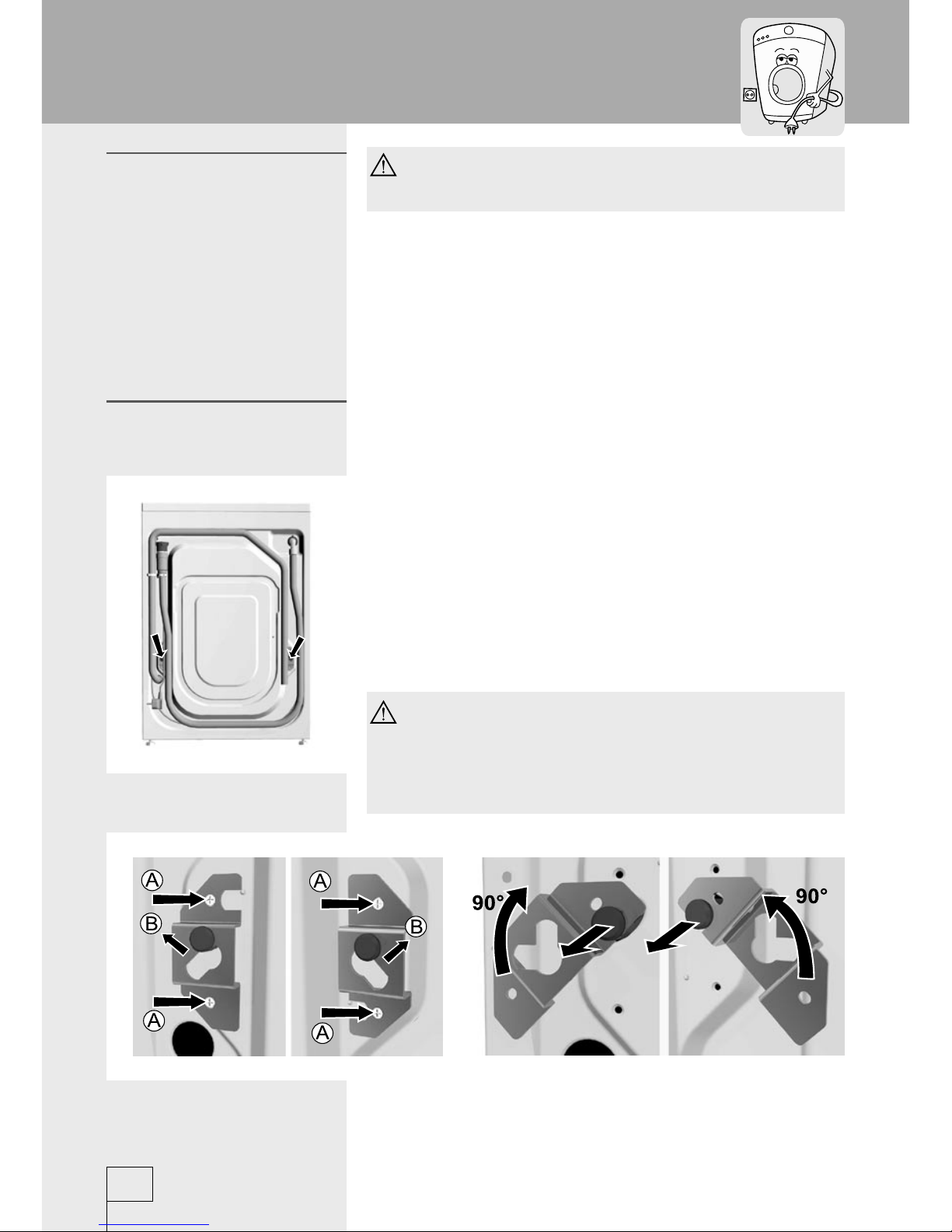

• Loosen screws A at the rear of the machine
(Fig. 1).
• Remove the brackets B (Fig. 1) and slide them
into the groove on the blocking rod (Fig. 2) - the
right one should be turned around.
• Use the brackets to rotate blocking rods for 90°
and pull them out.
• Close the openings with attached plastic pegs.
Save transport brackets for eventual later use.
Be sure to remove the transport brackets
prior to rst use, otherwise the appliance
may be permanently damaged. In such
cases the warranty conditions are void.
Fig. 1
Fig. 2
Fig. 2
6
7
Installation and connection
Package removal
Removal of transport
brackets

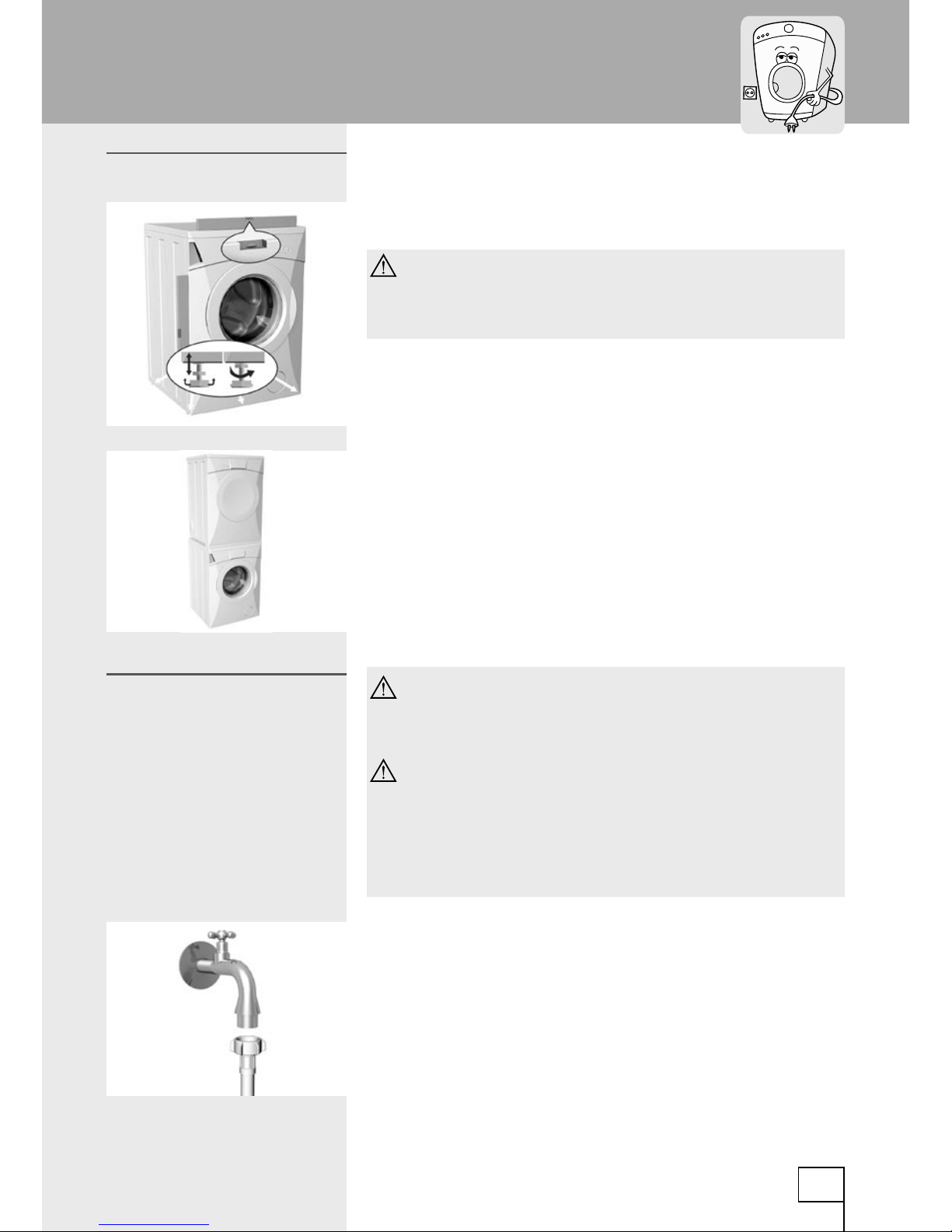

• Put the appliance in a horizontal position by
turning the adjustable legs.
The legs are adjustable up to +/- 1 cm.
The oor below the appliance must be dry
and clean, otherwise the appliance may
slide.
• If you have a tumble dryer of the same
dimensions, you can place it on top of the
washing machine.
To ensure correct operation of the
appliance, water pressure inlet must be
between 0,05 and 0,8 MPa.
Minimum water pressure can be
established by measuring the quantity of
poured out water. 3 litres of water must be
poured out from completely opened tap in
15 seconds.

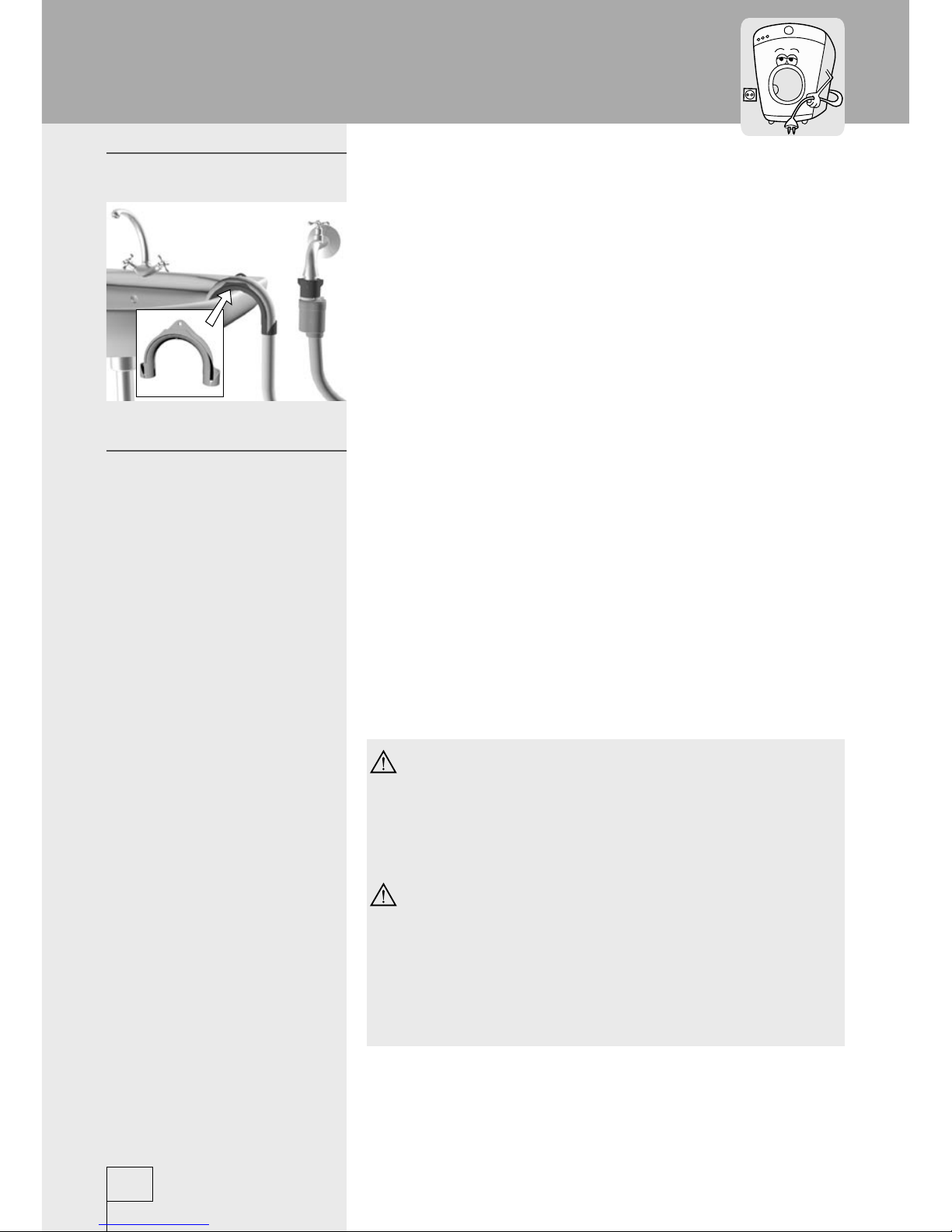

• Insert the gasket with screen into the water inlet
hose thread. Screw the hose thread to the water
faucet.
• In case of hot and cold water connection, connect
one hose to cold and the other to the hot water
faucet marked at the rear of the appliance (letters C
and H) (C - cold; H - hot).
6
7
Water inlet connection
Levelling the appliance

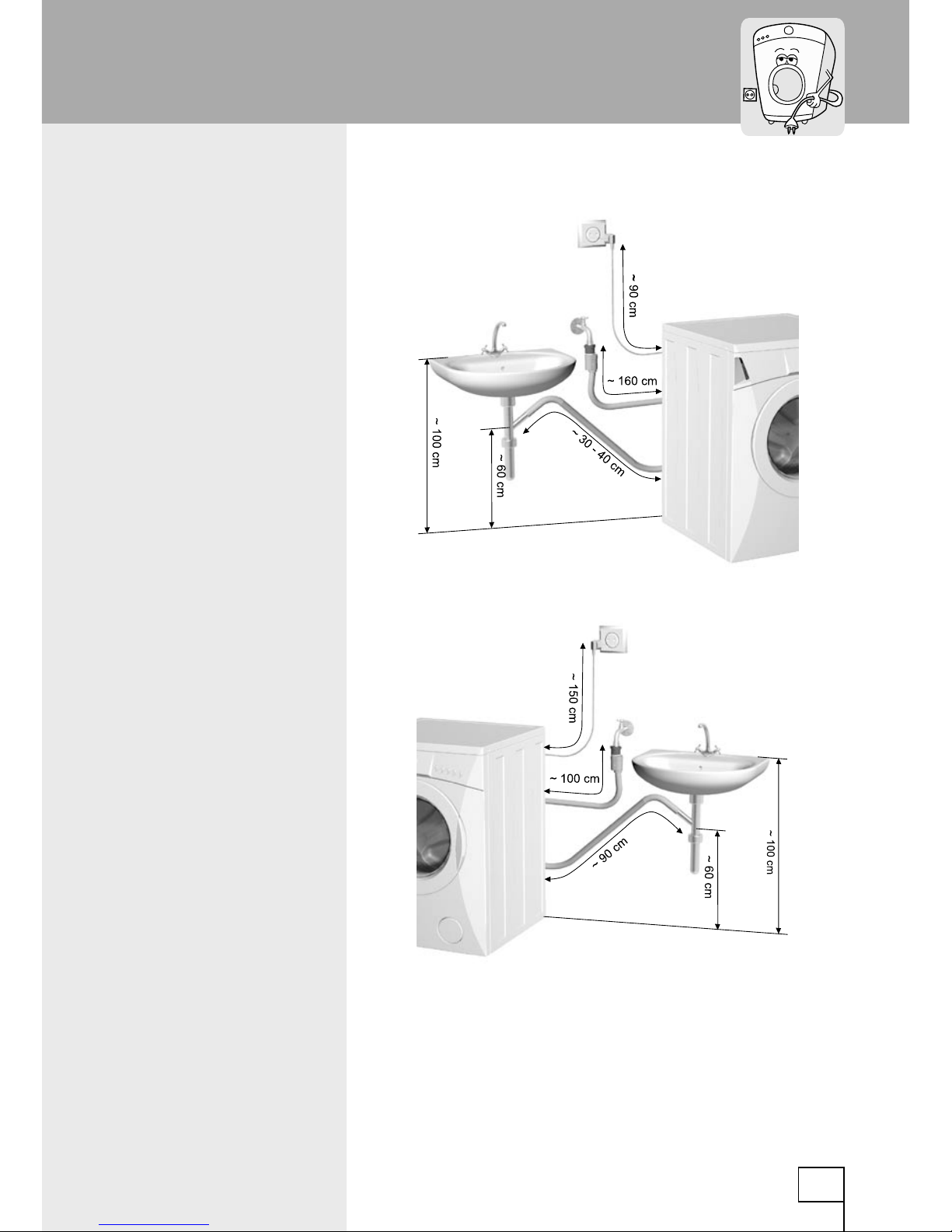

• Fix the outlet hose to the wall drain outlet
(diameter min. 4 cm).
• Wall drain must be installed properly and must
enable occasional cleaning.
• Fasten the outlet hose support with a piece of
rope fed through the hose elbow to prevent the
hose from slipping to the oor.
The end of the outlet hose should be placed
between minimum 60 cm and maximum 100 cm
above the oor level.
Connect the appliance to the power supply with the
cord provided.
A three pin, switched, earthed power point less than
1500mm from the back of the machine is required.
Rated voltage, frequency and other data are listed
on the rating plate on the back of the machine.
Check that the supplied electrical voltage is the
same as on the rating sticker.
Your washing machine should be earthed and
connected to the power supply according to local
electricity supplier regulations and standards.
If the supply cord of this appliance is
damaged, it must be replaced by the special
cord, part no. G 360440, available from your
nearest spare parts centre (refer to guarantee
and service guide).
CAUTION: If this appliance is supplied
from a cord extension set or electrical
portable outlet device, the cord extension
set or electrical portable outlet device must
be positioned so that it is not subject to
splashing or ingress of moisture.
8
9
Water outlet connection
Connection to Power
Supply
8
9

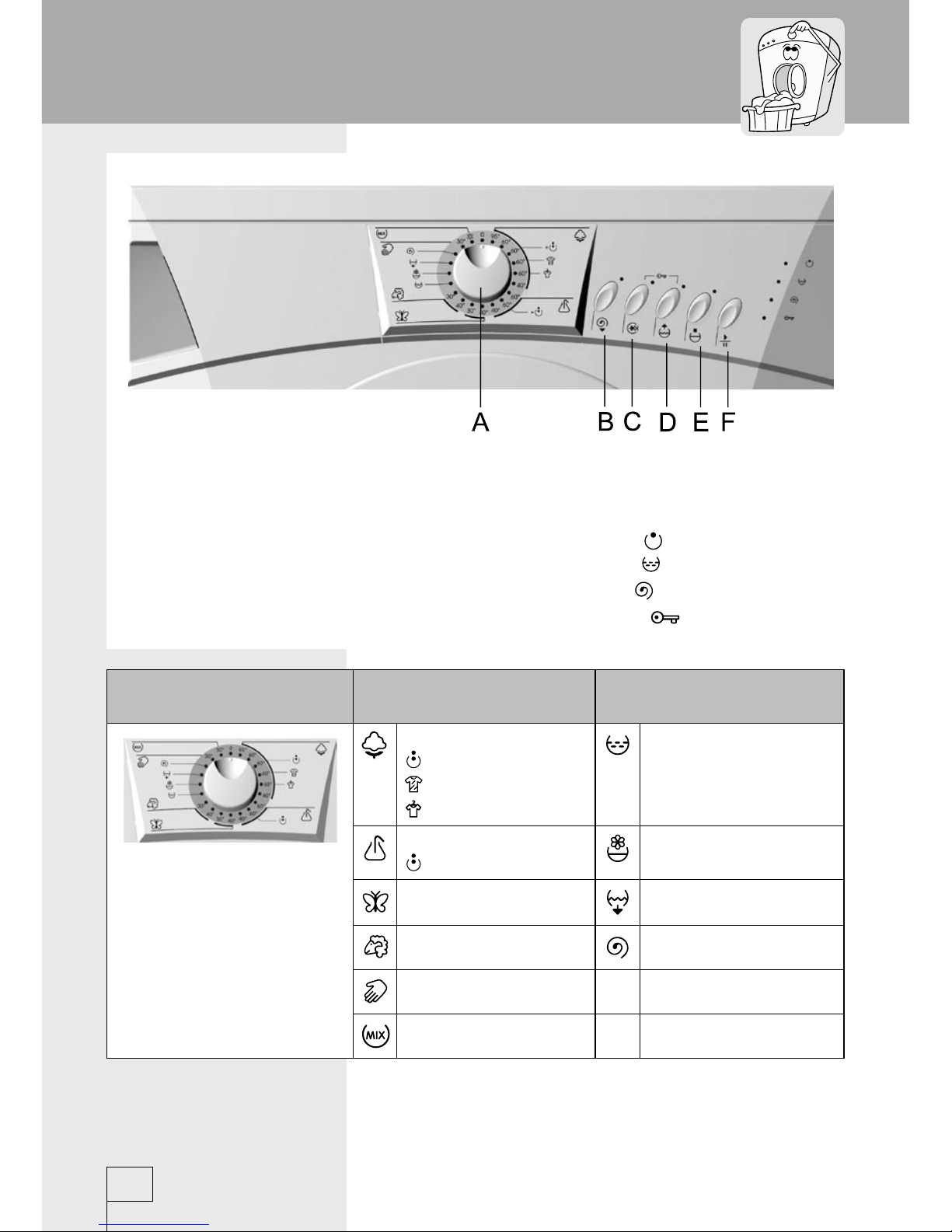

A - program selector
B - Spin speed reduction
C - Quick
D - Water plus
E - Rinse hold
F - START/PAUSE knob
Signal LED’s:
- washing program stages
• wash
• rinse
• spin
- Child lock
10
11
Program selector Basic programs Partial programs
Cotton
Pre-wash
Intensive
Easy ironing
Rinse
Synthetics
Pre-wash
Conditioning
Delicate Drain
Wool Spin
Hand wash
Mix
Operation
