Klipsch SB 120 Manuale utente
SB 120
OWNER’S MANUAL
$ TRIM LINE $ $ TRIM LINE $
$ TRIM LINE $ $ TRIM LINE $

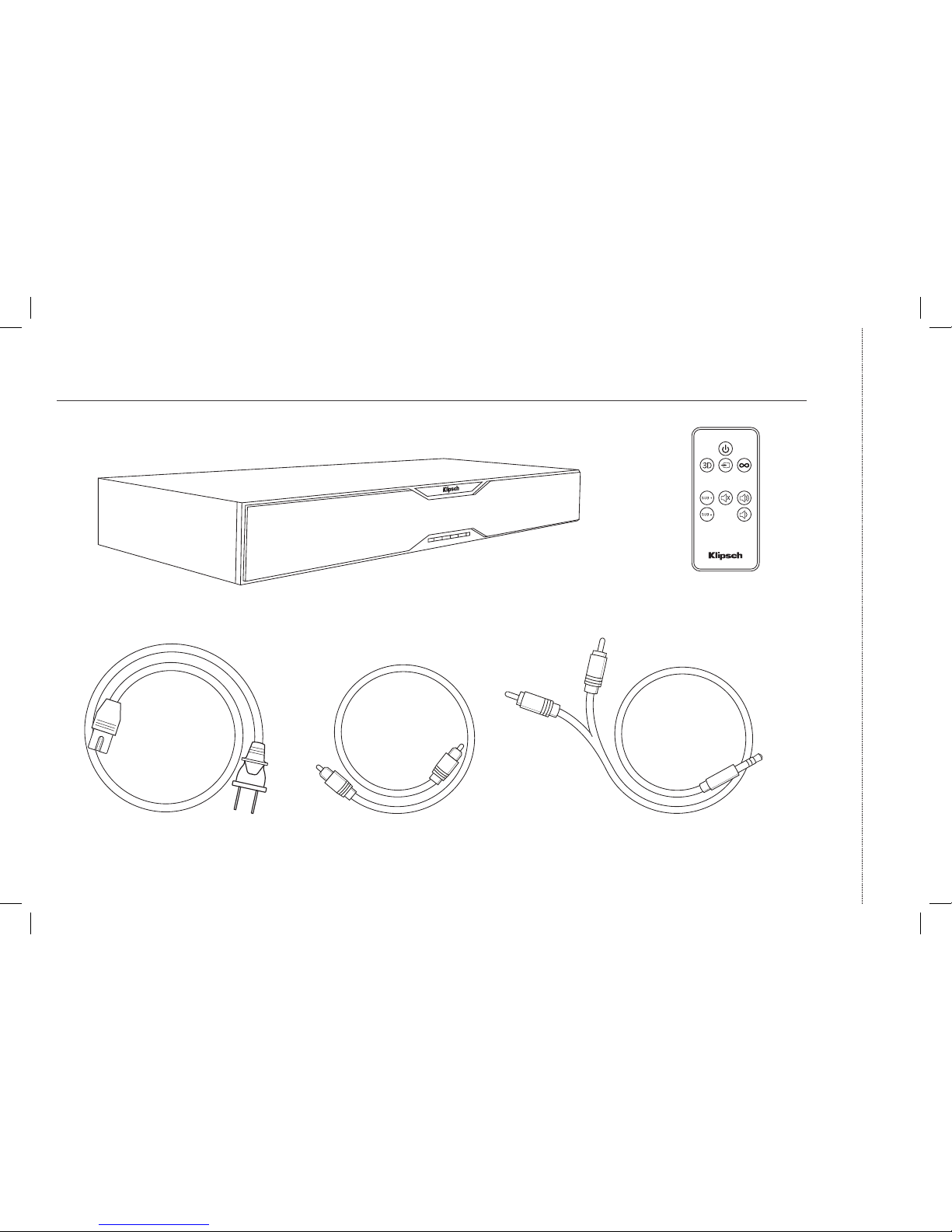

WHAT’S INSIDE
Klipsch SB 120 Remote
AC Power Cord Digital Optical Cable 3.5mm to Dual RCA Cable
$ TRIM LINE $ $ TRIM LINE $
POWER
ON
OFF
OPTICAL L
R
AC~100-240V
50/60Hz
80W
2
3
145
Optical
TV
Digital Audio Out
POWER
ON
OFF
OPTICAL L
R
2
3
1
Audio Out
Klipsch SB 120
Klipsch SB 120
Klipsch SB 120
TV
L
R
POWER
ON
OFF
OPTICAL L
R
2
3
1
Headphone
TV
6
4
5
4
5
AC~100-240V
50/60Hz
80W
AC~100-240V
50/60Hz
80W
DIGITAL OPTICAL CONNECTION (PREFERRED - IF TV HAS NO OPTICAL OUT SEE NEXT PAGE)
$ TRIM LINE $ $ TRIM LINE $
POWER
ON
OFF
OPTICAL L
R
AC~100-240V
50/60Hz
80W
2
3
145
Optical
TV
Digital Audio Out
POWER
ON
OFF
OPTICAL L
R
2
3
1
Audio Out
Klipsch SB 120Klipsch SB 120
Klipsch SB 120
TV
L
R
POWER
ON
OFF
OPTICAL L
R
2
3
1
Headphone
TV
6
4
5
4
5
AC~100-240V
50/60Hz
80W
AC~100-240V
50/60Hz
80W
3.5mm TO DUAL RCA ANALOG CONNECTION (IF TV HAS NO HEADPHONE OUT SEE NEXT PAGE)
QUICK START
POWER
ON
OFF
OPTICAL L
R
AC~100-240V
50/60Hz
80W
2
3
145
Optical
TV
Digital Audio Out
POWER
ON
OFF
OPTICAL L
R
2
3
1
Audio Out
Klipsch SB 120
Klipsch SB 120 Klipsch SB 120
TV
L
R
POWER
ON
OFF
OPTICAL L
R
2
3
1
Headphone
TV
6
4
5
4
5
AC~100-240V
50/60Hz
80W
AC~100-240V
50/60Hz
80W
DUAL RCA TO DUAL RCA ANALOG CONNECTION (CABLES NOT INCLUDED)
RCA Cables not included.
1Solid Green
2Press and Hold
Solid Orange
One Foot
1 2 3
4 5 6
7 8
0
Mute
ChVol
9
Press Slowly x4
6
3Flashes Orange
5Flashing
Green to
Solid Green
7
Press Once x1
4
TV REMOTE PROGRAMMING
To program Volume Up and Volume Down buttons repeat the
steps shown and replace steps 4 and 6 with the button you
want to program.
If you are trying to program a cable/satellite box remote or
other universal remote without success, please try program-
ming your TV or Cable Box
remote instead.
BLUETOOTH®
WIRELESS TECHNOLOGY
Bluetooth
Bluetooth
ON
SB 120
Devices
Connected
Settings
Bluetooth
Bluetooth
ON
SB 120 SB 120
Devices
Not Connected
Settings
1 2 3 You can pair a device equipped with
Bluetooth
at any time by activating it on your device.
Once your device equipped with
Bluetooth
is paired, the SB 120 will automatically switch to
the
Bluetooth
input (SOLID BLUE LIGHT)
and you can stream your music. If you switch
inputs on the SB 120, the
Bluetooth
connection
will automatically be terminated.
You must disconnect your device before pairing
another device equipped with
Bluetooth
by either:
• Pressing and holding the SOURCE button on
the SB 120 control panel 3 seconds
• Turning off
Bluetooth
on the paired device
• Pressing the
Bluetooth
button (∞) on the
SB 120 remote
*Example only. Your device may differ.
BUTTONS
On / Off
3D Surround
Bluetooth
Status
Light
Status
Light
Source Mute
Volume
Down
Volume
Up
Source
Volume Up
Volume Down
Mute
Subwoofer
Volume Up
Subwoofer
Volume Down
STATUS LIGHTS (RIGHT STATUS LIGHT, UNLESS STATED)
STANDBY MODE
S O L I D R E D Power Off (Standby Mode) FLASHES BLUE QUICKLY Waiting to pair with
Bluetooth
device
SOLID GREEN Power On, Source is Optical Input FLASHES PURPLE SLOWLY SB 120 decoding Dolby Digital
SOLID ORANGE Power On, Source is Analog Input SOLID WHITE 3D Surround Mode On
(Left Status Light)
SOLID BLUE Power On, Source is Paired
Bluetooth
device
FLASHES GREEN /
ORANGE / BLUE
Volume Up, Volume Down, Subwoofer Volume
Up or Subwoofer Volume
Down is pushed
You do not need to turn off the SB 120, just turn off your TV
(or Satellite / Cable Box) and the SB 120 will automatically go
into standby mode in approximately 10 minutes.
Standby mode is indicated by a red status light on the front
panel. When your TV (or Satellite / Cable Box) is turned back
on the SB 120 will automatically turn on again.
