INSTALLATION & MAINTENANCE MANUAL

BL12ALEDEM / BL20ALEDEM

These instructions should be read carefully and retained after installation by the

end user for future reference and maintenance.

These instructions should be used to aid installation of the following products:

BL12ALEDEM / BL20ALEDEM

GENERAL INSTRUCTIONS

SAFETY

• This product must be installed in accordance with the latest edition of the IEE Wiring

Regulations (BS7671) and current Building Regulations. If in any doubt, consult a

qualiﬁed electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this luminaire is ﬁtted) does not

exceed the rating of the circuit cable, fuse, or circuit breaker

• Please note the IP (Ingress Protection) rating of this product when deciding the location

for installation

• This product is Class II double insulated

• This product is IP54 rated

INSTALLATION

Note - If this luminaire is being used in conjunction with an external PIR or sensor, please

conﬁrm with the manufacturer of the sensors that they are compatible with LED luminaires.

• Provide power to the required point of installation (refer to BS7671 for correct cabling

methods). Suitable IP rated junction boxes should be used where required

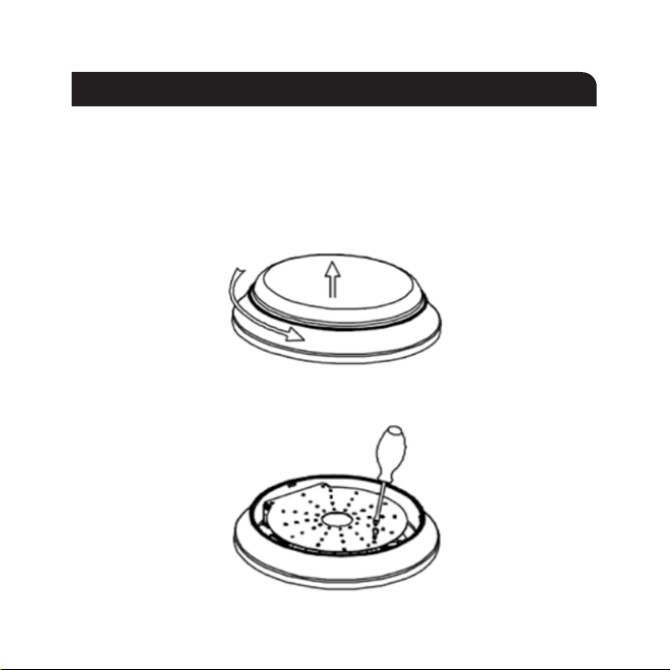

• Rotate the diffuser anti-clockwise and remove (see Fig. 1)

Fig. 1

• Remove the fastening screw securing the LED plate and open the LED plate (see Fig. 2)

Fig. 2

• Mark the location of the ﬁxing holes and drill the holes ensuring not to infringe with any

gas/water pipes or electrical cables

• Feed the mains cable through the rubber grommet to retain IP rating, and secure the

baseplate to the surface

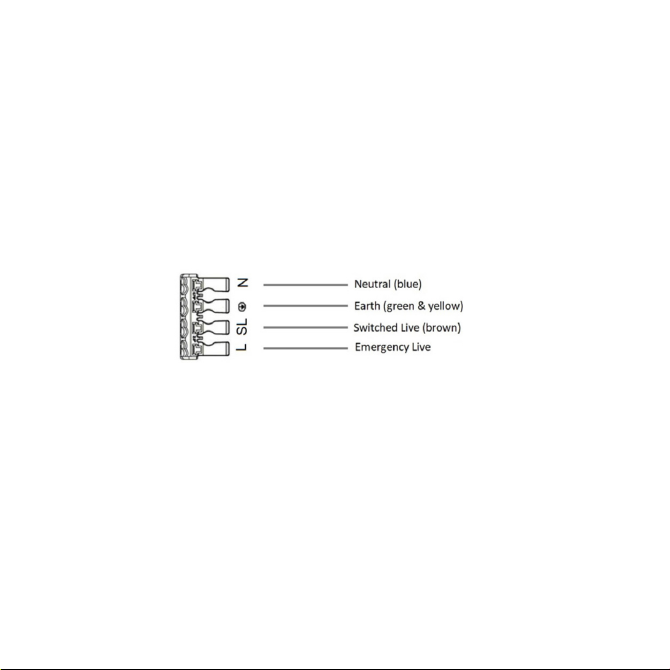

• Connect to the mains supply ensuring the correct polarity is observed: L – Live, SL –

Switched Live (brown), E – Earth (green/yellow), N – Neutral (blue) (see Fig. 3). The earth

terminal is non-functional and only provided for convenience

Fig. 3

• Ensure the battery is connected via the plug and socket to the PCB

• Refasten the LED plate screw

• Reattach the diffuser by rotating clockwise

• Switch on and check for correct operation ensuring the green indicator LED is illuminated

• We recommend, on commissioning the installation, a minimum charge period of 24

hours before carrying out an emergency duration test

WARNING

This product must be disconnected from the circuit if subjected to any high voltage or

insulation resistance testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

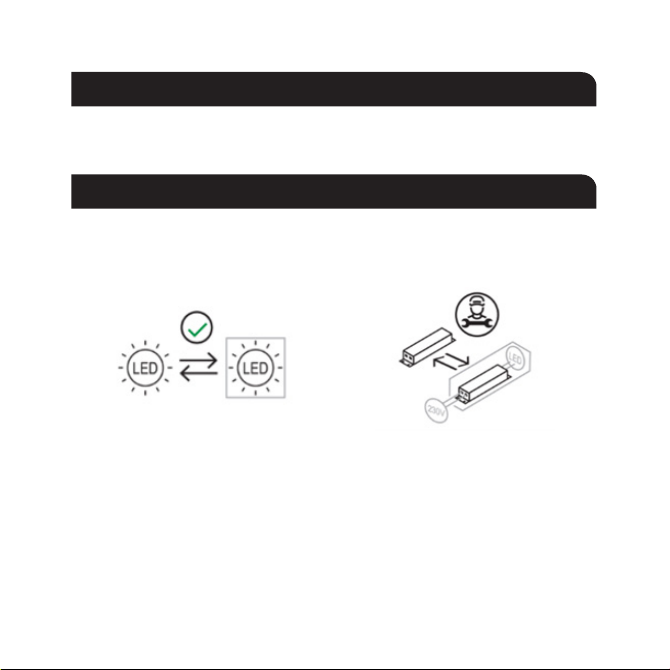

This product contains a light source of energy efﬁciency class E to Regulation (EU) No.

2019/2015 and (UK) 2021 No. 1095.

This product contains a light source which can be replaced by the end user and a control

gear which can be replaced by a professional.

Clean the external surfaces with a damp cloth using a mild solution of detergent and warm

water only, do not use aggressive cleaning products or solvents which may damage the

product.

This product is non-dimmable.

This product should be dismantled for disposal when it reaches the end of its life. Please

see website for dismantling instructions.

This product should be recycled in the correct manner when it reaches the end of its life.

Check local authorities for where facilities exist.

The batteries in this luminaire are Lithium Ion and must be disposed of correctly. Please

contact the local authorities for the disposal of this toxic waste.

WARRANTY

This product has a warranty of 3 years (excluding battery) from date of purchase. Failure

to install this product in accordance with the current edition of the IEE Wiring Regulations

(BS7671), improper use, or removal of the batch code will invalidate the warranty. If this

product should fail within its warranty period, it should be returned to the place of purchase

for a free of charge replacement. ML Accessories does not accept responsibility for any

installation costs associated with the replacement product. Your statutory rights are not

affected. ML Accessories reserve the right to alter product speciﬁcation without prior notice.

TEST RECORD SHEET

INITIAL COMMISSIONING

3 HOUR TEST

SIGNED DATE

MONTH TEST

FIRST YEAR SECOND YEAR THIRD YEAR FOURTH YEAR FIFTH YEAR

SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE

1 FUNCTIONAL

2 FUNCTIONAL

3 FUNCTIONAL

4 FUNCTIONAL

5 FUNCTIONAL

6 FUNCTIONAL

7 FUNCTIONAL

8 FUNCTIONAL

9 FUNCTIONAL

10 FUNCTIONAL

11 FUNCTIONAL

12 3 HOUR

Installed by: Installation date:

Contact number:

AKAPR22_V1

Supplied By:

(UK) Manufacturer

ML Accessories Ltd, Unit E Chiltern Park, Boscombe Road,

Dunstable LU5 4LT, www.mlaccessories.co.uk

(EU) Authorised Representative

nnuks Holding GmbH, Niederkasseler Lohweg 18, 40547

Düsseldorf, Germany

Email: [email protected]om

-20

~40°C
