KOBE Brand Range Hood

Model No. / Nos de modèles / Modelo No. IN2730SF-1

IN-027 SERIES

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

MANUEL D'INSTALLATION

ET MODE D'EMPLOI

INSTRUCCIONES DE INSTALACIÓN

Y MANUAL DE OPERACIÓN

[ENGLISH] ......................................................................................................................2

[FRENCH].....................................................................................................................25

[SPANISH] ....................................................................................................................46

READ BEFORE INSTALLATION

1. Carefully check all contents of packages;

2. Thoroughly inspect the unit for any cosmetic damages or

defects;

3. Test the unit before installation;

4. Have a certified contractor/electrician do the installation.

IF THERE IS ANY PROBLEM:

1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL

PACKAGING MATERIAL.

2. Have your original proof of purchase and product serial

number ready.

3. Call 1-877-BUY-KOBE (289-5623); or e-mail to

[email protected] to report the problem.

NO RETURN, NO REFUND, NO EXCHANGE IF:

1. PRODUCT HAS BEEN INSTALLED

2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED

3. MISSING ORIGINAL PACKAGING MATERIAL AND/OR

PARTS

IMPORTANT

READ THIS

FIRST

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS................................................................................... 3

COMPONENTS OF PACKAGE................................................................................................. 5

INSTALLATION......................................................................................................................... 6

OPERATING INSTRUCTIONS................................................................................................ 10

MAINTENANCE ...................................................................................................................... 11

SPECIFICATIONS................................................................................................................... 13

MEASUREMENTS & DIAGRAMS........................................................................................... 14

PARTS LIST............................................................................................................................ 16

CIRCUIT DIAGRAM ................................................................................................................ 18

TROUBLE SHOOTING............................................................................................................ 19

WARRANTY............................................................................................................................ 20

PRODUCT REGISTRATION................................................................................................... 22

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL W IRING MUST B E DO NE B Y A PROFESSI O NAL AN D I N

ACCORDAN CE W ITH NATI O NAL A ND LO CAL ELE C TRICAL CO DES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl

spaces or garages.

NOTE

This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

RANGE HOODS authorized agents. Any repair carried out without the

supervision of KOBE RANGE HOODS authorized agents will

automatically void the warranty.

KOBE RANGE HOODS will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

- Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

- Always turn hood ON when cooking.

- Use high settings on cooking range ONLY when necessary.

- Do not leave cooking range unattended when cooking.

- Always use cookware and utensils appropriate for the type and amount of food prepared.

- Use this unit only in the manner intended by the manufacturer.

- Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

- Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

•SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREAAND CALL THE FIRE DEPARTMENT or 911.

•NEVER PICK UP A BURNING PAN –You May Get Burned.

•DO NOT USE WATER, including wet dishcloths or towels –a violent steam blast will result.

•Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

- Extinguish any open flame.

- Do not try to turn on the lights or any type of appliance.

- Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1. For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2. To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3. Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4. Activating any switch on may cause ignition or an explosion.

5. Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD –Can result in serious injury or

death. Disconnect appliance from electric power before servicing.

If equipped, the fluorescent light bulb contains small amounts of

mercury, which must be recycled or disposed of according to

Local, State, and Federal Codes.

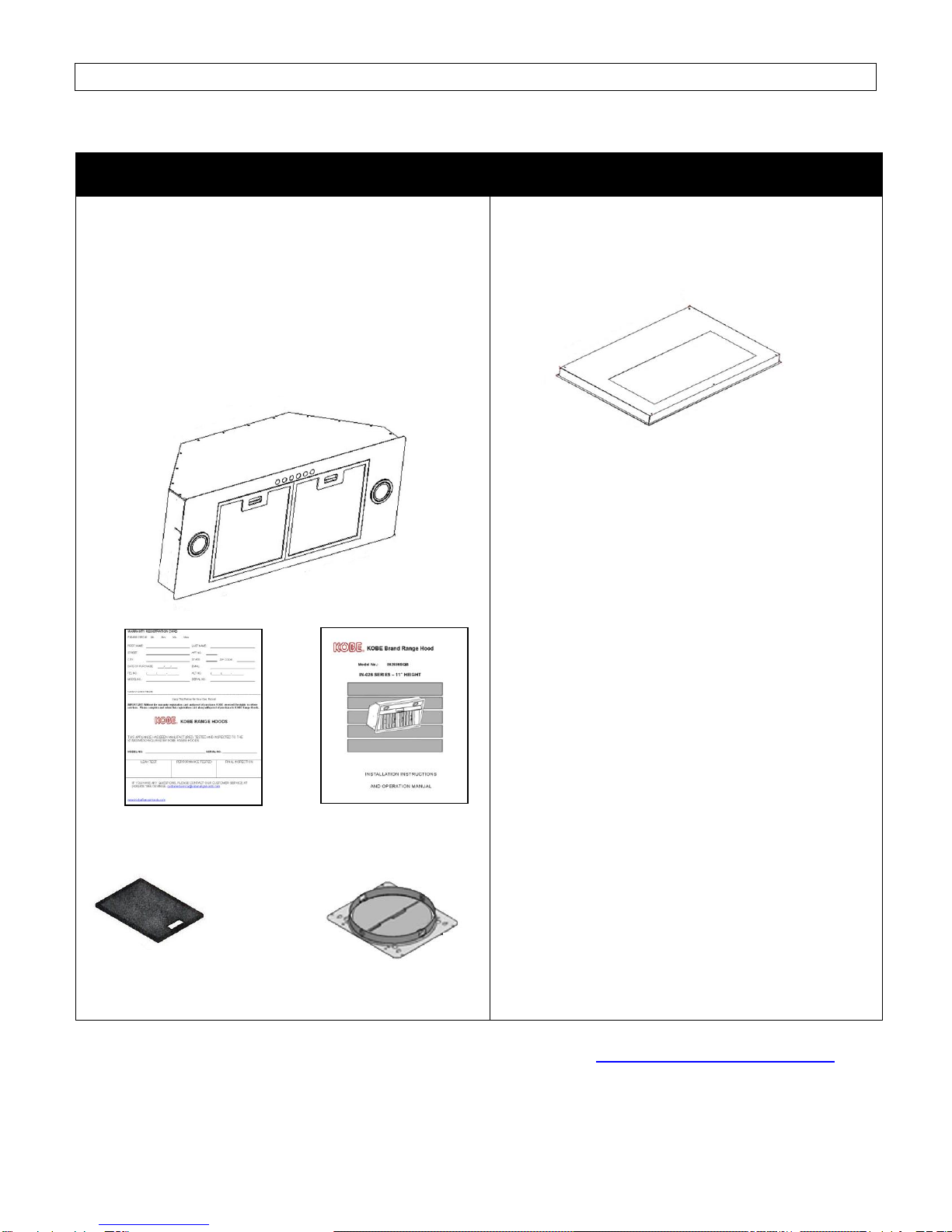

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

- FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.KOBERangeHoods.com OR

CONTACT KOBE RANGE HOODS AT (626) 775-8880.

Range Hood Box

Liner (Sold Separately)

{A} KOBE Range Hood

{B} Warranty Registration Card

{C} Instruction Manual

{D} Aluminum Filter –2

{E} Exhaust Plate –1

{A}

{B} {C}

{D} {E}

{F} Liner

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

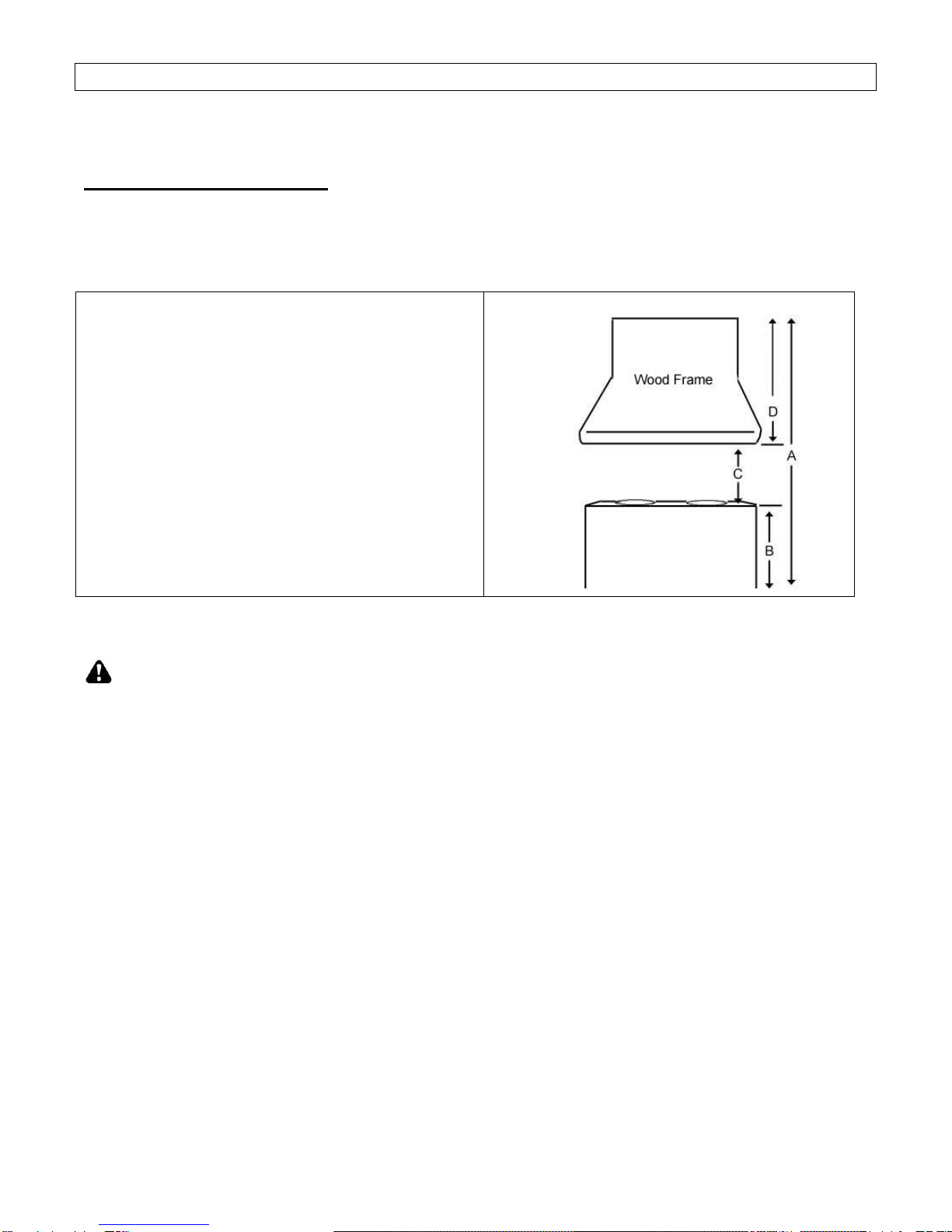

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

- FOR UNDER THE CABINET -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36")

C = Height of Counter Top to Wood Frame

Bottom (Recommended 27"to 30")

D = Height of Wood Frame

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

- For Insert installation -

Preparation Before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT

DEBRIS FROM ENTERING THE VENT OPENING.

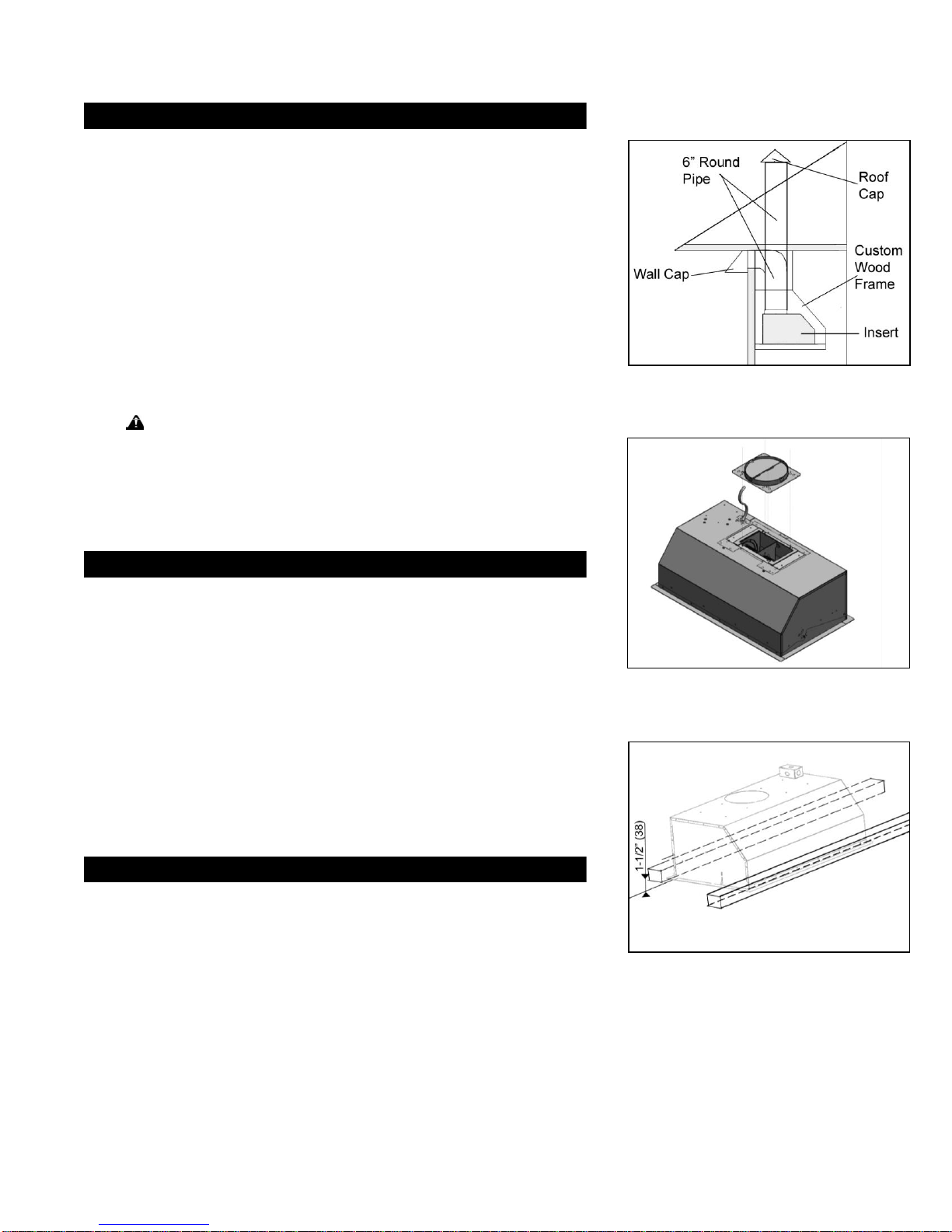

Decide the location of the venting pipe from the hood to

the outside. Refer to Figure 1.

A straight, short vent run will allow the hood to perform

more efficiently.

Try to avoid as many transitions, elbows, and long run

as possible. This may reduce the performance of the

hood.

Temporarily wire the hood to test for proper operation

before installing.

Important: Peel protective film off the hood, if any.

Use duct tape to seal joints between pipe sections.

CAUTION: If moving the cooking range is

necessary to install the hood, turn off the power in an

electric range at the main electrical box. SHUT OFF

THE GAS BEFORE MOVING A GAS RANGE. And use a

protective covering to protect cooktop and/or

countertop from damage.

Custom Hood Preparation

1. The custom hood frame must be sized to shape and the

weight of the insert. Refer to Measurements and

Diagrams on Page 13.

2. Install the Exhaust Plate using 4 screws. Refer to

Figure 2.

3. It must have a sturdy base (1/2 inch thick plywood

recommended) to sustain the weight of insert.

4. If an optional liner will be installed, the side of the wood

cabinet must be sturdy (1/2 inch thick plywood

recommended).

5. It is recommended to install a rear and front stud

support. Refer to Figure 3. The stud supports are

located 1-1/2” up from the base of the wood frame.

Liner Installation

6. The custom/wood hood must have a sturdy base to

accommodate the cut-out for the inset. The base must be

recessed to accommodate the height of the liner (See

liner dimension on Page 14)

7. Secure the liner to the bottom of the base using screws

(not included) appropriate for the size and material of your

wood frame.

8. Position the liner so that it aligns with the back edge of

the custom wood frame. Use a pen to trace the outline of

the pre-cut area. Remove the liner and proceed to Hood

Preparation Before Installation on Page 6.

9. Install the liner with 5 screws (not provided).

Figure 1

Figure 2

Figure 3

Wiring to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS RANGE HOOD MUST

BE PROPERLY GROUNDED. MAKE SURE THIS IS DONE

BY QUALIFIED ELECTRICIAN IN ACCORDANCE WITH ALL

APPLICABLE NATIONAL AND LOCAL ELECTRICAL

CODES. BEFORE CONNECTING WIRES, SWITCH POWER

OFF AT SERVICE PANEL AND LOCK SERVICE PANEL TO

PREVENT POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

10. Temporarily wire the hood to test for proper operation

before installing. If the insert does not operate, check

the circuit breaker or house fuse. If the insert is still not

working, disconnect the power supply and check the

continuity of all wiring connections.

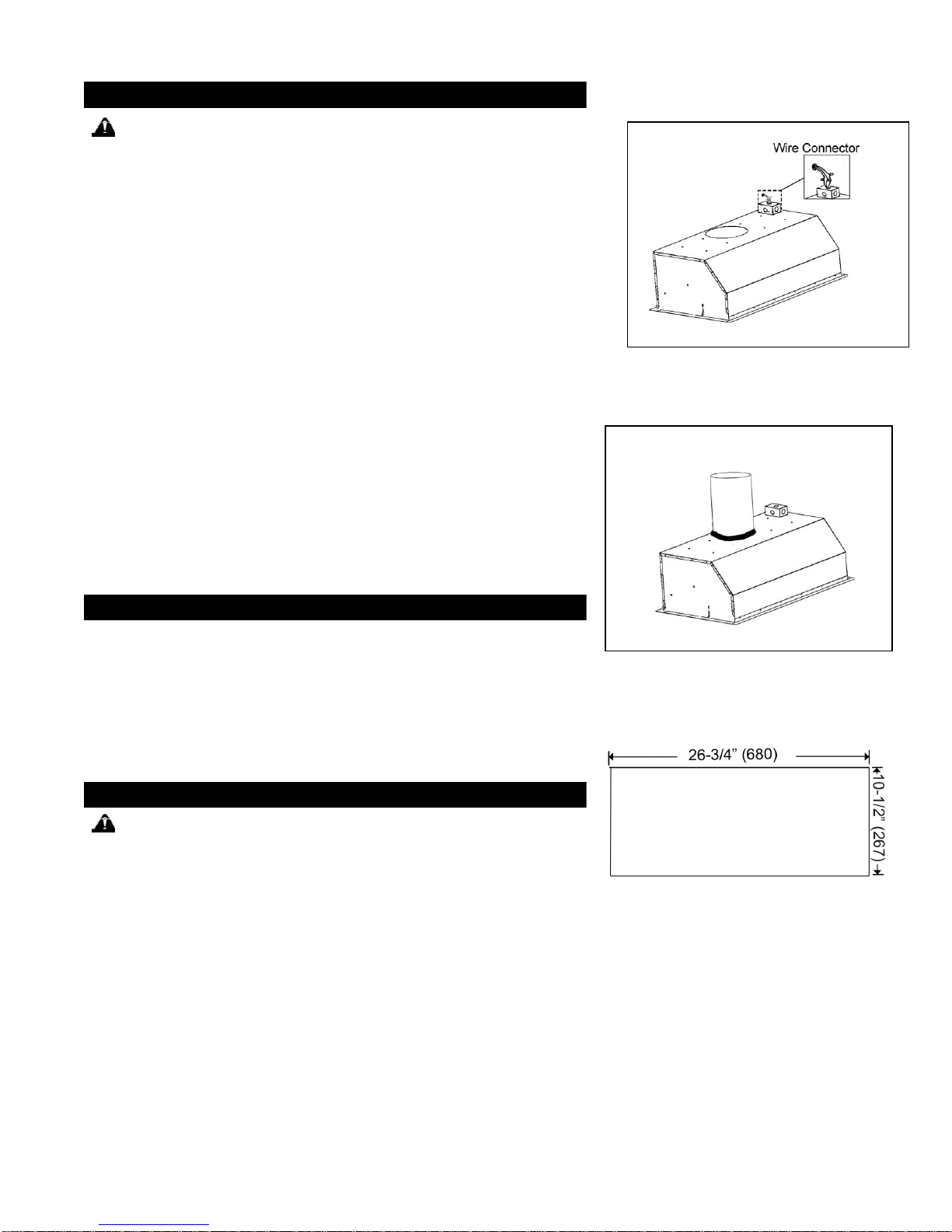

11. Connect electrical wires.

12. Connect three wires (black, white and green) to house

wires and cap with wire connectors. Connect wires

according to their colors (i.e. black to black, white to

white, and green to green). See Figure 4.

13. Store wires in the wiring box.

Note: Connect all electrical wires before installing insert.

DO NOT turn on the power until installation is complete.

Duct Work Installation

14. Use 8” steel pipe (follow building codes in your area) to

connect the ducting on the hood to the ductwork above.

Use duct tape to seal and secure joints as shown in

Figure 5.

15. Please refer to local codes for the usage of the damper

(included). If necessary, remove the damper

mechanism and install as exhaust connector.

Hood Preparation Before Installation

CAUTION: If moving the cooking range is necessary

to install the hood, turn off the power in an electric range at

the main electrical box. SHUT OFF THE GAS BEFORE

MOVING A GAS RANGE.

16. Determine and mark the centerlines on the base of the

wood frame where the insert will be installed.

17. Determine and make all necessary cuts in the wall or

ceiling for the ductwork. Note: Install the duct work

before installing the insert.

18. Cut out the opening where the insert will be installed.

(Figure 6)

Figure 4

Figure 5

Figure 6

Indice

Lingue:

Altri manuali KOBE Cappa di ventilazione

KOBE

KOBE OVS-ISX2430GSQB-40 Guida alla risoluzione dei problemi

KOBE

KOBE INX2730SQB-700-1Brillia Series Guida alla risoluzione dei problemi

KOBE

KOBE CH0036SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE IN28 SQB Series Guida alla risoluzione dei problemi

KOBE

KOBE RA2230SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE IS2436GSF-1 Guida alla risoluzione dei problemi

KOBE

KOBE OVS-CHX2030SQB-40 Guida alla risoluzione dei problemi

KOBE

KOBE PREMIUM IN26 Series Guida alla risoluzione dei problemi

KOBE

KOBE IS22 SQB-5 Series Guida alla risoluzione dei problemi

KOBE

KOBE INX2730SQB-700-2 Guida alla risoluzione dei problemi

KOBE

KOBE CH91 SQB-1 Series Guida alla risoluzione dei problemi

KOBE

KOBE RA2230SQF Guida alla risoluzione dei problemi

KOBE

KOBE Brillia UB4130W Manuale utente

KOBE

KOBE IN2636SQB Guida alla risoluzione dei problemi

KOBE

KOBE IN2636SQB-700 Manuale utente

KOBE

KOBE Brillia CHX7930SQB-WM-1 Manuale operativo e di manutenzione

KOBE

KOBE IS2236SQF Guida alla risoluzione dei problemi

KOBE

KOBE RAX9430SQB-2 Guida alla risoluzione dei problemi

KOBE

KOBE IN2636SQB-1200 Guida alla risoluzione dei problemi

KOBE

KOBE Brillia CHX81 SQB-2 Series Guida alla risoluzione dei problemi

KOBE

KOBE INX2830SQH-700-1 Guida alla risoluzione dei problemi

KOBE

KOBE RAX21 SQB-X Series Guida alla risoluzione dei problemi

KOBE

KOBE RA3836SQB-1 Guida alla risoluzione dei problemi

KOBE

KOBE CX1842GS-8 Guida alla risoluzione dei problemi

Manuali Cappa di ventilazione popolari di altre marche

emmeti

emmeti RECUPA MED A-140 Guida

Nibe

Nibe F135 Manuale utente

Kuppersberg

Kuppersberg INTRO 60 Istruzioni di installazione e manutenzione

Zephyr

Zephyr Spruce AK9834BS Guida all'installazione

Hisense

Hisense MH6INBG Manuale utente

Miele

Miele DA 1255 Manuale utente

Broan

Broan 46000 Manuale utente

GE Profile PV977 Istruzioni originali

FALMEC

FALMEC FFRIA24W5FS Manuale utente

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuale utente

Küppersbusch

Küppersbusch DX ISLA Manuale utente

ETNA

ETNA AV360RVS Manuale utente

JUNO

JUNO JDF603E6 Manuale utente

Miele

Miele DA 6708 D Manuale utente

Tricity Bendix

Tricity Bendix LE 150 Manuale

AEG

AEG X68163BV1 Manuale utente

AEG

AEG 125 D Manuale utente

Smeg

Smeg KSEV97X Manuale utente
