1 of 30 DI-129/11/07.07.15

OPERATING INSTRUCTIONS

USA VERSION

Multipurpose High Volume Industrial Shredder

2 of 30 DI-129/11/07.07.15

IMPORTANT

THANK YOU FOR PURCHASING THE KOBRA

CYCLONE.

THE CYCLONE IS DESIGNED TO OPERATE UNDER A

VARIETY OF POWER CONDITIONS. HOWEVER, FOR

OPTIMUM PERFORMANCE, YOUR INSTALLER MUST

FOLLOW THE SET-UP AND TUNING PROCEDURE AT

THE END OF THE CYCLONE OPERATIONS MANUAL.

PROPER TUNING AND SET-UP OF YOUR KOBRA

CYCLONE FOR THE SPECIFIC POWER VARIABLES

AT THE INSTALLATION LOCATION WILL

GUARANTEE MAXIMUM EFFICIENCY AND TROUBLE

FREE OPERATION FOR YOUR DOCUMENT

DESTRUCTION APPLICATION.

IMPROPER SET-UP WILL CAUSE OPERATING

DIFFICULTIES AND MAY CAUSE PERMANENT

DAMAGE TO THE UNIT.

PLEASE CONTACT YOUR AUTHORIZED KOBRA

RETAILER FOR ADDITIONAL INFORMATION.

3 of 30 DI-129/11/07.07.15

ATTENTION

KOBRA CYCLONE IS CHECKED AND TESTED AT THE

FACTORY BEFORE SHIPMENT.

PAPER SHREDS YOU MAY FIND IN THE SHREDDING CHAMBER

OR IN THE CYCLONE ARE LEFT OVER FROM THE

OPERATIONAL TESTS.

4 of 30 DI-129/11/07.07.15

KOBRA CYCLONE

SUMMARY

1. INSTALLATION :

1.1 ELECTRICAL SUPPLY

1.2 PLASTIC BAG

1.3 AIR FILTRATION SYSTEM FILTER

2. HOW THE CYCLONE WORKS

3. TECHNICAL DATA / AVAILABLE SCREENS / SECURITY LEVELS

4. OPERATION

5. AUTOMATIC FUNCTIONS

6. CONTROL PANEL

7. MAINTENANCE

8. HOW TO CHANGE THE CUTTING BLADES AND SECURITY LEVEL

9. ACCESSORIES:

AVAILABLE SECURITY LEVELS

PLASTIC WASTE BAG

FILTER

10. TROUBLESHOOTING

11. WIRING DIAGRAM

5 of 30 DI-129/11/07.07.15

KOBRA CYCLONE

USA

WARNING – IMPORTANT

PLEASE READ THE FOLLOWING INSTRUCTIONS BEFORE OPERATING THE MACHINE

•Ask your electrician to check the electrical supply voltage and frequency to confirm it meets your

Cyclone’s requirements. Refer to your site certification form for additional information.

•To operate the machine, it is suggested to wear earmuffs, gloves and goggles.

•The machine must be operated only when plastic waste bag is installed and when air filter for dust

collection is installed.

•Do not operate the machine when plastic waste bag is full.

•Check the filter if dust is observed at the entry opening.

DISCONNECT THE ELECTRICAL POWER FROM THE MACHINE:

•Before changing the waste bag

•Before changing the air filter for dust

collection

•Before each maintenance or service

operation

•Before removing the electrical panel cover

•Before opening the shredding chamber panel

and chamber door

•Before changing the cutting blades or the

security level screen

-

PLEASE BE SURE TO CHECK THE INTERNAL WALLS OF THE CYCLONE SHREDDING CHAMBER ON A REGULAR SCHEDULE, MORE OFTEN IN HEAVY

APPLICATIONS AND IF YOUR APPLICATION REQUIRES SHREDDING OF MATERIALS OTHER THAN PAPER. PLEASE DO NOT OPERATE THE CYCLONE AND

HAVE YOUR KOBRA RETAILER CHECK YOUR MACHINE BEFORE OPERATION IF YOU DISCOVER ANY UNUSUAL WARE OR IRREGULARITIES DURING YOUR

INSPECTION. SHREDDER CHAMBER WALLS MUST BE KEPT CLEAR OF ALL SHREDDING MATERIALS AND IN GOOD CONDITION.

6 of 30 DI-129/11/07.07.15

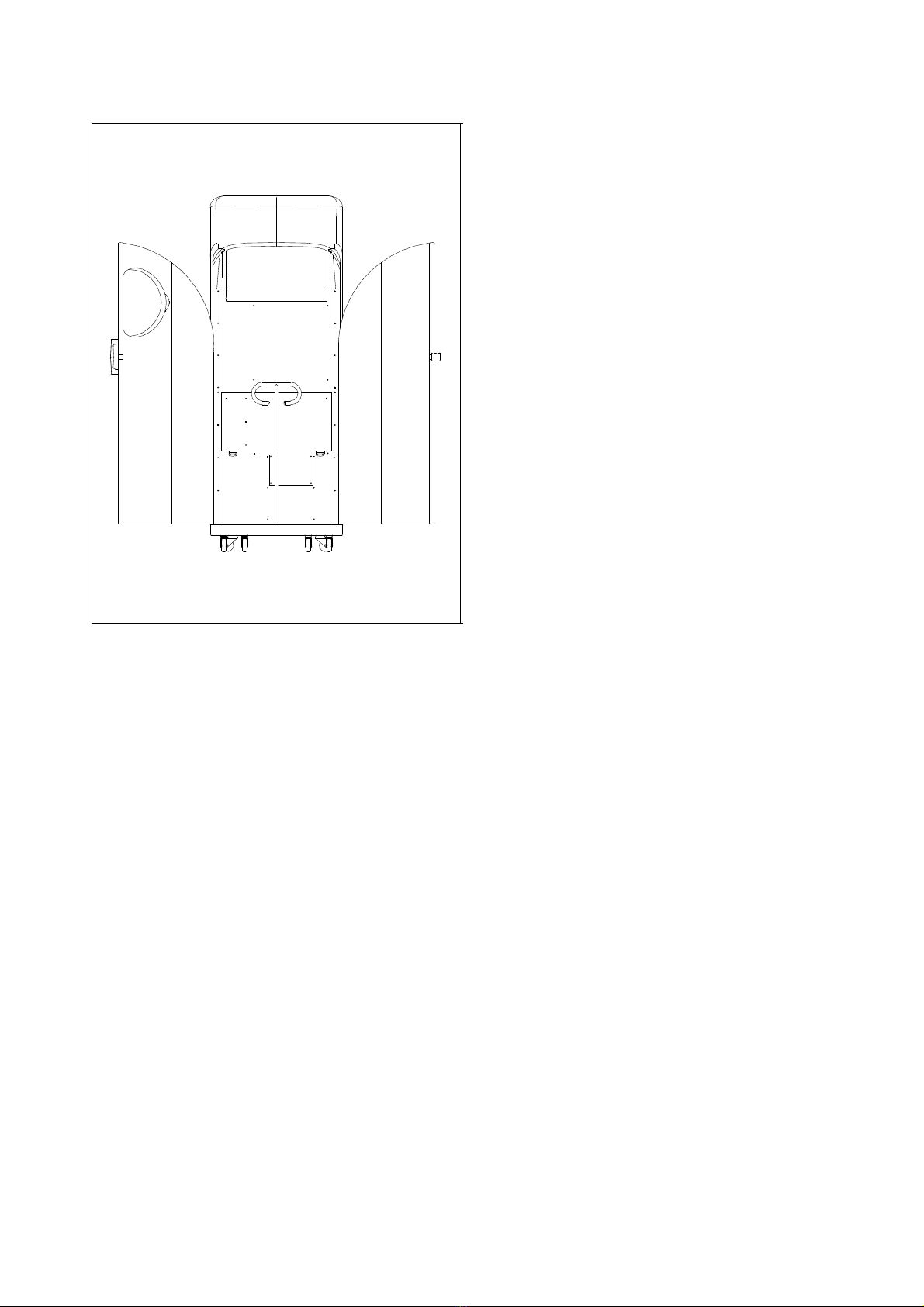

IMPORTANT

BACK DOORS MUST BE OPEN WHEN

SHREDDING CONTINUOUSLY

7 of 30 DI-129/11/07.07.15

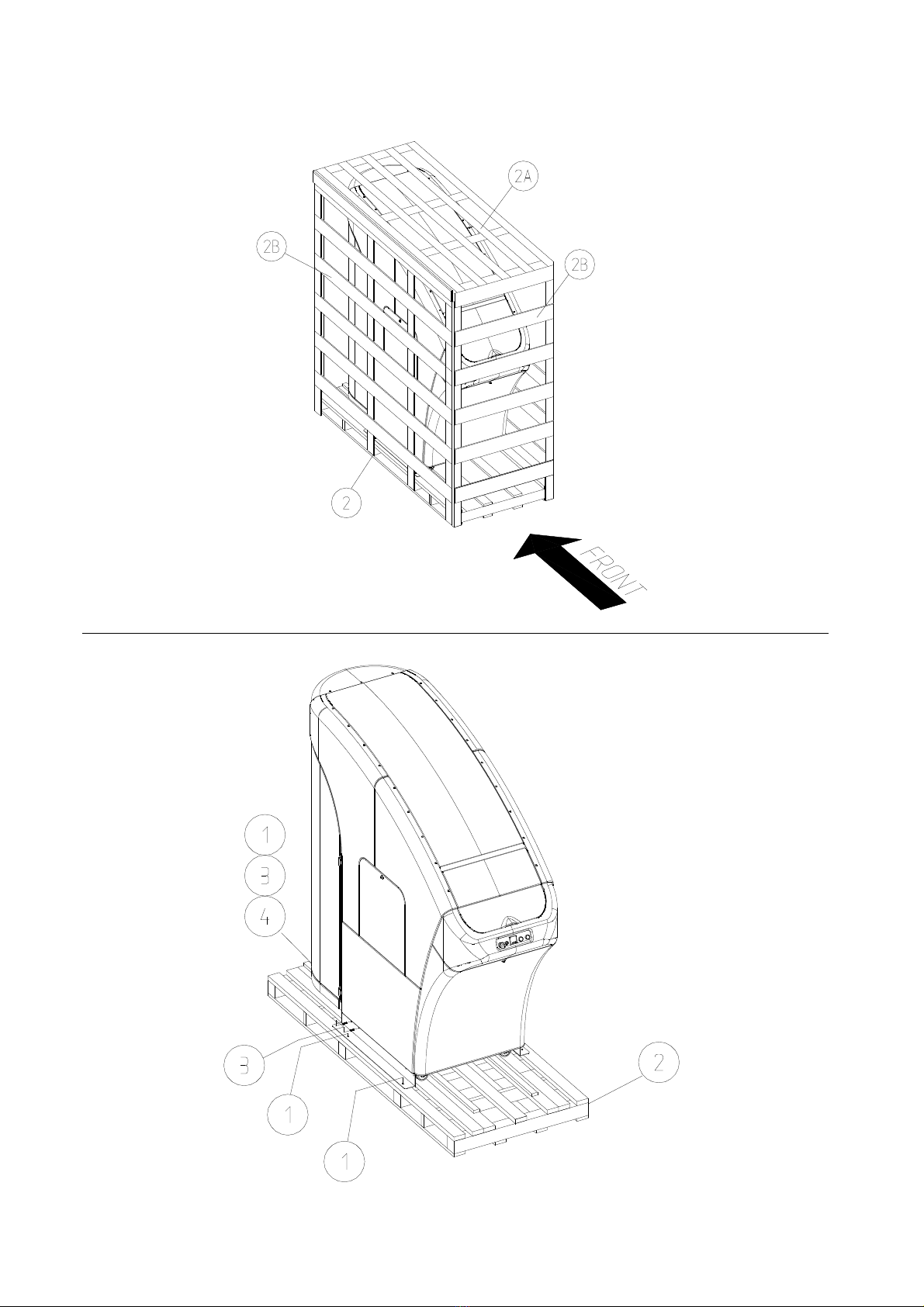

Section A

Fig.1

Fig.2

8 of 30 DI-129/11/07.07.15

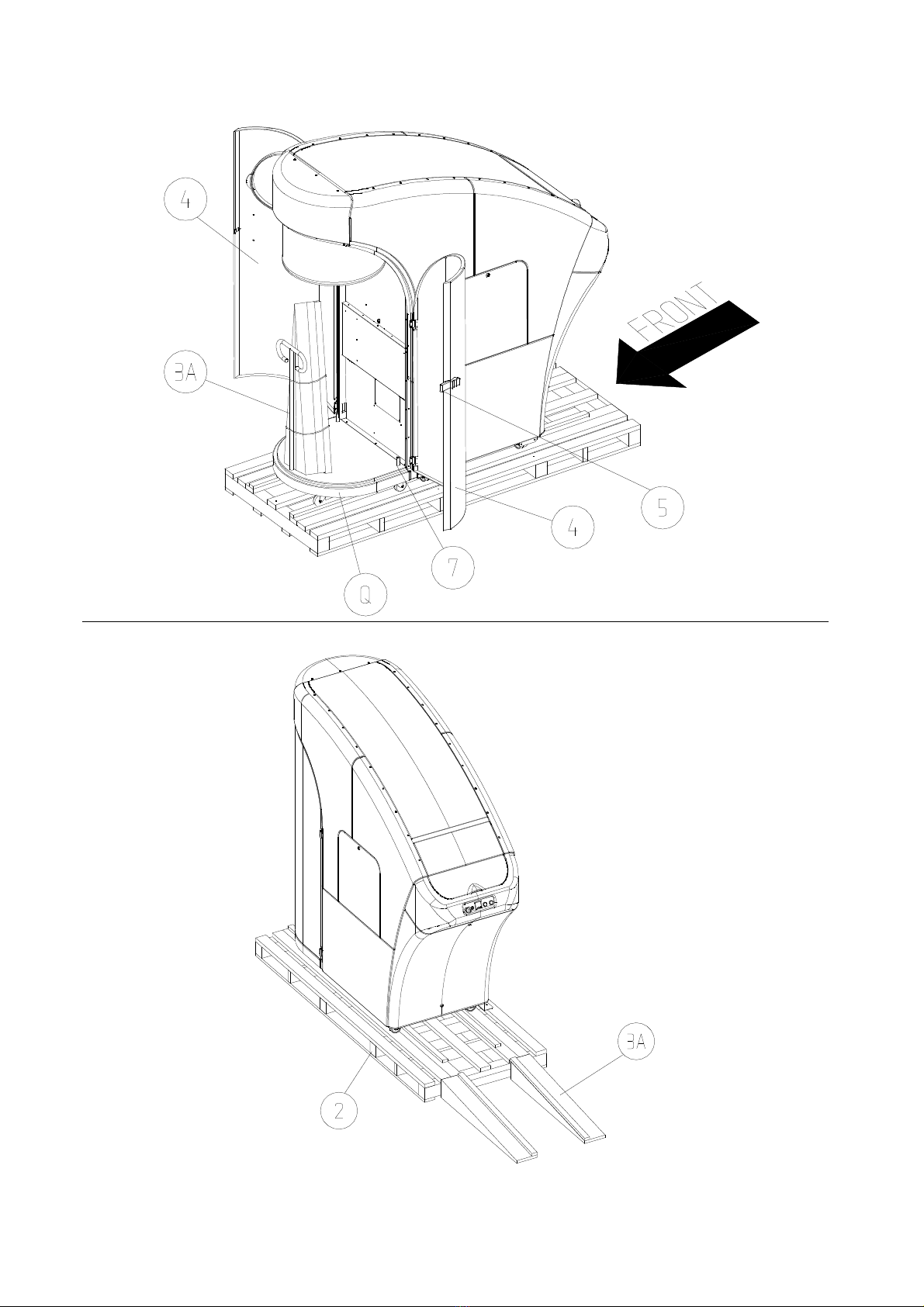

Section B

Fig. 3

Fig. 4

9 of 30 DI-129/11/07.07.15

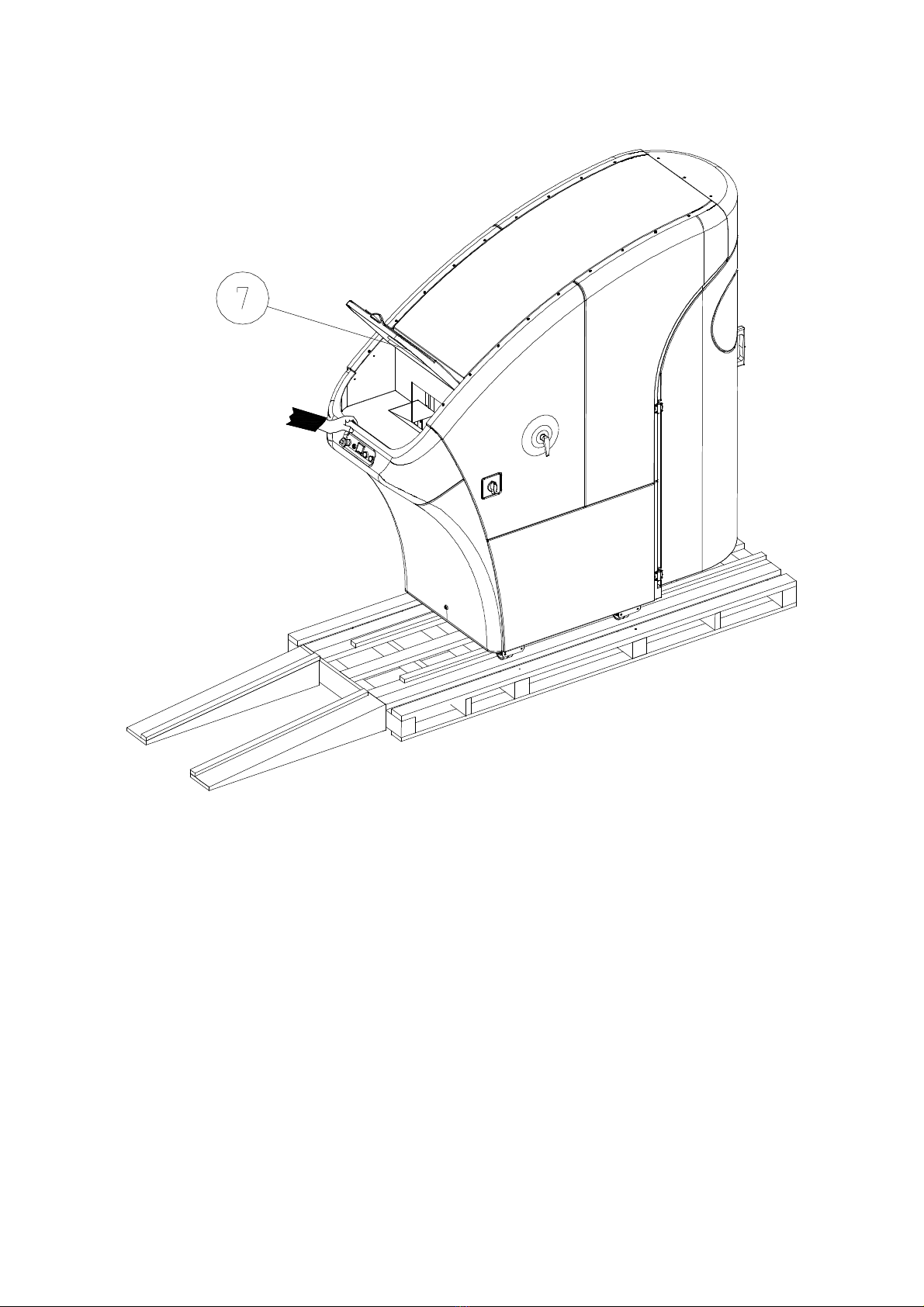

Section C

Fig.5

10 of 30 DI-129/11/07.07.15

Section D

Fig.6

Fig.7

Fig.8 Fig.9

A B C D E

F

G

H

N

R

Q

M

4
