KOCOM KIP-304 Manuale utente

KIP-304 10.04

Interphonedio Manual

[ KIP-304 User Manual ]

SINCE

1976

KOREA COMMUNICATIONS CO.,LTD

http://www.kocom.com

E-mail : [email protected]

This manual is based on the date as shown in the right and specifications are subject to

change without notice for quality improvement

Warranty

Warranty Card

1) This product is produced under strict quality control and inspection procedures.

2) If this product breaks down during proper use as a result of product defect, KOCOM

will repair it within one year from date of purchase free of charge.

3) The following cases will be subject to charge, even during warranty period:

a. Breakdown during transport, or through careless treatment, by consumer.

b. Breakdown cause by unauthorized repair, or system modification.

c. Breakdown caused by natural disaster or power disorder.

1. Name of the product.

2. Model number of the product.

3. The area of problem.

4. Phone number and address at which you can be contacted.

PRODUCT

MODEL

DATE PURCHASED

WARRANTY PERIOD

AGENCY ADDRESS

KOCOM Warranties the original purchaser of this product as follows.

To receive after service, have the following ready before you

contact our branches.

www.kocom.com

■Can be combined with door opener.

■ Easily mounted on wall, desk.

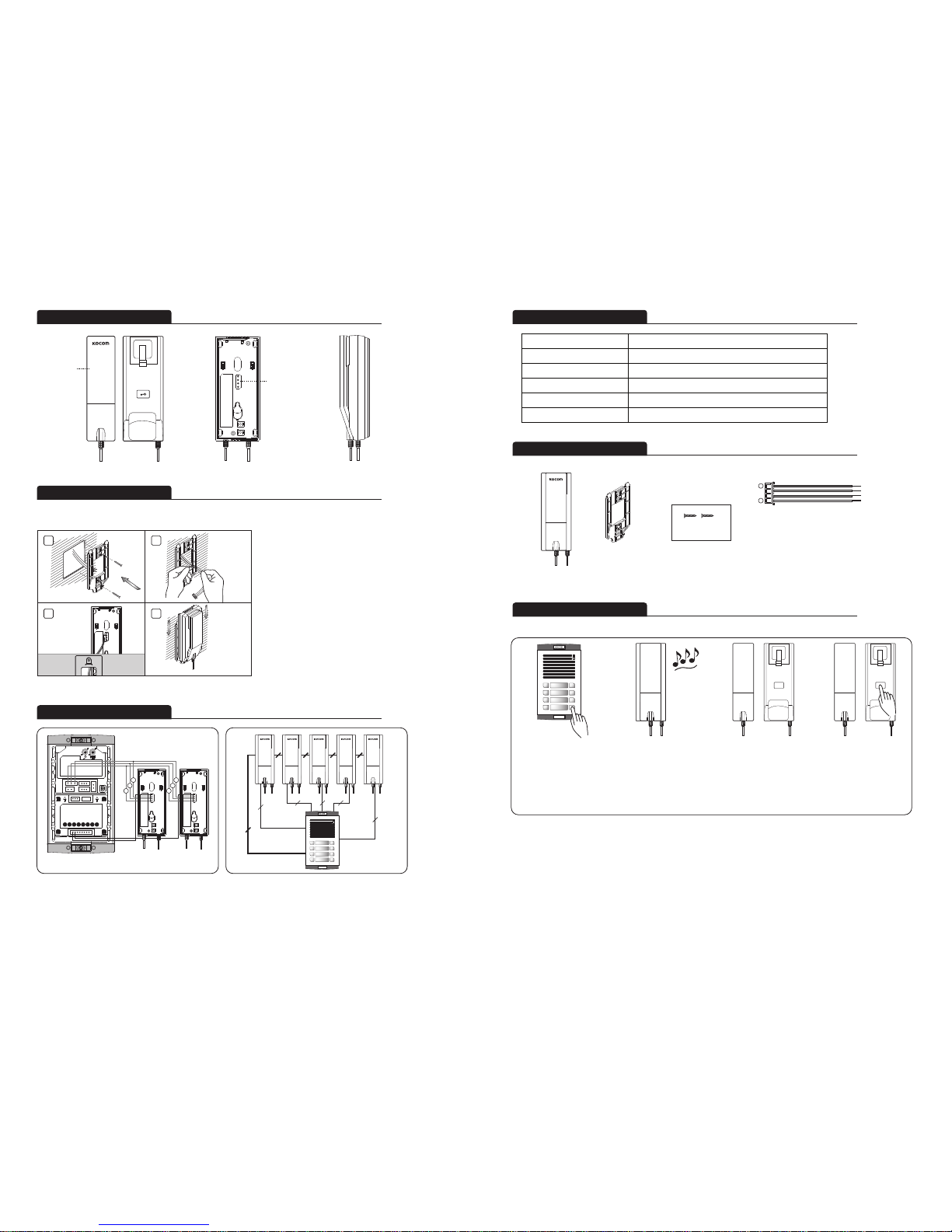

Product connection diagram

Name of Each Part

SideBackFront

Handset

Lobbyphone

connection

terminal

1) Install wall-hanger bracket on wall with

attached Vis.

2,3) Connect wiring to interphone back terminal

referring to product connection diagram.

4) Hang interphone on wall-hanging, and fix

interphone on wall- hanger bracket using

attached Vis.

■ Interphone Installation

Instructions for operation

line

connection

Wall

4X25mm

Screw

1 2

3 4

Back

Wall

■ Communication with Audio lobbyphone

- Check the suitability of the lines for installing when you use the exiting lines.

- Do the wiring work by using the designed material.

- Connect the electric wire with the designed ways and ground.

When the visitor

presses the call

button for certain

house on the

audio lobbyphone

The indoor station

is ringing.

To release the

door, press

the “Door open”

button.

Pick up the handset

and communicate

with a visitor. After end

of communication,

return the handset

where it is locked.

3333

1 1

Specifications

Components of product

Model No.

Power Source

Power Consumption

Communication System

Wiring

Dimesion

KIP-304

DC 12V (sourced from lobbyphone)

MAX 5W

Handset

3+n (Polarity)

(W)75mmX(H)176mmX(D)52mm

Screw for fixing

interphone

4X25mm 2ea

4 pin cable for interphone &

audio lobbyphone

1. GND

2. AUDIO-SPEAKER

3. AUDIO-MIC

4. SIGNAL

A Wall hanger frame

Interphone

AUDIO LOBBYPHONE

KIP-304 NO.1 KIP-304 NO.2

KIP-304 NO.1~8

polarity

4 5 6 7 81 2 3

321

Installation
