Kodak PlayTouch Manuale utente

www.kodak.com/go/playtouchsupport 1

ENGLISH

Front view

Download the Extended user guide www.kodak.com/go/manuals

Jack for external

microphone, headphones

Video Recording LED

Lens

receiver,

for

optional

remote

control

Microphone

Focus switch (Close-up/Normal)

A/V Out

HDMI Out

Micro USB, for battery

charging only

USB arm, for video and

picture transfer

USB Release

urg_01150.book Page 1 Monday, September 27, 2010 9:21 AM

2www.kodak.com/go/easysharecenter

ENGLISH

Accessing the USB arm

Download the Extended user guide www.kodak.com/go/manuals

Slide the

USB lock.

Pull down the USB arm.

Open the door.

urg_01150.book Page 2 Monday, September 27, 2010 9:21 AM

www.kodak.com/go/playtouchsupport 3

ENGLISH

Back view, touchscreen gestures

Download the Extended user guide www.kodak.com/go/manuals

Record/OK button

Speaker

Tripod socket

Battery compartment,

SD/SDHC Card slot

Strap post

Power button

Battery charging light

Tap (or tap

and hold) Drag

Swipe

urg_01150.book Page 3 Monday, September 27, 2010 9:21 AM

4www.kodak.com/go/easysharecenter

ENGLISH

Understanding the status icons

Download the Extended user guide www.kodak.com/go/manuals

Zoom

control

Recording

Liveview

Review

Batterylevel(or

DC-Inconnected)

Scrubberbar

Currentvideolength

Delete

Edit

Single/Multi-up/

TimelineView

Volume

Zoom

control

(Wide,

Telephoto)

Battery

level

Current

mode

Face

detection

brackets

Effects

Review

CaptureMode

SettingsRecording

Current

video

length

urg_01150.book Page 4 Monday, September 27, 2010 9:21 AM

www.kodak.com/go/playtouchsupport 5

ENGLISH

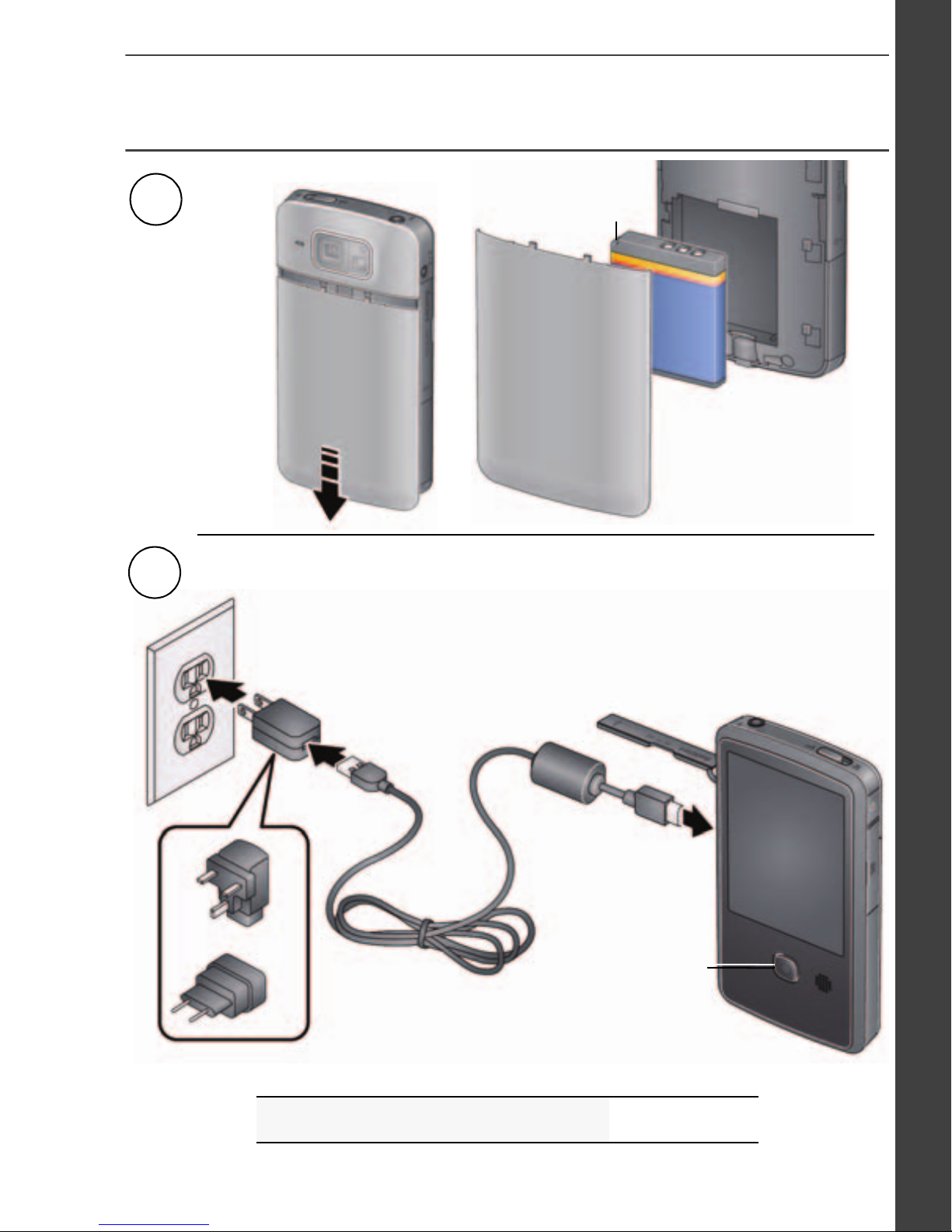

Charging the battery

See other charging solutions see page 6

(approx. 2 hours)

Charging light:

• On = charging

• Off = charged

Turn off the camera, then connect it.

KODAK Camera USB Cable, Micro B / 5-Pin

Do not plug this cable into a computer.

Your adapter

may differ.

Notched

corner

Insert the

Li-Ion battery.

Charge

whenever

necessary.

urg_01150.book Page 5 Monday, September 27, 2010 9:21 AM

6www.kodak.com/go/easysharecenter

ENGLISH

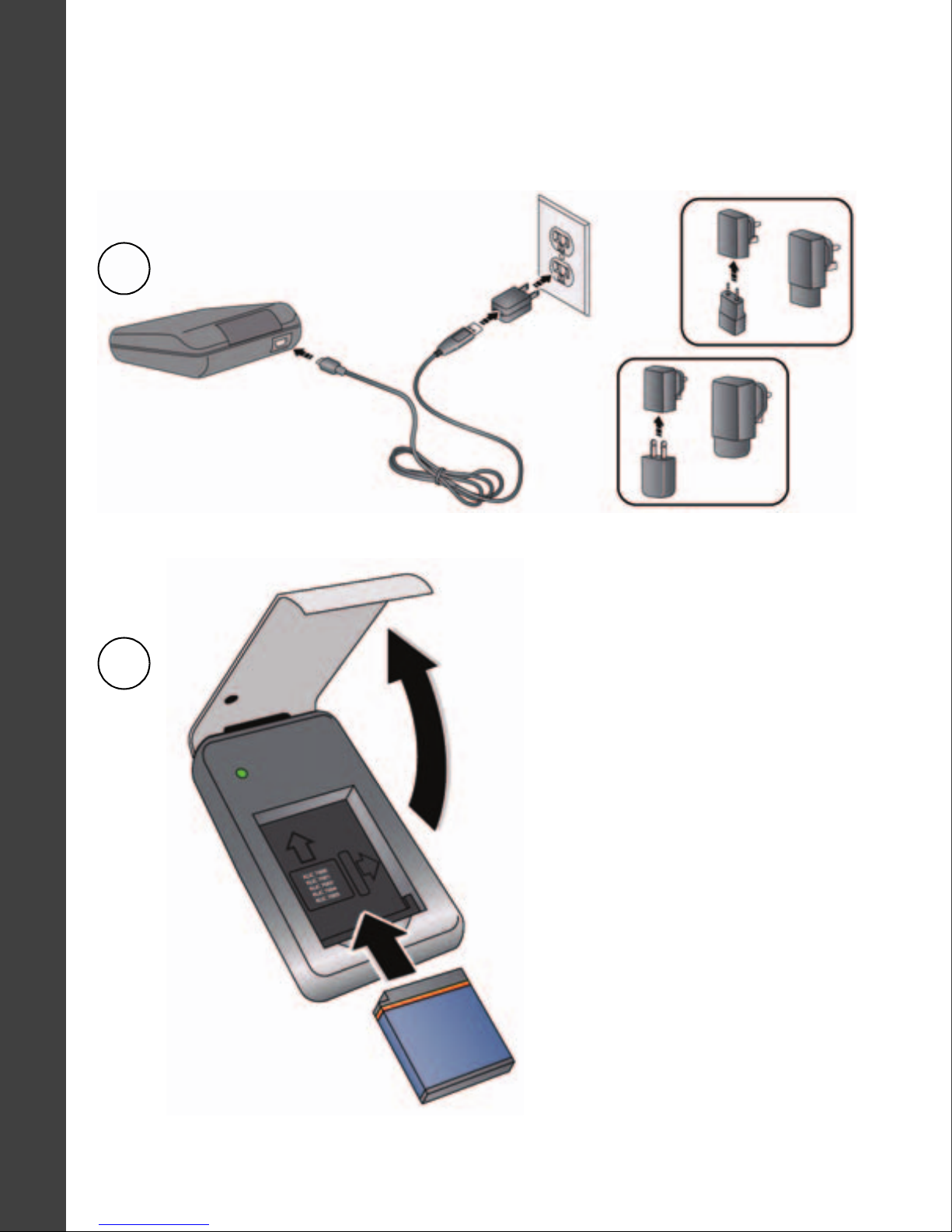

Charge using an external charger

A charger may be an optional accessory and differ from the one

pictured.

urg_01150.book Page 6 Monday, September 27, 2010 9:21 AM

www.kodak.com/go/playtouchsupport 7

ENGLISH

Inserting an SD or SDHC Card

Your camera has limited internal memory—perfect for a few

practice videos/pictures. We strongly suggest that you purchase

an SD or SDHC Card. (Maximum supported card size is 32 GB.)

CAUTION:

A card can only be inserted one way; forcing it may

cause damage. Inserting or removing a card while the

camera is on may cause damage.

1Turn off the camera.

2Insert the card until

it clicks.

To remove the card,

press and release it,

then pull it out.

urg_01150.book Page 7 Monday, September 27, 2010 9:21 AM

8www.kodak.com/go/easysharecenter

ENGLISH

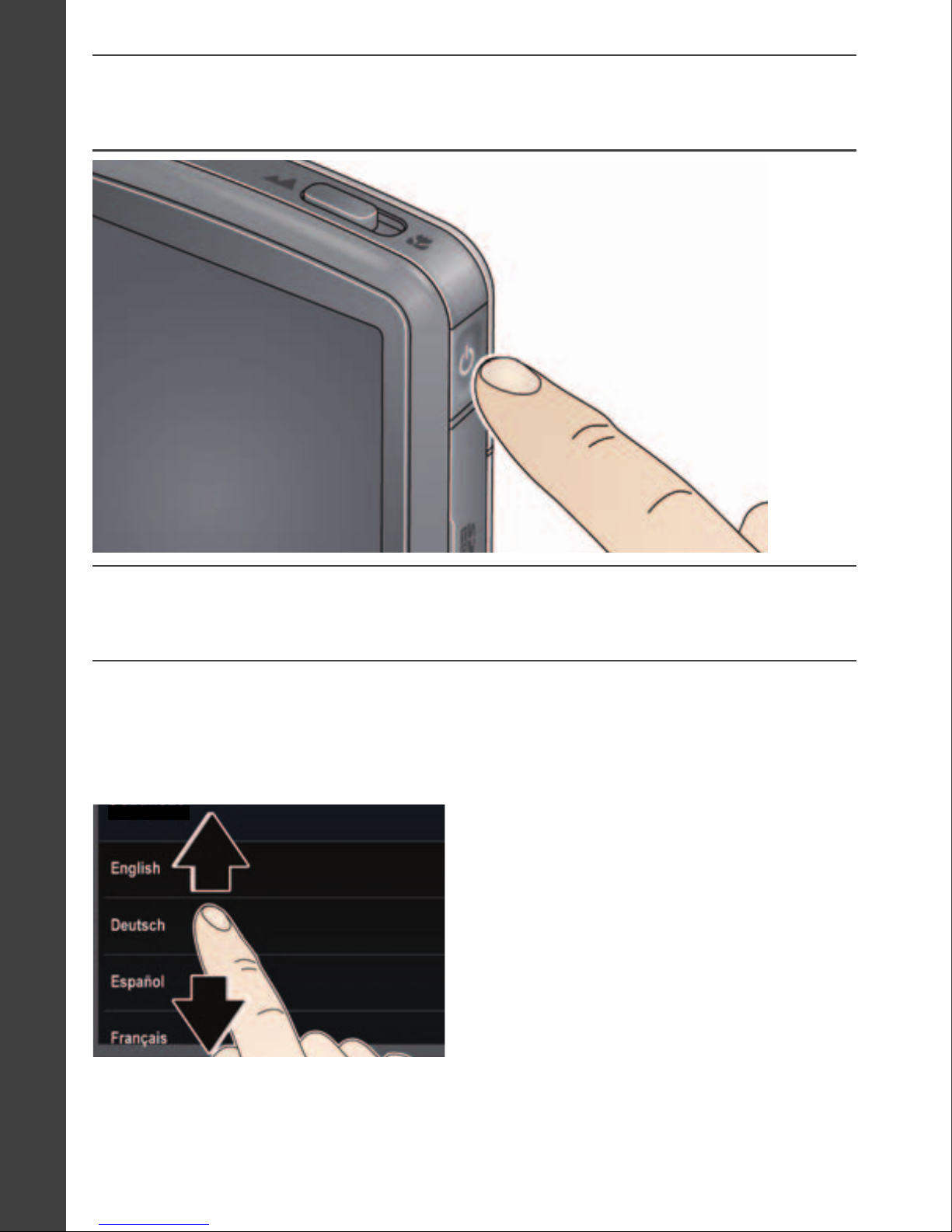

Turning on the camera

Setting the date/time

The first time you turn on the camera, you’re prompted to

choose your language and set the date/time. (To change your

language or date/time in the future, see page 14.)

To set the language:

1Drag up/down to view your

language. (For more

information on using

touchscreen gestures, see

page 3.)

2Tap your language.

urg_01150.book Page 8 Monday, September 27, 2010 9:21 AM

www.kodak.com/go/playtouchsupport 9

ENGLISH

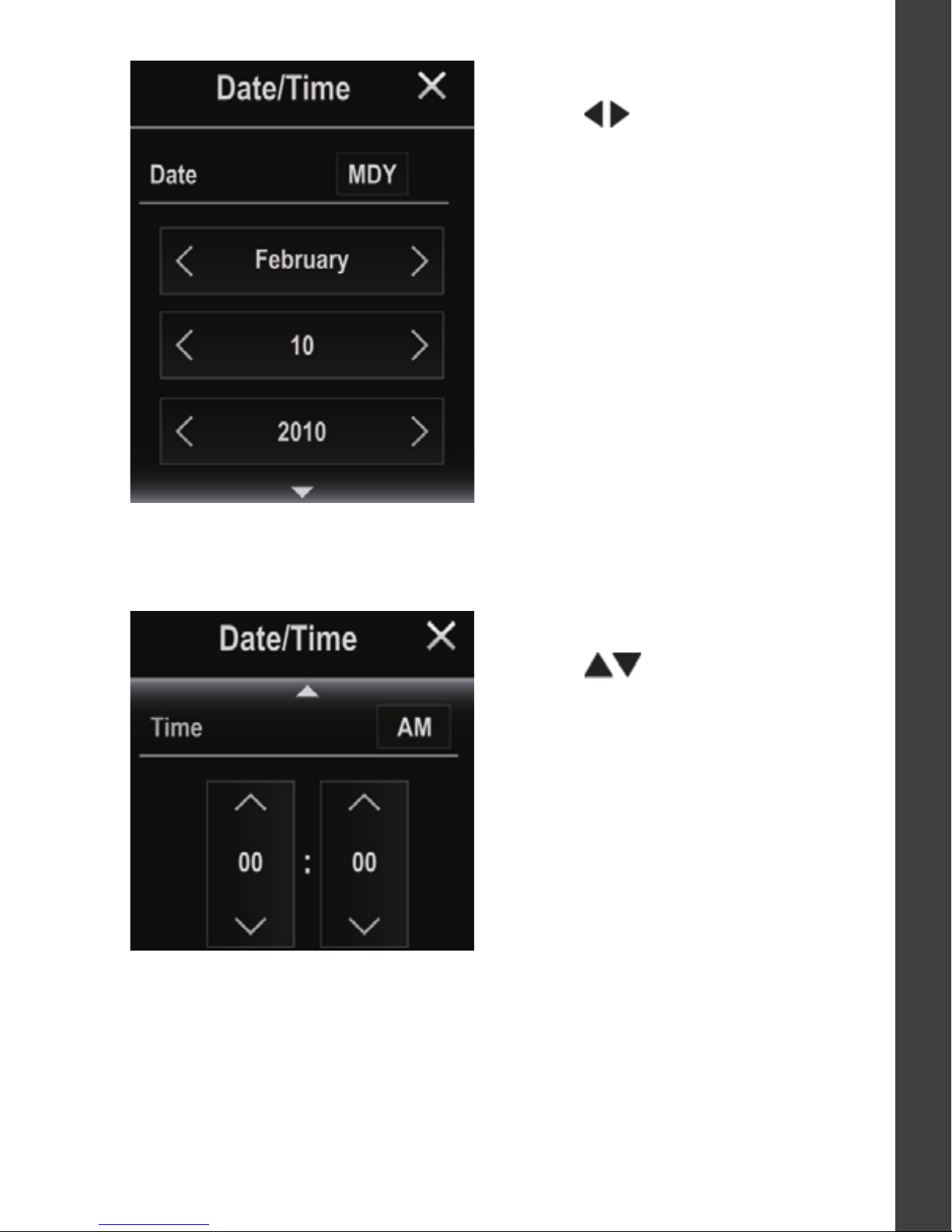

To set the date:

1Tap to scroll through

month, date, year. (Tap/hold

to scroll quickly.)

2Tap MDY to change the date

format.

3The time screen is below the

date screen. Drag up to view

and set the time. (For more

information on using

touchscreen gestures, see

page 3.)

To set the time:

1Tap to scroll through

hour and minute. (Tap/hold

to scroll quickly.)

2Tap AM to choose AM or PM.

3Tap X to accept.

urg_01150.book Page 9 Monday, September 27, 2010 9:21 AM

10 www.kodak.com/go/easysharecenter

ENGLISH

Recording videos, taking pictures

■Press the Record/OK button.

Press it again to stop

recording.

To zoom, tap (or tap and

hold) the zoom control +

(Telephoto) or - (Wide).

Enhancing your experience

■Choose a video resolution (or

take pictures; see page 13).

■Take close-up videos/pictures.

Slide the Focus switch (see

page 1) to Close-up .

■Tap the Effects icon to

choose an effect.

■Apply an LCD Glare Shield

filter (see page 15).

NOTE: To apply a filter, the feature must

be turned on in the Settings

menu (see page 14).

■Adjust LCD brightness (see page 14).

■Plug in headphones or an external microphone, then tap

Headphone or Microphone.

Record/OK

Settings

Effects

Zoom control

(Wide/Telephoto)

urg_01150.book Page 10 Monday, September 27, 2010 9:21 AM
