Kodak 1500 Manuale utente

8G7939-01

KODAK 1500 Intraoral Camera

User’s Guide

Notice

©Carestream Health, Inc., 2009. No part of this publication may be reproduced,

stored in a retrieval system, translated to another language, or transmitted in any form

by any means, electronic, mechanical, photocopied, recorded, or otherwise, without

prior written permission.

The information in this document is subject to change. Neither Carestream Health,

Inc. nor any of its subsidiaries shall be liable for errors contained herein or for

incidental damages in conjunction with the furnishing, performance, or use of this

material.

Carestream is a trademark of Carestream Health, Inc.

The Kodak trademark and trade dress are used under license from Kodak.

All other trademarks and registered trademarks are the property of their respective

holders.

US Federal law restricts this device to sale by or on the order of a dentist.

The Kodak 1500 intraoral camera is also marketed and sold as the STV Pro +

intraoral camera.

Manual Name: KODAK 1500 Intraoral Camera User’s Guide

Part Number: 8G7939

Revision Number: 01

Print Date: August 2009

Authorized Representative:

Carestream Health France

LES MERCURIALES

40. rue Jean Jaures

93176 BAGNOLET CEDEX

France

Handpiece:

FCC ID: U72KODAK1500H

IC: 7027A-KODAK1500

Docking Station

FCC ID: U72KODAK1500

IC: 7027A-KODAK 1500

KODAK 1500 Intraoral Camera User’s Guide (8G7939) iii

Contents

About This Guide

Chapter 1

KODAK 1500

Intraoral Camera

Overview

Camera Components . . . . . . . 1

Wireless Camera . . . . . . . . 1

Wired Camera . . . . . . . . . 3

Camera Holder Components . . . 4

Docking Station Components . . . 4

Charge Station Components . . . 7

System Components . . . . . . . 8

Chapter 2

Acquisition Module

Overview

Computer System Requirements . .11

General Software Overview . . . .11

KODAK Dental Imaging

Software . . . . . . . . . . . .11

KODAK Acquisition Module. . .12

Capture Window . . . . . .12

Settings . . . . . . . . . .13

Review Window . . . . . . .14

Image Processing Toolbar . .15

Chapter 3

Getting Started

Setting Up the KODAK 1500 Intraoral

Camera . . . . . . . . . . . . . .17

Inserting the Battery into a

Wireless Camera . . . . . . . .17

Inserting the Cable into a

Wired Camera . . . . . . . . .18

Setting up the Camera Holder . . .18

Setting up the Docking Station . .20

Connecting the Docking

Station to a Computer . . . . .20

Connecting the Docking

Station to a Video Monitor. . . .21

Status Icons . . . . . . . . . .23

Setting up the Charge Station

for a Wireless Camera . . . . . . .26

Connecting the Charge Station

to the Docking Station . . . . .27

Connecting the Antenna to the

Docking Station . . . . . . . .28

iv Contents

Using the Charge Station as a

Stand-Alone Device. . . . . . .28

Pairing the Wireless Camera

to the Docking Station. . . . . .29

Using the Camera with a

Protective Sheath . . . . . . . 30

Chapter 4

Acquiring,

Reviewing, and

Storing Images

Acquiring Images Using a Video

Monitor . . . . . . . . . . . . . .31

Acquiring Images Using a

Computer . . . . . . . . . . . . .32

Chapter 5

Maintenance

Hygiene and Disinfection. . . . . .35

Maintenance. . . . . . . . . . . 36

Daily . . . . . . . . . . . . . 36

Monthly. . . . . . . . . . . . 36

Disposing of the Battery . . . . . .37

Chapter 6

Troubleshooting

Chapter 7

Technical Features

and Specifications

KODAK 1500 Intraoral Camera User’s Guide (8G7939) v

About This Guide

This guide documents the Kodak 1500 intraoral camera and

contains the following messages to emphasize information or

indicate potential risk to personnel or equipment:

Note to the User

To use and operate your software, you must follow the

instructions contained in this guide.

Warning: Failure to heed this warning could

result in damage to property or in bodily injury.

Caution: Points out procedures that you must

follow precisely to avoid damage to the system

or any of its components, yourself, or others.

Note: Provides additional information, such as

expanded explanations, hints, or reminders.

Tip: Provides extra information to improve

workflow.

vi About This Guide

Warning and Safety Instructions

When operating the Kodak 1500 intraoral camera, observe the

following warning and safety instructions:

DANGER OF ELECTRIC SHOCK

This is an electrical unit. DO NOT expose it to

water spray. Such action may cause an electric

shock or a malfunction of the unit.

CAUTIONS:

•You are responsible for the operation and maintenance

of this camera. Only qualified persons can operate this

camera. They MUST have training to use the camera.

When necessary, have a trained authorized service

technician carry out inspection and maintenance

operations.

•DO NOT place the computer and the peripheral

equipment connected to it in the immediate vicinity of

the patient. Leave at least 1.83 m distance between the

patient and the equipment..

•See your computer installation guide for details of the

data processing system, computer and screen. Leave a

sufficient amount of clear space around the computer

to ensure that it is properly ventilated.

•To obtain maximum image quality and visual comfort,

position the screen to avoid direct light reflections from

internal or external lighting.

KODAK 1500 Intraoral Camera User’s Guide (8G7939) vii

•DO NOT place objects within the field of operation of

the equipment.

•Disinfect any parts of the camera that come into

contact with the patient and the operator after each

patient has been exposed to the camera.

•Always use a new protective sheath for each patient.

•Turn off the camera before charging. Failure to do so

will shorten the life of the battery.

•The surface temperature of the LED window can rise up

to 39°C. Do not allow the window to come in contact

with the patient’s mouth for more than 10 minutes.

•When the camera is not in use, ensure that the ON/OFF

button is set to OFF.

•Ask the patient to refrain from moving during the entire

period of exposure.

•The power adapter is certified by IEC 60601-1. You

MUST use the provided AC Mains adapter only.

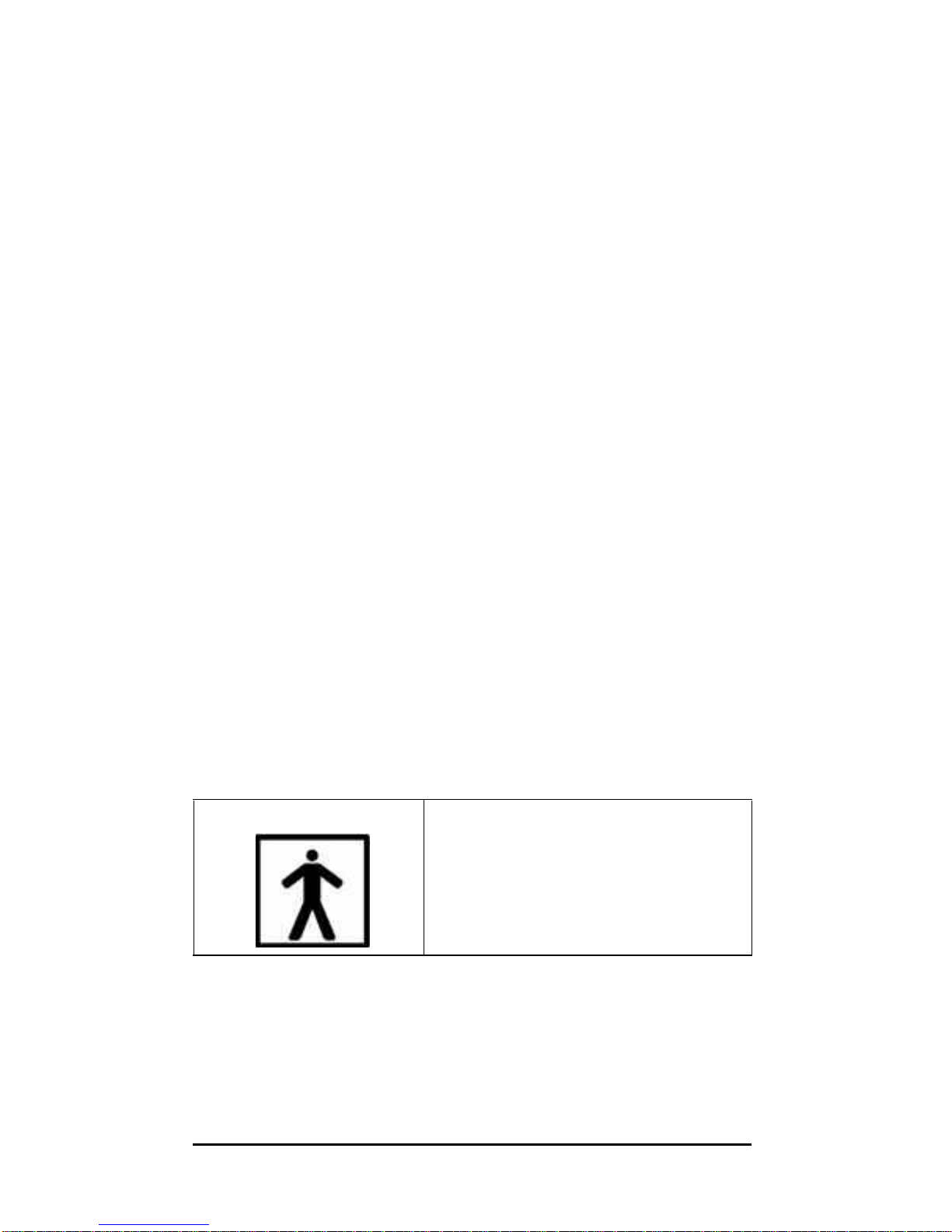

Marking and Labeling Symbols

Type BF device symbol complying

with the IEC 60601-1 standard

viii About This Guide

KODAK 1500 Intraoral Camera User’s Guide (8G7939) 1

1 KODAK 1500 Intraoral

Camera Overview

The Kodak 1500 intraoral camera is compliant with the

requirements of the EEC and international medical standards.

The camera has been designed to carry out the following

functions:

•Acquire still images and video

•Review images

•Store images

Camera Components

The camera is available in two models: wired and wireless.

Although they look similar, the buttons and LEDs have different

functions for different modes. The following illustrations

describe the components and functions for wired and wireless

models.

Wireless Camera

The wireless camera may be powered by a battery or a cable. If

you use a cable, the functions of the LEDs and buttons are the

same as those described for the wired camera.

2 Chapter 1 KODAK 1500 Intraoral Camera Overview

Figure 1 Camera Components—Wireless

1LED and Lens

window

View white LEDs that illuminate the

oral cavity.

2Power On/Off

button

Press 3 seconds to power on. Press

5 seconds to power off.

3Battery Release

button

Press button and pull battery out.

4Shutter Release

button

Press halfway down to perform auto

focus. Press all the way down to

capture an image. Press halfway

down and release to return to video

mode.

5Battery indicator Green indicates the battery is working

properly; blinking orange indicates

the battery is low.

6Wi-Fi indicator Solid blue indicates the connection is

working properly; blinking blue

indicates a communications problem.

7Battery Insert rechargeable cylindrical

Lithium-ion battery into bottom of

camera until it fits tightly in place.
