Kodak DCS 300 Series Manuale utente

DCS 300 Series

Digital Cameras

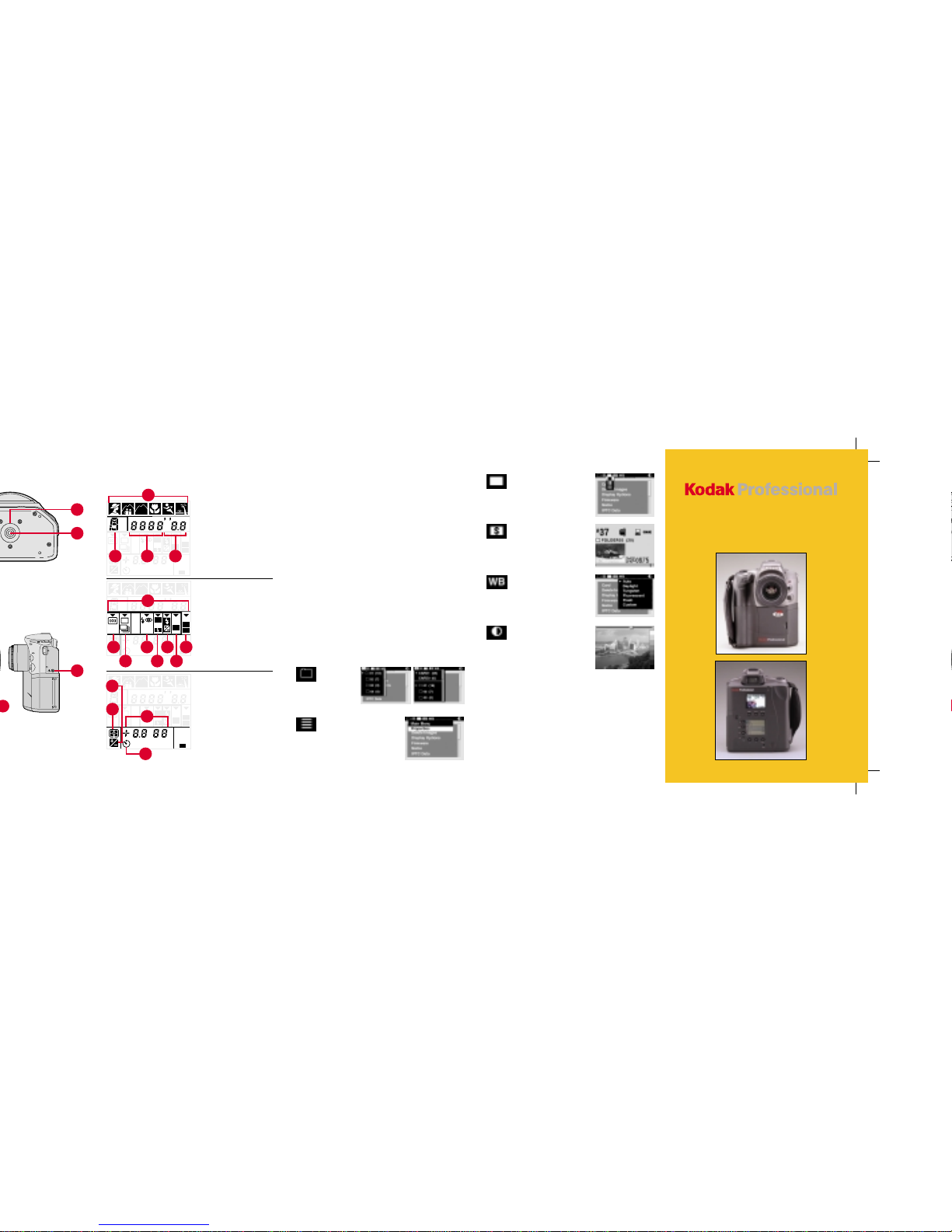

Camera Sides

Camera Status LCD Panel Using the Digital Controls

Display the Menu bar and select a Menu bar icon: Press

and hold the MENU button and rotate the Main Command

dial until the desired icon is highlighted.

Display a dropdown menu: Highlight the Folder, Menu,

Display, or White Balance icon (see next page), and continue

pressing the MENU button until the dropdown menu appears.

Choose an item from a dropdown menu: Continue pressing

the MENU button and rotate the Main Command dial until

the desired menu choice is highlighted.

Choose an item from a menu screen (e.g., Main menu):

Press and hold the SELECT button and rotate the Main

Command dial to highlight your choice.

Tag an image: Quickly press and release the REC/TAG

button.

Record a sound file: Press and hold the REC/TAG button

and speak into the microphone.

Display Icon

Displays choices for Single,

Four, and Nine Image

Review mode

Status Icon

Displays the Status screen

that contains information

about the current image

White Balance Icon

Displays choices for White

Balance settings

Contrast Icon

Displays the Contrast

screen where you can

adjust the contrast of the

images displayed on the

Image LCD panel (the

images themselves are not

affected)

1. Flash Sync Terminal

(DCS 330 only)

2. Hand/Neck Strap eyelet

3. IEEE 1394 Host Interface

Connection

4. AC Adapter Connection

5. Hand Strap eyelet

AF-C

AF-S

REAR

TYPE

ISO

SLOW

BKT

AF-C

AF-S

REAR

TYPE

ISO

SLOW

BKT

AF-C

AF-S

REAR

TYPE

ISO

SLOW

BKT

11. Vari-Program

2. Exposure mode

3. Shutter speed

4. Aperture

2 3 4

1. Function area indicators

2. Focus area/AF mode

3. Drive mode

4. Flash sync mode

5. Auto Exposure

Bracketing/Flash

Exposure Bracketing

6. Flash output level

compensation

7. Quick recall function

8. ISO setting mode

234

5 7 86

1. Compensation value/

QR number, ISO

2. Metering system

3. Exposure

Compensation

4. Self-timer

Camera Bottom

1. Product label

2. Serial number 3. Tripod mount rubber pad

4. Tripod mount

The Menu Bar

Folder Icon

Displays

the Folder

Menu Icon

Displays choices for the

Main and Properties menus

1 PC Card 2 PC Cards

To insert a PC Card,

open the Battery/PC

Card door and insert.

With two cards, the first

card inserted is the

active card.

To select a different PC

Card, select the Folder

icon, then select the

card. (Refer to other

side.)

Important! Be sure

the Card Busy LED is

off before removing a

PC Card.The blinking

indicates data is being

transferred to or from

the PC Card.You can lose data if you remove

a PC Card when it is busy.

To remove the PC Card, press the Eject

button.

1. Main-Command dial

2. Sub-Command dial

3. Anti-aliasing filter (DCS

330 only)

4. Self-timer LED

5. Lens Release button

6. Focus Mode selector

7. Battery/PC Card door

EASTMAN KODAK COMPANY

Rochester, NewYork 14650

Kodak and Kodak Professional are trademarks.

Printed in U.S.A. P/N 6B4715 5/00

Batteries

To power your camera, open the Battery/PC

Card door, insert the

battery tray into the

battery tray slot until

the tray is locked in

place.

☛

You can also power your camera with an

AC adapter when working indoors or

connected to a computer.

Check the battery icon

on the Image LCD

panel.

Full

Low

Insufficient

Empty

PC Card

As you capture images, they are stored on

Type II or Type III PC Cards (PCMCIA cards)

in your camera.

There are two slots for PC Cards.You can

insert two Type II cards or one Type III card.

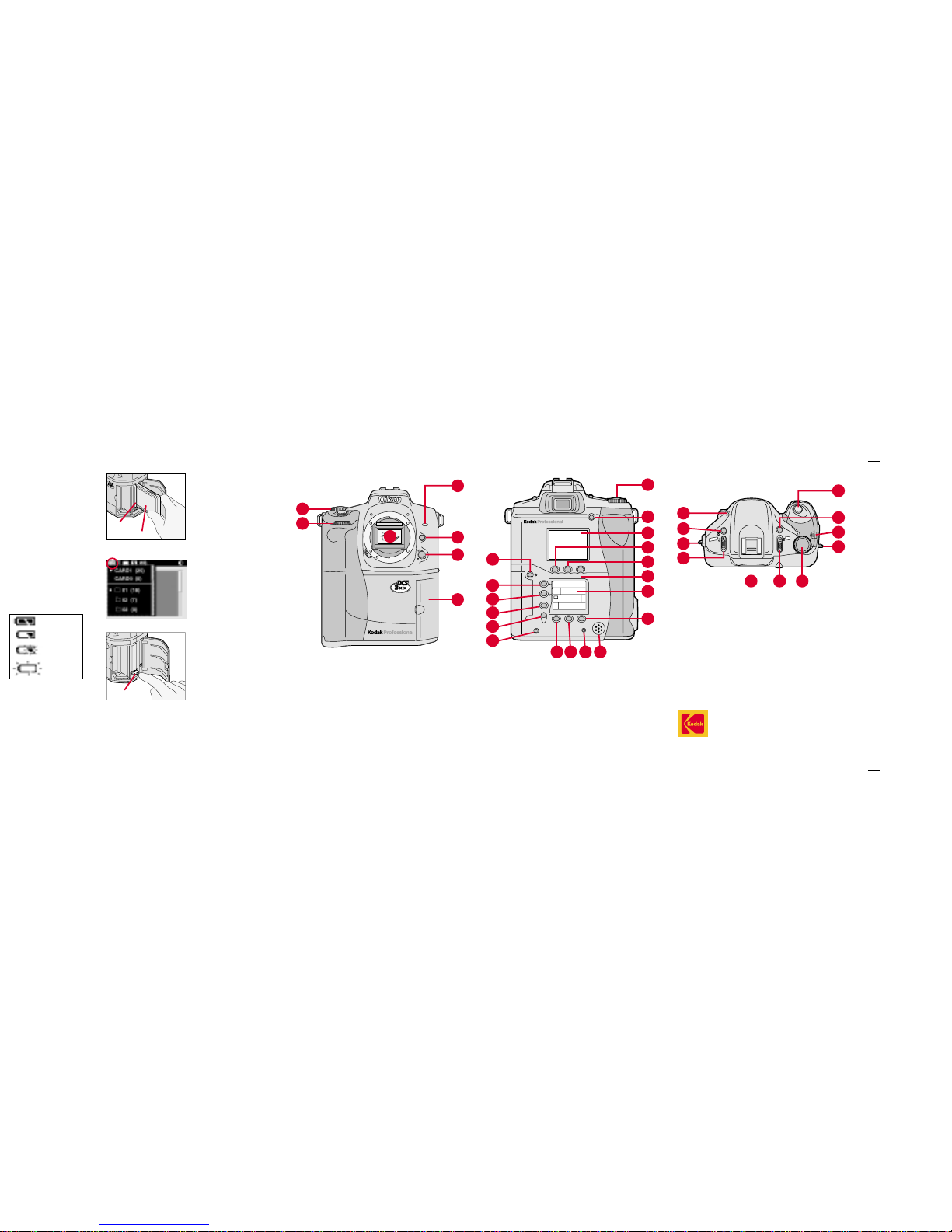

Camera Front

Camera

Back

1. Camera Status LCD

Panel Illuminator button

2. Vari-Program (Ps) button

3. Exposure Mode (MDE)

button

4. Function (FNC) button

5. Function Set (SET) button

6. Serial Port Jack (DCS

330 only)

7. Metering button

8. Exposure Compensation

button

9. PC Card Busy/Record

LED

10. Microphone

11. RESET button

12. Camera Status LCD

Panel

13. REC/TAG button

14. SELECT button

15. MENU button

16. Image LCD panel

17. AE Lock button

18. Main-Command dial

Camera Top

1. Flash Lock-release

button

2. Self-timer button

3. Neck Strap eyelet

4. BASIC/ADVANCED

switch

5. Accessory shoe

6. Power switch

7. Main-command dial

8. Neck/Hand Strap eyelet

9. Remote Shutter Release

terminal

10. QR-OUT button

11. Shutter Release button

Card 1 Card 0

Eject button

REC/TAG

RESET

BUSY

SET

( ) +/-

FNC

MDE

SELECTMENU

AE-L

8 9 10

OR-

OUT

OFF

BASIC

ADVANCED

6 7
