for Kodak Scanners

Cleaning and Consumable Replacement Instructions

IManualnstruction

Versitec is a division of Cranel, Inc.

i100/i200/i260

INSTRUCTION MANUAL FOR

KODAK

i100/i200/i260 Scanner

Versitec 1- 888 - 722 - 6548 www. versitec.com

Step One: Cleaning the scanner......................................2

Step Two: Cleaning the separator module....................3 - 4

Step Three: Cleaning the feed module........................4 - 5

Step Four: Cleaning drive rollers & transport area.......6 - 7

Step Five: Cleaning the imaging guides...........................7

Step Six: Cleaning the paper path...................................8

TABLE OF CONTENTS

I. i200 Scanner Maintenance

II. i200 Replacing Parts

Step One: Replacing the feed Module & feed....................9

For inquiries during any of these procedures,

contact the Versitec Customer Support Center

at 1-800-224-3475.

Versitec 1- 888 - 722 - 6548 www. versitec.com 1

Step Two: Cleaning the paper path................................10

Step Three: Replacing parts..................................10 - 11

Cleaning the scanner

2Versitec 1- 888 - 722 - 6548 www. versitec.com

The scanner will collect dust and other debris during routine scanning.

Foroptimalscannerperformance,followthedetailedcleaninginstructions

in this section and clean the feed module rollers, separator module rollers,

imaging guides, transport area, and paper path at least once per week.

Clean the scanner and paper path daily if you are scanning carbonless

paper or newsprint, or if you are using the imprinter.

Use only these cleaning materials:

IMPORTANT

Staticide Wipes contain isopropanol which can cause eye

irritation and dry skin. Wash your hands with soap and

waterafterperformingmaintenanceprocedures.Referto

theMaterialData Safety Sheet (MSDS) for more information.

The MSDS is available on the Kodak web site at

www.kodak.com/go/MSDS.

Allow all rollers to dry completely before using the scanner.

NOTE:

Theuse of any other cleaning materials could damage your scanner.

Usefreshcleaningmaterialunlessotherwiseindicated.Inaddition

to the recommended cleaning supplies, you may use a vacuum

cleanertoremovedebrisfromthe scanner. Some debris from the

rubbertireson the feed module and separator module is normal.

Tire debris does not always mean that the tires are worn or damaged.

Aftercleaning, inspect the tires for wear and replace the separator

moduleorfeedmoduleifnecessary.Toordercleaningsupplies,refer

to Appendix B, Supplies and Accessories.

I. ii

i260260

260260

260 MaintenanceMaintenance

MaintenanceMaintenance

Maintenance

Item CAT No.

Kodak Digital Science Roller Cleaning Pads (24) 853-5981

Staticide Wipes for KODAK Scanners (144) 896-5519

Kodak Digital Science Transport Cleaning Sheets (50) 169-0783

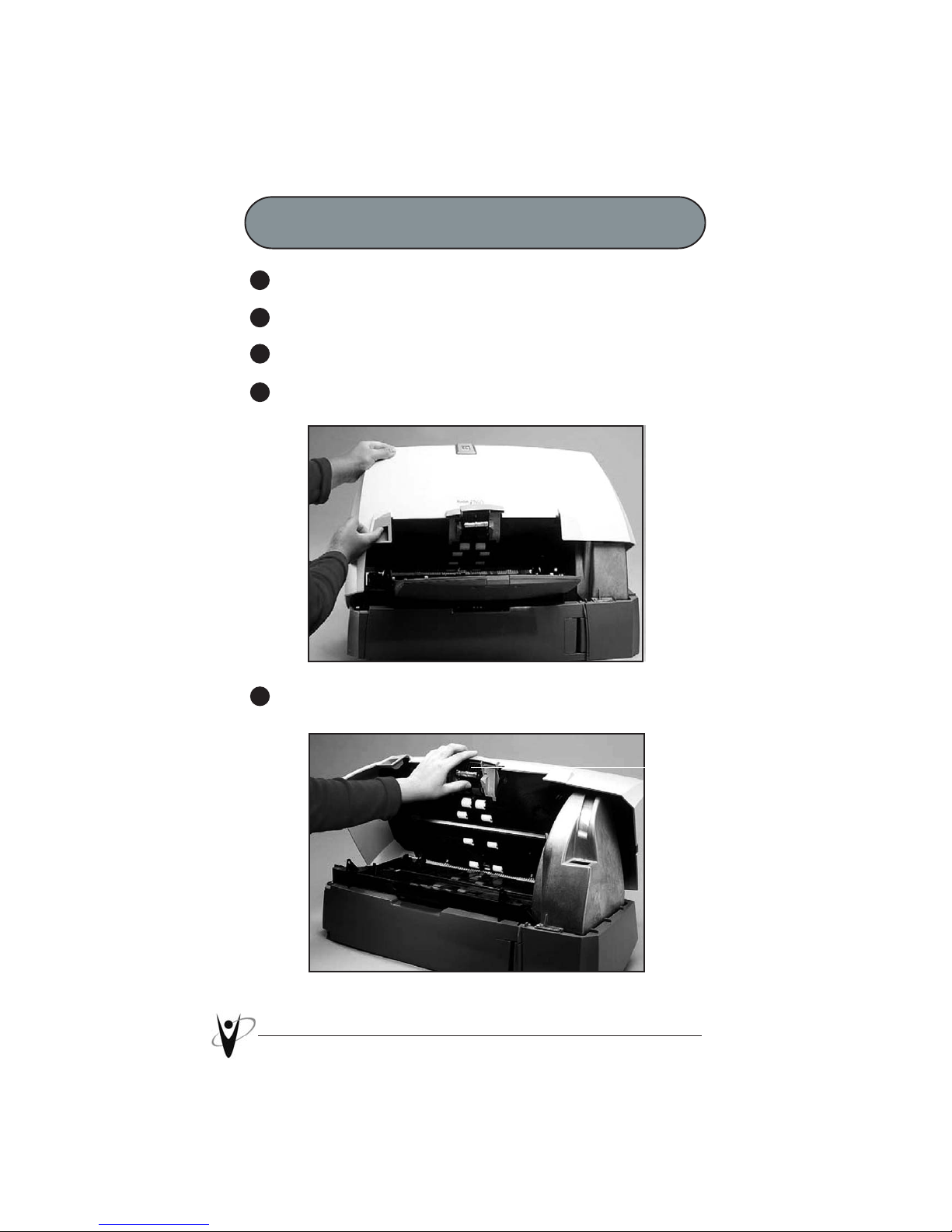

Cleaning the separator module

5Remove the separator module by pulling it down and lifting it off.

Separator

module

1 Powerdown the scanner.

2 Removeanydocumentsfromthefeederarea.

3 Lift up the scanner door release to unlatch the scanner door.

4 Pull up to open the scanner door.

Versitec 1- 888 - 722 - 6548 www. versitec.com 3

Front Roller

Cover

Cleaning the Feed Module

1 Push against the raised edge on the left side of the front roller cover to

the side and pull the cover up and out to remove it.

4 Versitec 1- 888 - 722 - 6548 www. versitec.com

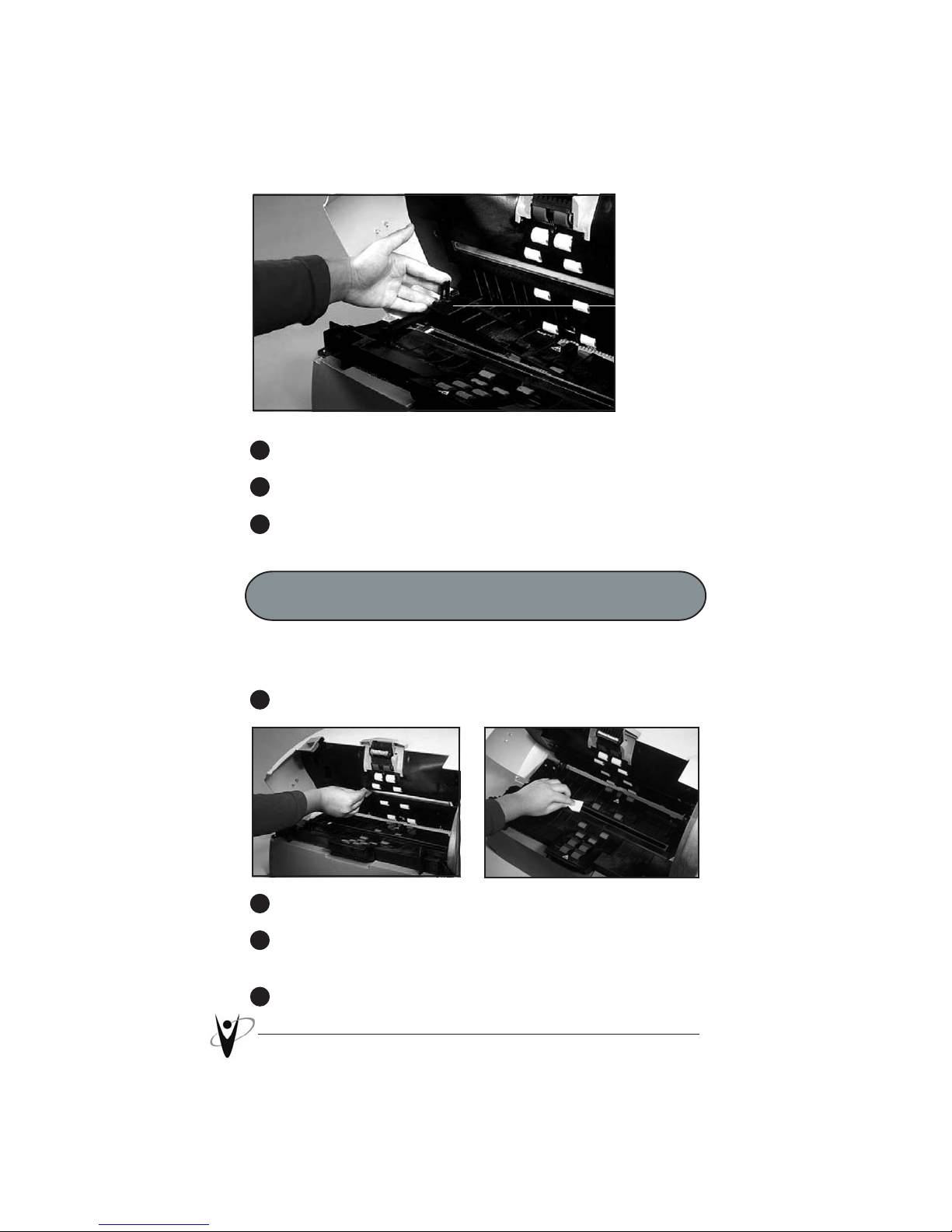

6 Manually rotate and wipe the separator module rollers with a roller

cleaning pad.

7 Inspect the rollers. If the separator roller tires show signs of

wear or damage, replace the tires or the separator module.

8 Insert the separator module and align the shaft ends.

9 Press until the separator module clicks into place.

10 Go to the next section to clean the feed module.

4 Inspect the feed module. If the feed module tires show signs of

wear or damage, replace the tires or the feed module.

5 Remove any dust or debris from the tray area under the feed

module and the front roller cover.

6 Insert the feed module by aligning the pins and pushing it toward

the right to fit it into position.

7 Re-installthefrontrollercover.

8 Go to the next section to clean the drive rollers and transport area.

Versitec 1- 888 - 722 - 6548 www. versitec.com 5

Feed module

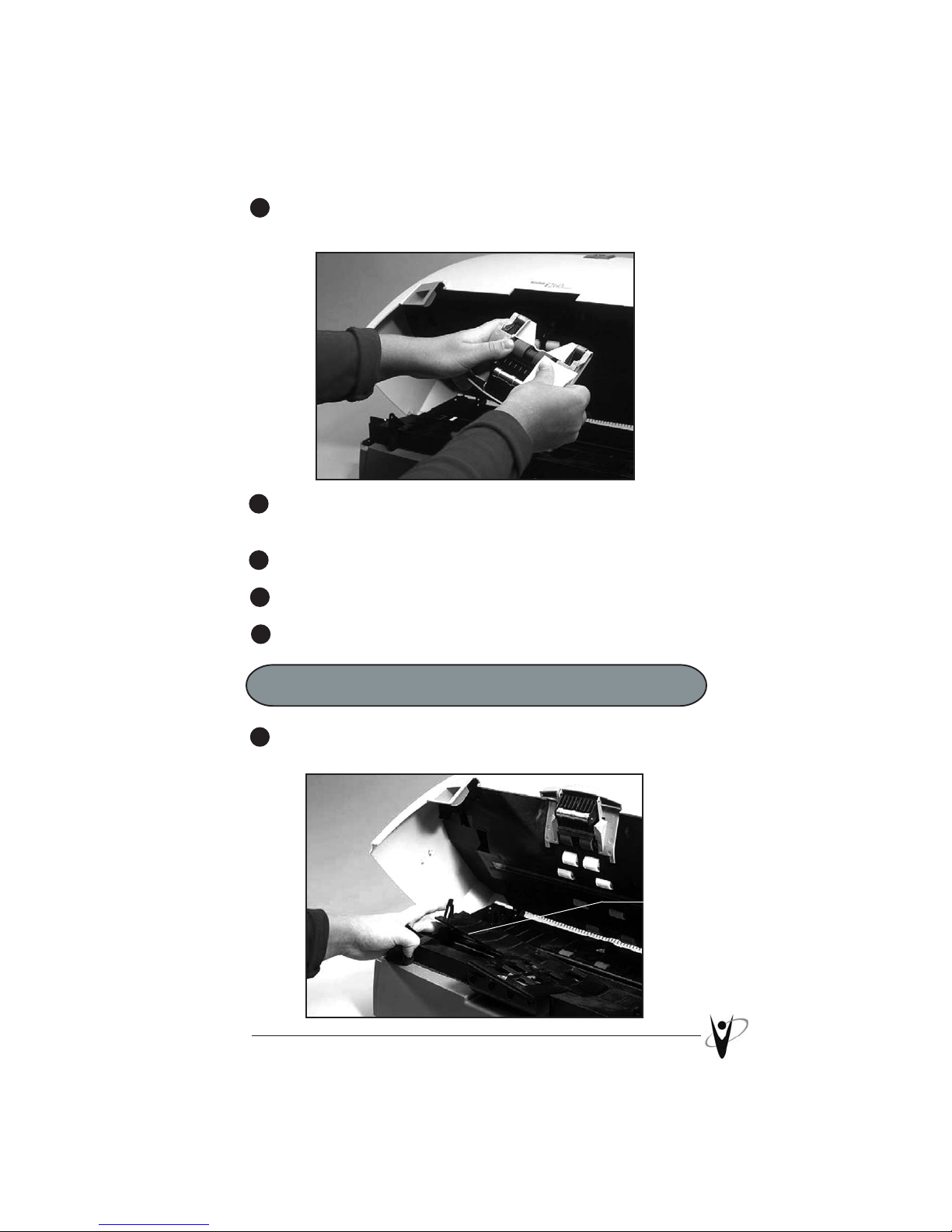

3 Manually rotate and wipe the feed module rollers with a roller

cleaning pad.

2 Remove the feed module by pushing it to the right and lifting it out.

Cleaning the Drive Rollers and

TransportationArea

6 Versitec 1- 888 - 722 - 6548 www. versitec.com

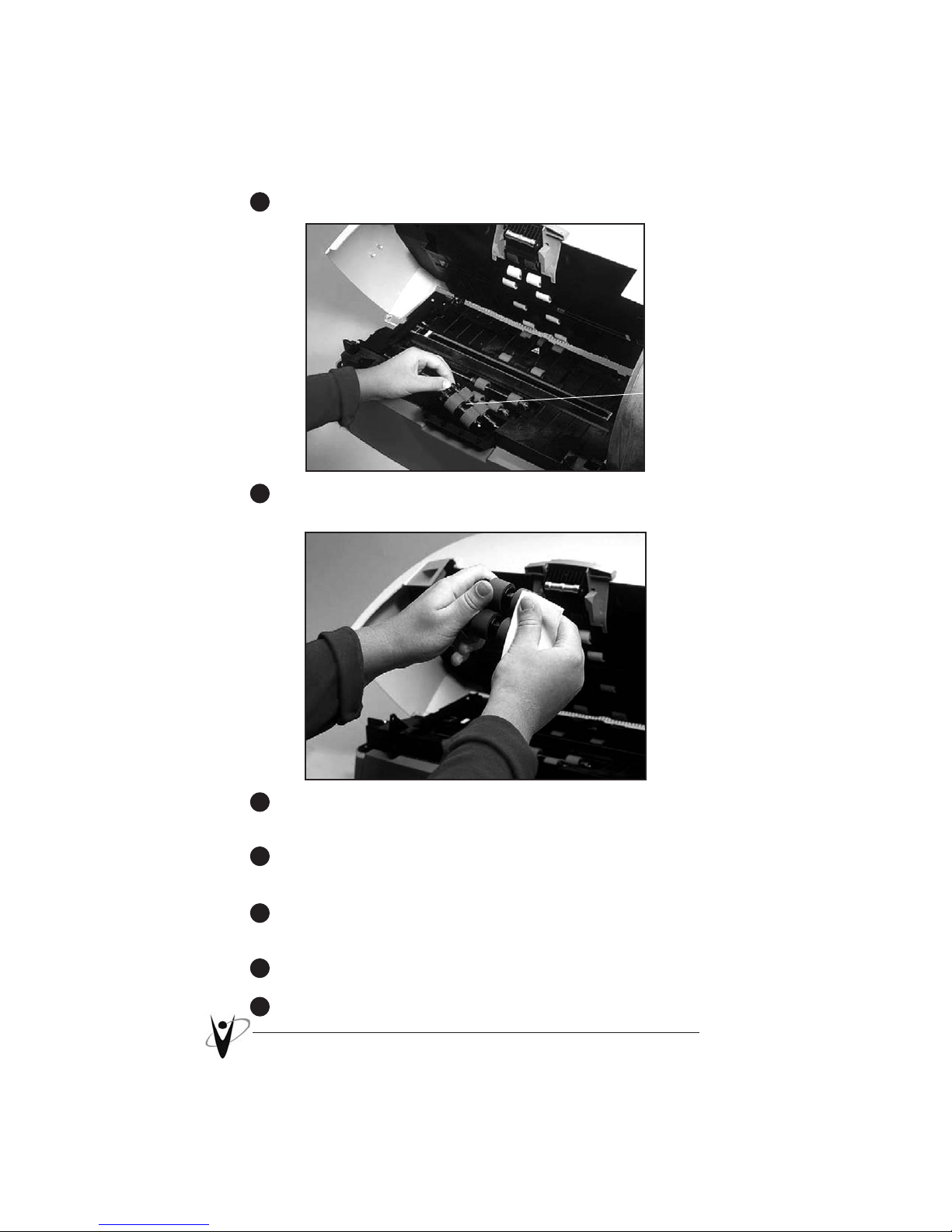

1 Manually rotate and wipe the drive rollers with a roller cleaning pad.

2 Clean any dust or debris in the slots around the drive rollers.

3 Wipe the upper and lower transport areas with a roller cleaning pad.

4 Dry the transport area with a dry Staticide Wipe.

5 Push against the raised edge on the left side of the rear roller cover

and pull the cover up and out to remove it.

Rear roller

cover

6 Removeanydust or debris under the rear roller cover.

7 Re-installtherearrollercover.

8 Go to the next section to clean the imaging guides.

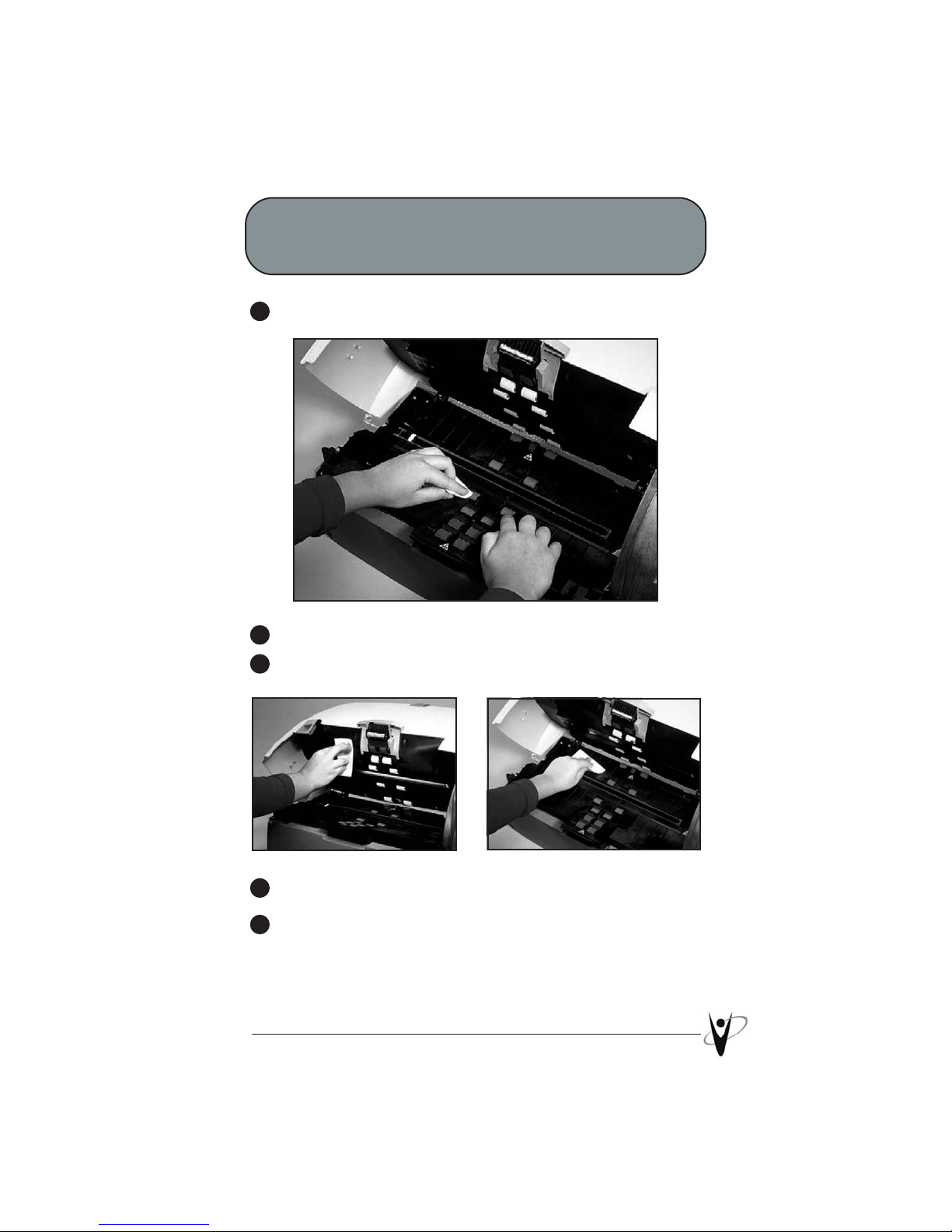

Cleaning the Imaging Guides

Clean the exposed (top side) surfaces of the imaging guides.

You do not need to remove theimagingguides for cleaning.

1 Wipe the upper and lower imaging guides with a Staticide Wipe.

2 Dry the imaging guides with a dry Staticide Wipe.

3 Lower the scanner door and press it down firmly until it latches

into place.

4 Go to the next section to clean the paper path.

Versitec 1- 888 - 722 - 6548 www. versitec.com 7
