General Information

Welcome to the world of Carbonado Smart phone accessories. This smart accessory works as a add-

on protection along with PTT features, the device has a feature-rich user interface, which allows

you to make the best use of the available functions on your Carbonado smart PTT case.

With iPhone taking high resolution pictures, browsing the web at full speed, using the phone to

make PTT calls and the possibilities of this phone are almost endless. That’s where this 1500 mAh

Extended Battery Smart PTT case along with smart features will come in handy. Over the years,

smart phones have increased in power and functionality. Connecting this Bluetooth Smart PTT case

to your iPhone you’ll have more features than your actual iPhone.

Designed specifically for the iPhone, this Extended Bluetooth Smart PTT case provides a perfect fit

and flawless compatibility. Cut-outs are available for the camera, Flash light, speaker, microphone,

ear phone jack and side buttons, so you can still utilize the full functionality of your phone without

having to take it out of the case. Easily recharge your Battery Pack through the Micro USB charger

port available on to the right side of the Carbonado smart PTT case.

Model Covered

This user manual covers the Bluetooth Smart PTT case for only iPhone-4/4s model.

Network Services

This Carbonado smart accessory is equipped internally with Bluetooth and smart feature for PoC

services along with Cellular/Wi-Fi network.

Carbonado Smart PTT case Support Information

For online support information of your Carbonado Smart PTT case, contact us at :

carbonadosmartpttcase_support@kodiaknetworks.com.

Safety Guidelines

Please read and understand the following safety guidelines before you use the Carbonado smart

PTT case. These guidelines provide details to enable you in operating your smart PTT case safely

and conform to any legal requirements regarding the use of Carbonado smart PTT case.

Disposal of Stale Electrical and Electronic Equipment

The symbol of the crossed-out wheeled bin indicates that within the country of the United

states of America, this product, and any enhancements marked with this symbol, cannot be

disposed as unsorted waste but must be taken to separate collection at their end-of-life.

Disposal of Battery

Please check local regulations for disposal of batteries. The battery should never be placed in

municipal waste. Use a battery disposal facility if available.

Guideline for Headphone and Earphone

To prevent possible hearing damage, please do not listen at high volume levels for long

periods.

Warning!

Avoid actions that could cause injury to yourself or others

Caution

Avoid usage of the device in situations that could cause damage to your device or other

equipments

Precautions to Use the Battery

A rechargeable battery powers your Carbonado smart accessory. Use the battery only for its

intended purpose. Never use any charger that is damaged. If the battery of the accessory is

completely discharged, it may take a few seconds before the charging indicator to appear on the

display or before any calls can be made. The full performance of a battery is achieved only after

three to four complete charge and discharge cycles. Unplug the charger from the electrical plug and

the device when not in use. Ensure that you do not leave the fully charged battery connected to a

charger. If left unused, a fully charged battery will lose its charge over time.

Battery Replacement

The Carbonado Smart PTT case has a Battery molded into the PTT case which cannot be replaced.

Child Safety

Do not allow children to use your mobile phone or its accessories. Keep it out of their reach. They

could hurt themselves or others, or could accidentally damage the mobile phone or accessories.

Your mobile phone and its accessories may contain small parts, which could be detached and create

a choking hazard for your child.

Getting Started

The following topics will give you all the information needed to set up your Carbonado smart PTT

case for the first time.

Setting up your Carbonado Smart PTT case

Refer to the following sections to insert and charge the Carbonado Smart PTT case.

Inserting the Carbonado Smart PTT case

Complete the following steps to insert your Carbonado Smart Accessory onto your iPhone.

Charging the Carbonado Smart PTT case Battery

Your Carbonado smart case accessory comes with an inbuilt battery

which connects to your iPhone through a Dock connector

port/Charging port on your phone. The battery provided along with

your Carbonado smart accessory does not come fully charged. We

recommend that you charge the accessory at least for five hours

before you use it for the first time.

Note: With a fully charged battery, the smart PTT case can remain in standby mode for

longer duration. If the battery is completely out of charge, the charging LED appears only

after some seconds when the charger is connected.

Note: Plugging the accessory into Power outlet/USB charger will charge the iPhone &

Carbonado smart PTT case’s battery simultaneously.

Note: When not connected to Power outlet/USB charger, user may have to press and hold

the Battery level indication button for 5 sec to charge the iPhone battery from Carbonado

smart PTT case battery.

Complete the following steps to charge the battery of the accessory.

1. Plug the charger into a power outlet.

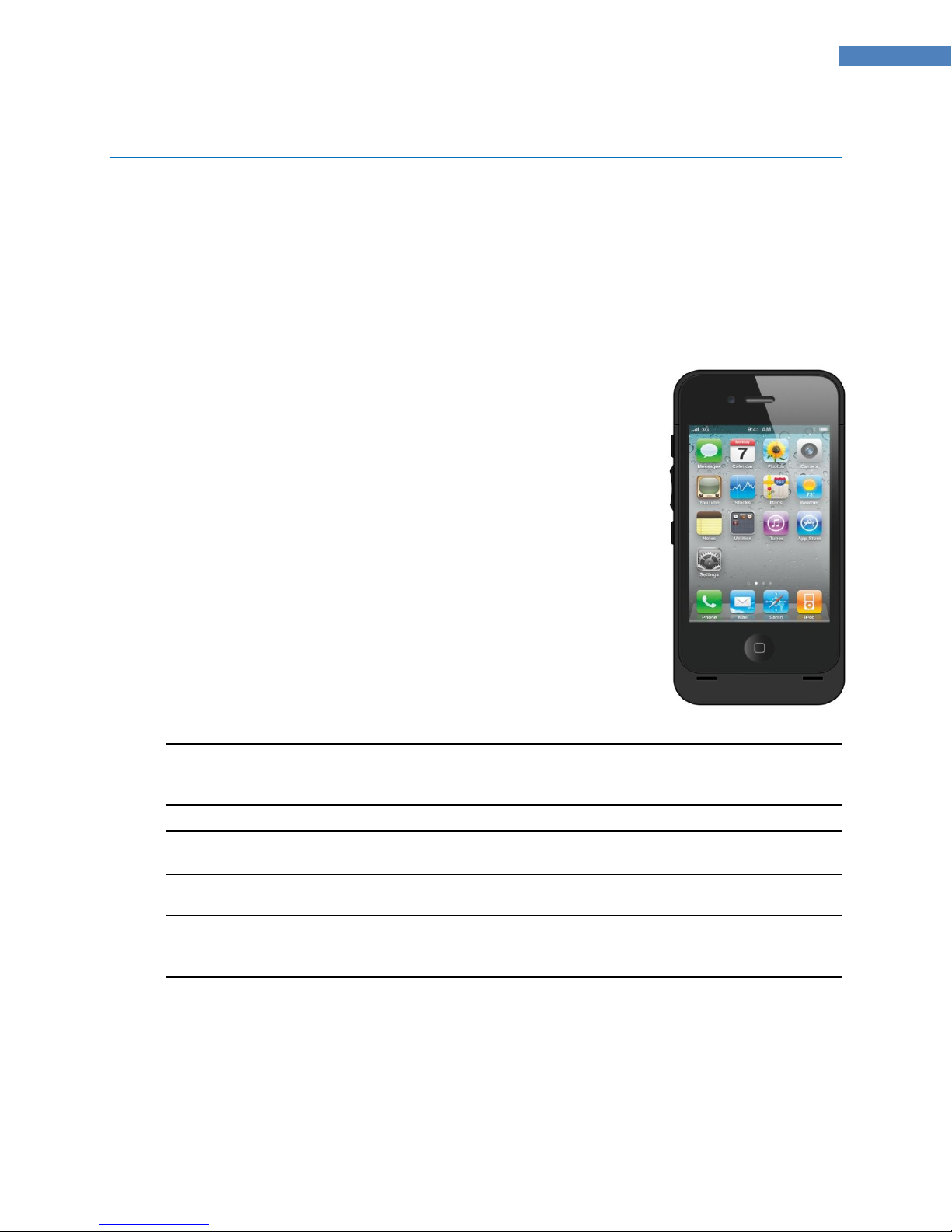

1. The iPhone smart accessory is as shown in the

picture beside, insert the smart iPhone cover on to

your phone,

2. While inserting your phone inside the cover make

sure the 30 pin dock connector port of the smart

cover is aligned along with the dock connector port

of your phone.

2. The charger port is located at the right side of accessory. Insert the 30 pin dock connector

into the port and insert the other end of the USB cable into the charger.

If the battery is being charged while the phone is switched on, you will notice

that the bars in the battery charge icon (visible on the home screen of your

phone) show movement indicating that the battery is being charged. The

smart PTT case LED also turns green indicating the battery of the Carbonado

smart PTT case also being charged. After the phone is fully charged, the

battery bars on the display stop scrolling. At this point, you can disconnect the

phone from the charger.

Device Specifications

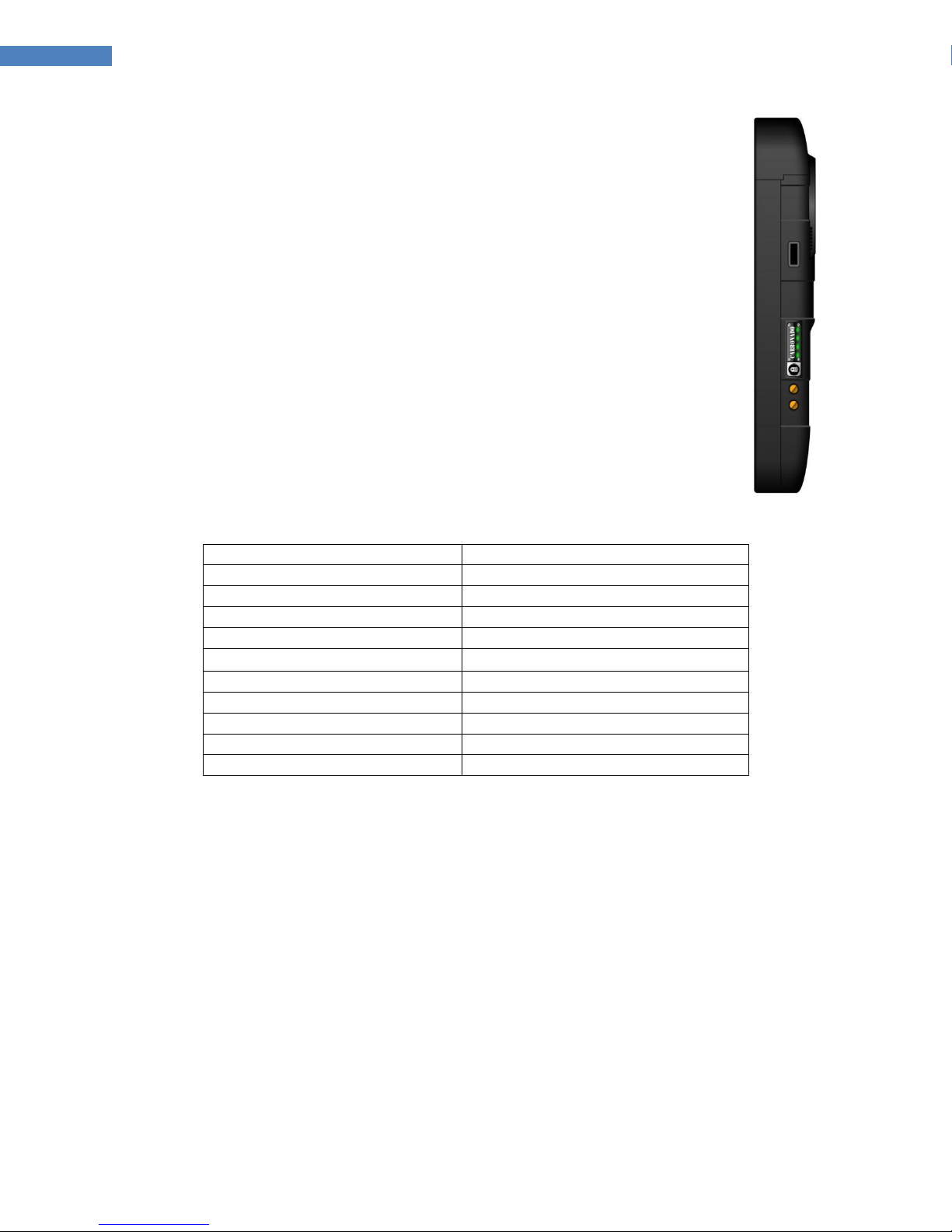

The following table displays the Device Specification of Carbonado Smart PTT case:

Frequency

2402 ~ 2480 MHz

Enhanced Push to Talk Button

Yes

Bluetooth

V3.0

Connectivity Ports

Dock Pin / Micro USB

Hardware & Software Version

V2.0

Operating Temperature

-20℃~ +55℃

Operating Voltage

3.4V ~ 4.2V

RF Power

4 ~ 10 dBm for class 1.5 operation

Modulation Type

FHSS

Total Channel Number

Channel Space

1 MHz

Alternatively, you can charge the accessory with your PC.

Insert the Micro USB connector into the charging port of the

accessory and insert the other end of the cable into a USB port

on your Laptop/Desktop.

3. If the battery is being charged when the phone is switched off,

only the battery LED is displayed on the smart cover accessory.

Basics of your Carbonado Smart PTT case

Your phone comes with features that simplify your life and expand your ability to stay connected to

the people as well as information that are important to you. Refer to the following sections to

understand the basic functions and features of your phone.

Carbonado Smart PTT case Layout

The Carbonado Smart PTT case comes with a inbuilt battery, external PTT button, Bluetooth

speaker and an additional battery indicator for the smart PTT case. The left side of the phone has

four buttons, one for PTT application, one for the Power On/Off for switching on the functionalities

of your smart Bluetooth enabled PTT case, the other two are meant for scrolling the page up/down.

The top of the PTT case has Red button used to terminate the calls. The Bluetooth speaker is located

at the back side of the phone. For more information refer to the following sections.

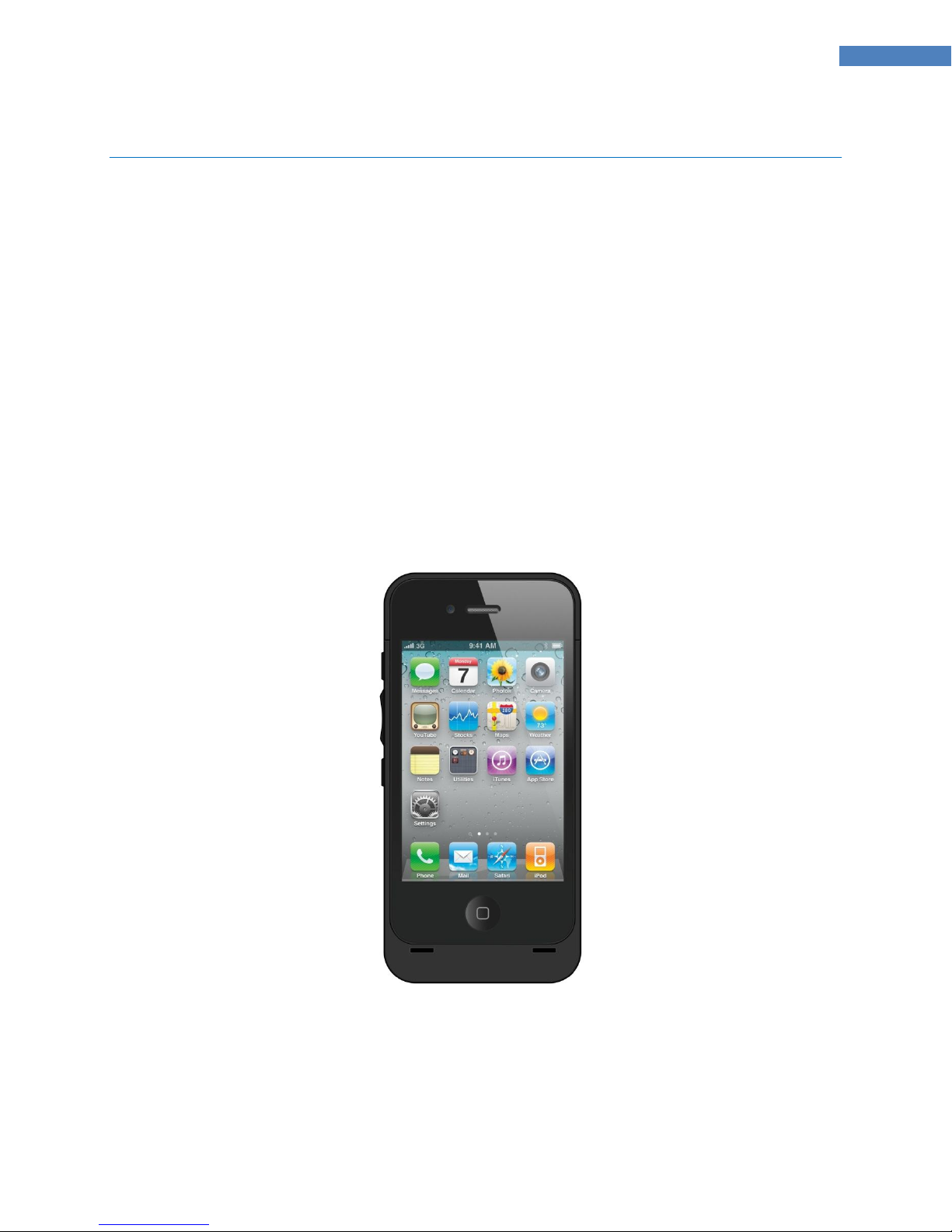

Carbonado Smart PTT case Front Layout

The following image provides the details of the front layout of your Carbonado smart PTT case.

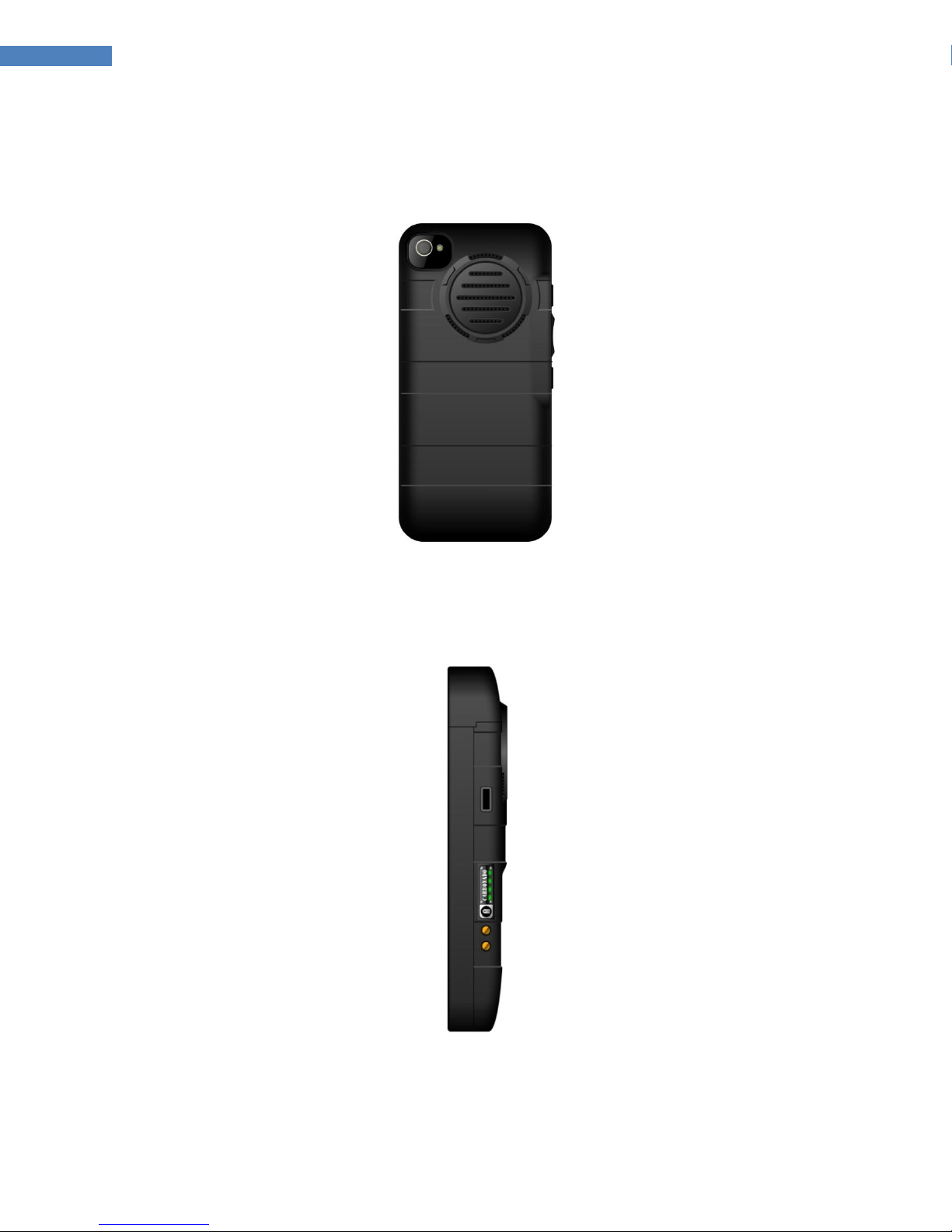

Carbonado Smart PTT case Back Layout

The following image provides the details of the layout at the back of your Carbonado smart PTT

case.

Carbonado Smart PTT case Right profile Layout

The following image provides the details of the layout at the Right side of your Carbonado smart

PTT case.

Carbonado Smart PTT case Left profile Layout

The following image provides the details of the layout at the Left side of your Carbonado smart PTT

case.

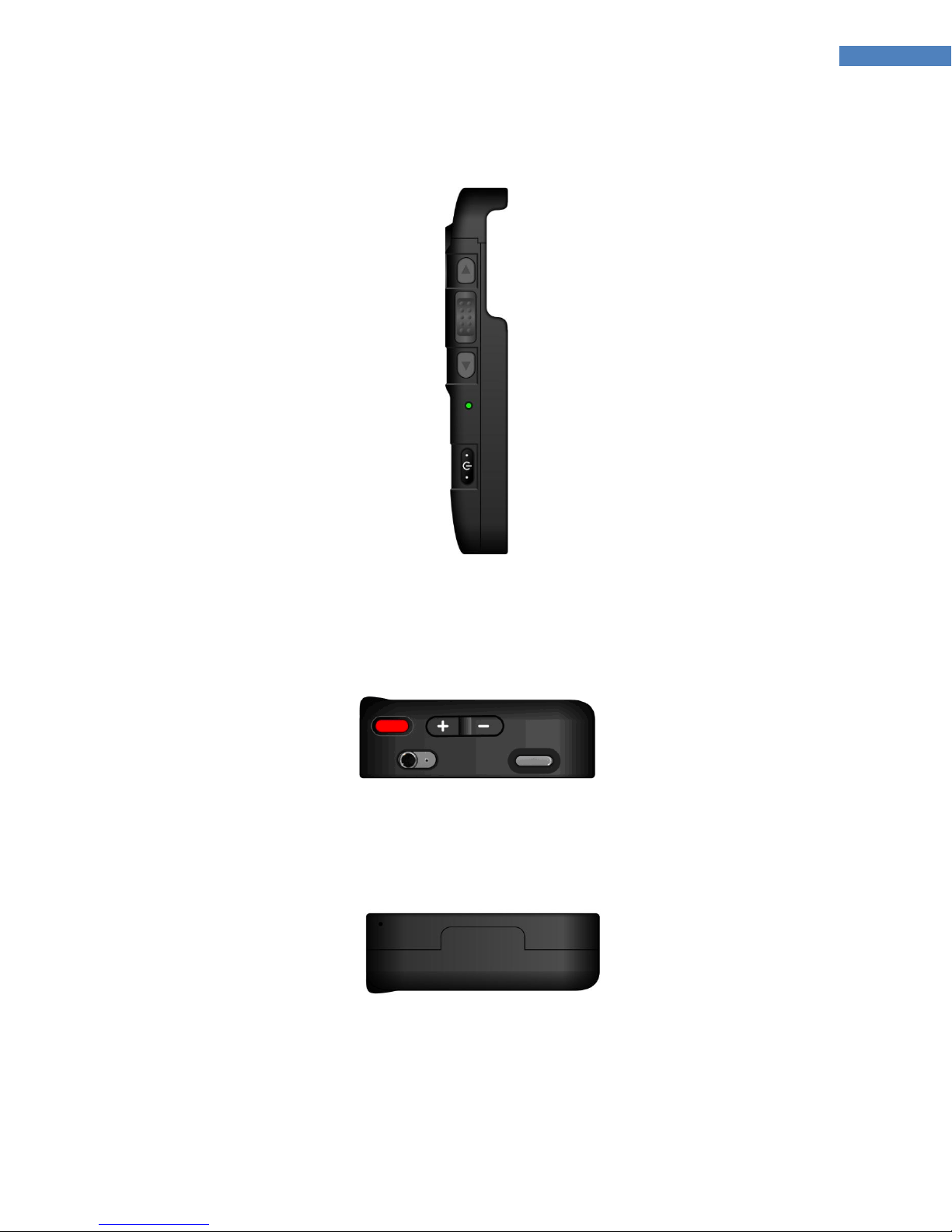

Carbonado Smart PTT case Top

The following image provides the details of the Top of your Carbonado smart PTT case.

Carbonado Smart PTT case Bottom

The following image provides the details of the Bottom of your Carbonado smart PTT case.

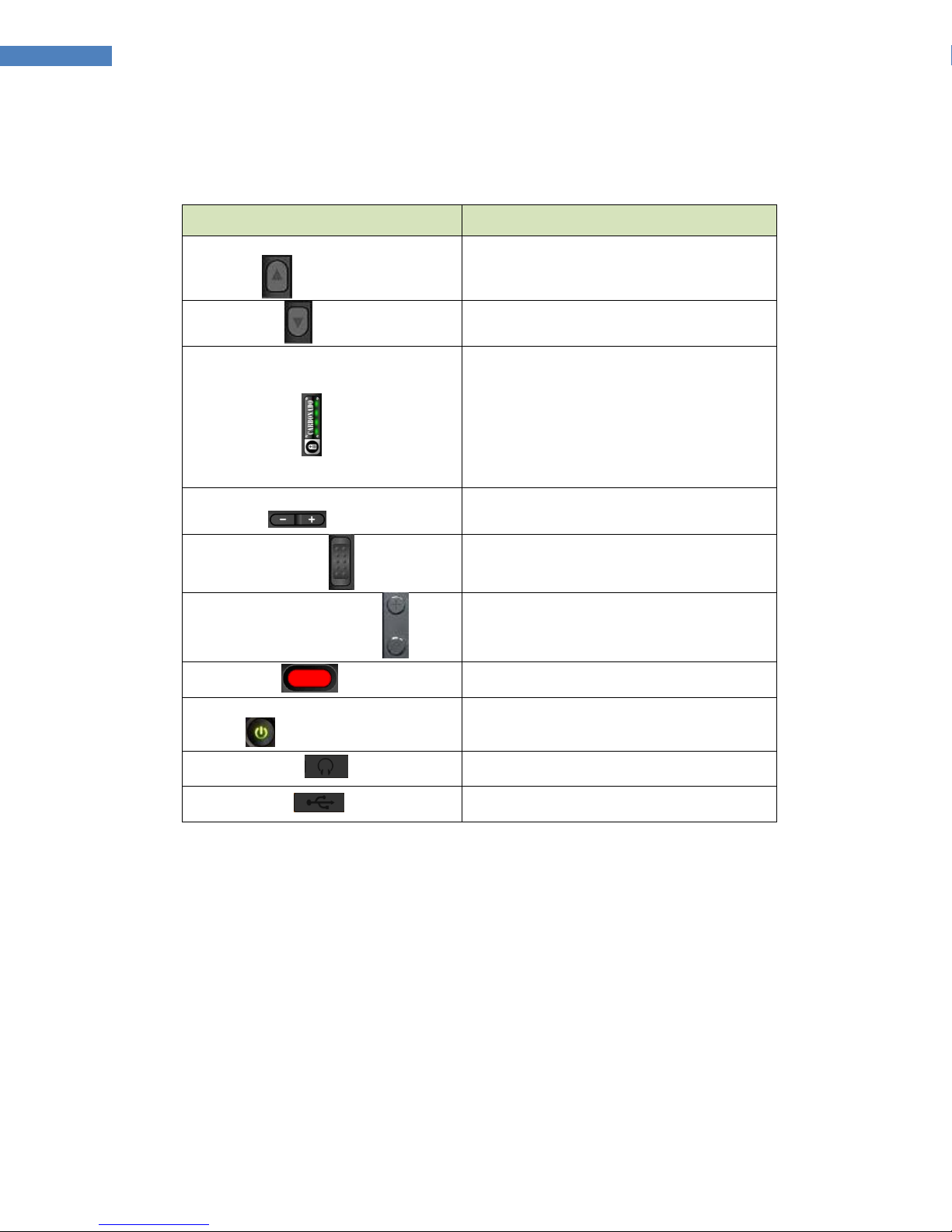

Key Function

The following table displays the various keys/buttons and the corresponding function they

perform:

Keys/Buttons

Description

Scroll Up

To move up the Contacts/Groups list

Scroll Down

To move down the Contacts/Groups list

Carbonado Smart PTT case Battery

level Indicator

Press and hold the button for 2

sec indicates the Battery level of

the Carbonado smart PTT case

Press and hold the button for 5

sec will start/stop charging the

Carbonado smart PTT case

Carbonado smart PTT case Volume

Up/Down

To change the volume of the Carbonado

smart PTT case speaker

Side PTT button

To launch PTT application

PTT floor control

iPhone Volume Up/Down

To increase or decrease volume of your

iPhone device

RED Button

To disconnect the Cellular/ PTT call

Carbonado smart PTT case Power

Switch

Power button for the Carbonado smart

PTT case

Ear Phone Jack

To insert Ear Phone pin

Charger Port

Micro USB charger port

Indice

Altri manuali Kodiak Accessori per telefoni cellulari

Kodiak

Kodiak Carbonado S3 Manuale utente

Manuali Accessori per telefoni cellulari popolari di altre marche

Valore

Valore AC14 Manuale utente

X-cam

X-cam X-CAM T3 Manuale utente

Nokia

Nokia AD-5B Manuale utente

Bauhn

Bauhn ABSS-1222 Manuale utente

ReSound

ReSound Phone Clip+ Manuale utente

Mpow

Mpow ISNAP X1 Manuale utente

Zartek Mobile

Zartek Mobile ZA-350 Manuale utente

Playbrush

Playbrush Playbrush Manuale utente

Sony

Sony SCR44 Manuale utente

Nautilus

Nautilus V5 Manuale utente

BigPantha

BigPantha Phone Mount Manuale utente

PRYME Radio Product

PRYME Radio Product PRYMEBLU BT-PTT-M Manuale utente

Nokia

Nokia CR-119 Manuale utente

weBoost

weBoost eqo Manuale utente

Rollei

Rollei LUMIS Manuale utente

Morphie

Morphie Juice Pack Helium Manuale utente

Lenovo

Lenovo SS100 Manuale utente

Philips

Philips DLA4214 Manuale utente
