Kogan KGNPRO19VD Manuale utente

KGNPRO19VD

USER MANUAL

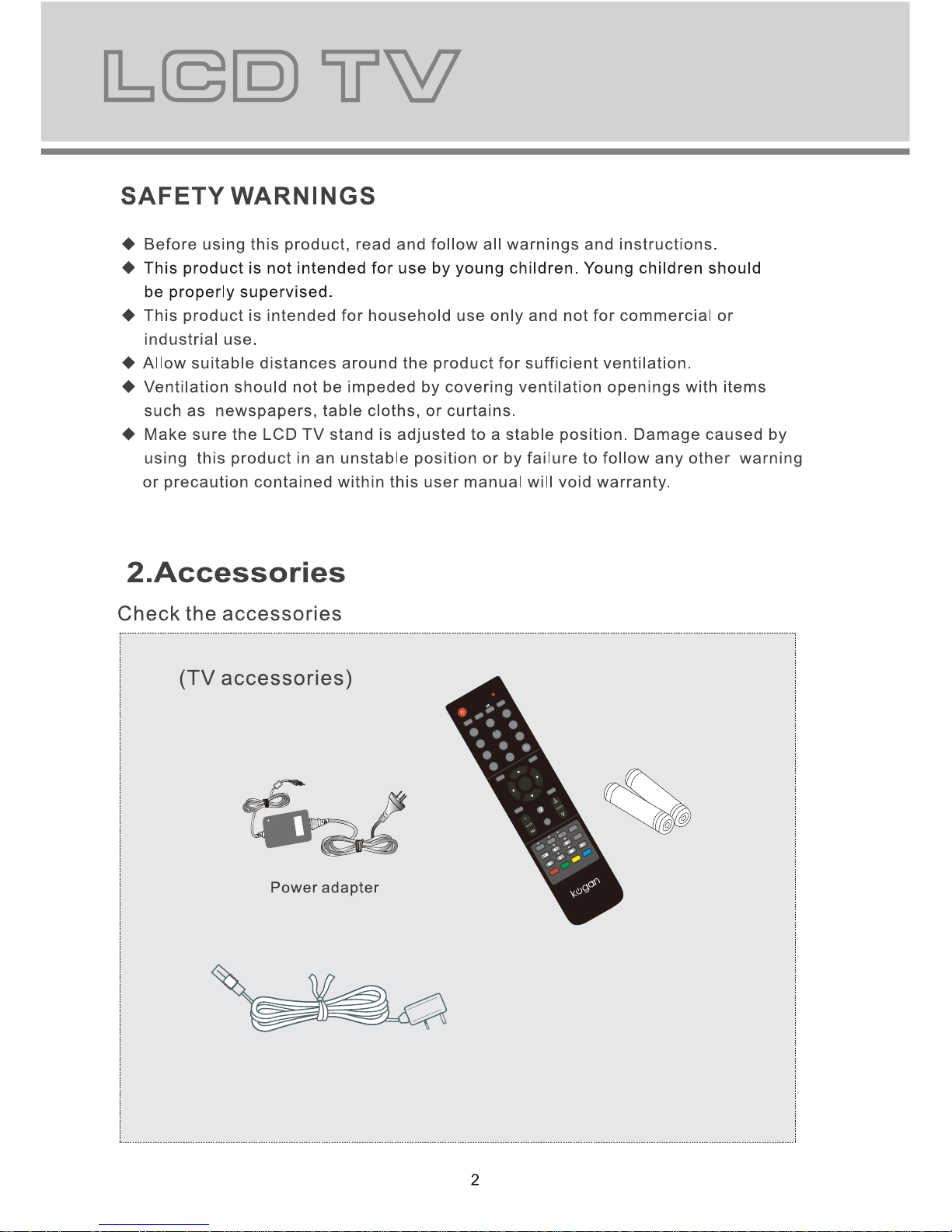

Power cord

Remote control/batteries

123

456

789

A/DTV

RC-TFG019

123

456

789

P.MODE S.MODE SLEEP

SOURCE MENU

INFO EXIT

MUTE

VOL CH

ASPECT

SUBTITLE

TTX

/AUTO D.SETUP

EPG

D.MENU

ZOOM/REC.LIST

FAV

USB/SD

AUDIO

TITLE

GOTO SLOW A-BREPEAT

Sound mode button

DVD stop button

Mute button

USB/SD Card function select

/ Favorite program button

Sleep function button

NICAM function button /

Audio language select button

Information display button

Numeric buttons

Confirm button

DVD A-B repeat / BLUE button

DVD repeat playback / YELLOW button

DVD previous / Teletext size button

Teletext on/off / mix button

DVD rewind / Teletext cancel button

Volume adjusting button Channel select button

123

456

789

A/DTV

RC-TFG019

123

456

789

P.MODE S.MODE I/II SLEEP

SOURCE MENU

INFO EXIT

MUTE

VOL CH

ASPECT

SUBTITLE

TTX

DVD.SETUP

D.MENU

ZOOM/REC.LIST

USB/SD TITLE

FAV

/AUTO

AUDIO

Power/Standby button

Picture mode button

Remote control indicator

DVD title / Return channel button

Menu button

Signal source select button

Navigation buttons (Up, Down, Left, Right)

Menu exit button

DVD setup menu /

Electronic program guide button

Display mode select button

DVD open/close / Auto adjust button in

PC mode / Recording button

Disc menu / Teletext hold button

DVD goto / RED button

DVD slow / GREEN button

DVD play/pause button

DVD forward / Teletext reveal button

Subtitle button

DVD next / Teletext subpage button

DVD zoom in/out / Recording list /

Teletext index button

GOTO SLOW REPEAT A-B

EPG

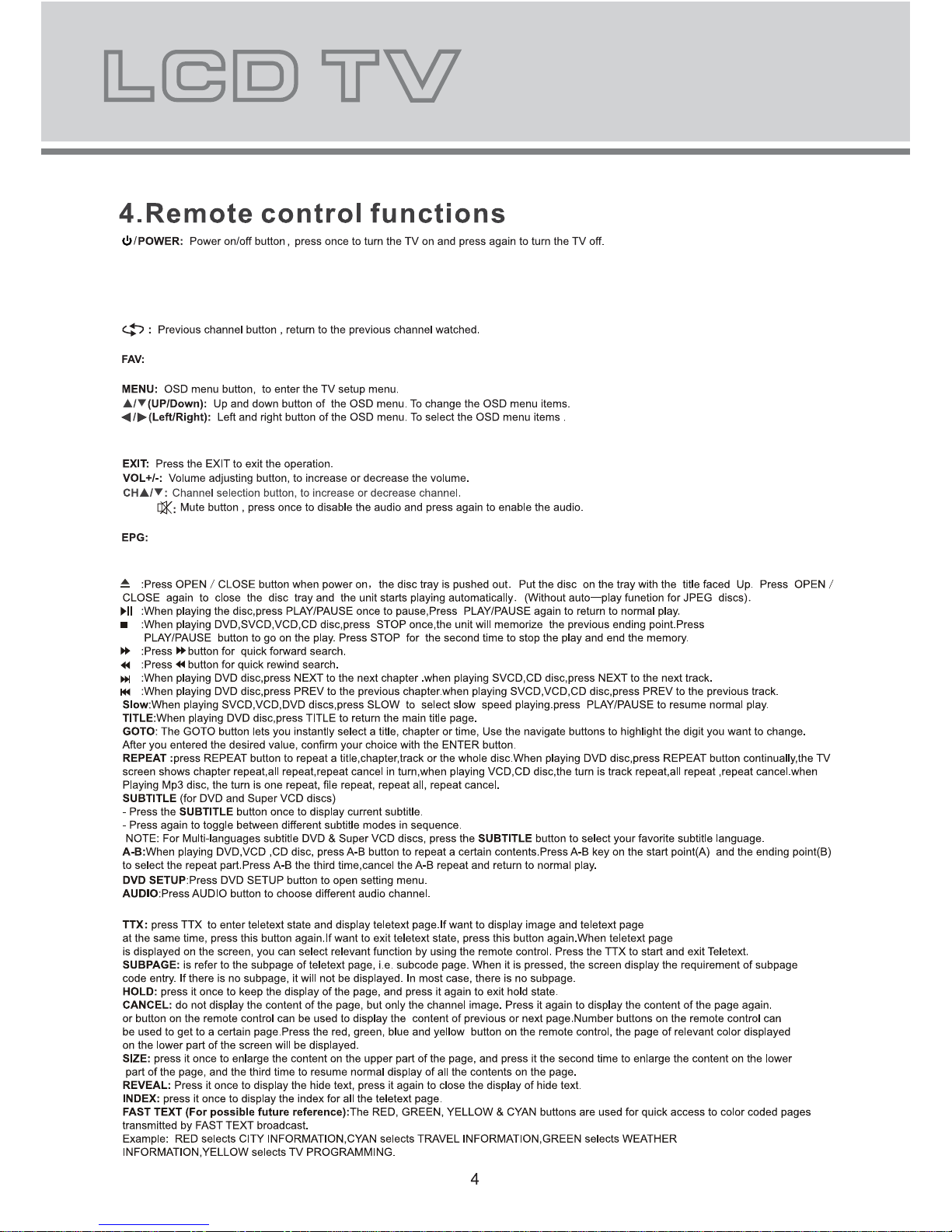

S.MODE: Sound mode button, setting the sound mode.

P.MODE: Picture mode button, setting the picture mode.

SLEEP: Sleep button, setting TV power off time.

I/II: Press the I/II button to choose a different audio channel.

ASPECT:

AUTO:

Press the ASPECT button to select the picture display ratio: Auto / 4:3 / 16:9 / Zoom 1 / Zoom 2 / Just Scan.

INFO:

MUTE

Press the INFO button for information.

0,1-9: TV channel selection button.

SOURCE: Signal source selection button (ATV/DTV/AV/PC/Component/DVD/HDMI).

OK: Confirm button, confirm all the changes and settings.

Press the EPG button for detailed information about the channel.

USB/SD: Press the USB/SD button to choose USB or SD card function.

Press the FAV button to start the “Favorite List” for selecting your favorite program.

Press the AUTO button to auto adjust items in PC mode.

Remote sensor.

Power indicator.

Power on/off button.

Insert DVD with Label to the Back

8. PLAY/PAUSE button.

9. OPEN/CLOSE button.

10. SD/MMC/MS card slot.

11. USB port.

Service input (Available for performing PVR function or updating the firmware).

Component video input terminals (Y Pb/Cb Pr/Cr).

Composite video & audio input terminals (AV).

VIDEO

RL Pr/Cr Pb/Cb

SERVICE

DC IN

HDMI

RF(75 ) COAXIAL

OUT

YPbPr

VIDEO

RL Pr/Cr Pb/Cb

SERVICE

DC IN

HDMI

RF(75 ) COAXIAL

OUT

If this is the first time switch on, the First time installation

menu will appear on the display.

Language

Press o/p/b/abutton to select the desired language,

then press OK button to enter the “Channel Tuning”

screen. The original language of this TV is English.

Channel Tuning

The TV will start searching channels automatically from

the lowest frequency. When it finds a station, it will store

this in the first location and move to the next. When auto

tuning is completed, the TV will display the first station

found.

Press MENU or EXIT button to skip or cancel the tuning

process.

Please select an OSD Language

English Español Italiano

FrançaisDeutsch

TV :

DTV :

Radio :

0 %

Please press MENU key to exit

(TV)

0 Programme

Channel Tuning
