Kogan RQ9510 Manuale utente
(KAQLED65RQ9510SVA)
SERIES 9 RQ9510
Kogan QLED 65" 4K UHD HDR SMART TV
QUICK START GUIDE
(KALED40RT92 20SVA)
SERIES 9 RT9220
Kogan QL ED 65" 4K U HD HDR SM ART TV
QUICK START GUIDE
COMPONENTS
3
A Kogan QLED 65" 4K UHD
HDR Smart TV
B Remote control
C Stand (x2)
D Bm4 x 18mm screw (x4)
E AAA battery (x2)
F Quick-start guide
G Warranty card
B C D
E G
NOT INCLUDED
Phillips head screwdriver, antenna cable, broadband internet connection.
F
A
4
REMOTE CONTROL OVERVIEW
Figures 0-9 are used to directly input
channel number
Press to display Electronic Program Guide
and select the favorite channel
Increase the volume
Decrease the volume
Increase the program
Decrease the program
Displays the OSD(On Screen
Display) menu
To confirm the choice with
program the highlighted menu
item
Press to start recording the program
EPG
IN FO
VOL +
VOL
CH +
CH
Google Assistant
Press to info the source and channel’s info
Switches the TVbetween on and standby
mode
Mute or restore TV sound
Display/Select signal source
options
Microphone hole
5
REMOTE CONTROL OVERVIEW
Press these buttons to select items
Press these buttons to select and
adjust items
Accesso diretto a Amazon Prime
Video
To open app homepage
Go back to the previous step
Press to exit the OSD menu Press to play the video and press again to
pause the video
Press these buttons according
Press to fast forward in USB mode
Press to fast reverse in USB mode
Hold on or off for current page display
Press to change the language when
playing the stream which contains
multi-language
to different prompts
Press to enter Teletext when play the
program
AUDIO
SU BT
SUBT
EX IT
BA CK
Displays the home screen
Connects to NETFLIX for viewing
online TVshows and films(internet
connection required).
Connects to YouTube (internet
connection required).
BM4X18 (4 PCS)
1b
Spread cushioning flat to lay the TV on. This will help to prevent damage.
Insert two 18 mm screws for each stand, and use Phillips head screwdriver
(not supplied) to tighten.
BEFORE YOU GET STARTED
1. Stand assembly
a. Attach stands to base of TV.
b.
2. Remote control assembly
a. Open the battery compartment cover on the back side.
b. Insert two 1.5V AAA size batteries, making sure to match the polarity markings
(+ / -) of the batteries with the diagram inside the compartment.
c. Replace battery compartment cover.
2a2b2c
6
ASSEMBLY AND INSTALLATION
1a
7
ASSEMBLY AND INSTALLATION
3a
Antenna cable
(not supplied)
3. Connect to antenna
a. Connect an antenna cable (not supplied) via the 'ANT' input port at the back
of the TV.
b. Ensure the antenna cable is also connected to a working antenna,either via
an antenna wall socket in your home, or directly.
4. Turning TV on
Plug the power cord into a suitable power outlet, then press the POWER ( )
button on the remote control, making sure to aim it at the sensor at the front of
the TV. Alternatively, you can press the power button on the lower side of the
back panel on the TV.
Press the POWER ( ) button on the remote control to enter standby mode.
To power down the TV completely, unplug the power cord from the power
outlet.
Do not leave your set in standby mode for long periods of time. If you will
not use the TV for a long time, it is recommended to unplug the set from
both the power outlet and aerial.
TURNING TV OFF
3b
Antenna
wall socket
8
INITIAL INSTALLATION
The first time you switch the TV on, the initial step screen appears which guides you through the initial
proces.Please according to the Text Tips to inish initial installtion.
1. Initial Installation
1. 1 Language select
>Press / remote control to select the language option,then click【OK】to confirm.
Quickly set up your TV with your Android phone? (Continue/skip) Steps:
1.2
1. On your Android Phone, open the Pre-installed app "Google".
2. Type or say, "Ok Google, set up my device".
3. Tap the model name on the list.
Configure the network
>Select wired or wireless to connect to internet.
>If you select skip,it could be performed in homepage or settings menu.
Google Account Sign in
Sign in to get new apps,recommendations,movies,the Assistant,and more from Google.Two ways to
login Google account:
1.3
1.4
->Use your phone or computer:
1. Visit androidtv.com/setup on your phone or computer, Make sure your other device is on the same
Wi-Fi network as your Android TV ™
INITIAL INSTALLATION
9

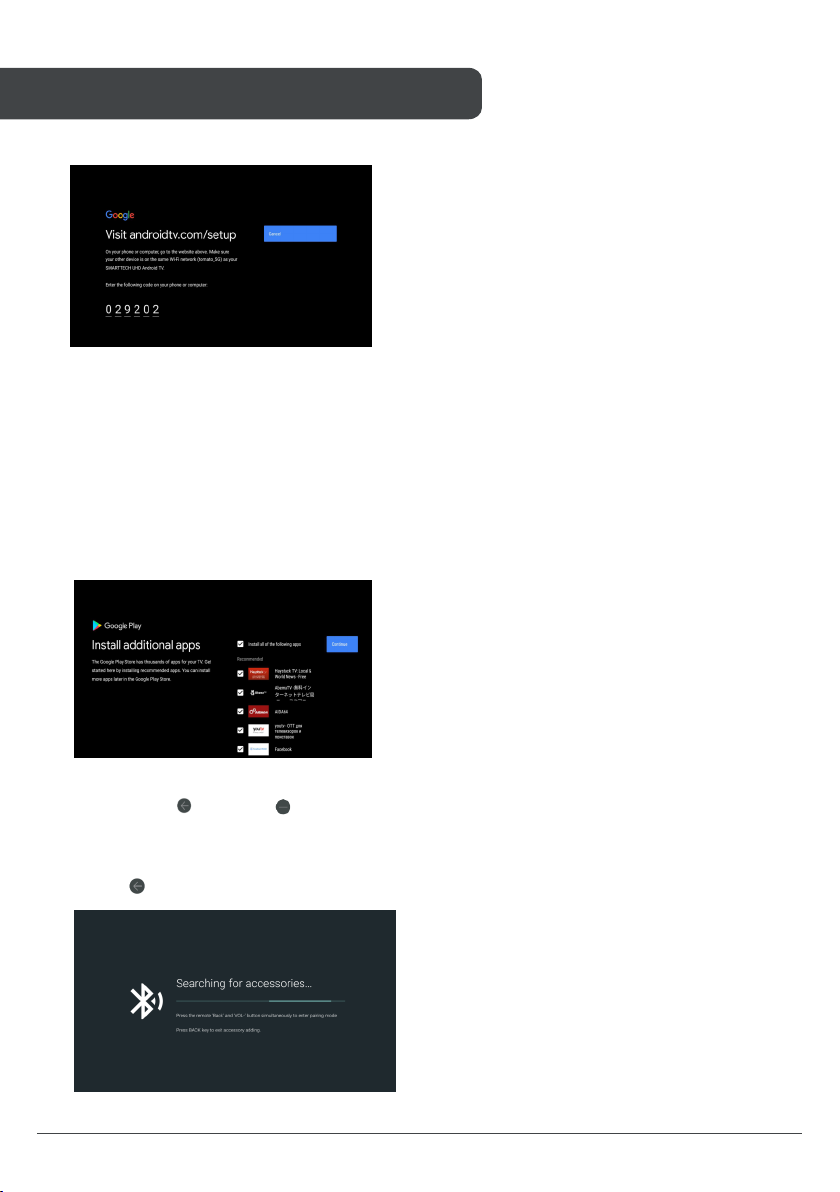

2.Enter the display code on your phone or computer
->Use your remote:
Use the remote to enter your Google account and password to sign in to Google account.
In these steps you will setup the Terms of Service,Location,Help improve Android, Google Assistant and
additional Google functions.
Select install or un-install he recommended apps and Google apps by using this process.
->Press "Continue" to the next setting page.
Google setting
1.5
Play Auto Installs
1.6
1.7 Pairing Bluetooth Remote
-> Press'BACK 'and ' VOL- ' simultaneously on remote control to enter the Bluetooth pairing mode.
The Indicator light on remote control will flash when enter the pairing mode.
-> Press【OK】to begin pairing.
-> Press on remote control to skip the pairing mode.
10
INITIAL INSTALLATION
Country select
1.8
1.9
1.10
1.11
1.12
1.13
->Press / on remote control to select the country option,then click【OK】to confirm.
Set the TV password for Parental Controls,"0000" is invalid.
Select TV mode(Home/Retail)
Home mode is optimized for efficient energy usage for home use.
Retail mode is optimized to store demo with fixed settings.
Chromecast built-in™
Select On/Off to make Chromecast built-in available.
TV Channel Setting
->Select Antenna/Cable/Satelite to scan TV channel.
->If you select skip, the channel scan could be performed in menu.
Setup completed and Disclaimer Terms
