Kogan LCDP30 Manuale utente

Please read through these instructions

completely to be sure you’re comfortable

with this easy install process. Also check

your TV owner’s manual to see if there are

any special requirements for mounting

your TV. If you do not understand these

instructions or have doubts about the

safety of the installation, assembly or use

of this product, contact your Customer

Service.

IMPORTANT

SAFETY INSTRUCTOPNS

LCDP30

Installation

Instruction

LED/LCD/PLASMA

WALL MOUNT

4.2

M4 M8

FLAT BACK ROUND BACK CABLESINSET HOLES

Attach bracket to

Adjusting TV

Hang TV on wall

mount

49mm

Maximum 800mm

Maximum 400mmmm

4.13.1

+10°/-10°

C D

G H

CAUTION: Avoid potential personal injuries

and property damage!

● This product is designed for use in solid

concrete, and concrete block walls - DO

NOT install into drywall alone!!

● The wall must be capable of supporting

five times the weight of the TV and

mount combined.

● Do not use this product for any purpose

not explicitly specified by manufacturer.

● Manufacturer is not responsible for

damage or injury caused by incorrect

assembly or use.

● This wall mount is intended for use with

television that does not exceed the

maximum weight capacity designated.

Using this mount with products heavier

than the maximum weight indicated may

result in instability causing possible injury.

Wrench Pencil

Screw

driver Electric

Drill Socket

Wrench

ConcInstalasi

pada baturete

Install

Masonry

Drill Bit Hammer

2.2

50mm

2.4

2.3

Instalasi pada kayu

Stud

Finder Wood

Drill Bit

(7/32 in.)

5.5 mm

16 in.

24 in.

(610 mm)

2.1

75mm(3 in)

5.5mm

(7/32 in)

CAUTION:

JANGAN

pasang pada

gypsum

preparation

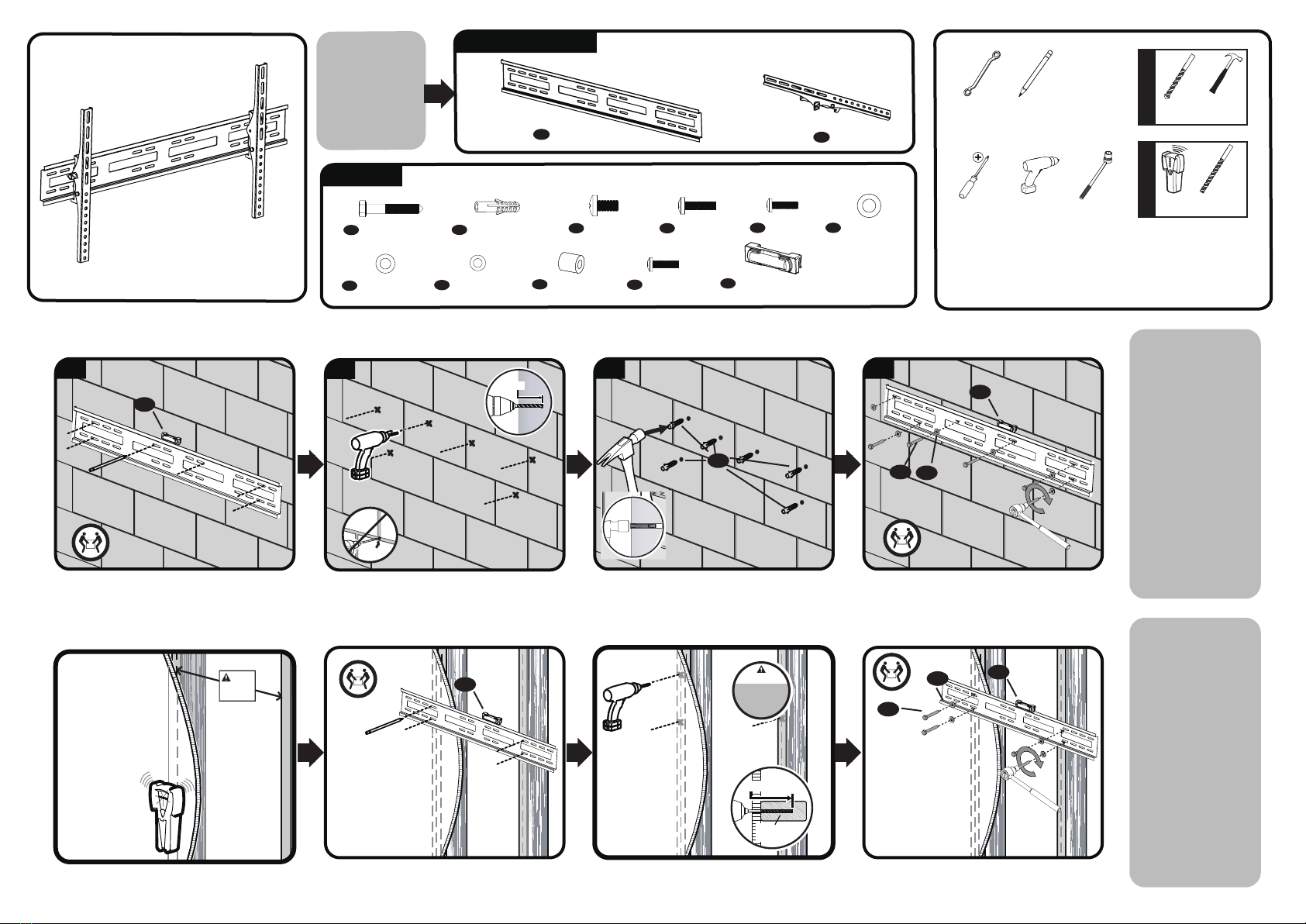

Attach mount to

wall (Solid

Concrete wall)

Attach mount to

wall (Wood Stud

wall)

Tools required

2.1

Parts for assembly

0101 Wall plate x1 02 Bracket x2

Hardware

A G

A ST6x50 Lag Bolts x6 B Plastic wall Anchor x6 F 8mm washer x4

G 6mm washer x10 H 4mm washer x4 J

I ￠6 spacer x4 K

C M8x16mm x4

M5x25mm x2

D M6x20mm x4 E M4x20mm x4

Bubble level x1
