Kohler Mariposa K-1229-W1 Guida utente

Features

•End drain.

•66" (1676 mm) x 36" (914 mm) x 20" (508 mm)

•Bask®heated surface creates spa-like relaxation with soothing

warmth on your back, shoulders, and neck.

•Textured bottom surface.

Material

•Acrylic

Installation

•Drop-in

Recommended Accessories

K- 7161-AF Bath Drain

K- 24916 Wireless Music Kit

Components

Additional included component/s: 40" (1016 mm) cable. Codes/Standards

CSA B45.5/IAPMO Z124

ASTM E162

ASTM E662

UL 1795

Greenguard UL 2818 - Gold

KOHLER®One-Year Limited Warranty

See website for detailed warranty information.

Available Color/Finishes

Color tiles intended for reference only.

DescriptionCodeColor

White0 Biscuit96 Almond47 DuneNY SandbarG9

USA/Canada: 1-800-4KOHLER (1-800-456-4537)

Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

3-27-2016 05:38

Mariposa®

5.5’ Bath

K-1229-W1

No change in measurements if connected with

Notes

Required Electrical Service Measure your actual product for rough-in details.

One circuit required, protected with Class A Ground-Fault

Circuit-Interrupter (GFCI) or Residual Current Device (RCD). Install this product according to the installation

instructions.

120 V, 15 AHeated Surface: The hot water supply should be 70% of the

capacity of the bath or greater. Installations will

vary.

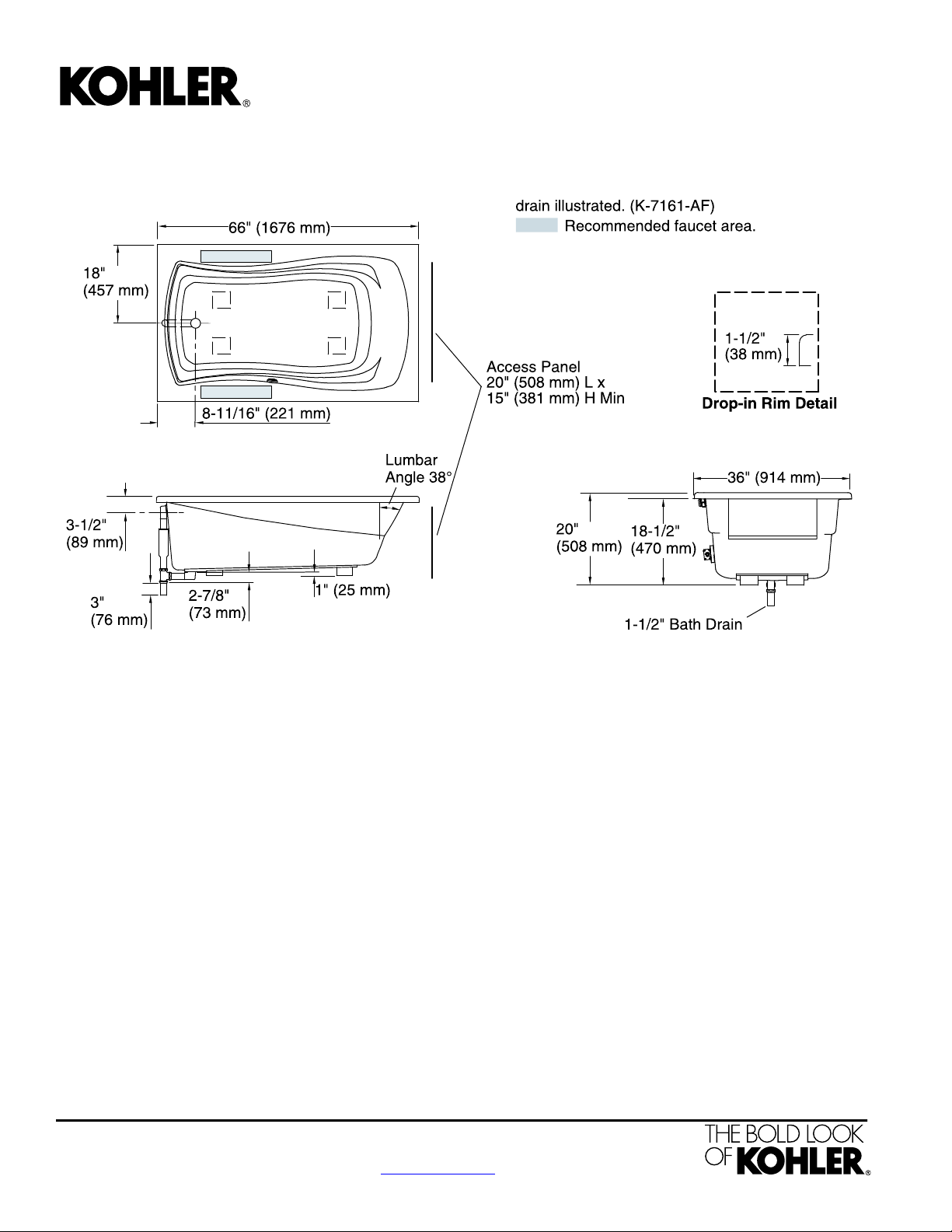

Technical Information

All product dimensions are nominal.

Drop-inInstallation: Provide one grounded electrical outlet within 24"

(610 mm) of each component.

EndDrain location: 48" x 24" (1219 mm x 610 mm)Basin area, bottom: 59" x 30" (1499 mm x 762 mm)Basin area, top: 65 lbs (29.5 kg)Weight: 39 lbs/ft²(190.4 kg/m²)Minimum floor load: 14" (356 mm)Water depth: 67 gal (253.6 L)Water capacity: Drop-in, 64" x 34" (1626 mm x 864 mm)Cutout: Heated Surface: 120 V, 0.5 A, 60 Hz, 65

W

Electrical component

rating:

USA/Canada: 1-800-4KOHLER (1-800-456-4537)

Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

3-27-2016 05:38

Mariposa®

5.5’ Bath

K-1229-W1
