Kohler K-24097X Istruzioni per il montaggio
Installation and Care Guide
One-Piece Toilet
1259445-X2-C ©2017 Kohler Co.
K-75920XK-24097X
1259445-X2-C 2 Kohler Co.
Thank You For Choosing Kohler Company
Thank you for choosing Kohler. Kohler craftsmanship oers you a rare
combination of proven performance and graceful sophistication that will
satisfy you for years to come. The dependability and beauty of your Kohler
product will surpass your highest expectations. We’re very proud of our
products here at Kohler and we know you will be too.
Please take a few minutes to review this manual before you start installation. If
you encounter any installation or performance problems, please don’t hesitate
to contact us. Our phone numbers and website are listed on back cover.
All information in this manual is based upon the latest product information
available at the time of publication. At Kohler, we constantly strive to improve
the quality of our products. We reserve the right to make changes in product
characteristics, packaging or availability at any time without notice.
Thank you for choosing Kohler Company.
Kohler Co. 3 1259445-X2-C
Before You Begin
Important Information
IMPORTANT NOTICE TO INSTALLERS!: Please leave these instructions for
the consumer. They contain important information.
In addition to installation procedures, this manual contains important care and
cleaning. Please retain for future reference.
NOTE: The toilet pictured in the installation steps may dier from the model
being installed.
CAUTION: Risk of personal injury or product damage. Handle with
care. Product can break, chip, or cause injury if handled carelessly.
¨Observe all local plumbing and building codes.
¨Prior to installation, unpack the new product and inspect it for damage.
Return the product to its protective carton until you are ready to install it.
¨Failure to follow these precautions may result in a poor installation.
¨ If the existing toilet does not have a supply shut-o valve below the tank,
install one before installing the new toilet.
¨Fixture dimensions are nominal and conform to tolerances established by
Standards TIS.
CAUTION: Risk of property or product damage. Turn on the water
and allow water to ow through the supply pipe to ush the system of
any debris before connecting ll valve.
CAUTION: Risk of hazardous gases. If the new toilet is not installed
immediately, temporarily place a rag in the closet ange.
1259445-X2-C 4 Kohler Co.

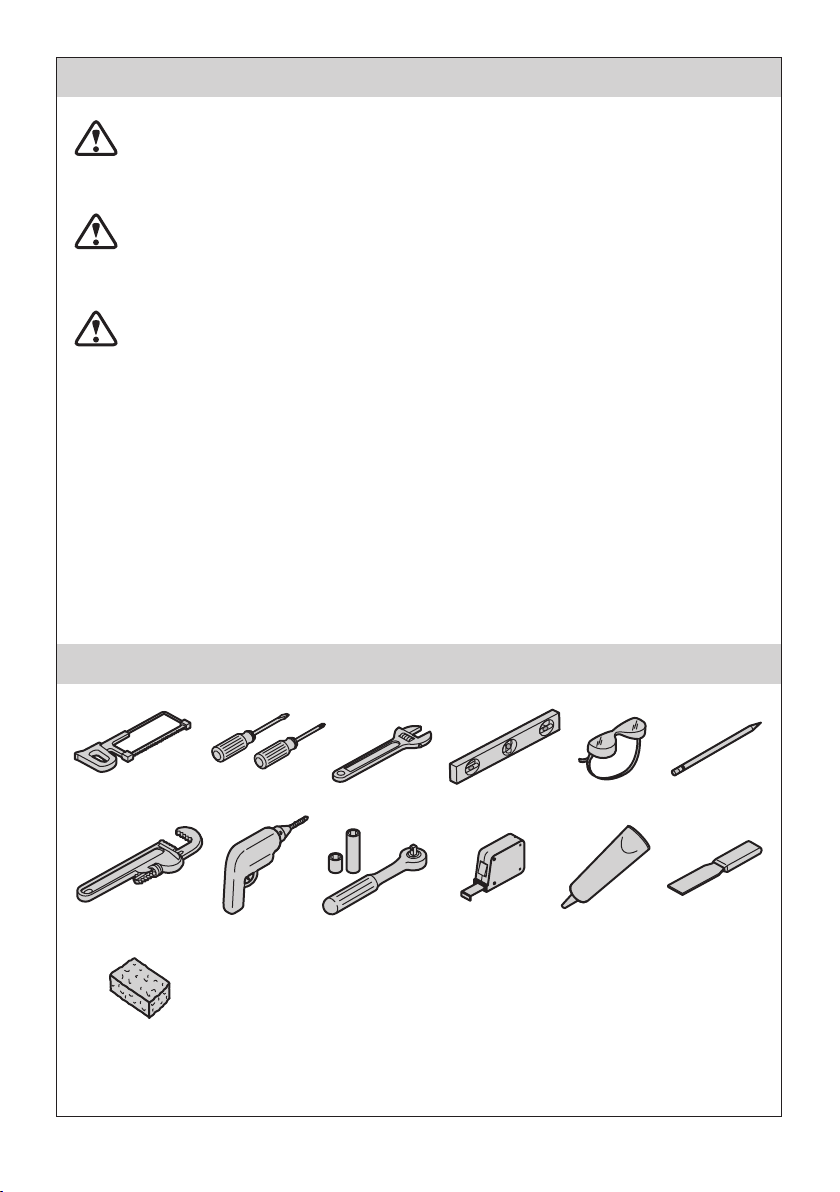

Tools/
¨
¨
¨
¨
¨
Kohler Co. 5 1259445-X2-C
Installation/
1
3 4
2

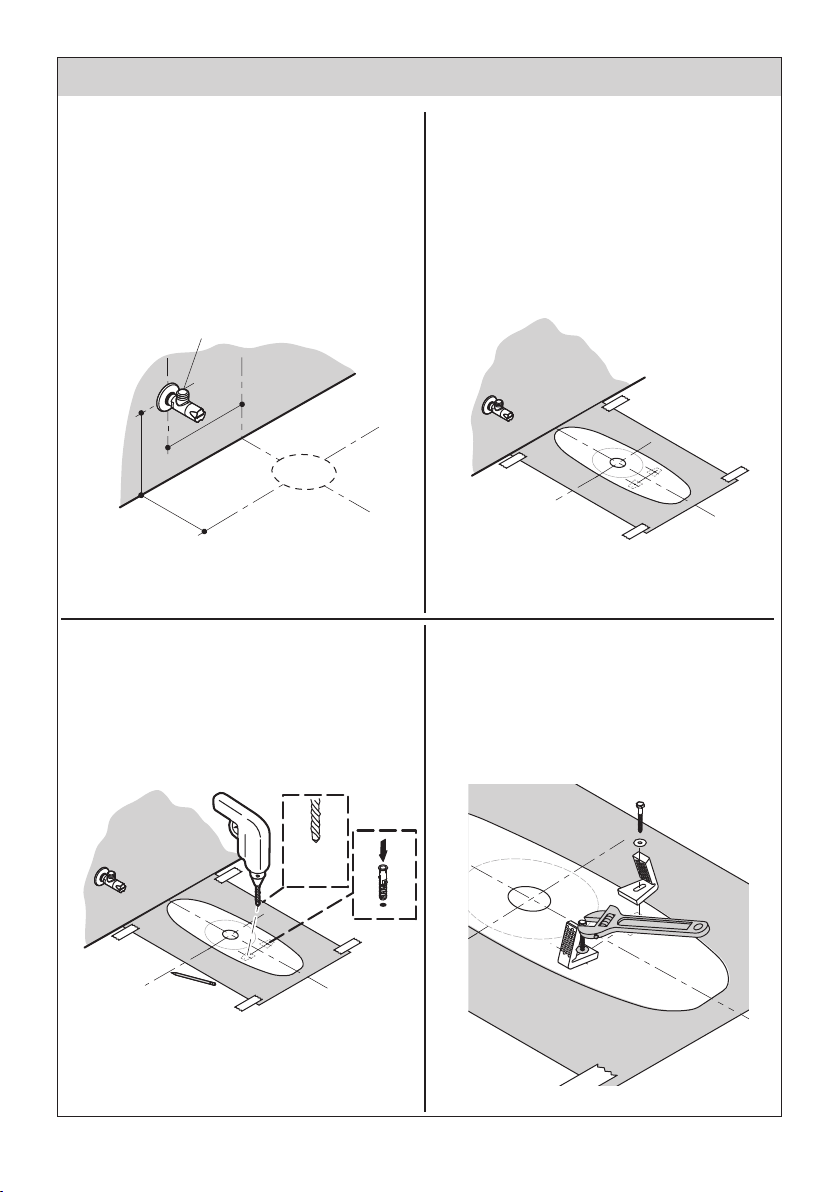

Verify inlet and outlet position.
Position the template on the floor to
ensure the template against the wall.
Tape in place.
Drill 2 floor mounting holes and insert
anchors.
Position the brackets as shown on
the template and install the brackets.
10
mm/มม.
Draw centerline
on the floor.
305
180
194
1/2"
Supply
เกลียวท่อนํ�าดี
1259445-X2-C 6 Kohler Co.
Installation/
อย่าขันแน่นจนเกินไป
ท่อนํ�าทิ�งของ
โถสุขภัณฑ์
ขี �ผึ �ง ท่อนํ�าเสีย
5
7 8
6

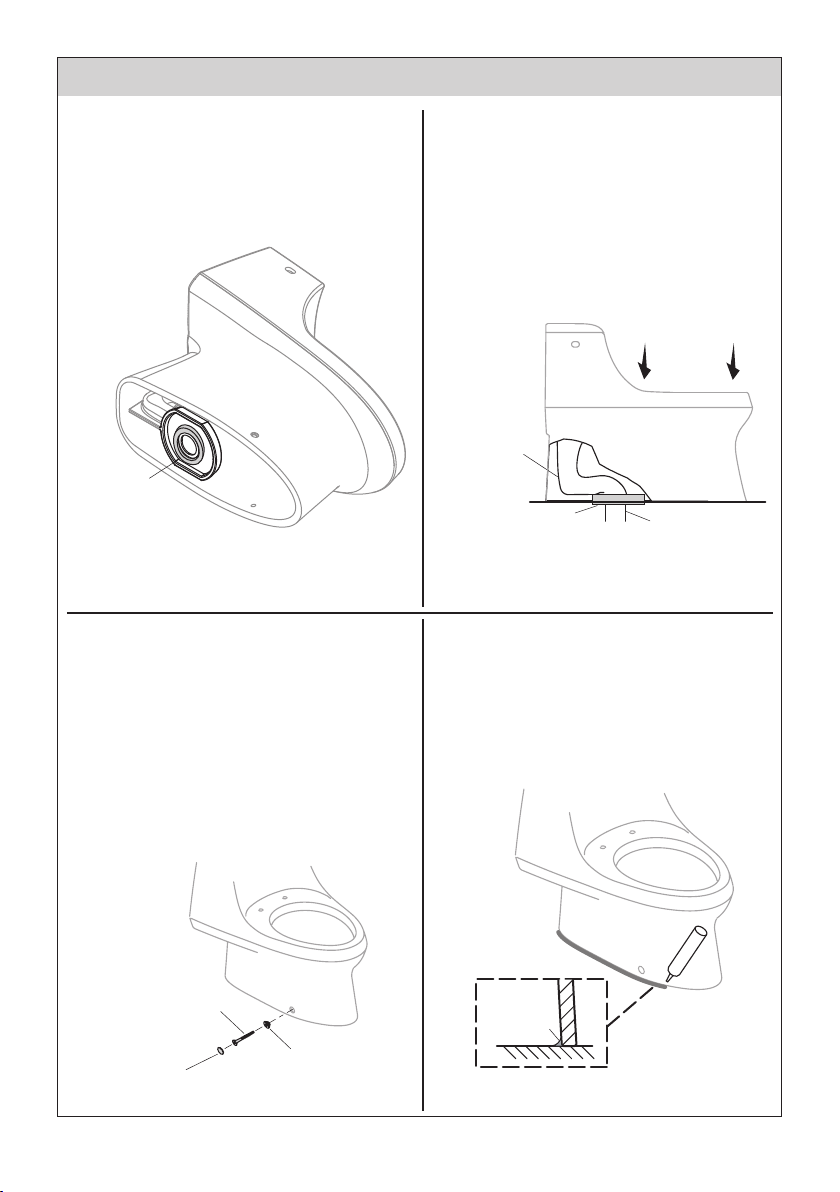

Apply silicone around base.
Carefully align and lower the bowl.
Apply weight to bowl rim to let the
waste pipe insert into bowl outlet.
Firmly press the wax ring onto the toilet
trap outlet.
Carefully thread the screws into the
brackets, until toilet is secure.
Alternately tighten left and right sides
to prevent pulling the toilet off center.
Do not overtighten!
Wax Ring Waste pipe
Bowl Outlet
Cap
ฝาครอบ
Screw
สกรู
Bushing
ปลอก
Silicone
ยาซิลิโคน
Wax Ring
ขี �ผึ �ง
Kohler Co. 7 1259445-X2-C
Installation/
10 11

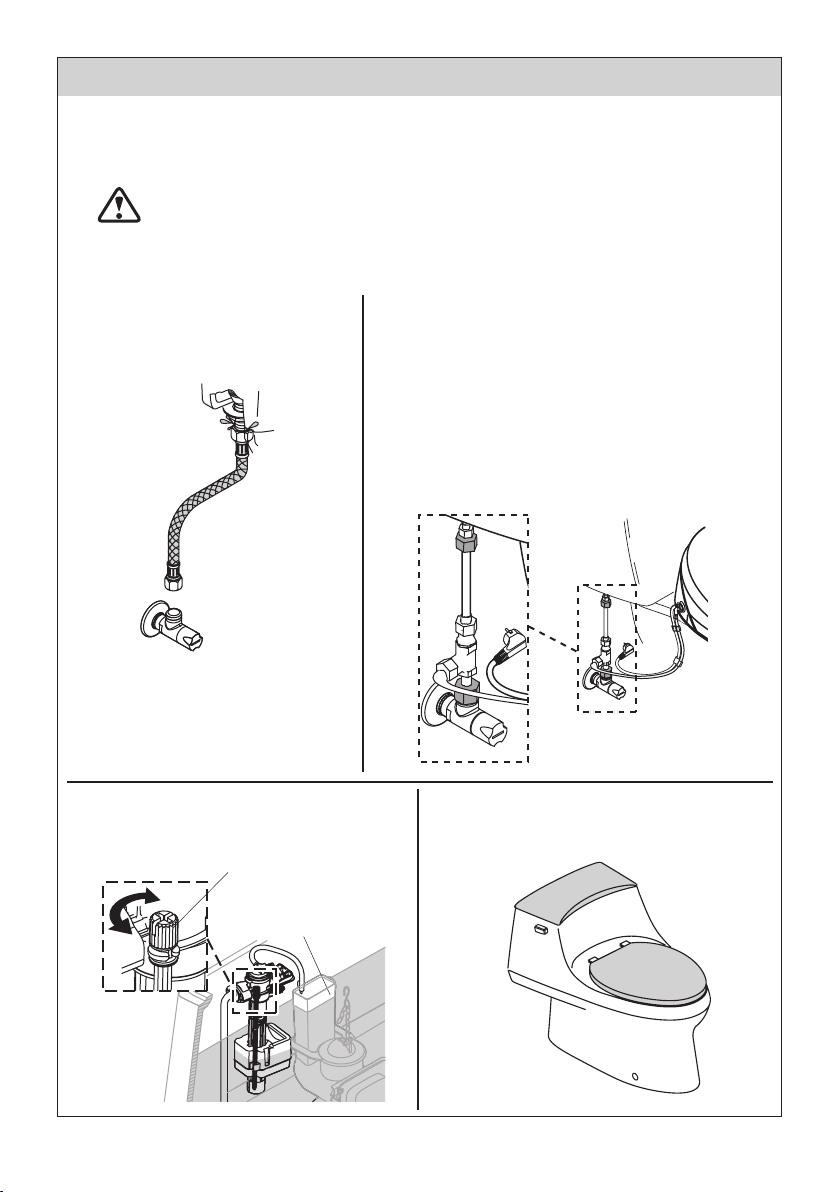

Install the tank cover and the seat.
9
Connect the supply hose. Flush several times and check for leaks.
For Installtion with Normal Seat
For Installtion with Bidet Seat
CAUTION:
Turn on the water and allow water to flow through the supply pipe
to flush the system of and debris for connecting fill valve.
Connect T-valve and adapter (Provided) to the
stop and connect the water supply.
Turn here to adjust the water level
if needed.
Waterline
+
-
1259445-X2-C 8 Kohler Co.
Care and Cleaning
For best results, keep the following in mind when caring for your product:
• Carefully read the cleaner product label to ensure the cleaner is safe for use
on the material.
• Always test your cleaning solution on an inconspicuous area before applying
to the entire surface.
• Wipe surfaces clean and rinse completely with water immediately after
cleaner application. Rinse and dry any overspray that lands on nearby
surfaces.
• Do not allow cleaners to sit or soak on the surface.
• Use a soft, dampened sponge or cloth. Never use an abrasive material such as
a brush or scouring pad to clean surfaces.
• Be careful not to leave staining materials in contact with the surface for
extended periods of time.
• The ideal cleaning technique is to rinse thoroughly and blot dry any water
from the surface after each use.
WARNING: Risk of property or product damage. Do not use in-tank
cleaners in your toilet. Products containing chlorine (calcium hypochlorite)
can seriously damage ings in the tank. This damage can cause leakage
and property damage.
Kohler Co. 9 1259445-X2-C
•
•
•
•
•
•
•
1259445-X2-C 10 Kohler Co.
Troubleshooting Guide
Symptoms Recommended Action
1. Poor ush. A. Adjust the tank water level to match the waterline.
B. Fully open the water supply shut-o valve.
C. Clear obstructions from the trapway, jet, or bowl rim
holes.
D. Clear obstructions from the waste line.
2. No ush. A. Reconnect the apper chain to the trip lever or ush
valve.
B. Adjust the apper chain assembly to remove
excessive slack.
3. The ll valve
turns on/o by
itself without
the toilet being
ushed, or it
runs, allowing
water to enter
the tank.
A. Adjust the apper chain for proper slack so the
apper closes.
B. Clean or replace the apper if it is worn, dirty, or
misaligned with the opening.
C. Clean the area around the opening to allow the
apper to seal.
D. Adjust the tank water level if it is too high.
E. Replace the ll valve if the valve oat sinks.
4. Tank takes
excessive time
to ll.
A. Fully open the water supply shut-o valve.
B. Check the exible supply line (if applicable) for
a kink. Remove the kink.
C. Clean the valve inlet, valve head, or supply line.
Flush the lines.
5.
There is excessive
noise when the
tank is lling.
A. Partially close the water supply shut-o valve if the
waterpressure to the toilet is too high. Check the
toilet performance following any such adjustment.
B. Remove dirt or obstructions from the valve head.
Flush the lines.
6.
Trip arm strikes
tank lid
underside.
A. Adjust ush ball chain assembly to remove excessive
slack
B. Adjust trip arm bracket and ange so they are
parallel with tank top.
