Kohler K-3488 Istruzioni per il montaggio

Homeowners Guide

Toilet

Mproduct numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de

Mcorresponden a México (Ej.

K-12345M)

Français, page “Français-1”

Español, página “Español-1”

K-3488

1031600-5-D

Thank You For Choosing Kohler Company

Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship

offers you a rare combination of proven performance and graceful

sophistication that will satisfy you for years to come. The

dependability and beauty of your Kohler product will surpass your

highest expectations. We’re very proud of our products here at Kohler

and we know you will be too.

Please take a few minutes to study this Homeowners Guide. Pay

special attention to the care and cleaning instructions.

All information in this manual is based upon the latest product

information available at the time of publication. At Kohler, we

constantly strive to improve the quality of our products. We reserve

the right to make changes in product characteristics, packaging or

availability at any time without notice.

Care and Cleaning

WARNING: Risk of property or product damage. Do not use

in-tank cleaners in your toilet. Products containing chlorine

(calcium hypochlorite) can seriously damage ﬁttings in the

tank. This damage can cause leakage and property damage.

Kohler Co. shall not be responsible or liable for any tank ﬁtting

damage caused by the use of cleaners containing chlorine (calcium

hypochlorite).

For best results, keep the following in mind when caring for your

KOHLER product:

•Use a mild detergent such as liquid dishwashing soap and warm

water for cleaning. Do not use abrasive cleaners that may scratch

or dull the surface.

•Carefully read the cleaner product label to ensure the cleaner is

safe for use on the material.

•Always test your cleaning solution on an inconspicuous area

before applying to the entire surface.

•Do not allow cleaners to sit or soak on the surface.

•Wipe surfaces clean and rinse completely with water immediately

after cleaner application. Rinse and dry any overspray that lands

on nearby surfaces.

•Use a soft, dampened sponge or cloth. Never use an abrasive

material such as a brush or scouring pad to clean surfaces.

1031600-5-D 2 Kohler Co.

Care and Cleaning (cont.)

•For Artist Edition Toilets: Gold and Platinum used on decorative

products are like ﬁne jewelry. Use only warm water to clean, and

dry with a soft cloth.

For detailed cleaning information and products to consider, visit

www.kohler.com/clean. To order Care & Cleaning information, call

1-800-456-4537 and press 1 for Kohler Products and then 3 for

Literature.

Kohler Co. 3 1031600-5-D

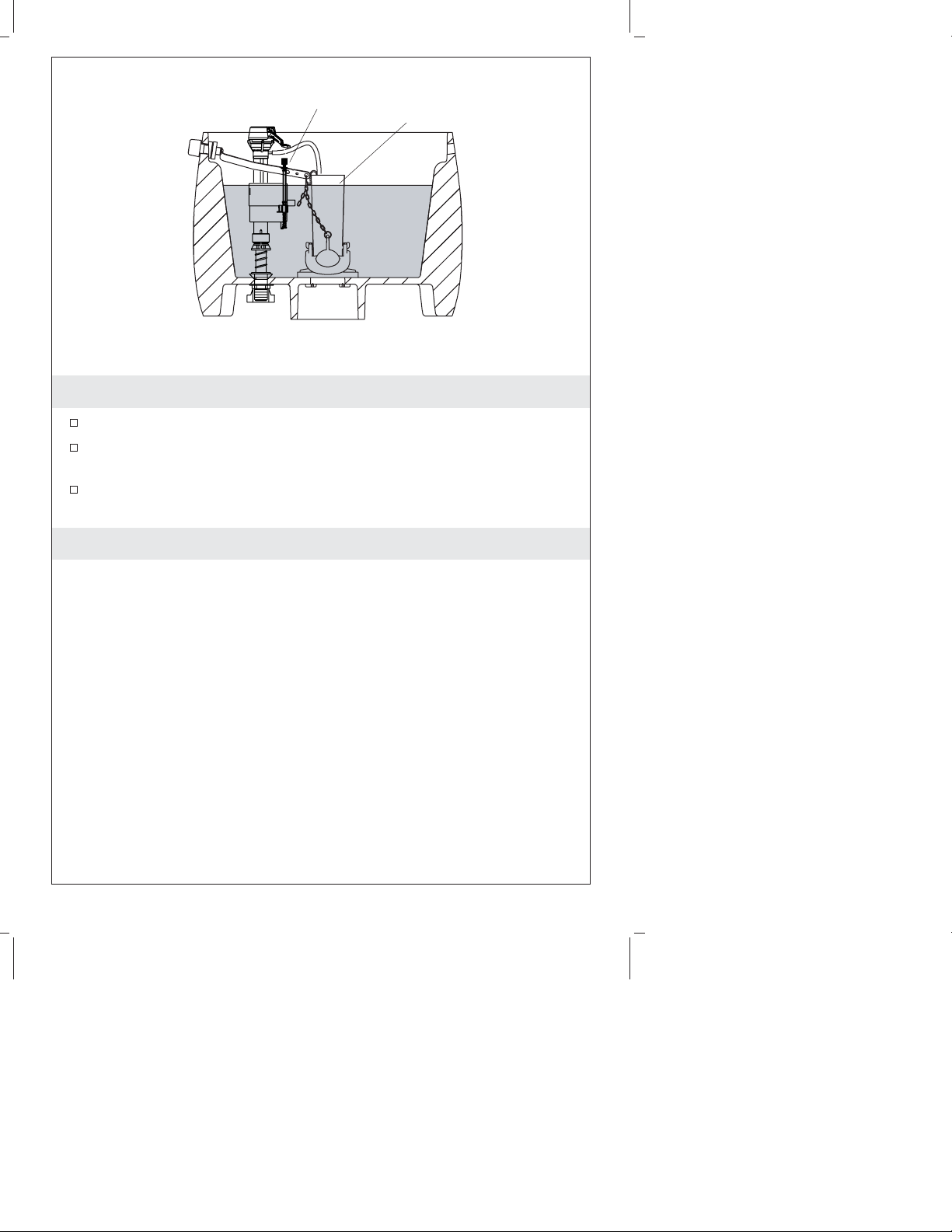

Adjust the Water Level

Adjust the tank water level to the marked waterline.

Rotate the threaded rod clockwise to raise the water level or

counterclockwise to lower the water level, as needed.

Periodically check for leaks for several days following the

installation.

One-Year Limited Warranty

For the USA and Canada Only

KOHLER plumbing products are warranted to be free of defects in

material and workmanship for one year from date of installation.

Kohler Co. will, at its election, repair, replace or make appropriate

adjustment where Kohler Co. inspection discloses any such defects

occurring in normal usage within one (1) year after installation. Kohler

Co. is not responsible for removal or installation costs. Use of in-tank

toilet cleaners will void the warranty.

To obtain warranty service contact Kohler Co. either through your

Dealer, Plumbing Contractor, Home Center or E-tailer, or by writing

Kohler Co., Attn.: Customer Service Department, 444 Highland Drive,

Kohler, WI 53044, USA, or by calling 1-800-4-KOHLER from within the

USA, 1-800-964-5590 from within Canada and 001-877-680-1310 from

within Mexico.

Implied warranties including that of merchantability and ﬁtness for

a particular purpose are expressly limited in duration to the duration

Waterline

Threaded Rod

1031600-5-D 4 Kohler Co.

One-Year Limited Warranty (cont.)

of this warranty. Kohler Co. and/or seller disclaims any liability for

special, incidental or consequential damages.

Some states/provinces do not allow limitations on how long an

implied warranty lasts, or the exclusion or limitation of special,

incidental or consequential damages so these limitations and exclusions

may not apply to you. This warranty gives you speciﬁc legal rights.

You may also have other rights which vary from state/province to

state/province.

This is Kohler Co.’s exclusive written warranty.

Troubleshooting Guide

NOTE: This troubleshooting guide is for general aid only. For

warranty service, contact your dealer or wholesale distributor.

Symptoms Recommended Action

1. Poor ﬂush. A. Adjust the tank water level to match the

waterline.

B. Fully open the water supply shut-off valve.

C. Clear obstructions from the trapway, jet, or bowl

rim holes.

D. Clear obstructions from the waste line.

2. No ﬂush. A. Reconnect the ﬂapper chain to the trip lever or

ﬂush valve.

B. Adjust the ﬂapper chain assembly to remove

excessive slack.

3. The ﬁll

valve turns

on/off by

itself

without the

toilet being

ﬂushed, or

it runs,

allowing

water to

enter the

tank.

A. Adjust the ﬂapper chain for proper slack so the

ﬂapper closes.

B. Clean or replace the ﬂapper if it is worn, dirty, or

misaligned with the opening.

C. Clean the area around the opening to allow the

ﬂapper to seal.

D. Adjust the tank water level if it is too high.

E. Replace the ﬁll valve if the valve ﬂoat sinks.

Kohler Co. 5 1031600-5-D

Troubleshooting Guide (cont.)

Symptoms Recommended Action

4. Long tank

ﬁll cycle. A. Fully open the water supply shut-off valve.

B. Clean the valve inlet, valve head, or supply line.

Flush the lines.

5. Noisy tank

ﬁll cycle. A. Partially close the water supply shut-off valve if

the water pressure to the toilet is too high. Check

the toilet performance following any such

adjustment.

B. Remove dirt or obstructions from the valve head.

Flush the lines.

1031600-5-D 6 Kohler Co.

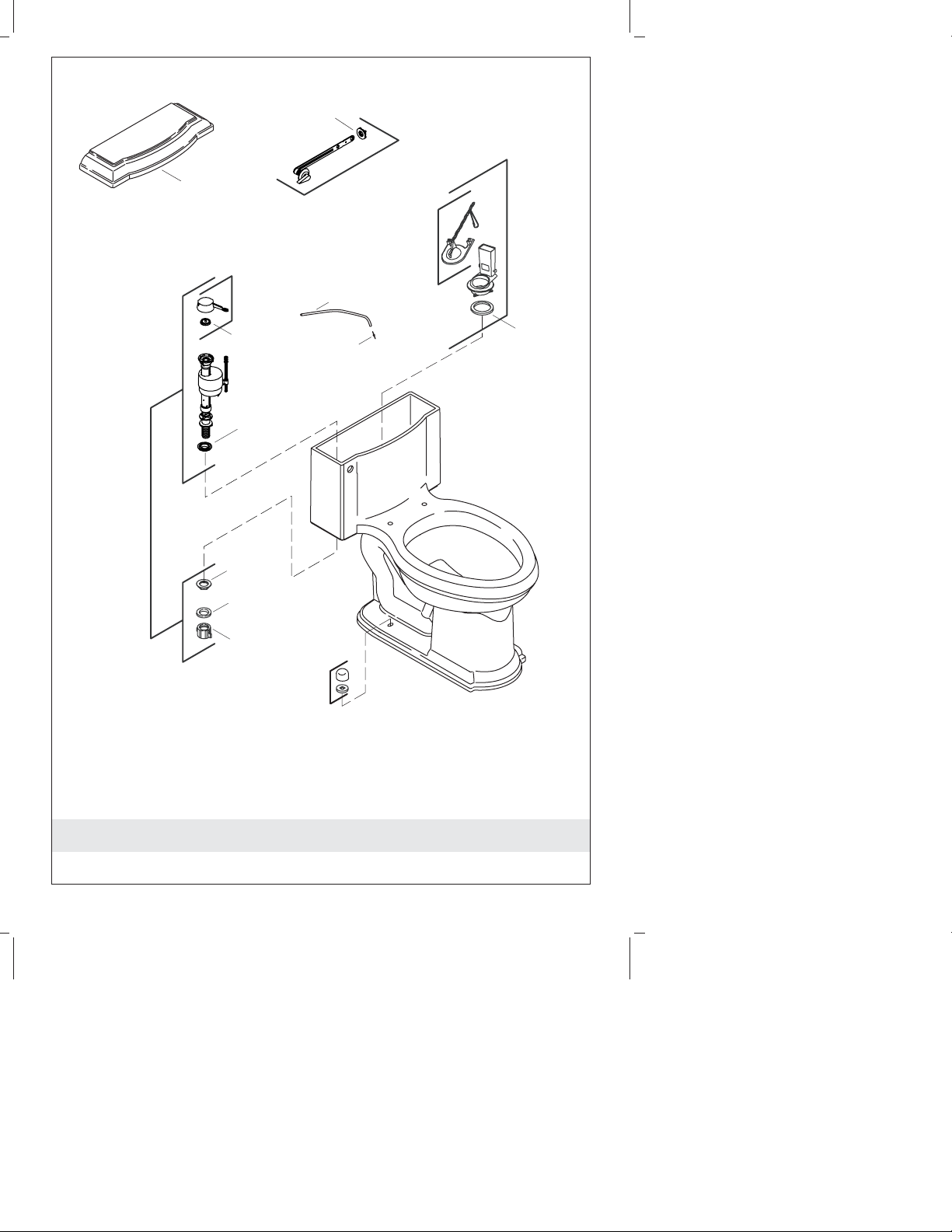

Service Parts

1057941

Locknut

42398

Washer

42397

Nut

1057940

Cap

83143

Seal

85307

Washer

51261

Clip

52156

Hose

1059493

Fill Valve

**Finish/color code must be specified when ordering.

1013092**

Bolt Caps (2 ea.)

1021921**

Tank Cover

78132

Nut

1031599**

Trip Lever

84138

Flapper

83996

Gasket

1032640

Flush Valve

Kohler Co. 7 1031600-5-D

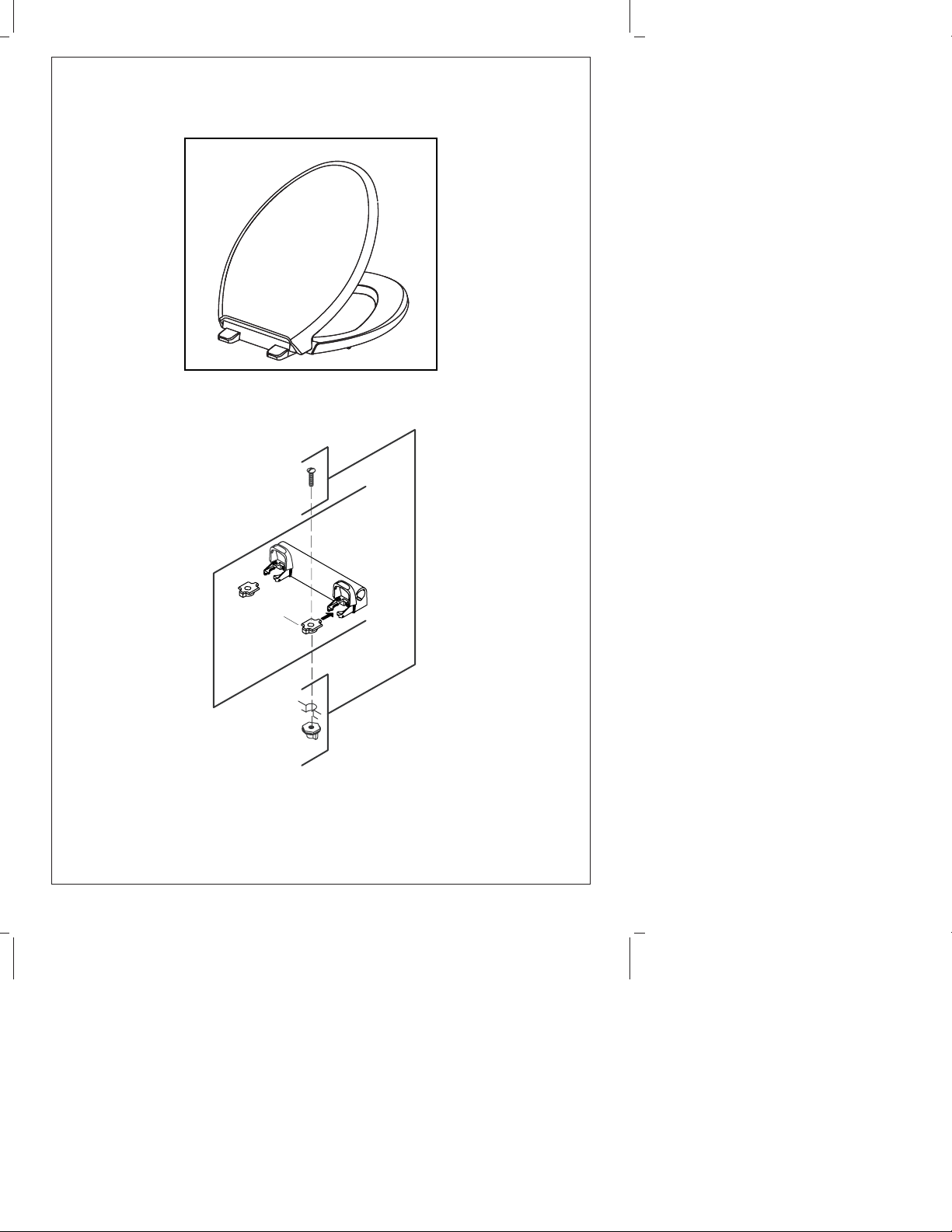

**Finish/color code must be specified when ordering.

1062810**

Toilet Seat

1042684

Hardware

(2 ea.)

1046441**

Hinge

1035809

Hinge

Mount

1031600-5-D 8 Kohler Co.

Guide du propriétaire

W.C.

Merci d’avoir choisi la compagnie Kohler

Merci d’avoir choisi la ligne the Bold Look of Kohler. Le travail soigné

des artisans de Kohler vous fera apprécier une rare combinaison de

performances prouvées et une sophistication gracieuse, qui vous

satisferont pour les années à venir. La ﬁabilité et la beauté de votre

produit Kohler surpasseront vos plus grandes espérances. Chez Kohler,

nous sommes ﬁers du rendement de nos produits et nous savons que

vous le serez aussi.

Veuillez prendre s’il vous plaît quelques minutes pour consulter ce

guide du propriétaire. Prêter une attention toute particulière aux

instructions d’entretien et de nettoyage.

Toute l’information dans ce manuel est basée sur la dernière disponible

au moment de la publication. Chez Kohler, nous veillons constamment

à améliorer la qualité de nos produits. Nous nous réservons le droit

d’apporter des modiﬁcations aux caractéristiques, emballages et

disponibilités des produits à tout moment, et ce sans préavis.

Entretien et nettoyage

AVERTISSEMENT : Risque d’endommagent du produit. Ne

pas utiliser des détergents conçus pour le réservoir dans le

W.C. Les produits qui contiennent du chlore (hypochlorite de

calcium) peuvent causer des dommages graves aux

composants internes du réservoir. Ceci peut créer des fuites et

des dommages matériels.

Kohler Co. décline toute responsabilité quant à tout endommagement

des composants internes du réservoir causé par l’utilisation de

nettoyants qui contiennent du chlore (hypochlorite de calcium).

Pour de meilleurs résultats, prendre ce qui suit en considération lors de

l’entretien de votre produit KOHLER:

•Utiliser un détergent doux tel que liquide pour vaisselle et de

l’eau chaude pour nettoyer. Ne pas utiliser de nettoyants abrasifs

car ils pourraient rayer ou abîmer la surface.

•Lire attentivement l’étiquette du produit de nettoyage pour

vériﬁer qu’il soit adéquat à utiliser sur le matériau.

Kohler Co. Français-1 1031600-5-D

Entretien et nettoyage (cont.)

•Toujours tester la solution de nettoyage sur une surface la moins

évidente avant de l’appliquer sur la totalité de la surface.

•Ne pas permettre aux nettoyants de reposer sur la surface.

•Essuyer les surfaces et rincer complètement avec de l’eau

immédiatement après l’application du nettoyant. Rincer et sécher

tout éclaboussement sur les surfaces avoisinantes.

•Utiliser une éponge ou un chiffon doux et humide. Ne jamais

utiliser de matériau abrasif tel que brosse ou éponges à récurer

pour nettoyer les surfaces.

•Pour les W.C. Artist Editions: L’or et le platine utilisés dans les

produits décoratifs sont d’une qualité digne de bijouterie ﬁne.

N’utiliser que de l’eau chaude pour nettoyer, et essuyer avec un

chiffon doux.

Pour l’information détaillée de nettoyage et des produits à considérer,

visiter www.kohler.com/clean. Pour commander des informations

d’entretien et de nettoyage, composer le 1-800-456-4537 puis presser 1

pour les produits Kohler et 3 pour littérature.

1031600-5-D Français-2 Kohler Co.

Indice

Lingue:

Altri manuali Kohler Toilette

Kohler

Kohler K-3615 Istruzioni per il montaggio

Kohler

Kohler BRAZN 1PC K-EX22378T-NS Manuale utente

Kohler

Kohler VEIL K-1381T-HC Manuale utente

Kohler

Kohler K-17641 Manuale utente

Kohler

Kohler SAN RAPHAEL GRANDE K-8688T-TPF Manuale utente

Kohler

Kohler K-30215T-S Manuale utente

Kohler

Kohler Revival K-14224-TL Istruzioni per il montaggio

Kohler

Kohler VEIL K-5401T Manuale utente

Kohler

Kohler Karing K-77780-0 Manuale utente

Kohler

Kohler VEIL+ K-5401T-3-0 Manuale utente

Kohler

Kohler VEIL K-1666T-NS Manuale utente

Kohler

Kohler K-3489 Series Istruzioni per il montaggio

Kohler

Kohler K-3997 Istruzioni per il montaggio

Kohler

Kohler C3-150 Istruzioni per il montaggio

Kohler

Kohler K-5401IN-0 Manuale utente

Kohler

Kohler K-3901 Istruzioni per il montaggio

Kohler

Kohler K-14261 Istruzioni per il montaggio

Kohler

Kohler REVE K-24766T-S Manuale utente

Kohler

Kohler ADAIR K-8699T Manuale utente

Kohler

Kohler SAN SOUCI K-21865T-ITHC2 Manuale utente

Kohler

Kohler K-3447 Manuale utente

Kohler

Kohler K-3493 Istruzioni per il montaggio

Kohler

Kohler K-3825 Istruzioni per il montaggio

Kohler

Kohler Novita BD-N450US Istruzioni per il montaggio

Manuali Toilette popolari di altre marche

Toto

Toto Washlet TCF4911 Series Manuale utente

Grohe

Grohe Sensia ARENA Manuale utente

Geberit

Geberit AQUACLEAN MERA CLASSIC Manuale utente

Better Bathrooms

Better Bathrooms BUN/BeBa 27555/78725 Manuale utente

American Standard

American Standard CONCEPT Cube TF-2704 Manuale utente

BIOLAN

BIOLAN ECO Manuale elenco delle parti

Thetford

Thetford C260 Series Manuale utente

KELISS

KELISS T162A Series Manuale utente

BIOLAN

BIOLAN GARDEN TOILET Manuale elenco delle parti

washloo

washloo Prestige Manuale utente

JABSCO

JABSCO 37010 Series Manuale utente

Drive

Drive TSE 150 Manuale utente

Olympia

Olympia EPOQUE 69209 Manuale di istruzioni

GSi

GSi TRACCIA 691711 Manuale utente

DENCK

DENCK PURE-D Manuale utente

Silent Venus

Silent Venus SVP600 Guida alla manutenzione e all'assistenza

InBe

InBe IB/04.06050 Manuale utente

Swiss Madison

Swiss Madison Carré SM-1T264 Manuale utente
