Kohler K-6300 Istruzioni per il montaggio

Installation and Care Guide

Toilet

Mproduct numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de

Mcorresponden a México (Ej.

K-12345M)

Français, page “Français-1”

Español, página “Español-1”

K-6299, K-6300

1145594-2-B

Tools and Materials

Before You Begin

Observe all local plumbing and building codes.

Carefully inspect the new bowl for damage.

NOTE: When lifting the bowl into place, the process is more

efficient when performed by two people.

Consult the online users guide at www.kohler.com for more

information.

For service parts information, visit www.kohler.com/serviceparts.

• Rug or Protective Material

• Plumbers Grease

• Level or Straight Edge

• Marker

Plus:

File Rags

3/4"

1145594-2-B 2 Kohler Co.

1. Mark the Pipes - Bowl Side

IMPORTANT! If silicone plumbers grease is not applied to the

gaskets, they will bind during ﬁtting, which will result in the pipes

being cut to incorrect lengths.

NOTE: This step is easier with the bowl upside down.

Install the gasket on the ribbed end of the inlet pipe.

NOTE: The outlet pipe gasket comes positioned on the thin portion

of the outlet pipe. Remove the gasket and reinstall it as shown.

Install the outlet pipe gasket on the ﬂared end of the outlet pipe.

Apply silicone plumbers grease to the outlet pipe gasket.

Firmly ﬁt the outlet pipe and gasket over the bowl outlet,

pushing until it contacts the bowl.

Position a level or other straight edge device across the back of

the bowl.

Mark the outlet pipe at the back edge of the bowl using the level

as a guide.

Straight Edge

or Level

Gasket

Inlet Pipe

Outlet

Pipe

Gasket

Silicone

Plumbers

Grease

Outlet Pipe

Inlet Pipe

Silicone

Plumbers

Grease

Kohler Co. 3 1145594-2-B

Mark the Pipes - Bowl Side (cont.)

Apply silicone plumbers grease to the outside of the inlet pipe

gasket.

Firmly insert the gasket end of the inlet pipe into the water inlet,

pushing until it contacts the bowl.

Position a level or other straight edge device across the back of

the bowl.

Mark the inlet pipe at the back edge of the bowl using the level

as a guide.

1145594-2-B 4 Kohler Co.

2. Mark the Pipes - Wall Side

Remove the plaster guards from the inlet and outlet holes.

Apply plumbers grease to the gasket in the opening of the inlet

hole.

Firmly insert the inlet pipe completely into the inlet hole.

NOTE: If the ﬁnished wall aligns with any portion of the gasket

section of the inlet pipe, no mark or cut is needed.

Mark the inlet pipe even with the front edge of the ﬁnished wall.

Firmly insert the outlet pipe completely into the outlet hole.

NOTE: If the ﬁnished wall aligns with the wide part of the outlet

pipe, no mark or cut is needed.

Mark the outlet pipe even with the front edge of the ﬁnished

wall.

Remove the pipes.

Finished Wall Inlet Hole

Plaster

Guard

Outlet Hole

Outlet Pipe

Inlet Pipe

Kohler Co. 5 1145594-2-B

3. Cut the Pipes

Measure the distance between the two marks on the inlet pipe to

determine ″A.″

Measure and mark ″A″from the end of the side opposite the

gasket on the inlet pipe.

Cut the inlet pipe at this location.

Measure the distance between the two marks on the outlet pipe

to determine ″B.″

Measure and mark ″B″from the end of the side opposite the

gasket on the outlet pipe.

NOTE: Conﬁrm the ﬁnished wall line is closer to the outlet end of

each pipe.

Cut the outlet pipe at this location.

Use a ﬁle to remove all rough areas on the cut end of each pipe.

Reinstall the pipes on the bowl.

Outlet Pipe

Inlet Pipe

1145594-2-B 6 Kohler Co.

4. Install the Pipes

Apply plumbers grease to the gaskets in the inlet and outlet holes

and on the inlet and outlet pipes.

Install the inlet pipe in the inlet hole of the carriage.

Install the outlet pipe in the outlet hole of the carriage.

Finished Wall Inlet Hole

Gasket

Inlet Pipe

Outlet Pipe

Gasket

Plumbers Grease

Kohler Co. 7 1145594-2-B

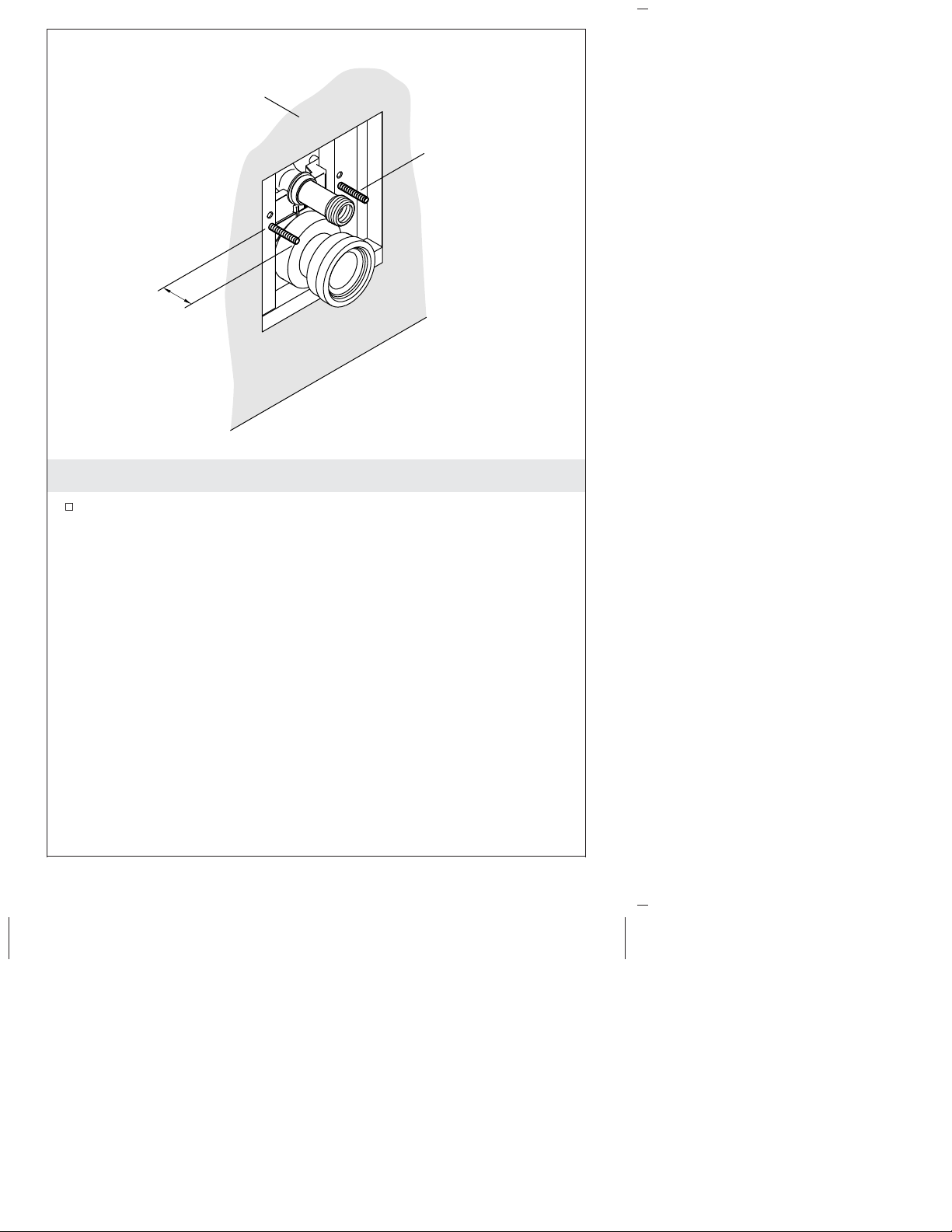

5. Adjust the Threaded Rods

Adjust the threaded rods until they each extend 2-1/4″(57 mm)

from the ﬁnished wall.

Threaded Rod

2-1/4"

(57 mm)

Finished Wall

1145594-2-B 8 Kohler Co.

6. Install the Bidet Seat

Models with Bidet Seat Only

Install the bidet seat to the bowl following the instructions

supplied with the bidet seat.

Route the electrical cord through the hole in the top of the bowl,

through the circular hole in bowl wall, down under the bowl

outlet, and up through the hole in the right side of the bowl.

Leave the cord hanging through the opening in the right pocket

until the connection is made.

Kohler Co. 9 1145594-2-B

7. Install the Bowl

NOTE: This step is easier when performed by two people.

Conﬁrm the gasket on the inside of the inlet elbow has correctly

engaged with the inlet pipe.

Conﬁrm the gasket on the inside of the outlet elbow has correctly

engaged with the outlet pipe.

NOTE: If your model has a bidet seat, align the bidet water supply

with the corresponding hole in the back of the bowl.

Carefully lift the bowl up and align the threaded rods and pipes

with the corresponding holes.

Slide the bowl onto the threaded rods, inlet pipe and outlet pipe.

Make sure the bowl fully engages the gaskets on the inlet and

outlet pipes.

Slide the bowl back until it makes contact with the wall.

Lift the bowl slightly and install the gaskets over the threaded

rods.

Install the washers and nuts and tighten with a socket wrench

and 3/4″socket.

Threaded Rod

Finished Wall

Gasket

Washer

Nut

Bidet Water

Supply

(Optional)

1145594-2-B 10 Kohler Co.
