English

Quick Guide

Konftel DECT base station

Konftel DECT base station is GAP-compatible for analogue connection to the telephone

network. Seven handsets (or conference phones) can be connected (registered) to one base

station.

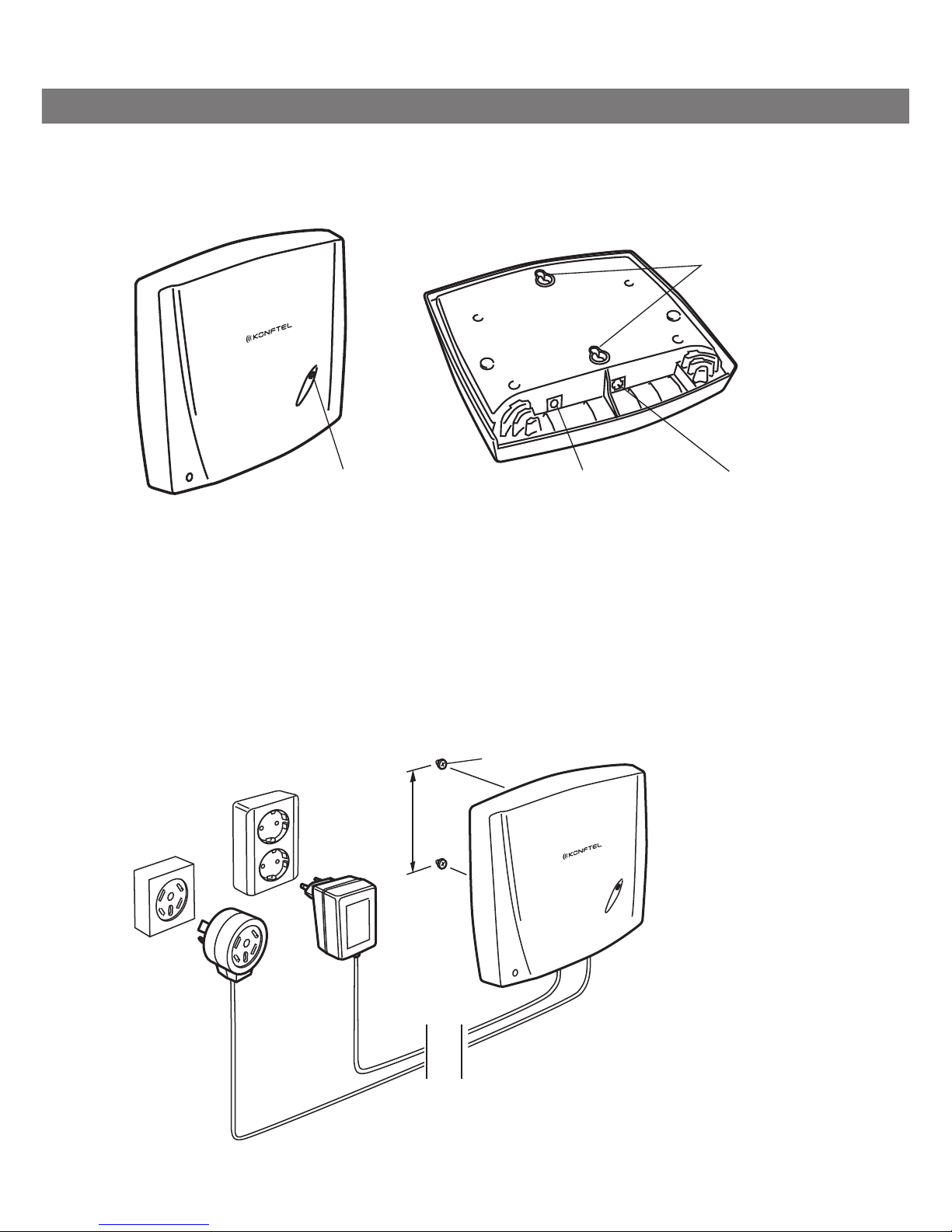

DESCRIPTION – KONFTEL DECT BASE STATION

Connection

Connect the base station to a telephone jack and the mains using the power adapter as il-

lustrated.

Wall suspension

The base station can be mounted on the wall. Use the screws provided as illustrated. Make

sure it is securely mounted.

92 mm

Power adapter

KG35-6-300D

Holes for wall

suspension

Power supply Line connectionKey and LED

2 m

Screw

Reg

Base 1

0-9...

PIN:

****

Done

PARK:

DECT system:

Here we explain how to register a Konftel 200W conference phone. To register other makes

of handsets (telephones), simply follow the same procedure. Please refer to your telephone

instruction manual if you are unsure.

Set the Konftel DECT base station in registration mode

 Press and hold the key/LED on the base station until it starts to ﬂash.

The base station is now in registration mode. Once registration has been completed, the

LED will stop ﬂashing. If the base station does

not identify a DECT phone within 2 minutes, the

registration mode will switch off automatically.

 Press the MENU key.

 Select the menu “Tools” using the Up/down key.

 Press OK.

 Select the menu Reg using the Up/down key.

 Press OK.

 Select a base (1–4).

If no base station has been programmed, choose no. 1. Numbers

that are ticked are being used.

 Press OK.

 Select a DECT system.

 Press OK.

 Enter the security code (PIN code) (standard code is 0000).

 Press OK.

 Press OK. (Leave the PARK code blank.)

Your Konftel 200W is now in registration mode and is searching

for a base station in registration mode. Wait until you receive

conﬁrmation that registration has been completed. Registration

can be interrupted by pressing C. If registration was successful,

the word Done will appear in the display.

 Press OK.

The Konftel 200W is now ready to use.

REGISTERING A HANDSET (CONFERENCE PHONE)

Konftel DECT base station

Developed by Konftel AB

Box 268, SE-901 06 Umeå, Sweden

Phone: +46 90 706 489 Fax: +46 90 131 435

E-mail: info@konftel.com Web: www.konftel.com

Konftel is a leading company within loudspeaker communication and audio technology. We deve-

lop and sell products and technology for telephone conferences based on cutting-edge expertise

within acoustics and digital signal processing. Characteristic of our products is that all conference

telephones contain the same high quality audio technology – OmniSound® providing crystal clear

sound. Read more about Konftel and our products on www.konftel.com.

3141-61-001 rev A
