Konica Minolta FAX 2900 Manuale utente

Contents

1 Setting Up PC Scanning

2 Connecting to the USB Port

3 Installing the TWAIN Driver

3.1 Installing the TWAIN Driver Using Plug and Play ......................3-1

Installing the TWAIN Driver Using Plug and Play Under

Windows XP ...............................................................................3-1

Installing the TWAIN Driver Using Plug and Play Under

Windows 2000 ............................................................................3-3

Installing the TWAIN Driver Using Plug and Play Under

Windows Me/98 SE ....................................................................3-4

4 Scaning a Document

4.1 Using the Auto Document Feeder ...............................................4-1

5 Common Settings

5.1 Auto Options .................................................................................5-1

5.2 Manual Options .............................................................................5-3

6 Error Messages

Original Document Jam ..............................................................6-1

Memory Full................................................................................6-3

Communication Error..................................................................6-3

Scanner Busy .............................................................................6-4

Read Data Error .........................................................................6-4

Contents

Setting Up PC Scanning 1

1-1

1 Setting Up PC Scanning

If the enclosed TWAIN Driver is installed on the computer, this copier can

be used to scan documents to a PC.

The following software and hardware environment is required for PC

scanning.

GOS: Windows 98 SE, Windows Me, Windows 2000, or Windows XP

GTWAIN-compatible image-processing software (such as Adobe Pho-

toshop)

GUSB V.1.1 (or later version)

1Setting Up PC Scanning

1-2

Connecting to the USB Port 2

2-1

2 Connecting to the USB Port

✎

Important!

Be sure to use a shielded USB cable. Use of an unshielded cable may

result in radio interference.

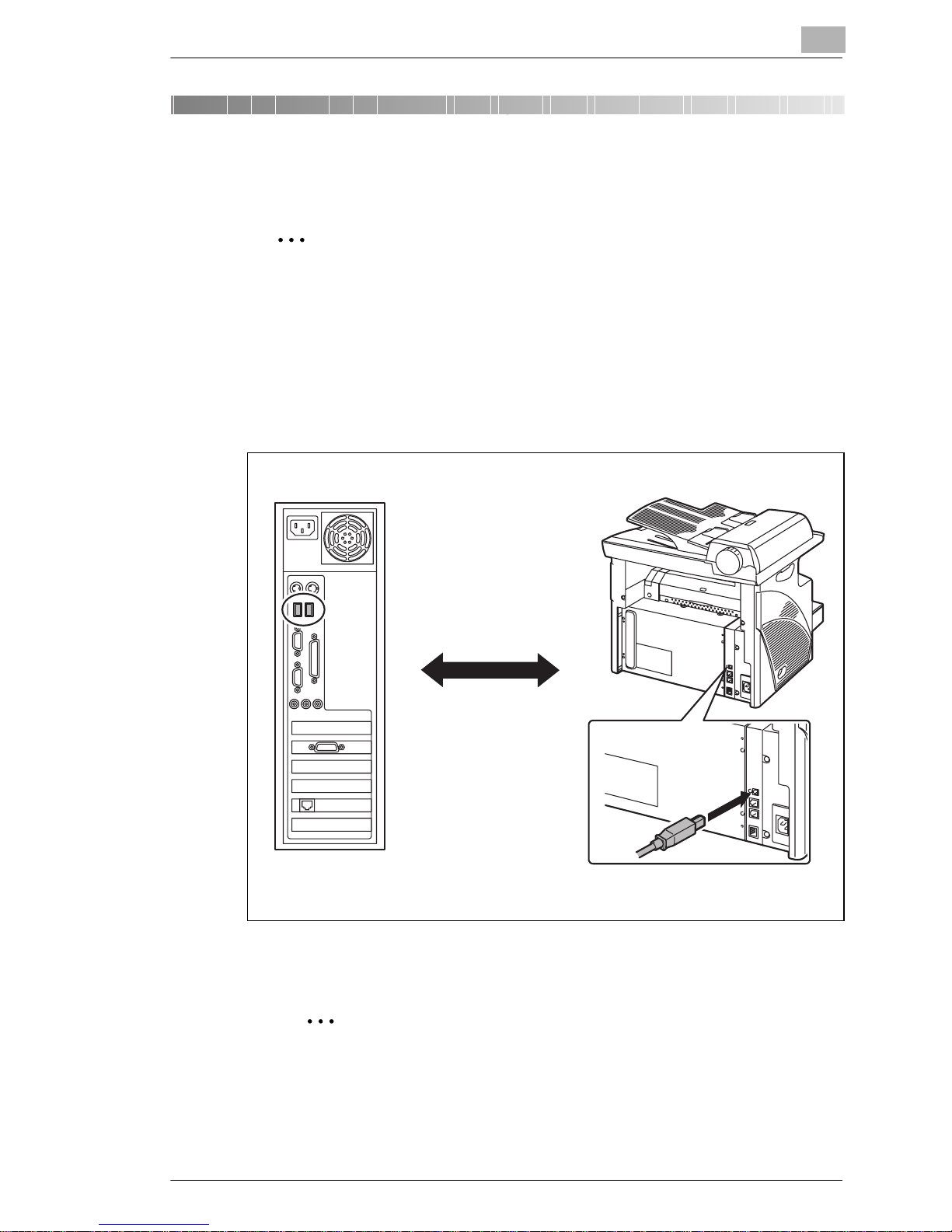

1Make sure that the copier and the computer to be connected to the

copier are turned off.

2Connect one end of the USB cable to the USB port of the copier.

This completes the connection.

✎

Note

Only Windows 98 SE, Windows Me, Windows 2000,

and Windows XP support USB1.1.

Connect

CopierPC

2Connecting to the USB Port

2-2

Installing the TWAIN Driver 3

3-1

3 Installing the TWAIN Driver

This section describes the procedure for installing the TWAIN driver. The

printer driver can be installed by using Plug and Play.

3.1 Installing the TWAIN Driver Using Plug and Play

Installing the TWAIN Driver Using Plug and Play Under Windows XP

1With Windows running, insert the CD-ROM into your computer’s CD-

ROM drive.

2Turn on the copier.

3When the copier is ready, connect it to the computer with the USB cable.

The “Found New Hardware Wizard” dialog box appears.

4Select Install from a list or specific location [Advanced], and then

click [Next].

5Select Include this location in the search: under Search for the

best driver in these locations., and then click [Browse].

6Browse to “Driver\(language)\WinXP” on the CD-ROM, and then click

[OK].

✎

Tip

Select the language you prefer. For example, if you prefer English,

browse to:

Driver\English\WinXP

3Installing the TWAIN Driver

3-2

7Click [Next].

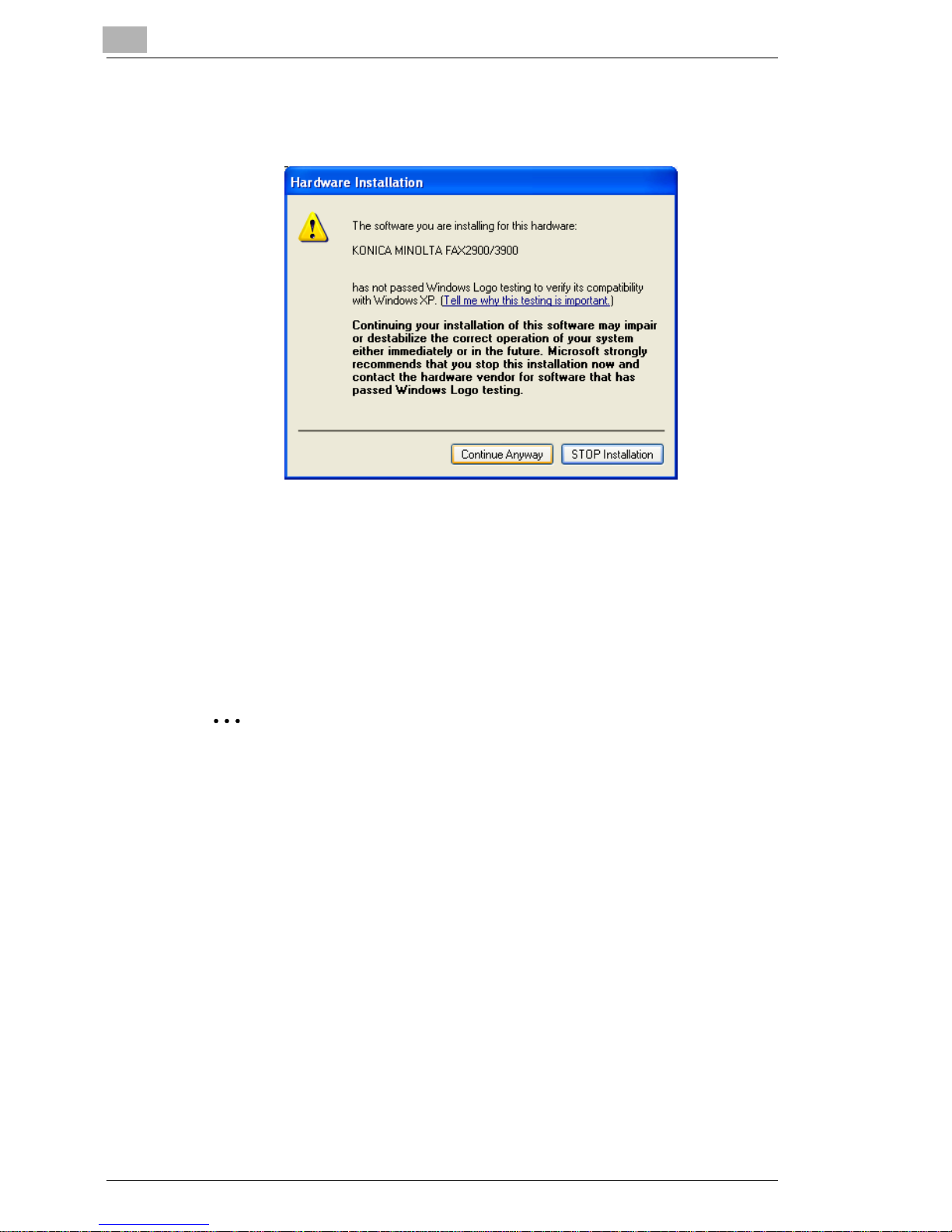

HThe following box dialog appears. Click [Continue Anyway].

8The “Completing the Found New Hardware Wizard” dialog box ap-

pears.

HClick [Finish].

9The “Found New Hardware Wizard” dialog box appears again.

HRepeat steps 4 through 7.

✎

Note

This completes the installation of the TWAIN driver.

Installing the TWAIN Driver 3

3-3

Installing the TWAIN Driver Using Plug and Play Under Windows

2000

1With Windows running, insert the CD-ROM into your computer’s CD-

ROM drive.

2Turn on the copier.

3When the copier is ready, connect it to the computer with the USB ca-

ble.

The “Found New Hardware Wizard” dialog box appears.

4Select Search for a suitable driver for my device (recommended)

in the “Install Hardware Device Drivers” dialog box, and then click

[Next].

The “Locate Driver Files” dialog box appears.

5Select Specify a location, and then click [Next].

6Click [Browse...] on the next dialog box, browse to

“Driver\(language)\Win2K” on the CD-ROM, and then click [OK].

✎

Tip

Select the language you prefer. For example, if you prefer English,

browse to:

Driver\English\Win2K

7Click [OK], and then follow the instructions that appear on the screen

until the “Completing the Found New Hardware Wizard” dialog box ap-

pears.

HClick [Finish].

8The “Found New Hardware Wizard” dialog box appears again.

HRepeat steps 4 through 7.

✎

Note

This completes the installation of the TWAIN driver.
