Konica Minolta Magicolor 1690MF Istruzioni per il montaggio

Firmware Updater Guide

magicolor 1680MF

magicolor 1690MF

magicolor 4690MF

magicolor 4695MF

A0HF-9900-03A

Contents

1 Updating the Firmware (for Windows) ............................................. 1

System Requirements ....................................................................... 2

Starting the Firmware Updater ......................................................... 3

If the printer is not connected correctly .......................................... 7

2 Updating the Firmware (for Macintosh) ........................................... 8

System Requirements ....................................................................... 9

Starting the Firmware Updater ....................................................... 10

If the printer is not connected correctly ........................................ 14

Contents

Updating the

Firmware

(for Windows) 1

System Requirements

Computer:

- PC with a Pentium 2, 400 MHz or faster processor

(A Pentium 3, 500 MHz or faster processor is recommended.)

Operating system:

- 32bit

Microsoft Windows Vista Home Basic/Home Premium/Ultimate/

Business/Enterprise, Windows XP Home Edition/Professional

(Service Pack 2 or later), Windows Server 2003, Windows 2000

(Service Pack 4 or later)

- 64bit

Microsoft Windows Vista Home Basic/Home Premium/Ultimate/

Business/Enterprise x64 Edition, Windows XP Professional x64

Edition, Windows Server 2003 x64 Edition

Available hard disk space:

- Approximately 20~26 MB

Memory:

- 128 MB or more

Interface:

- USB 2.0 (High Speed) compliant

Compatible printer:

- magicolor 1680MF

- magicolor 1690MF

- magicolor 4690MF

- magicolor 4695MF

2 System Requirements

Starting the Firmware Updater

You must have administrator privileges in order to update the

firmware.

CAUTION

Before starting the firmware updater, make sure that the printer

is correctly connected with a USB cable.

CAUTION

Before starting the firmware updater, confirm that the scanner

driver (TWAIN driver) is installed with a USB connection. In case

of magicolor 1680MF, confirm that the printer driver is installed

with a USB connection before starting the firmware updater.

CAUTION

When the firmware is updated, the printer control panel settings

may return to their defaults. Before starting the firmware updater,

be sure to print the configuration page to check the settings. For

details on printing the configuration page, refer to the printer’s

User’s Guide.

CAUTION

Do not perform any of the following operations while updating

the firmware.

CAUTION

- Turn off the printer.

- Turn off the computer running the firmware updater.

- Exit the firmware updater.

- Send a print job to the printer.

Starting the Firmware Updater 3

If the User Account Control window appears when installing on

Windows Vista, click [Allow] button or [Continue] button.

The following procedure describes how to update the firmware for

magicolor 1690MF. Follow the same procedure to update the

firmware for magicolor 1680MF, magicolor 4690MF and

magicolor 4695MF.

1. Connect the computer and the printer with a USB cable, and

turn on the power of the printer.

2. Confirm that the scanner driver (TWAIN driver) is installed in

the computer with a USB connection. In case of magicolor

1680MF, confirm that the printer driver is installed in the

computer with a USB connection.

3. Print the configuration page from the printer control panel to

check the current firmware version.

4. Turn off the power of the printer.

5. Download the firmware updater from the Web site, and then

decompress it in any folder.

6. With touching [Select] key on the printer control panel, turn

on the power of your printer.

To update the engine firmware, turn on the power without

touching [Select] key.

7. On a message window on the printer control panel, you can

see the following screen.

When updating the engine firmware, you will NOT see the

screen.

2008/10/16 V1.00

AMBER-AIO BOOTROM

2008/10/16 V1.00

4IN1 BOOTROM MODE

Starting the Firmware Updater

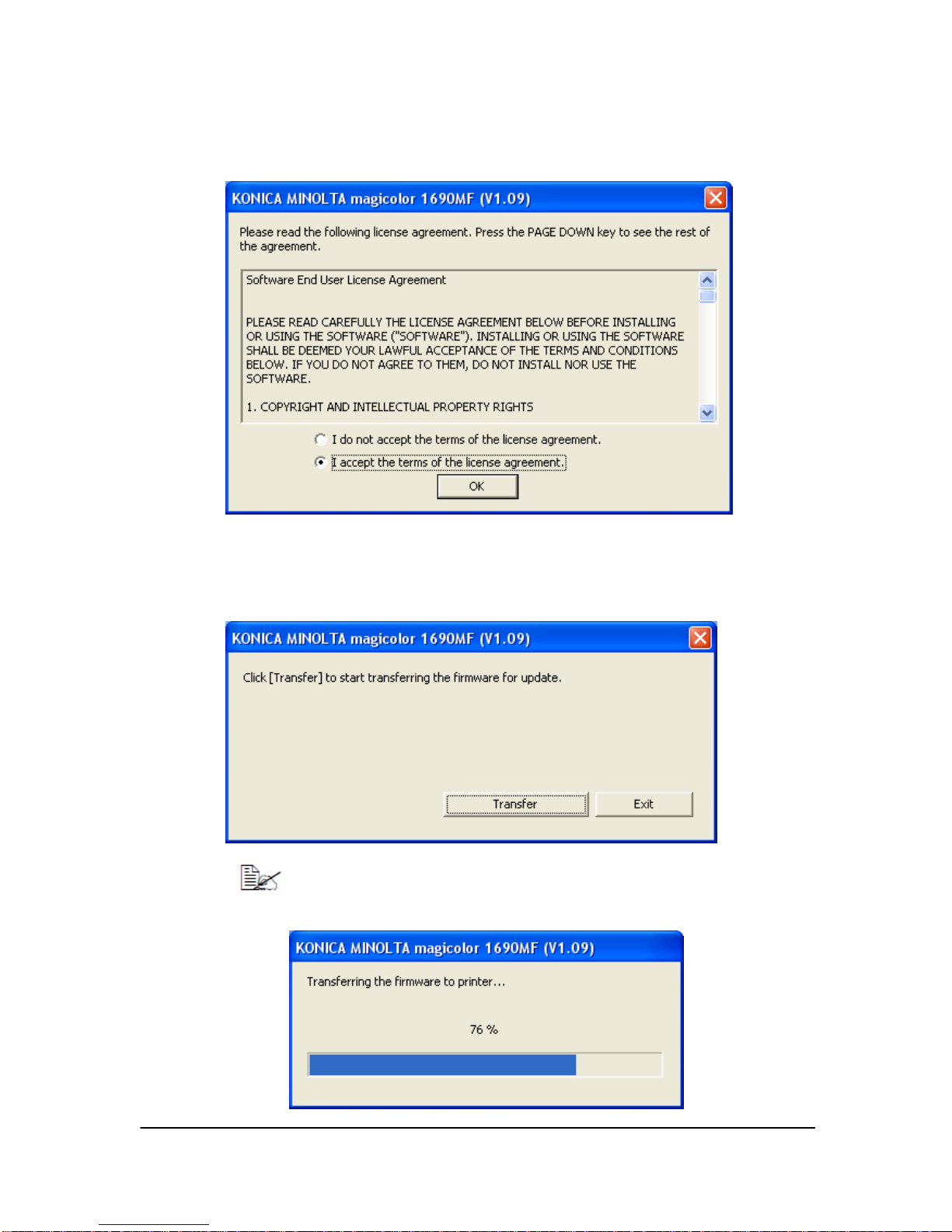

8. Double-click the firmware updater (exe format).

The Software End User License Agreement is displayed.

Select “I accept the terms of the license agreement.”, and

then click [OK] button.

9. A message appears, requesting confirmation to update the

firmware. Click [Transfer] button to begin transferring the

firmware.

Do not turn off the printer while its firmware is being

updated.

Starting the Firmware Updater

10.The result of the firmware transfer is displayed. Click [Exit]

button.

11.On a message window on the printer control panel, the

following screen will be shown. After confirming the screen

is shown, turn off/on the power of the printer.

FIRMWARE UPDATE

FIRMWARE UPDATE OK

MACHINE POWER OFF/ON

12.Print the configuration page from the printer control panel to

check the firmware version after the updating.

When the firmware is updated, the printer control panel

settings may return to their defaults. Refer to the

configuration page that was previously printed to reset the

settings from the printer control panel.

For details on printing the configuration page and using

the printer control panel, refer to the printer’s User’s

Guide.

6 Starting the Firmware Updater

If the printer is not connected correctly

If the printer is not connected correctly, the following message

appears.

1. Check that the printer is ready and that the computer is

properly connected to the printer, and then click [Retry]

button.

If the printer is not connected correctly 7

Updating the

Firmware

(for Macintosh) 2
