magicolor 2400 and

magicolor 2500 Series

Warranty Exchange

Guide

1760665-001C

Trademarks

KONICA MINOLTA and the KONICA MINOLTA logo are trademarks or registered

trademarks of KONICA MINOLTA HOLDINGS, INC.

magicolor is a trademark or registered trademark of KONICA MINOLTA PRINTING

SOLUTIONS U.S.A., INC. All other trademarks are the property of their respective

owners.

not be copied, in whole or part, nor transferred to any other media or language,

without written permission of KONICA MINOLTA BUSINESS TECHNOLOGIES,

INC.

Manual Notice

KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. reserves the right to make

changes to this manual and to the equipment described herein without notice.

Considerable effort has been made to ensure that this manual is free of inaccuracies

and omissions. However, KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.

makes no warranty of any kind including, but not limited to, any implied warranties of

merchantability and fitness for a particular purpose with regard to this manual.

KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. assumes no responsibility

for, or liability for, errors contained in this manual or for incidental, special, or

consequential damages arising out of the furnishing of this manual, or the use of this

manual in operating the equipment, or in connection with the performance of the

equipment when so operated.

Introduction

Thank you for contacting a technical support representative to obtain information

about returning your magicolor 2500W, magicolor 2530DL or magicolor 2550 for

warranty exchange. Follow these instructions very carefully.

If you need additional assistance, refer to the General Information Guide

(included with the original printer) or printer.konicaminolta.com for worldwide

sources of service and support.

Failure to follow these instructions could result in voiding your

warranty.

Exchange Procedure

Each of these steps is explained in detail in this guide.

1Unpack the exchange printer.

See page 4

2Prepare the original printer—turn it off, unplug the

power cord, and remove the interface cables and dust

cover.

See page 5

3 Remove the toner cartridges from the original printer. See page 5

4Install the toner cartridges into the exchange printer. See page 7

5Move the OPC drum cartridge from the original printer to

the exchange printer. See page 8

6 Move the transfer belt unit from the original printer to the

exchange printer. See page 9

7 Prepare the original printer for repacking. See page 12

8Repackaging the original printer.

See page 12

9 Returning the original printer See page 13

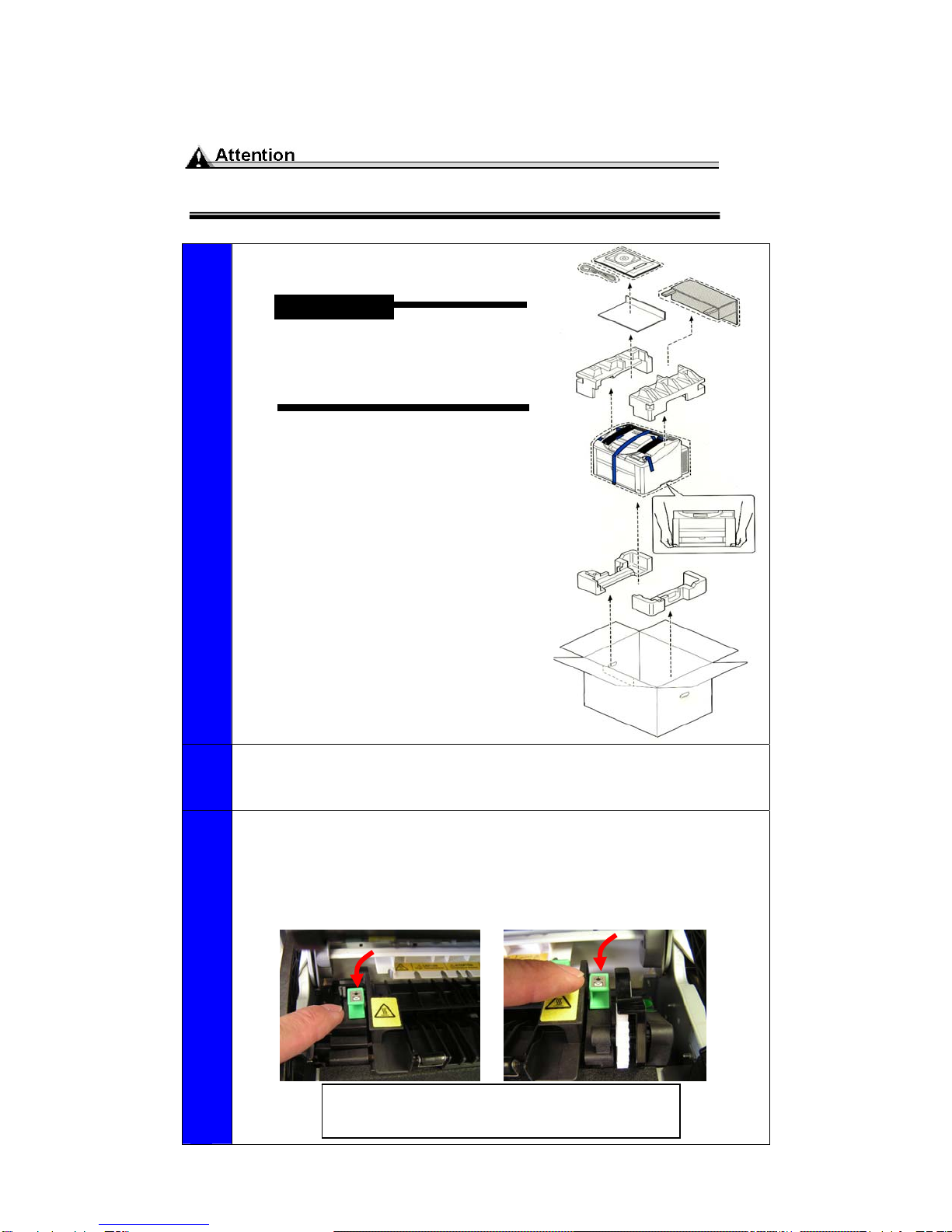

Unpack the Exchange Printer

Use caution when unpacking the exchange printer, so the packaging

(including the tape) can be used to repack the printer to be returned.

Exchange

2Remove the tape from the outside of the exchange printer, and open the

input and exit trays.

Exchange

3 Remove the fuser separators from the exchange printer.

The fuser separators are attached to the instruction card with string. Pull

the string to remove the separators. Open the top cover to ensure that the

fuser separator levers are in the closed position.

See the instructions on the fuser separator tag for complete details.

1Unpack the exchange printer

WARNING!

The printer weighs approxi-

matelty 40 lbs/18 kg without

consumables. Be sure to have

help when lifting and moving it.

Note: The fuser separator lever color may be

Gray or Green depending on the printer model.

Prepare the Original Printer

Original

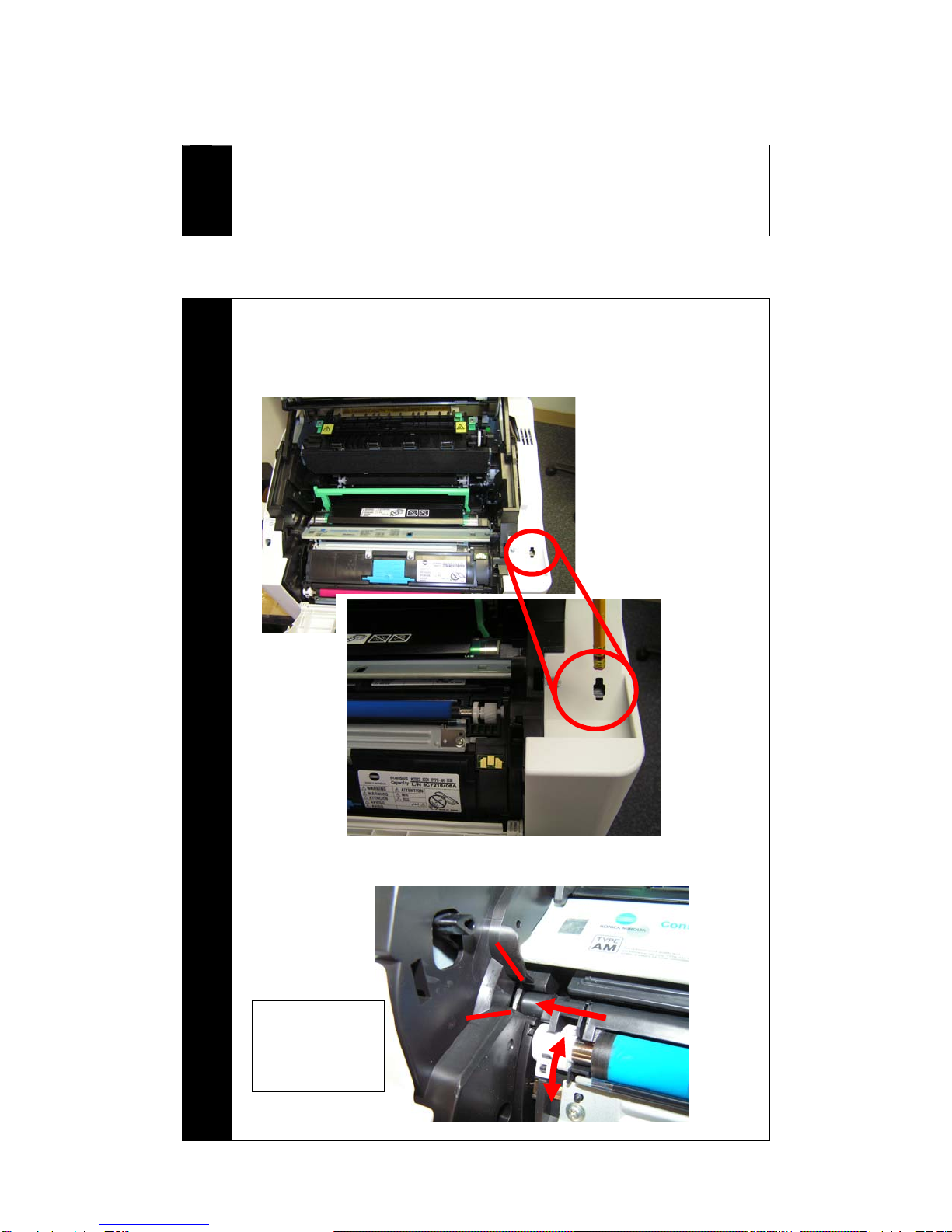

4 Turn off the original printer, unplug the power cord and remove the

interface cable(s). Remove the media and dust cover from the original

printer.

Remove the Toner Cartridges

Original

5 Follow these steps to manually remove the toner cartridges.

- Open the top cover

- Press the toner carousel release. Use a pencil to push down on the

release button

- Manually move the toner cartridge to the removal position.

Note: Align the

toner cartridge

pin with the slot

in the printer.

Original

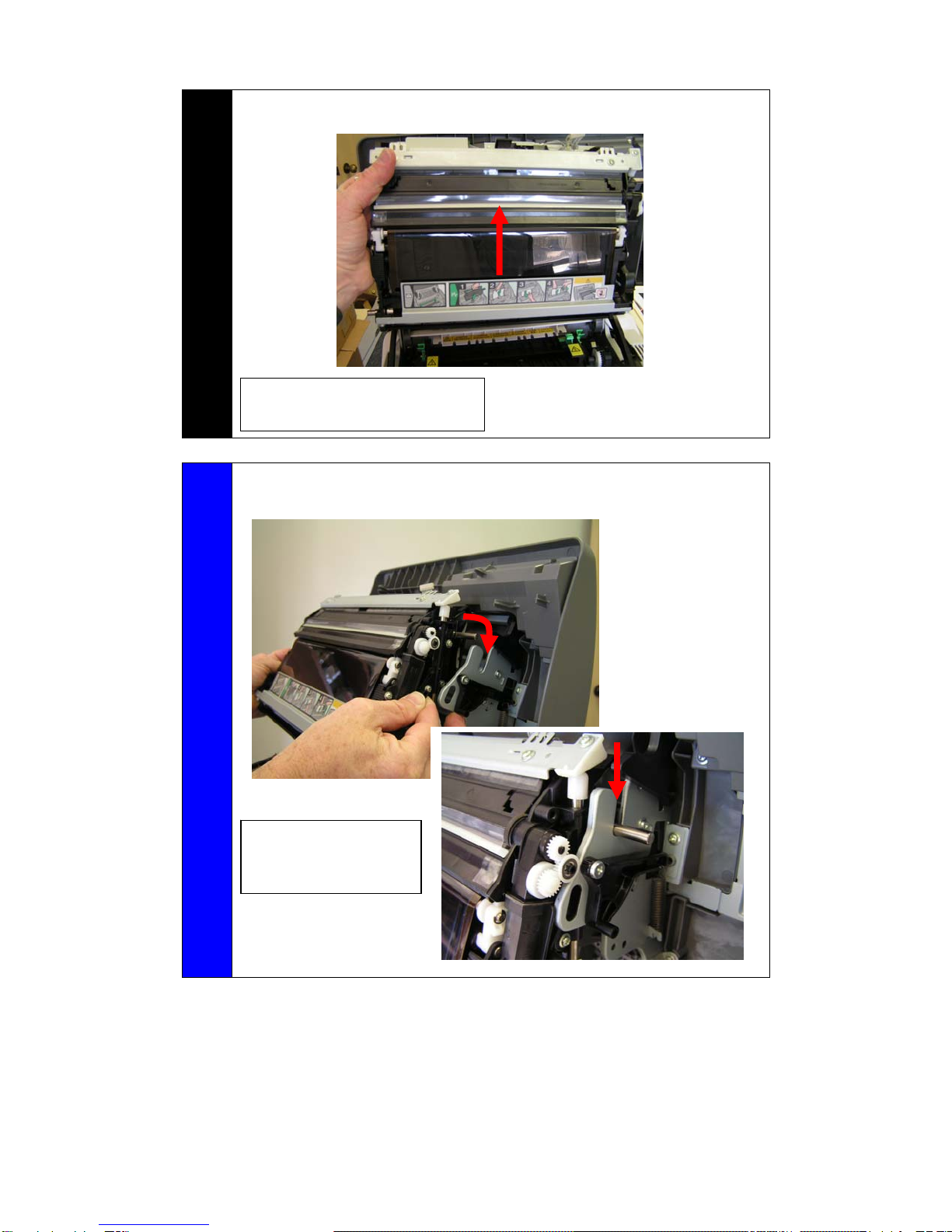

6 To remove the toner cartridges, rotate the carousel to the removal

position.

Note: Be careful not to touch the developer roller (the roller with the color

toner on it). This could cause print quality problems when you install the

toner cartridges in your exchange printer.

A. Lift the toner cartridge handle to release the toner cartridge.

B. Lift the toner cartridge up and out.

Original

7 Repeat steps 1 and 2 three more time to remove all four toner cartridges

from the original printer.

Caution..

The carousel may become off balance as the toner cartridges

are removed. Be careful not to let it hit your fingers as it turns.

Install the Toner Cartridges

Exchange

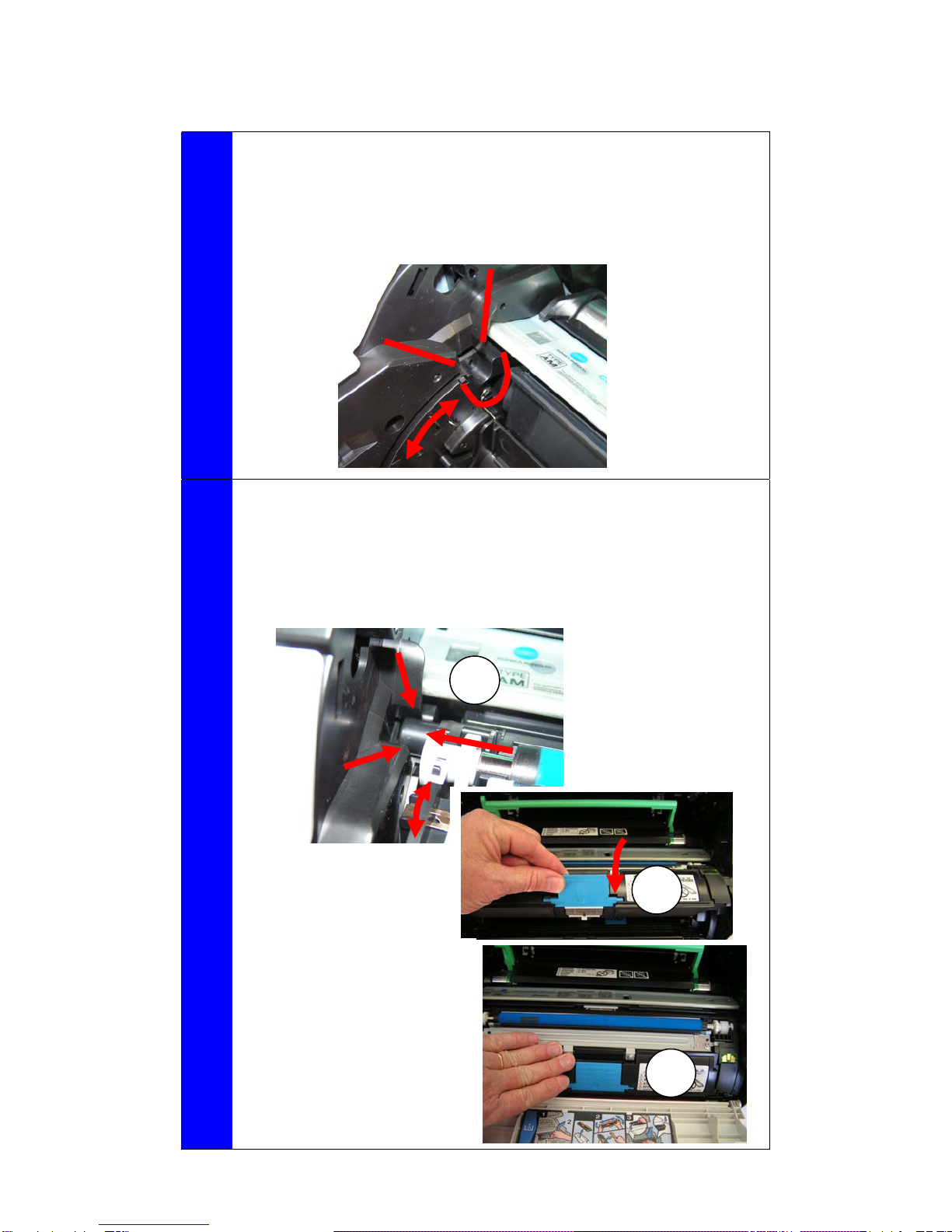

8 Before you can install the toner cartridges into your exchange printer, you

must check the position of the carousel to make sure that the toner

cartridge slot is aligned with the opening inside the printer.

If the slot in not aligned, use a pencil (as described in the removal

procedure) to press the carousel release button and manually rotate the

carousel until the slot is aligned as shown in the picture below.

Exchange

9 Install each toner cartridge into the appropriate slot. The toner color is

shown on the color label inside the carousel and the color handle on the

toner cartridge.

A. Align the toner cartridge pins on either end with the slots (shown above)

in the printer. Push down on the cartridge to fit in pins on the ends of

the cartridge into the slots in printer.

C. Push down on the

front of the cartridge

until it locks into

position. (Click)

B. Rotate the cartridge

down in the front.

Exchange

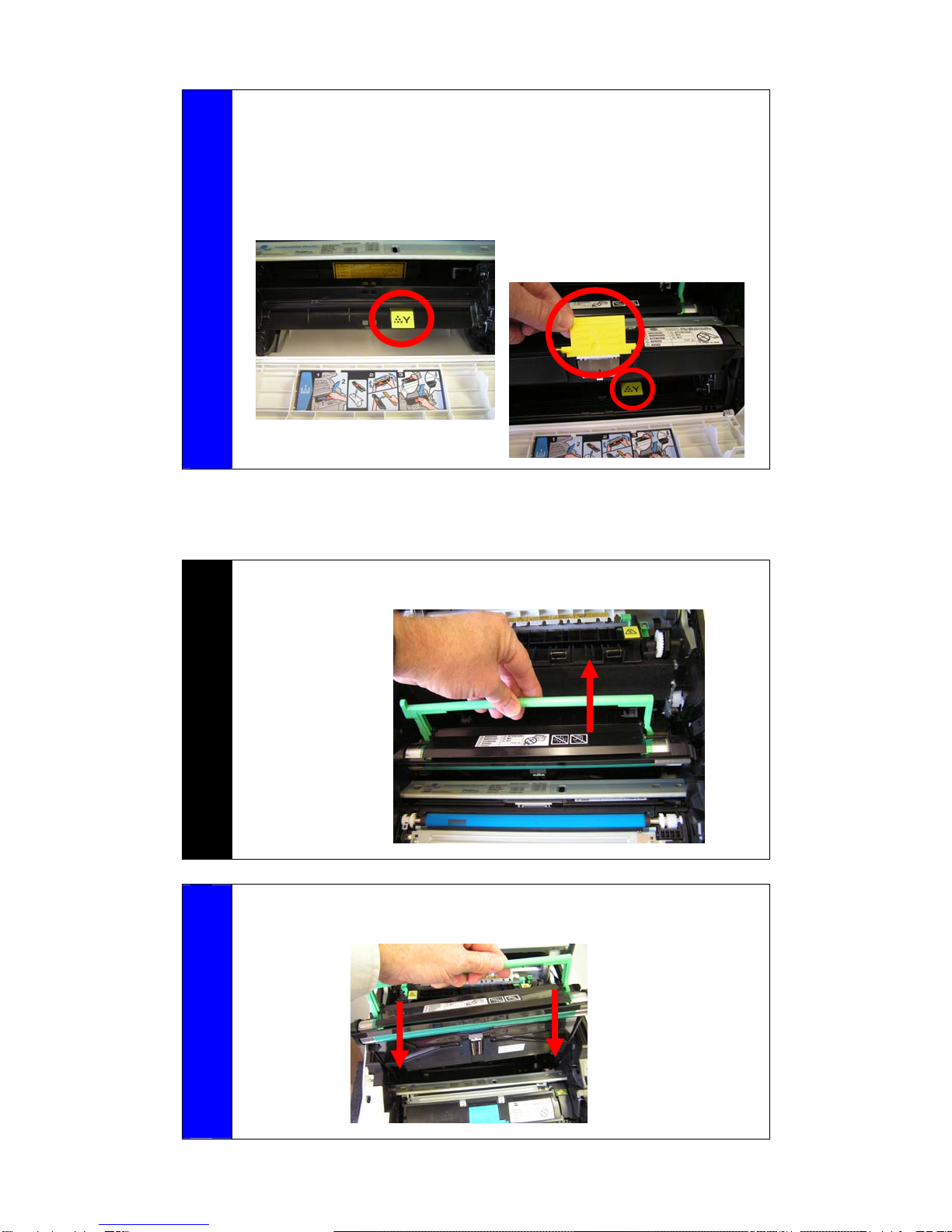

10 Repeat steps 1 and 2 three more times to install the original printer’s

remaining toner cartridges into the exchange printer: Black (K), Yellow (Y)

and then Magenta (M).

Note: The color of toner cartridge is marked inside the carousel and on the

handle of the toner cartridges. Be sure to put the correct cartridge in each

slot.

Move the OPC Drum Cartridge

Original

11 Open the top cover of the original printer, and carefully pull out the OPC

drum cartridge.

Exchange

12 Open the top cover of the Exchange printer, and then carefully insert the

OPC drum cartridge.

Move the Transfer Belt Unit

Original

13 With the top cover of the original printer still open, disconnect the

transfer belt unit connector.

Original

14 Remove the two thumb screws, oneon each side of the transfer belt unit.

Caution..

Be careful not to

drop the thumb

screw into the

printer.

Note: You may need to

use a screw driver or a

coin to loosen the thumb

screws.

Original

15 Slide out the transfer belt unit from the original printer,

Exchange

16 With the top cover of the exchange printer still open, slide the transfer

belt unit into place.

Note: Be careful not to

touch or scratch the

transfer belt surface

Note: Be careful not to touch or

scratch the transfer belt surface
