Konica Minolta Magicolor 2590 MF Manuale utente

- 1 -

Quick Guide

4556-9700-001760602-001A

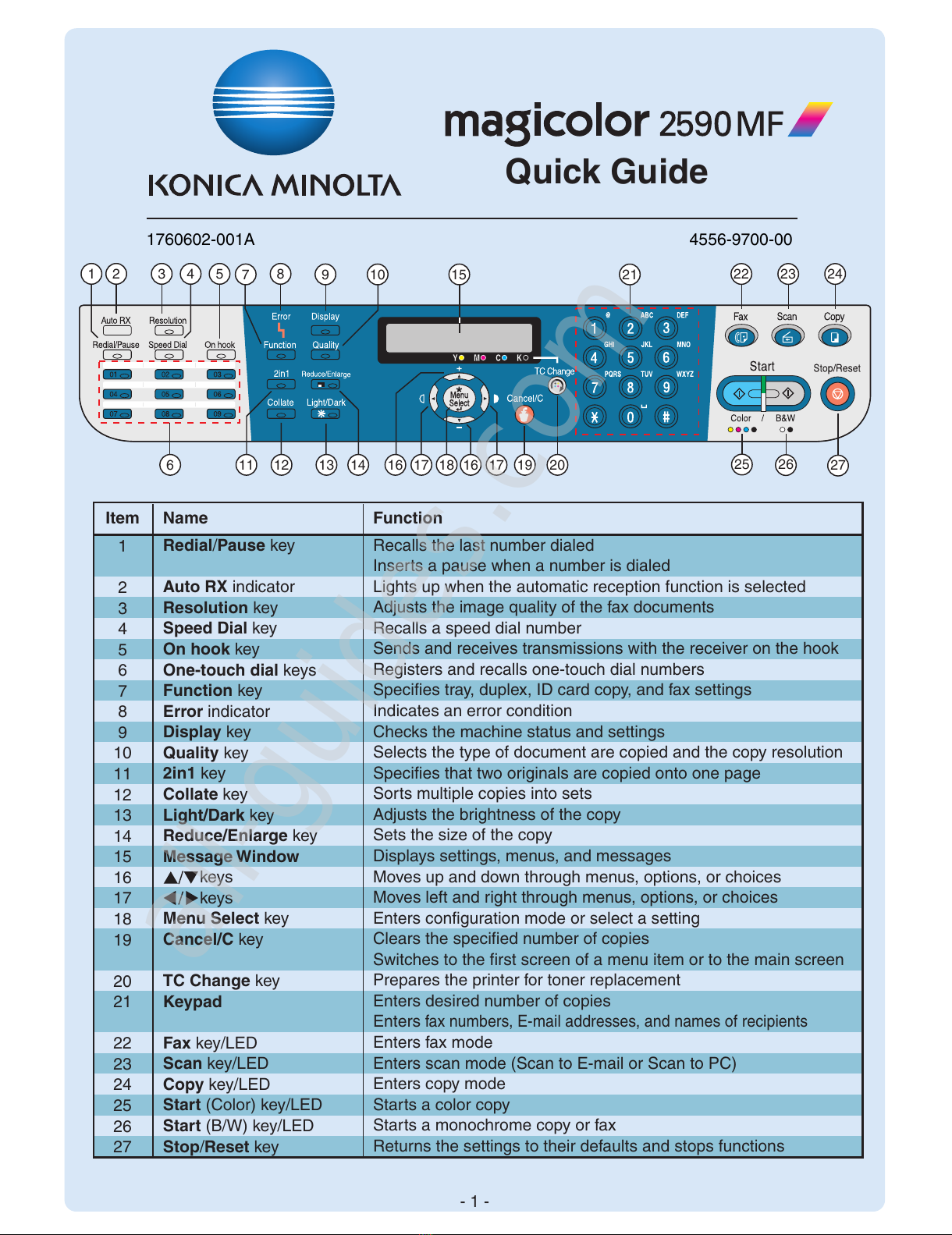

Item Name Function

Redial/Pause key

Auto RX indicator

Resolution key

Speed Dial key

On hook key

One-touch dial keys

Function key

Error indicator

Display key

Quality key

2in1 key

Collate key

Light/Dark key

Reduce/Enlarge key

Message Window

keys

Menu Select key

Cancel/C key

TC Change key

Keypad

Fax key/LED

Scan key/LED

Copy key/LED

Start (Color) key/LED

Start (B/W) key/LED

Stop/Reset key

Recalls the last number dialed

Inserts a pause when a number is dialed

Lights up when the automatic reception function is selected

Adjusts the image quality of the fax documents

Recalls a speed dial number

Sends and receives transmissions with the receiver on the hook

Registers and recalls one-touch dial numbers

Specifies tray, duplex, ID card copy, and fax settings

Indicates an error condition

Checks the machine status and settings

Selects the type of document are copied and the copy resolution

Specifies that two originals are copied onto one page

Sorts multiple copies into sets

Adjusts the brightness of the copy

Sets the size of the copy

Displays settings, menus, and messages

Moves up and down through menus, options, or choices

Moves left and right through menus, options, or choices

Enters configuration mode or select a setting

Clears the specified number of copies

Switches to the first screen of a menu item or to the main screen

Prepares the printer for toner replacement

Enters desired number of copies

Enters

fax numbers, E-mail addresses, and names of recipients

Enters fax mode

Enters scan mode (Scan to E-mail or Scan to PC)

Enters copy mode

Starts a color copy

Starts a monochrome copy or fax

Returns the settings to their defaults and stops functions

832 541 97 10 15 21 24

11 126 13 14 27

25 26

19 201716 1718 16

2322

All manuals and user guides at all-guides.com

all-guides.com

- 2 -

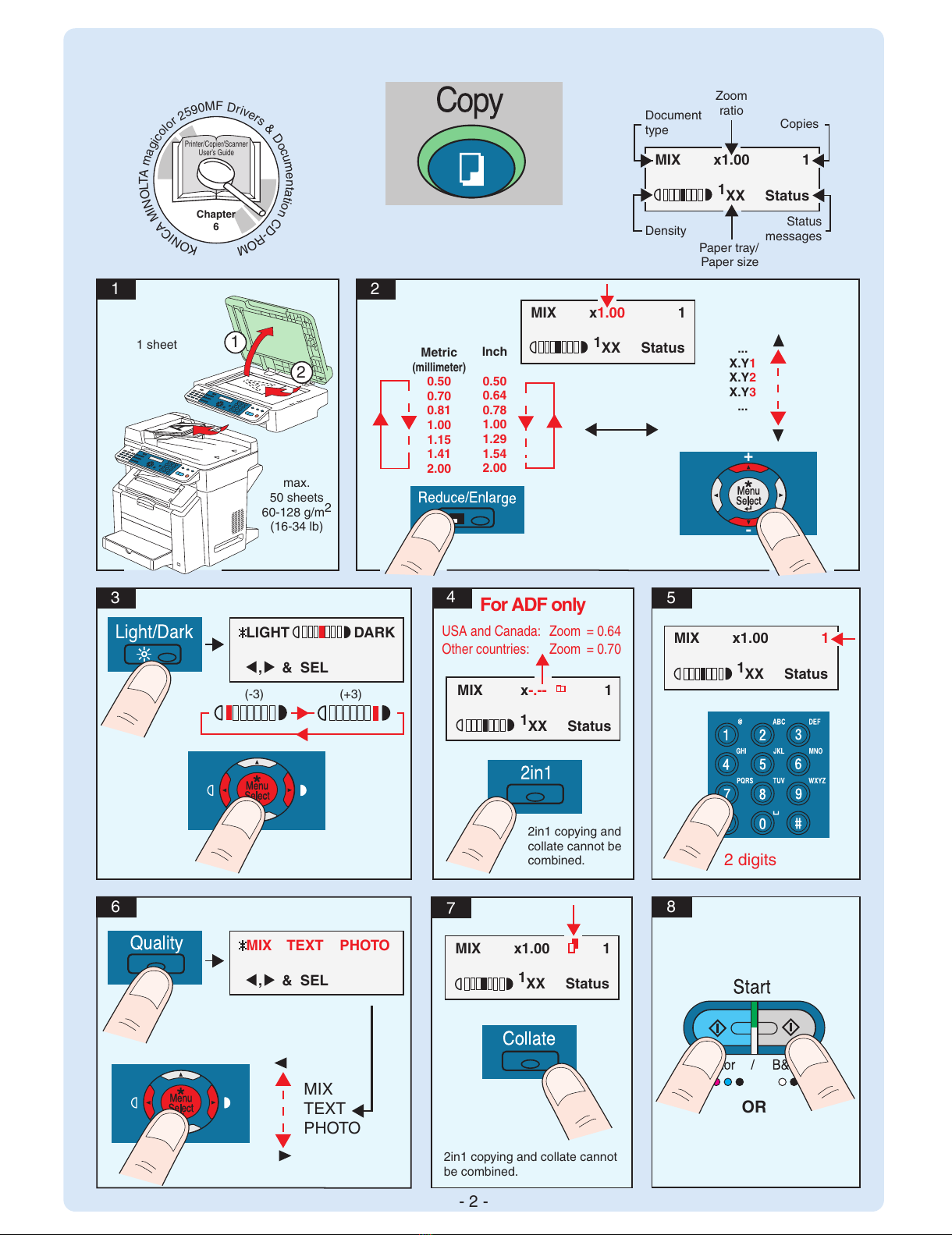

MIX x1.00 1

1XX Status

Document

type Copies

Density

Paper tray/

Paper size

Status

messages

Zoom

ratio

MIX x1.00 1

1XX Status

2 digits

Metric

(millimeter)

0.50

0.70

0.81

1.00

1.15

1.41

2.00

Inch

0.50

0.64

0.78

1.00

1.29

1.54

2.00

(-3) (+3)

For ADF only

2in1 copying and

collate cannot be

combined.

MIX x-.-- 1

1XX Status

USA and Canada: Zoom = 0.64

Other countries: Zoom = 0.70

LIGHT DARK

, & SEL

...

X.Y1

X.Y2

X.Y3

...

MIX x1.00 1

1XX Status

MIX

TEXT


MIX x1.00 1

1XX Status

2in1 copying and collate cannot

be combined.

Printer/Copier/Scanner

User’s Guide

Chapter

MIX TEXT PHOTO

, & SEL

max.

50 sheets

60-128 g/m2

(16-34 lb)

1 sheet 1

All manuals and user guides at all-guides.com

- 3 -

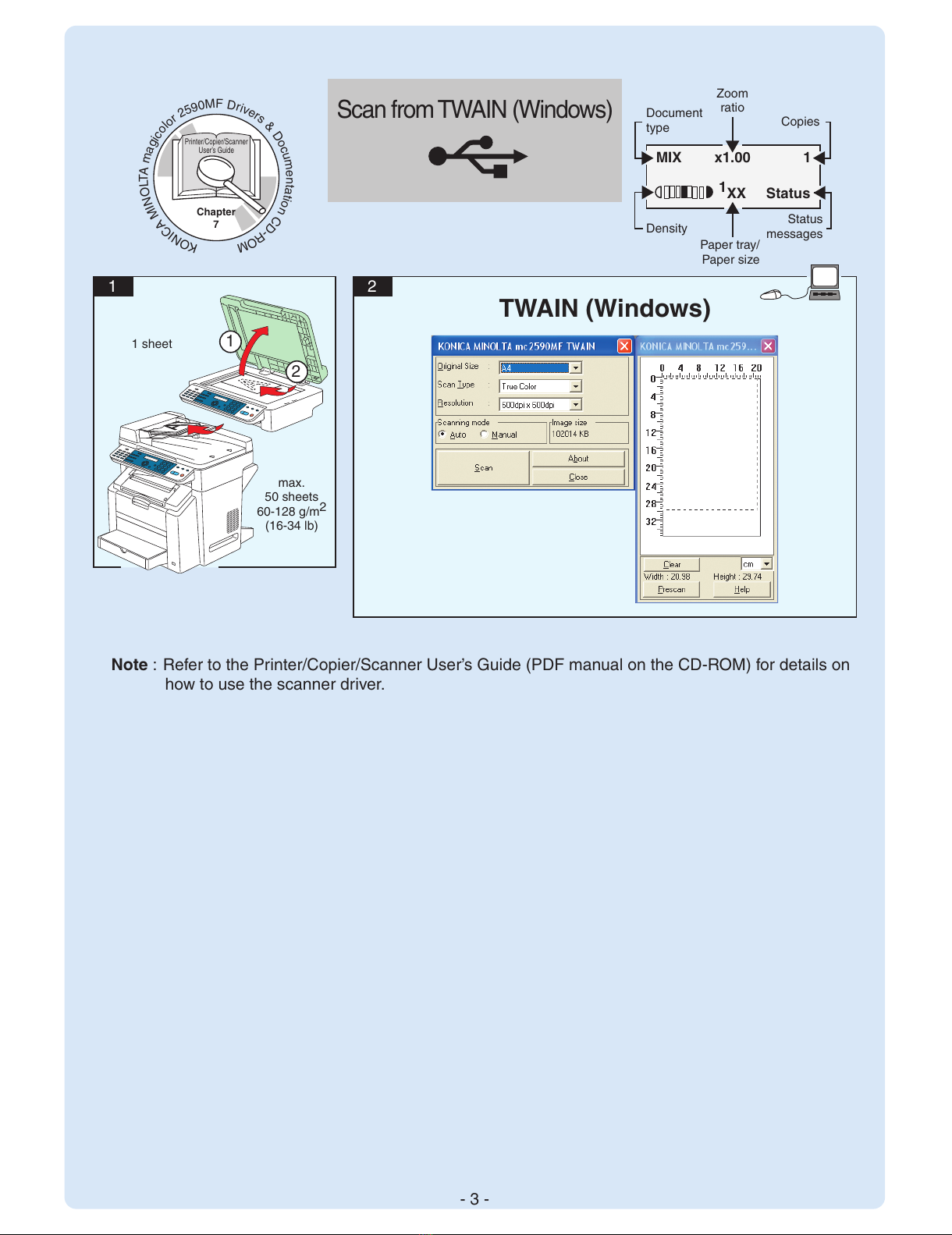

Scan from TWAIN (Windows)

MIX x1.00 1

1XX Status

Document

type Copies

Density

Paper tray/

Paper size

Status

messages

Zoom

ratio

Note : Refer to the Printer/Copier/Scanner User’s Guide (PDF manual on the CD-ROM) for details on

how to use the scanner driver.

Printer/Copier/Scanner

User’s Guide

Chapter

max.

50 sheets

60-128 g/m2

(16-34 lb)

1 sheet 1

TWAIN (Windows)

All manuals and user guides at all-guides.com

- 4 -

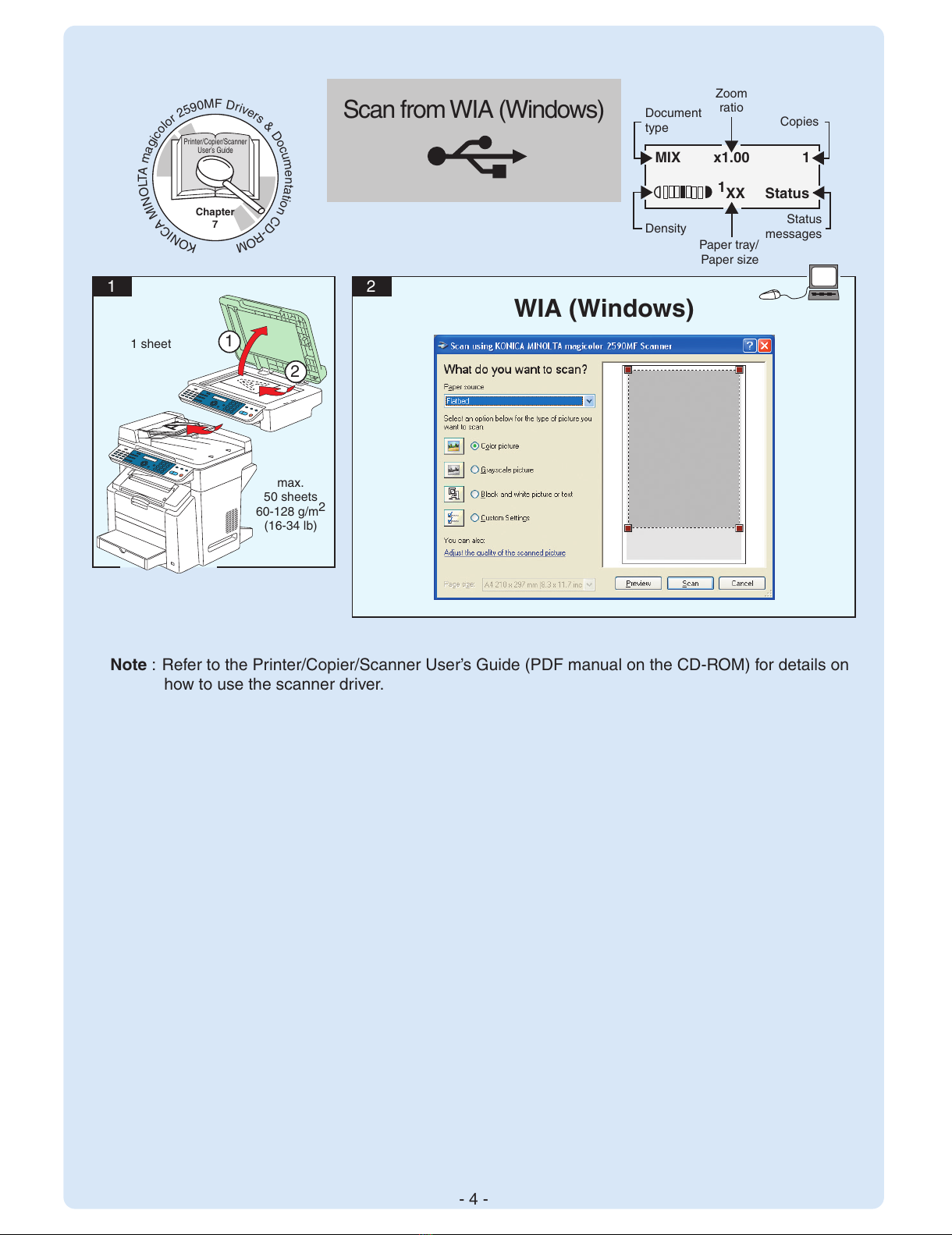

Scan from WIA (Windows)

MIX x1.00 1

1XX Status

Document

type Copies

Density

Paper tray/

Paper size

Status

messages

Zoom

ratio

Note : Refer to the Printer/Copier/Scanner User’s Guide (PDF manual on the CD-ROM) for details on

how to use the scanner driver.

Printer/Copier/Scanner

User’s Guide

Chapter

max.

50 sheets

60-128 g/m2

(16-34 lb)

1 sheet 1

WIA (Windows)

All manuals and user guides at all-guides.com

- 5 -

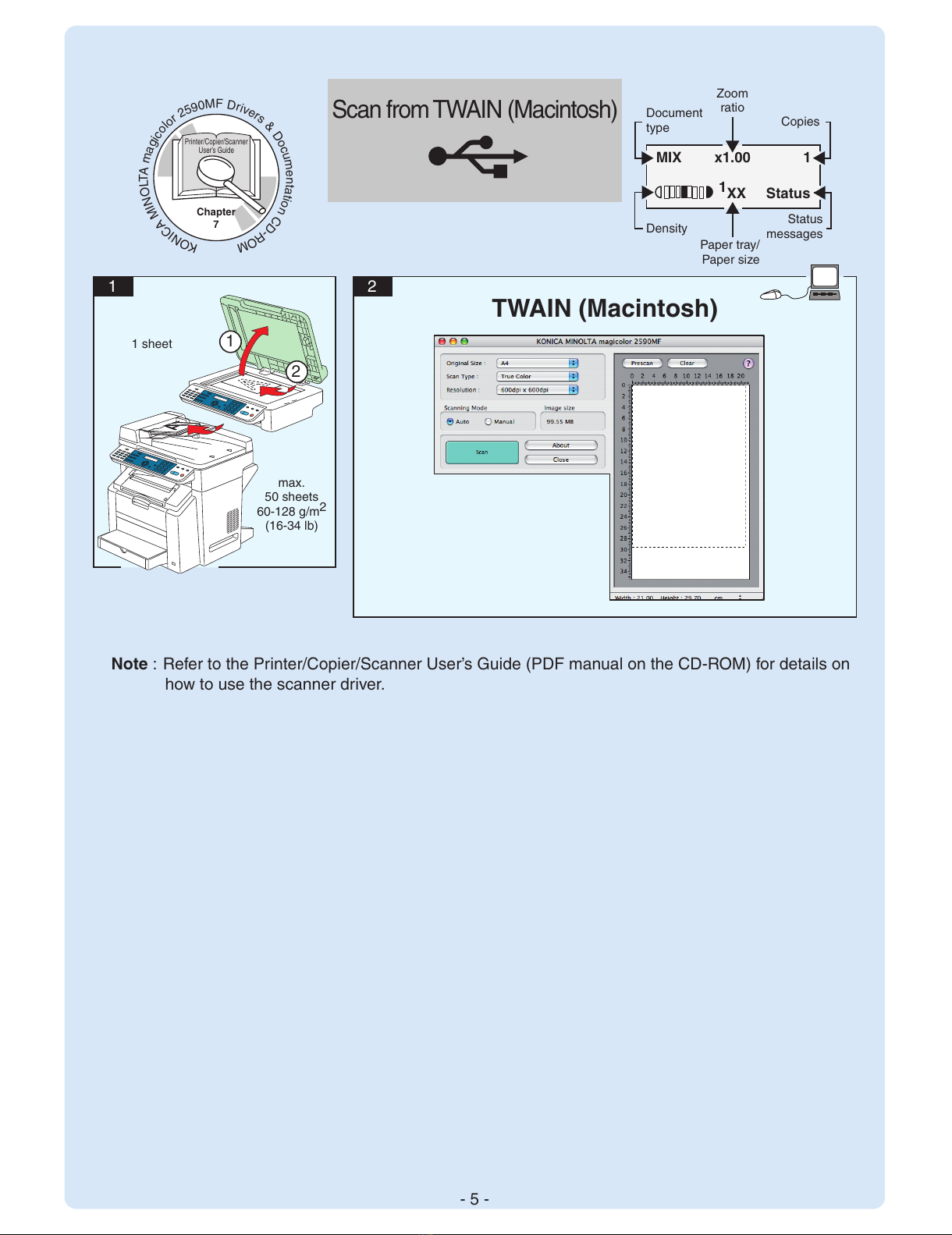

Scan from TWAIN (Macintosh)

MIX x1.00 1

1XX Status

Document

type Copies

Density

Paper tray/

Paper size

Status

messages

Zoom

ratio

Note : Refer to the Printer/Copier/Scanner User’s Guide (PDF manual on the CD-ROM) for details on

how to use the scanner driver.

Printer/Copier/Scanner

User’s Guide

Chapter

max.

50 sheets

60-128 g/m2

(16-34 lb)

1 sheet 1

TWAIN (Macintosh)

All manuals and user guides at all-guides.com

- 6 -

COLOR

GRAY or B/W

Printer/Copier/Scanner

User’s Guide

Chapter

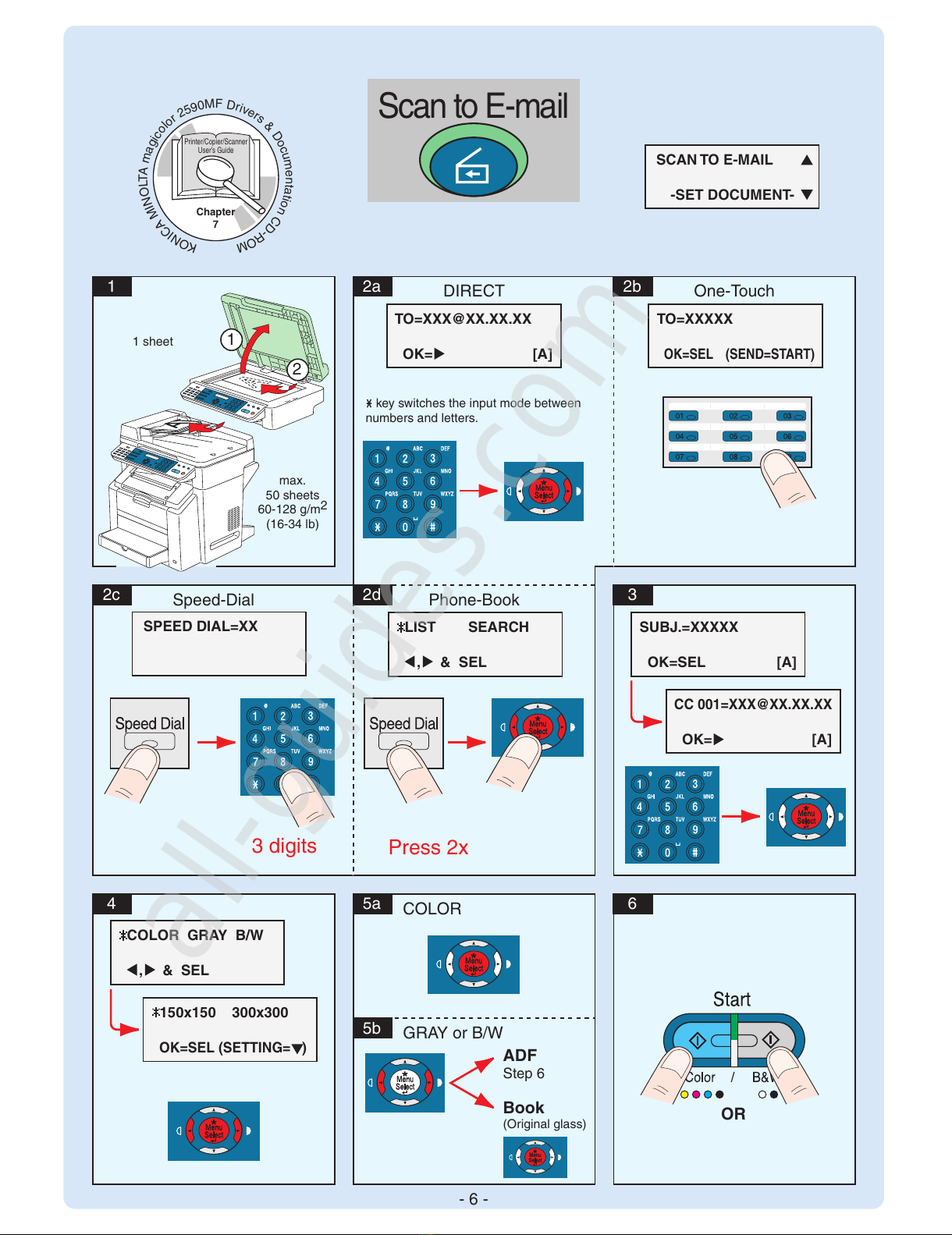

SCAN TO E-MAIL

-SET DOCUMENT-

1 2a 2b

2c 2d 3

4 5a

max.

50 sheets

60-128 g/m2

(16-34 lb)

1 sheet 1

T[email protected]

OK= [A]

TO=XXXXX

(SEND=START)

3 digits

SPEED DIAL=XX

Press 2x

LIST SEARCH

, & SEL

SUBJ.=XXXXX

OK=SEL [A]

ADF

Step 6

150x150 300x300

OK=SEL (SETTING= )

COLOR GRAY B/W

, & SEL

CC [email protected]

OK= [A]

Book

(Original glass)

OK=SEL

Scan to E-mail

Phone-BookSpeed-Dial

DIRECT

key switches the input mode between

numbers and letters.

One-Touch

All manuals and user guides at all-guides.com

all-guides.com

- 7 -

Printer/Copier/Scanner

User’s Guide

Chapter

123

max.

50 sheets

60-128 g/m2

(16-34 lb)

1 sheet 1

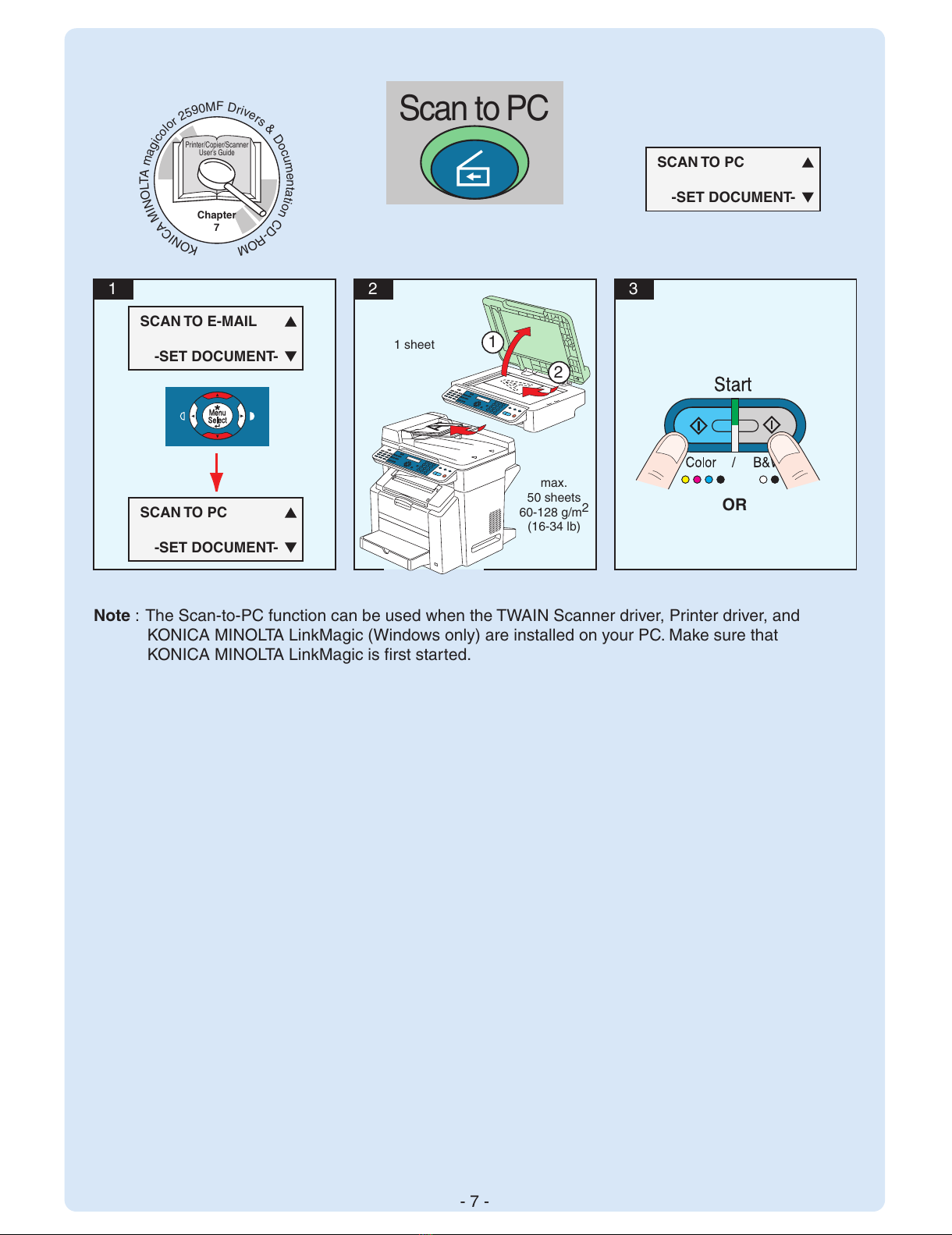

SCAN TO PC

-SET DOCUMENT-

SCAN TO PC

-SET DOCUMENT-

SCAN TO E-MAIL

-SET DOCUMENT-

Note : The Scan-to-PC function can be used when the TWAIN Scanner driver, Printer driver, and

KONICA MINOLTA LinkMagic (Windows only) are installed on your PC. Make sure that

KONICA MINOLTA LinkMagic is first started.

Scan to PC

All manuals and user guides at all-guides.com

- 8 -

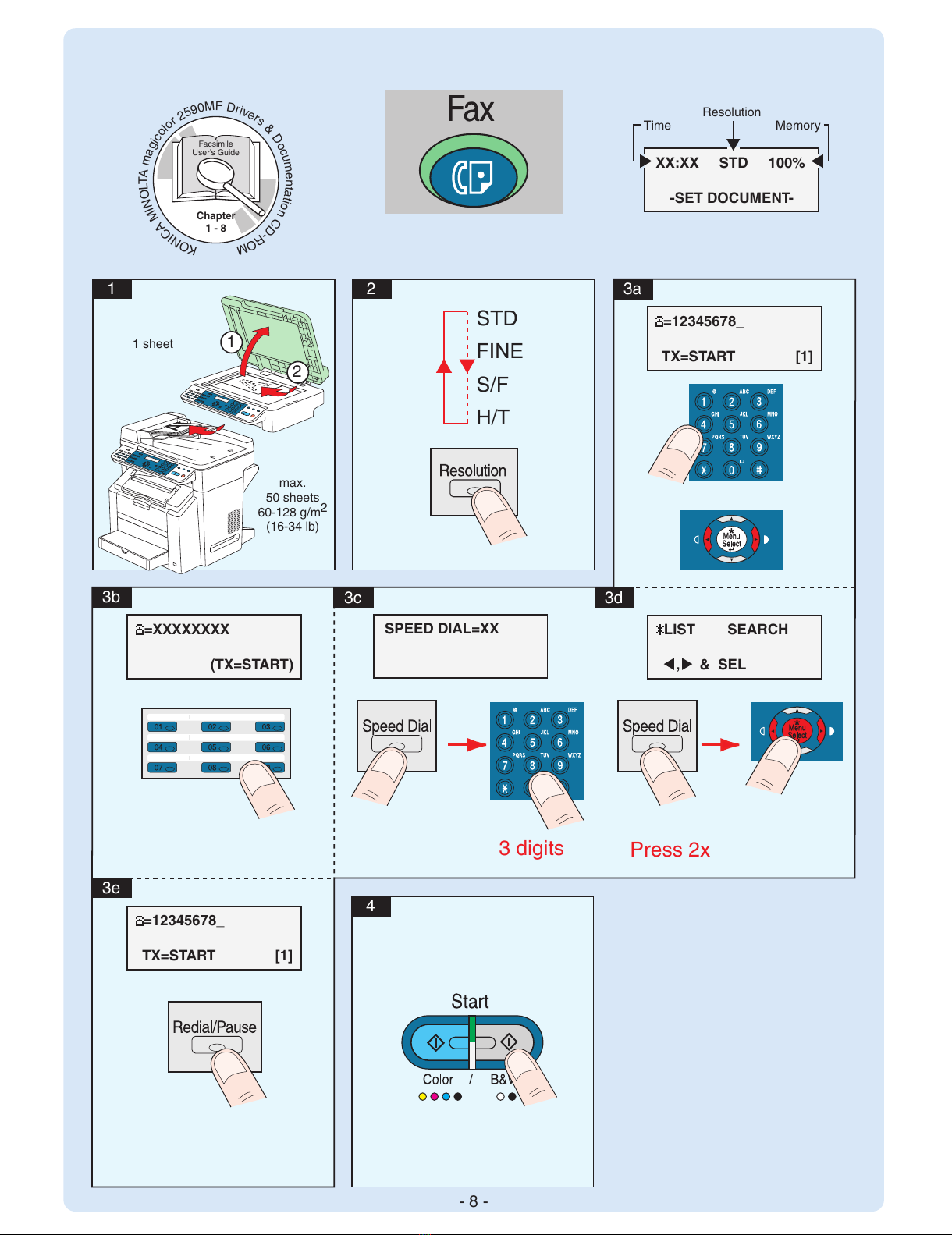

STD

FINE

S/F

H/T

Press 2x

3 digits

3c 3d

XX:XX STD 100%

Time

-SET DOCUMENT-

Resolution

Memory

=XXXXXXXX

(TX=START)

SPEED DIAL=XX LIST SEARCH

, & SEL

=12345678_

TX=START [1]

=12345678_

TX=START [1]

Facsimile

User’s Guide

Chapter

1 - 8

max.

50 sheets

60-128 g/m2

(16-34 lb)

1 sheet 1

All manuals and user guides at all-guides.com

- 9 -

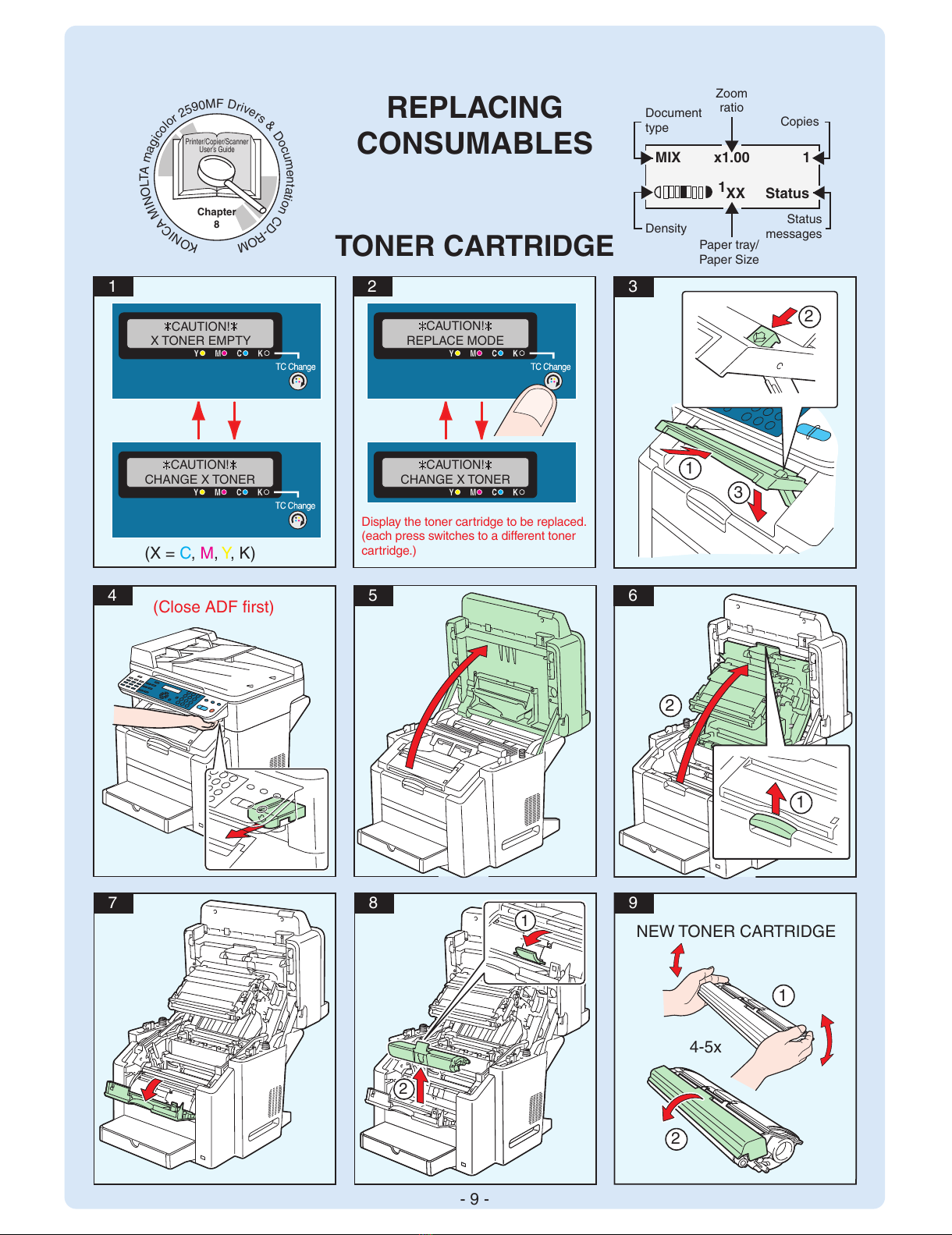

REPLACING

CONSUMABLES

TONER CARTRIDGE

MIX x1.00 1

1XX Status

Document

type Copies

Density

Paper tray/

Paper Size

Status

messages

Zoom

ratio

NEW TONER CARTRIDGE

4-5x

(X = C, M, Y, K)

CAUTION!

REPLACE MODE

CAUTION!

X TONER EMPTY

CAUTION!

CHANGE X TONER

CAUTION!

CHANGE X TONER

Display the toner cartridge to be replaced.

(each press switches to a different toner

cartridge.)

Printer/Copier/Scanner

User’s Guide

Chapter

(Close ADF first)

All manuals and user guides at all-guides.com

- 10 -

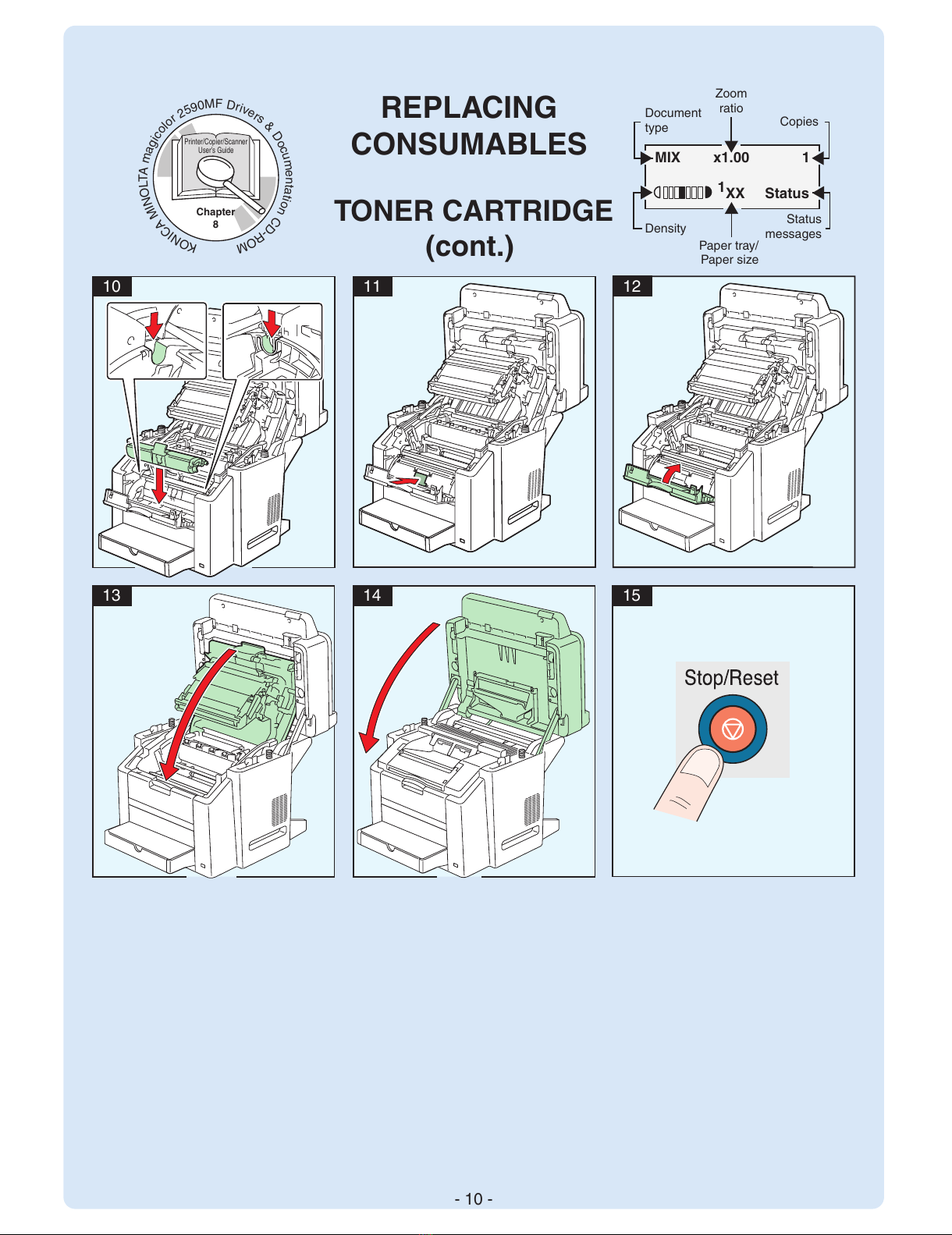

TONER CARTRIDGE

(cont.)

REPLACING

CONSUMABLES

13 15

MIX x1.00 1

1XX Status

Document

type Copies

Density

Paper tray/

Paper size

Status

messages

Zoom

ratio

Printer/Copier/Scanner

User’s Guide

Chapter

All manuals and user guides at all-guides.com
