Introduction 1

Introduction

Thank you for contacting a technical support representative to obtain

information about returning your PagePro 1380 MF for warranty exchange.

Follow these instructions very carefully.

If you need additional assistance, refer to the General Information Guide

(included with the original all-in-one) or printer.konicaminolta.com for world-

wide sources of service and support.

Attention

Failure to follow these instructions could result in voiding your

warranty.

Exchange Procedure

Each of these steps is explained in detail in this guide.

1Unpack the exchange all-in-one, and unlock the scan-

ning unit.

See page 2.

2Prepare the original all-in-one—Turn it off, unplug the

power cord and USB cable, remove the output tray, and

remove the media and media tray.

See page 3.

3If you have installed an optional automatic document

feeder on the original all-in-one, move it to the

exchange all-in-one.

See page 5.

4Move the imaging cartridge from the original all-in-one

to the exchange all-in-one.

See page 7.

5Finish setting up the exchange all-in-one—attach the

the media tray and fill it with paper, attach the output

tray, plug it the power cord and USB cable, and turn on

the all-in-one.

See page 8.

6Lock the scanning unit on the original all-in-one, repack

it, and then call the shipper for pickup.

See page 10.

Unpack the Exchange All-in-One2

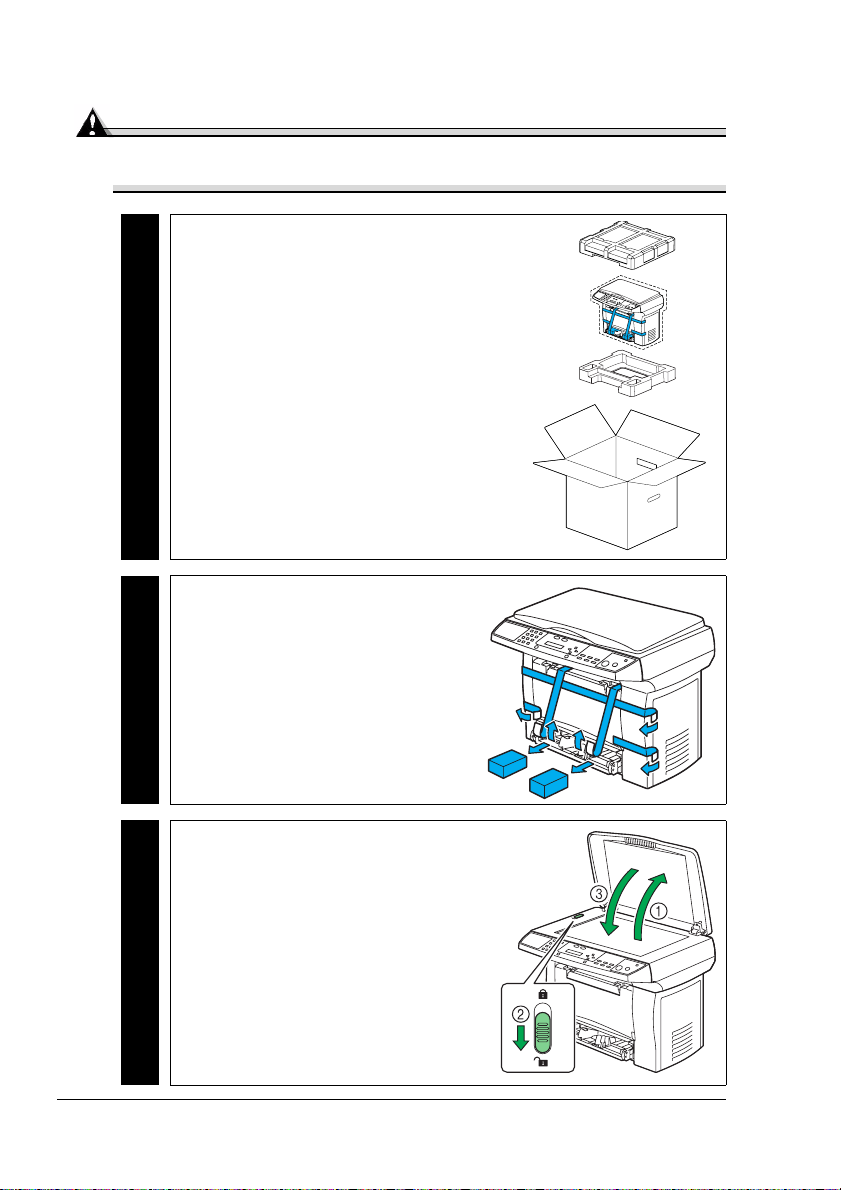

Unpack the Exchange All-in-One

Attention

Use caution when unpacking the exchange all-in-one, so the packaging

(including the tape) can be used to repack the all-in-one to be returned.

Exchange

1Unpack the exchange all-in-one.

Exchange

2Remove the tape and packing

materials from the exchange

all-in-one.

Exchange

3Unlock the scanning unit on the

exchange all-in-one.

Prepare the Original All-in-One 3

Prepare the Original All-in-One

Original

1Turn off the original all-in-one, unplug the power cord, and

remove the USB cable.

A B

Prepare the Original All-in-One4

Original

2Remove the output tray from the

original all-in-one.

Original

3Remove the media from the original all-in-one, and then remove

the media tray.

A B

Move the Automatic Document Feeder (If Applicable) 5

Move the Automatic Document Feeder

(If Applicable)

If you have installed an optional automatic document feeder on the original

all-in-one, use these instructions to move it to the exchange all-in-one.

Otherwise, skip to the next section, “Move the Imaging Cartridge.”

Exchange

1Remove the document cover

from the exchange all-in-one.

Original

2Remove the automatic document feeder from the original

all-in-one, and then install the document cover you removed ear-

lier from the exchange all-in-one.

Document

Cover

A B

ADF

Document

Cover

Move the Automatic Document Feeder (If Applicable)6

Exchange

3Install the automatic document feeder on the exchange all-in-one.

A B

ADF

Move the Imaging Cartridge 7

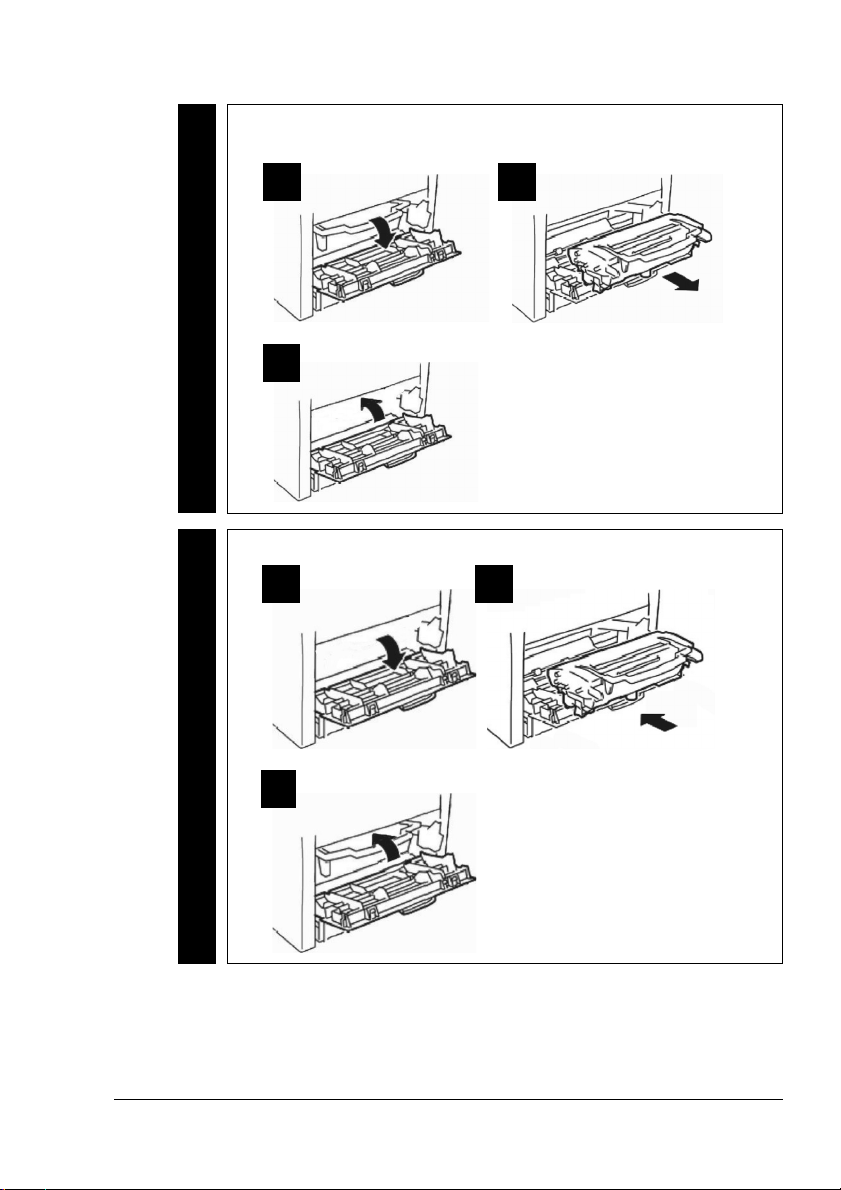

Move the Imaging Cartridge

Original

1Remove the imaging cartridge (which includes both the toner

cartridge and the drum cartridge) from the original all-in-one.

Exchange

2Insert the imaging cartridge in the exchange all-in-one.

A B

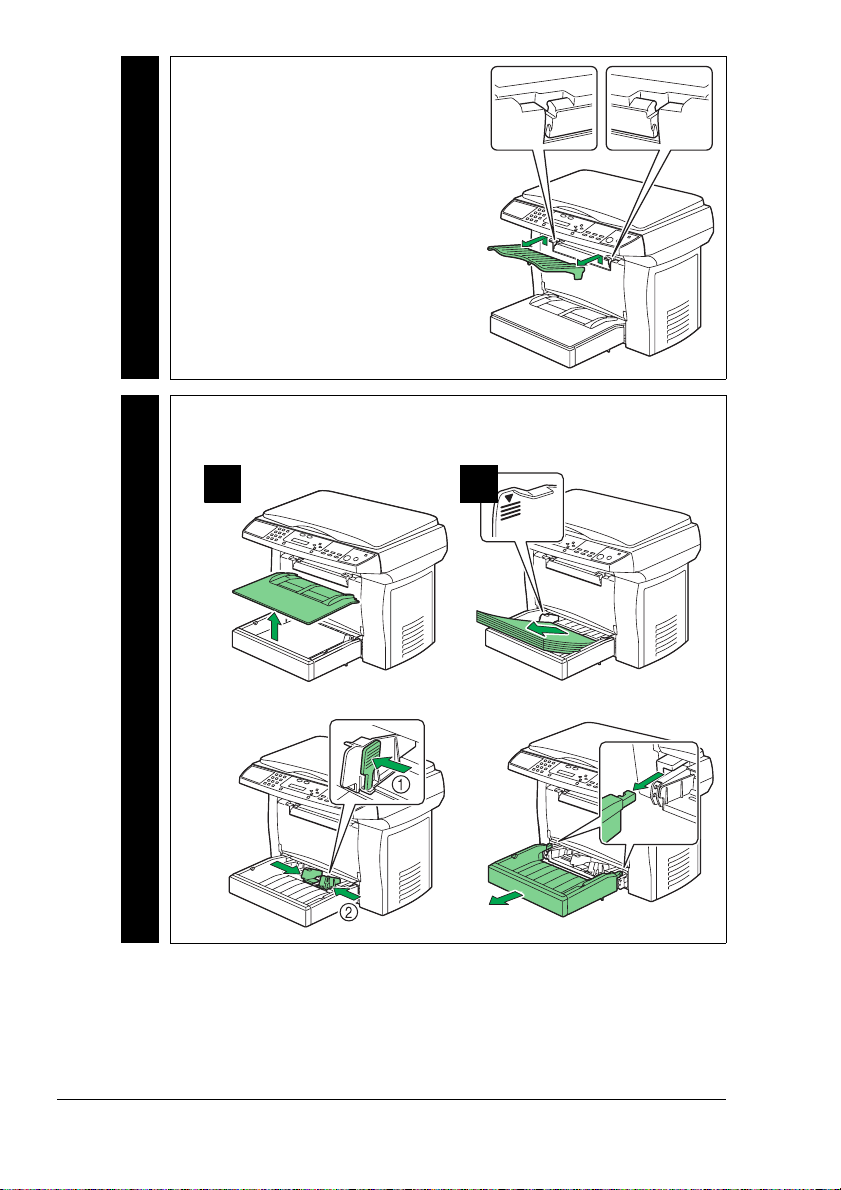

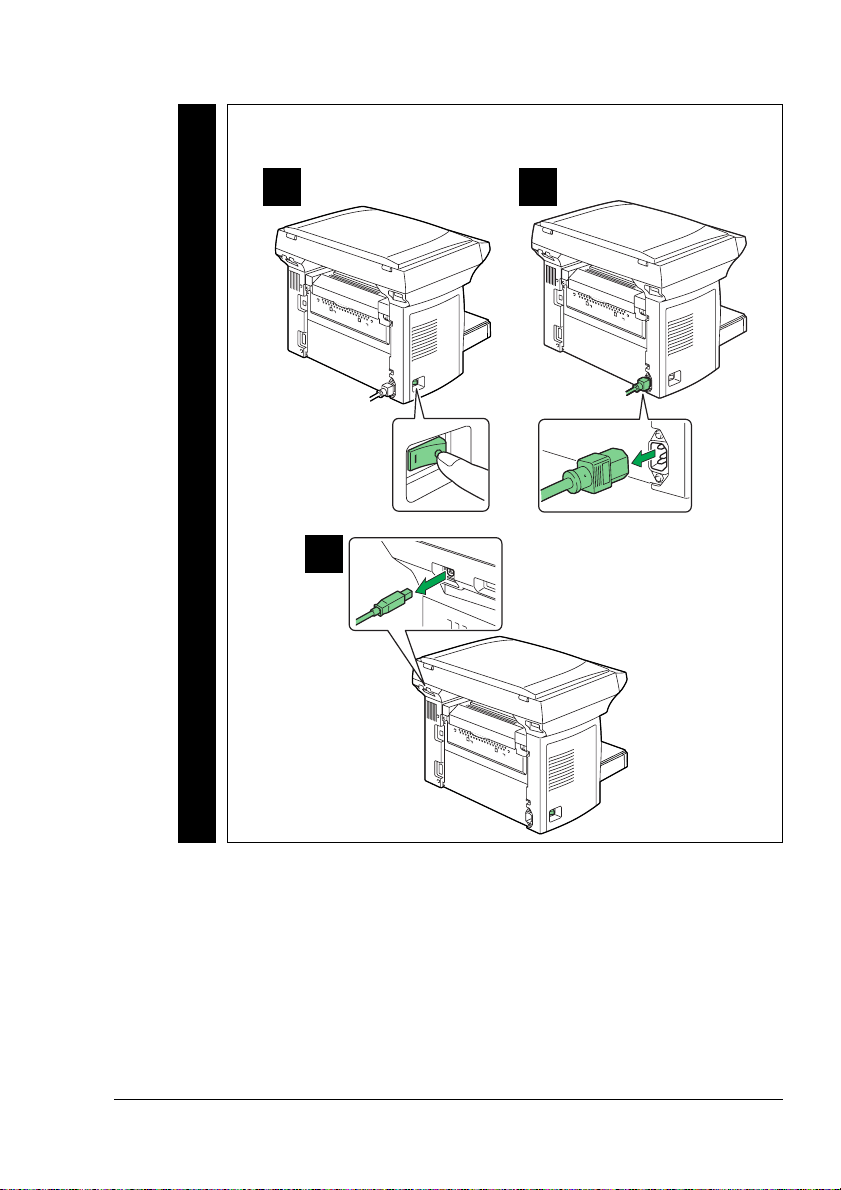

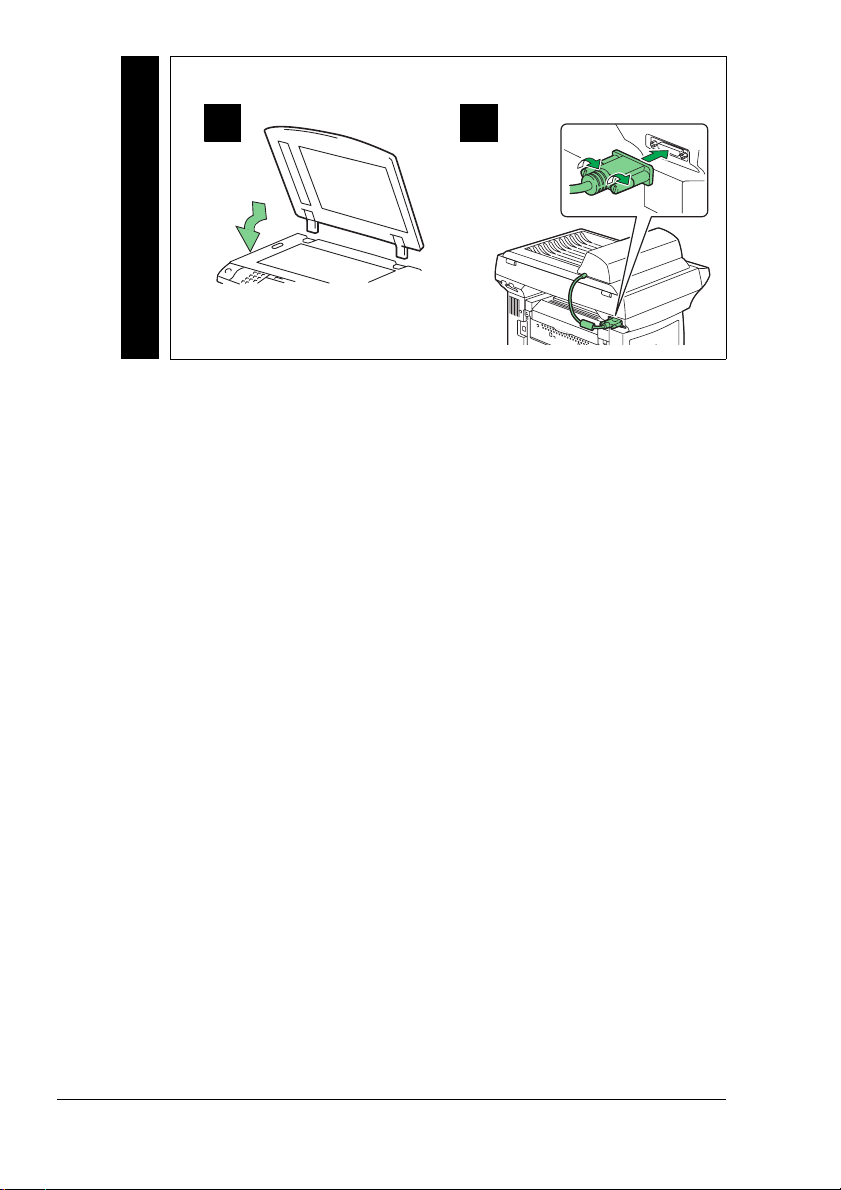

Finish Setting Up the Exchange All-in-One8

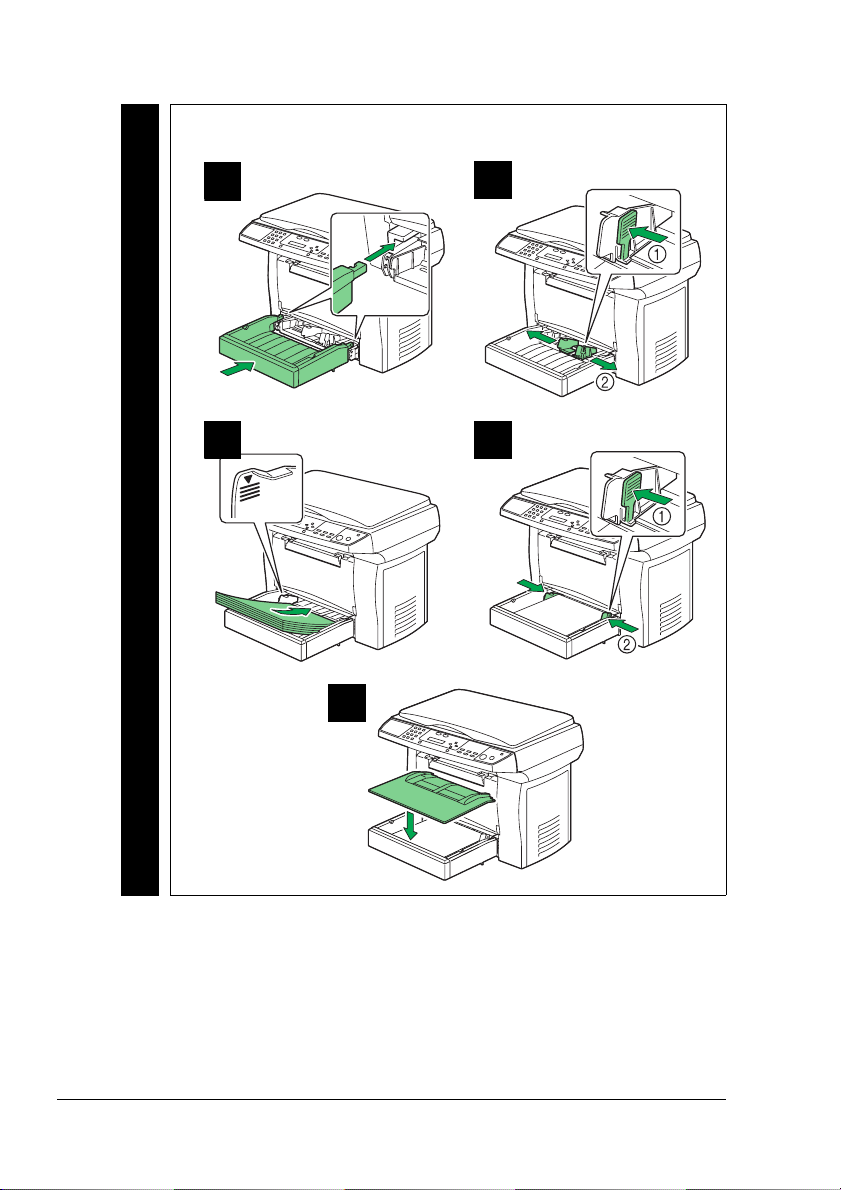

Finish Setting Up the Exchange All-in-One

Exchange

1Attach the media tray to the exchange all-in-one, and then fill it

with paper.

C D
