PagePro™1390 MF

Warranty Exchange

Guide

1760580-001A

Trademarks

KONICA MINOLTA and the KONICA MINOLTA logo are trademarks or registered

trademarks of KONICA MINOLTA HOLDINGS, INC.

PagePro is a trademark or registered trademark of KONICA MINOLTA BUSINESS

TECHNOLOGIES, INC. All other trademarks are the property of their respective

owners.

be copied, in whole or part, nor transferred to any other media or language, without

written permission of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.

Manual Notice

KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. reserves the right to make

changes to this manual and to the equipment described herein without notice.

Considerable effort has been made to ensure that this manual is free of inaccuracies

and omissions. However, KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.

makes no warranty of any kind including, but not limited to, any implied warranties of

merchantability and fitness for a particular purpose with regard to this manual.

KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. assumes no responsibility for,

or liability for, errors contained in this manual or for incidental, special, or

consequential damages arising out of the furnishing of this manual, or the use of this

manual in operating the equipment, or in connection with the performance of the

equipment when so operated.

Introduction 1

Introduction

Thank you for contacting a technical support representative to obtain

information about returning your PagePro 1390 MF for warranty exchange.

Follow these instructions very carefully.

If you need additional assistance, refer to the General Information Guide

(included with the original all-in-one) or printer.konicaminolta.com for world-

wide sources of service and support.

Attention

Failure to follow these instructions could result in voiding your

warranty.

Exchange Procedure

Each of these steps is explained in detail in this guide.

1Unpack the exchange all-in-one, and unlock the scan-

ning unit.

See page 2.

2Prepare the original all-in-one—turn it off, disconnect

the USB cable, unplug the power cord, disconnect the

telephone line(s) and ADF cable, remove the output

tray, remove the media and media tray, and then

remove the input tray and media stopper from the auto-

matic document feeder (ADF).

See page 3.

3Move the imaging cartridge from the original all-in-one

to the exchange all-in-one.

See page 6.

4Finish setting up the exchange all-in-one—attach the

input tray and media stopper to the ADF, attach the

media tray and fill it with paper, attach the output tray,

connect the ADF and USB cables, connect the tele-

phone line(s), plug in the power cord and USB cable,

and turn on the all-in-one.

See page 7.

5Lock the scanning unit, repack the original all-in-one,

and then call the shipper for pickup.

See page 12.

Unpack the Exchange All-in-One2

Unpack the Exchange All-in-One

Attention

Use caution when unpacking the exchange all-in-one, so the packaging

(including the tape) can be used to repack the all-in-one to be returned.

Exchange

1Unpack the exchange all-in-one.

Exchange

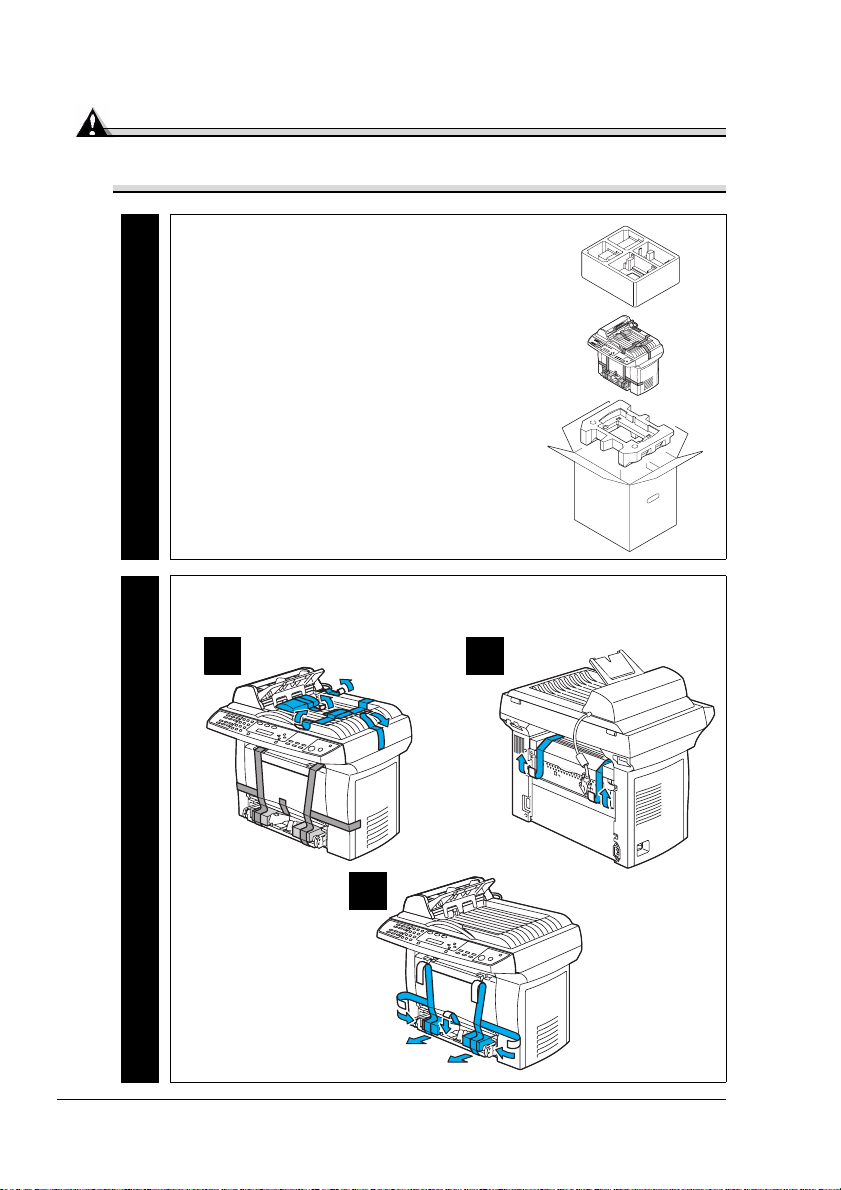

2Remove the tape and packing materials from the exchange

all-in-one.

A B

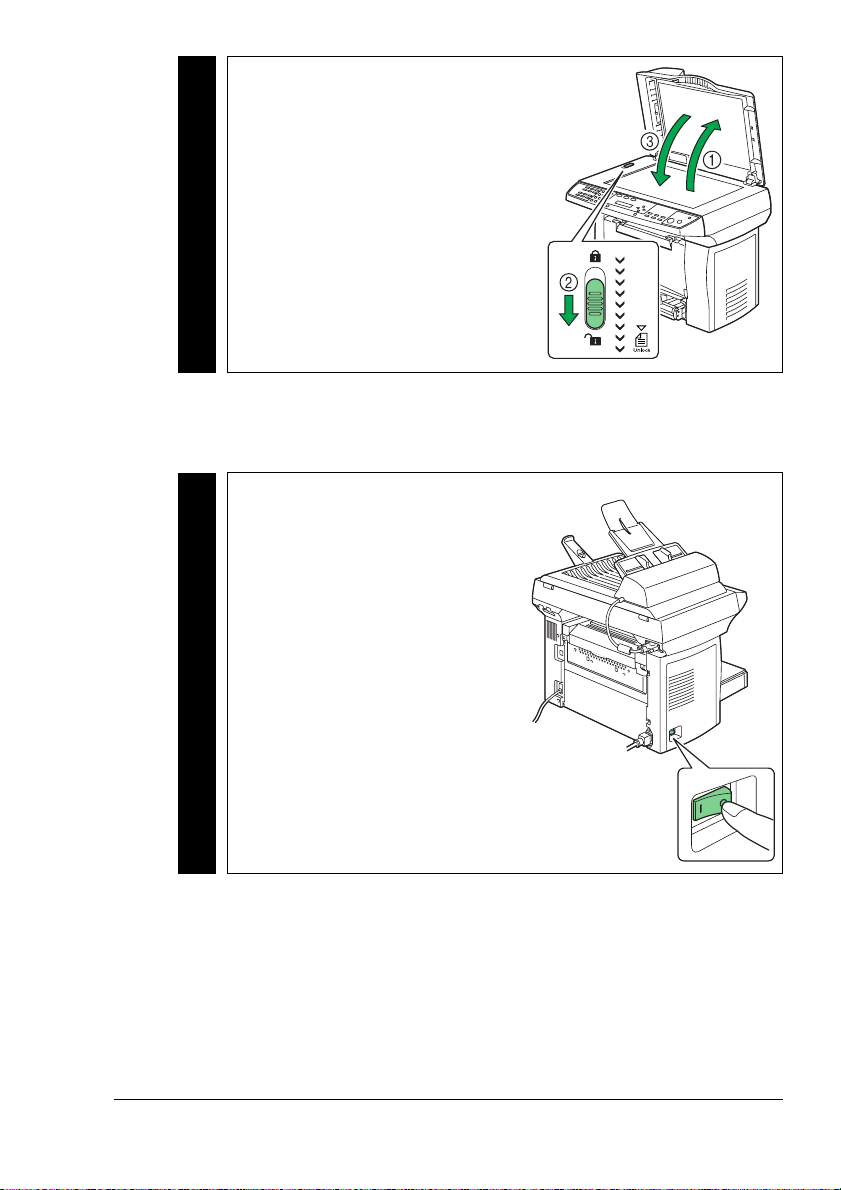

Prepare the Original All-in-One 3

Prepare the Original All-in-One

Exchange

3Unlock the scanner on the

exchange all-in-one.

Original

1Turn off the original all-in-one.

Prepare the Original All-in-One4

Original

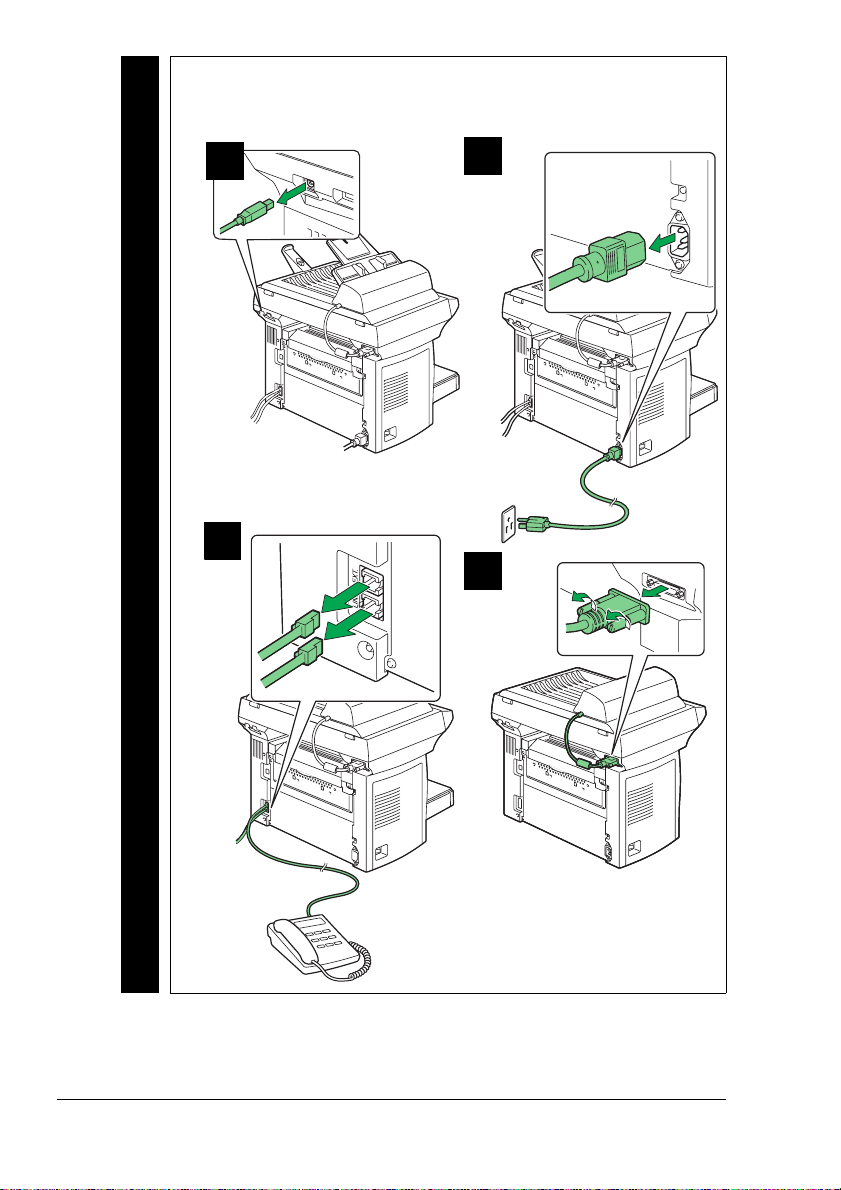

2Disconnect the USB cable, unplug the power cord, and then dis-

connect the telephone lines and the ADF cable from the original

all-in-one.

Prepare the Original All-in-One 5

Original

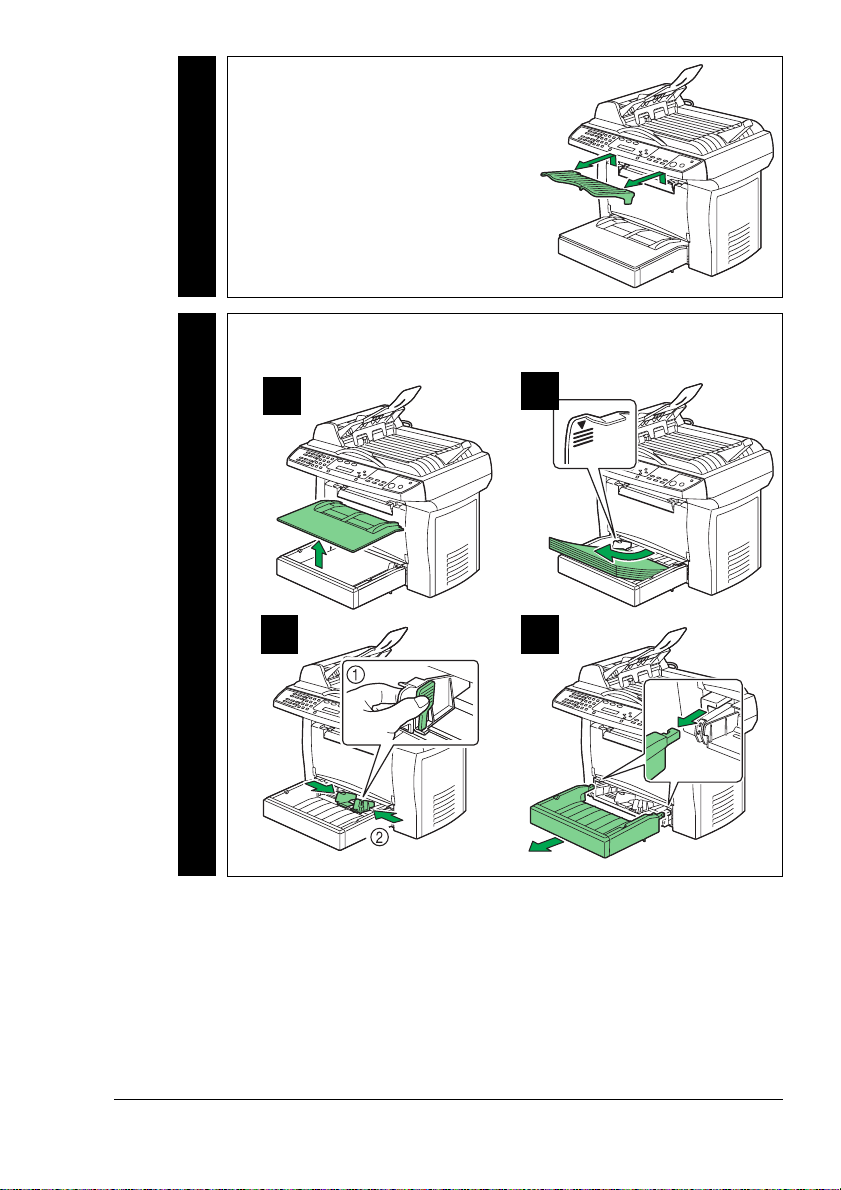

3Remove the output tray from the

original all-in-one.

Original

4Remove the media from the original all-in-one, and then remove

the media tray.

Move the Imaging Cartridge6

Move the Imaging Cartridge

Original

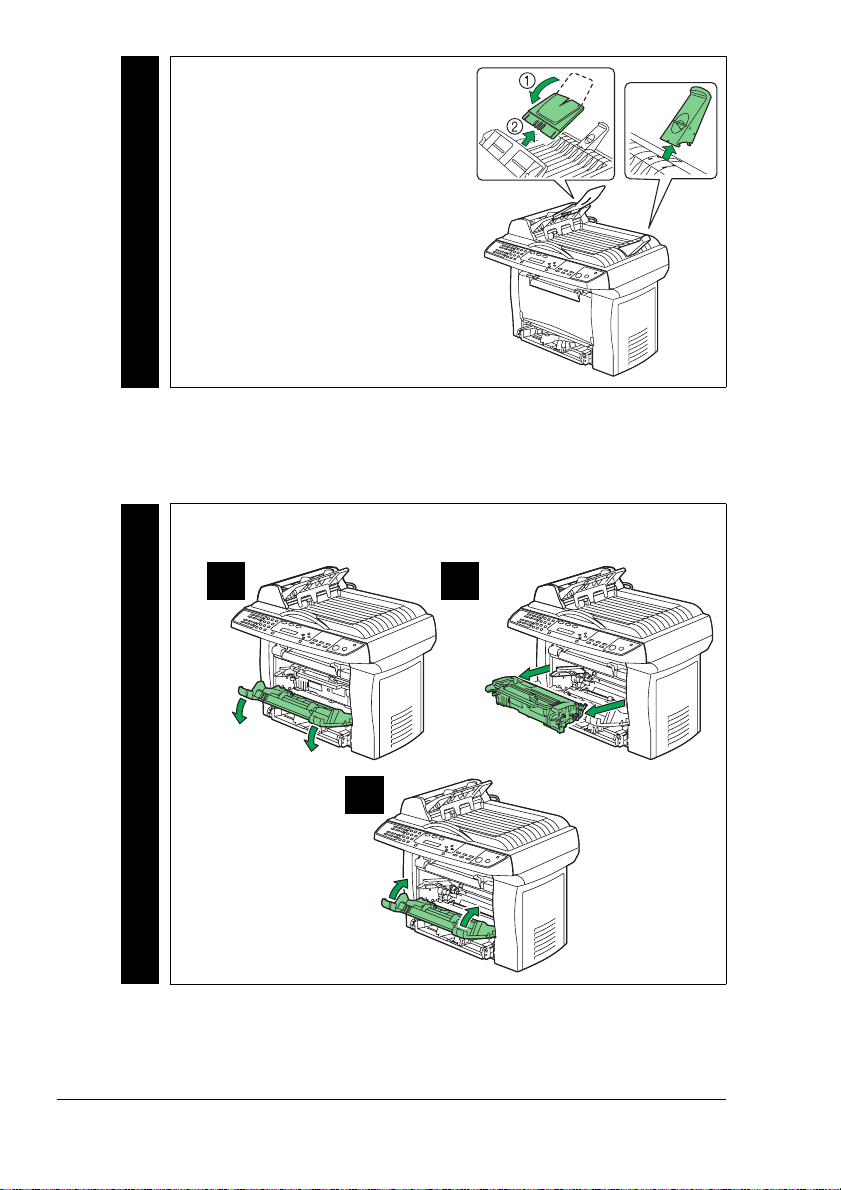

5Fold down and remove the

ADF input tray from the origi-

nal all-in-one, and then remove

the media stopper from the

ADF cover.

Original

1Remove the imaging cartridge (which includes both the toner

cartridge and the drum cartridge) from the original all-in-one.

A B

Finish Setting Up the Exchange All-in-One 7

Finish Setting Up the Exchange All-in-One

Exchange

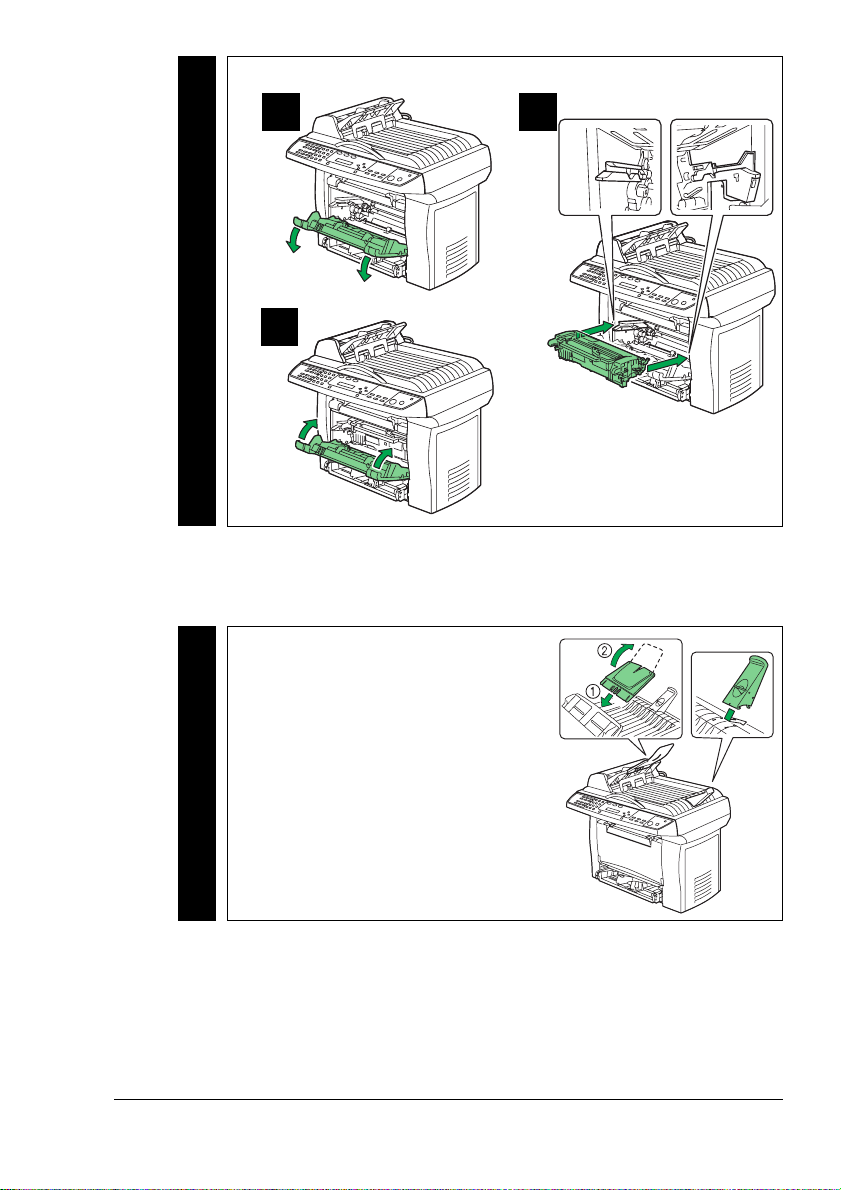

2Insert the imaging cartridge in the exchange all-in-one.

Exchange

1Attach and fold up the ADF input

tray on the exchange all-in-one,

and then attach the media stop-

per on the ADF cover.

" You removed these items

from the original all-in-one

on page 6.

A B

Finish Setting Up the Exchange All-in-One8

Exchange

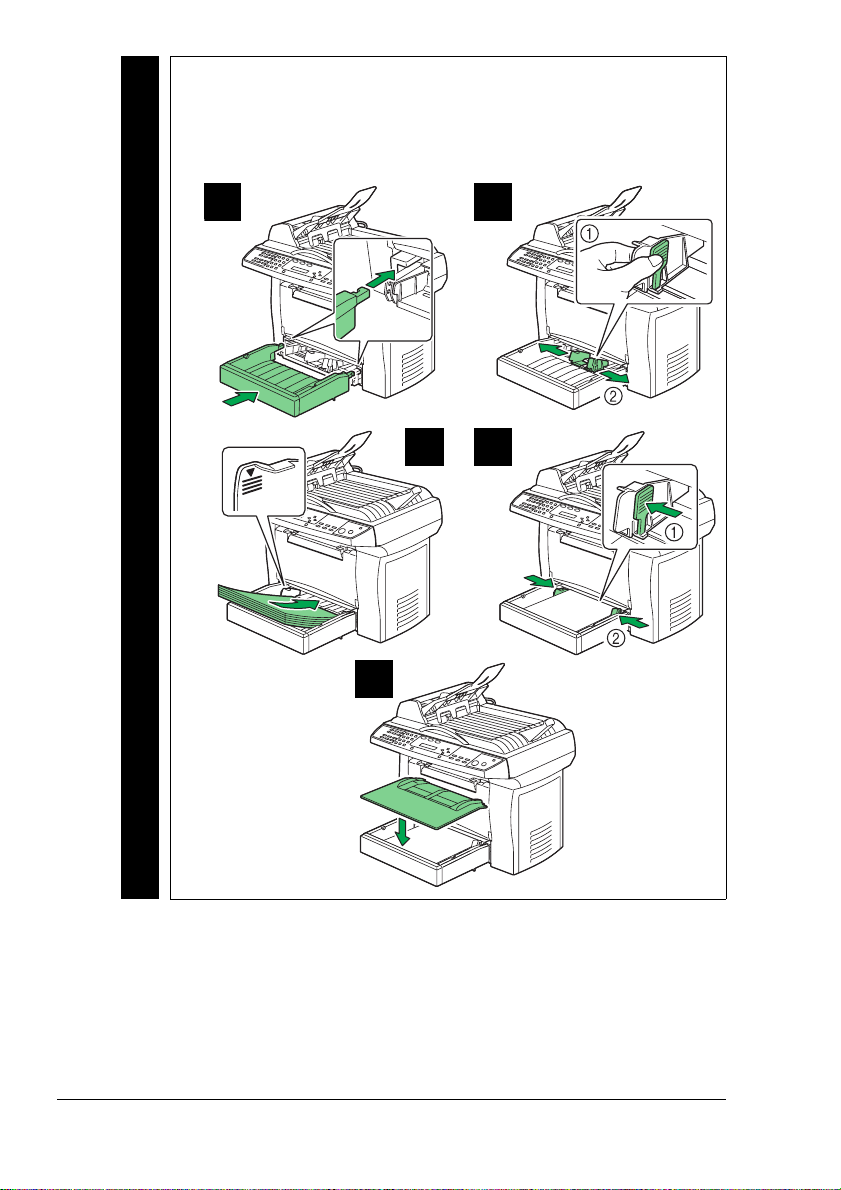

2Attach the media tray to the exchange all-in-one, and then fill it

with paper.

" You removed these items from the original all-in-one on

page 5.

A B

C D
