Konig CMP-USBVG4 Manuale utente

CMP-USBVG4

(p. 2)

USB2.0 AUDIO/VIDEO GRABBER FOR

VISTA TM

(S. 9)

USB2.0 AUDIO/VIDEO GRABBER FÜR

VISTA TM

(s. 16)

GRABBER USB2.0 AUDIO/VIDEO POUR

VISTA MC

(p. 23)

USB2.0 AUDIO/VIDEO GRABBER VOOR

VISTA TM

(p. 30)

STRUMENTO DI ACQUISIZIONE AUDIO/

VIDEO USB2.0 PER VISTA TM

(p. 37)

GRABADORA DE AUDIO/VÍDEO CON

USB2.0 PARA VISTA TM

(o. 44)

VISTA TM KOMPATIBILIS USB 2.0-ÁS

AUDIÓ/VIDEÓ DIGITALIZÁLÓ

(s. 51)

USB2.0 AUDIO/VIDEO-SIEPPARI

VISTATM-KÄYTTÖJÄRJESTÄLMÄÄN

(s. 58)

USB2.0 AUDIO/VIDEO GRABBER FÖR

VISTA TM

(s. 65)

ZAŘÍZENÍ PRO STAHOVÁNÍ AUDIO/

VIDEO PRO VISTA ™ PŘES PORT USB2.0

(p. 72)

USB 2.0 AUDIO/VIDEO GRABBER PT.

VISTA TM

Before Installation:

To ensure the installation, please check the following information:

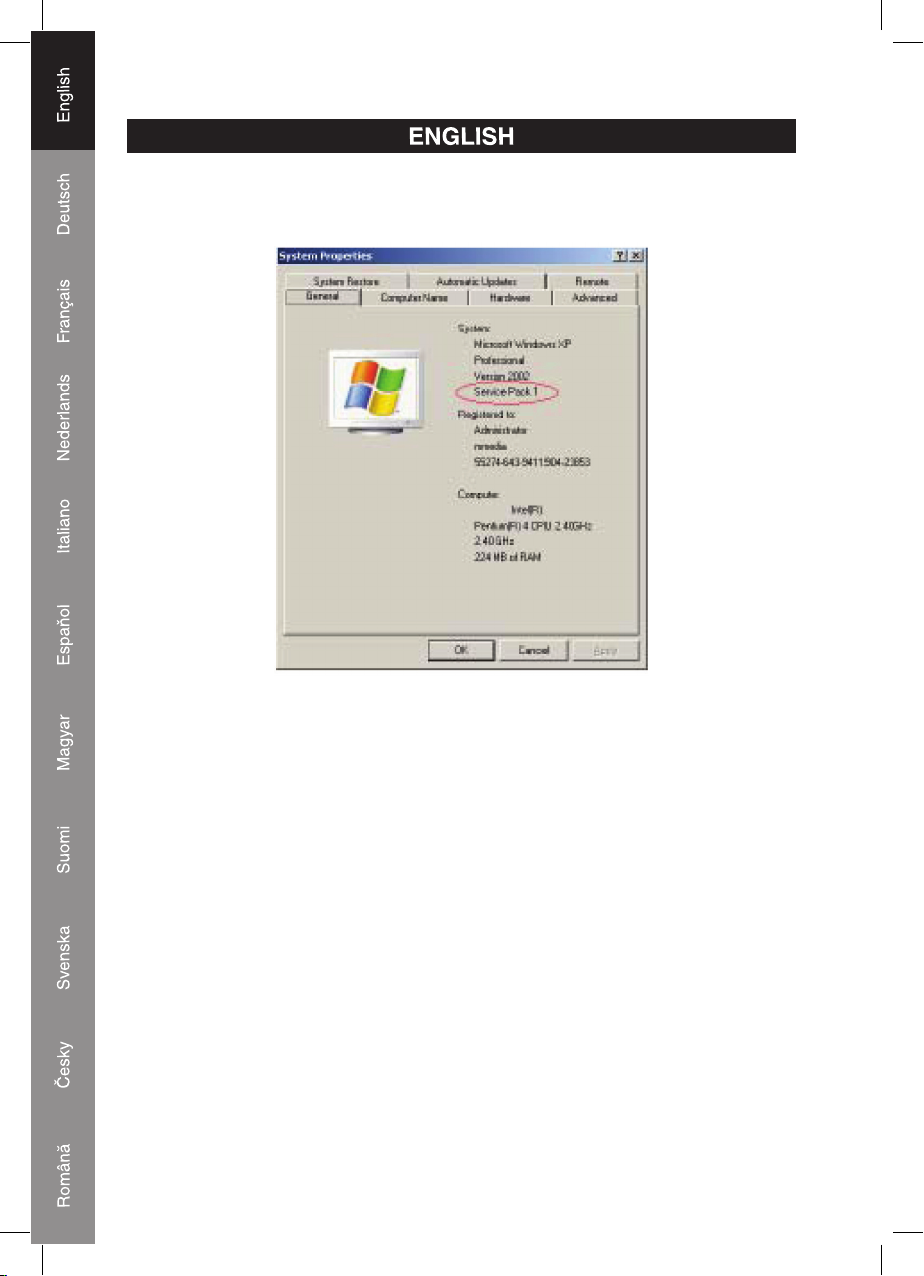

Check the version of Windows Service Pack.

Please make sure your Windows®system has been upgraded the Service Pack, Windows®XP

must be upgraded to Service Pack1, Windows®2000 must be upgraded to Service Pack 4.

Windows®2000 Service Pack 4 download site:

http://www.microsoft.com/Windows2000/downloads/servicepacks/sp4/download.asp

Windows®XP Service Pack 1 download site:

http://www.microsoft.com/windowsxp/pro/downloads/servicepacks/sp1/network.asp

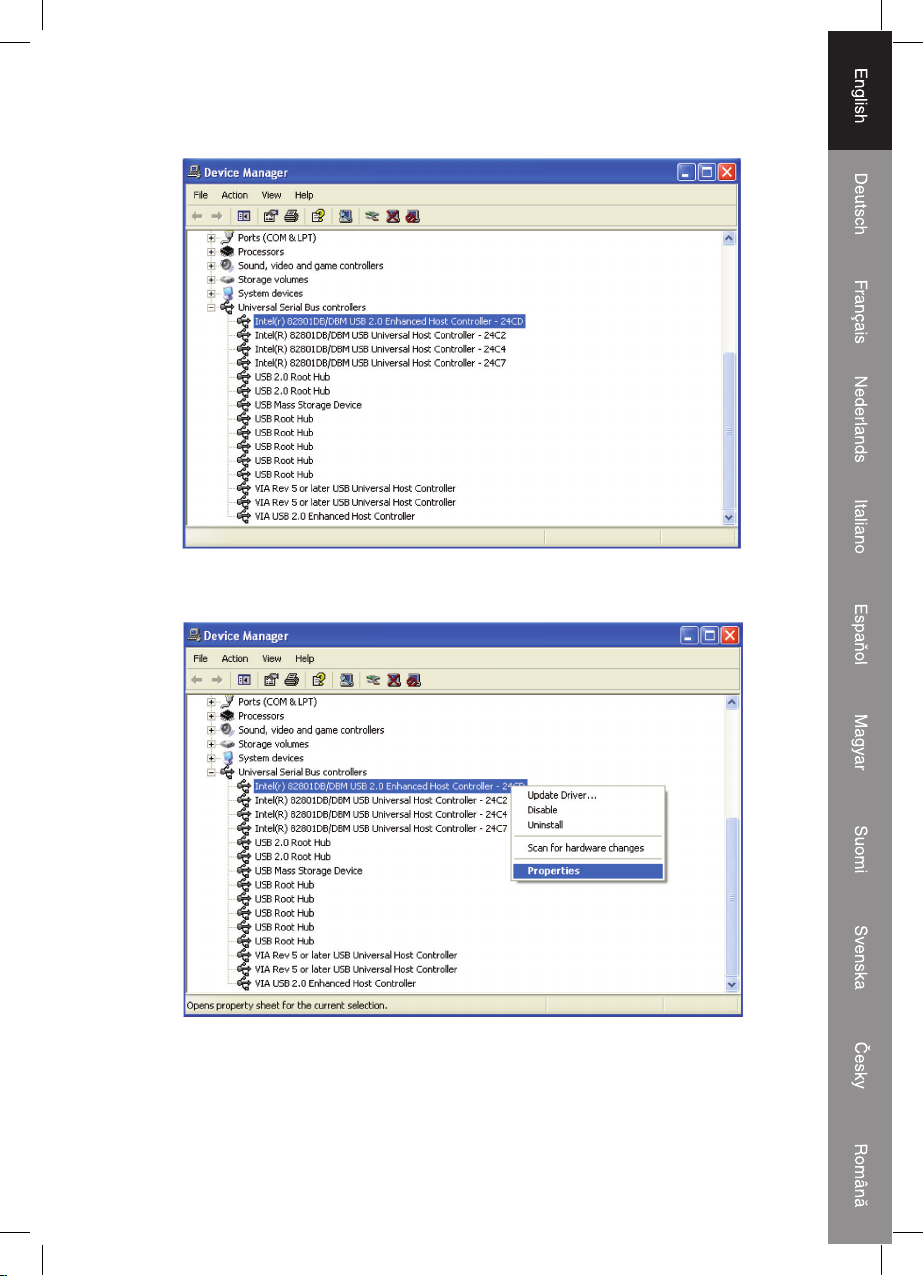

Check USB Enhanced Host Controller.

Please check the device table in the Device Manager. The USB Enhanced Host Controller must be

listed in the Universal Serial Bus Controller section.

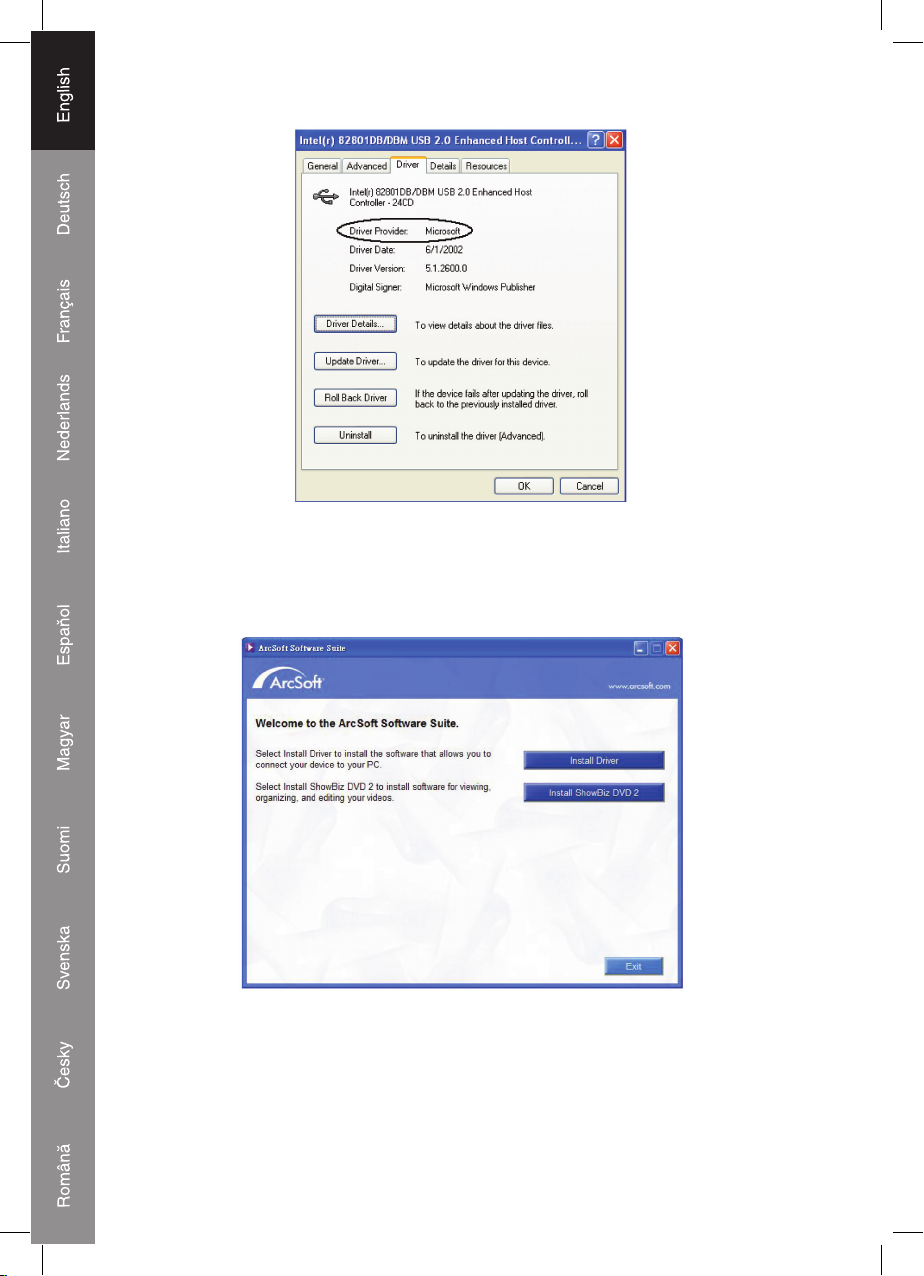

Check the version of device driver for USB Enhanced Host Controller

Check device driver for USB Enhanced Host Controller. It must provide by Microsoft. If it is not, you

need to update the device driver.

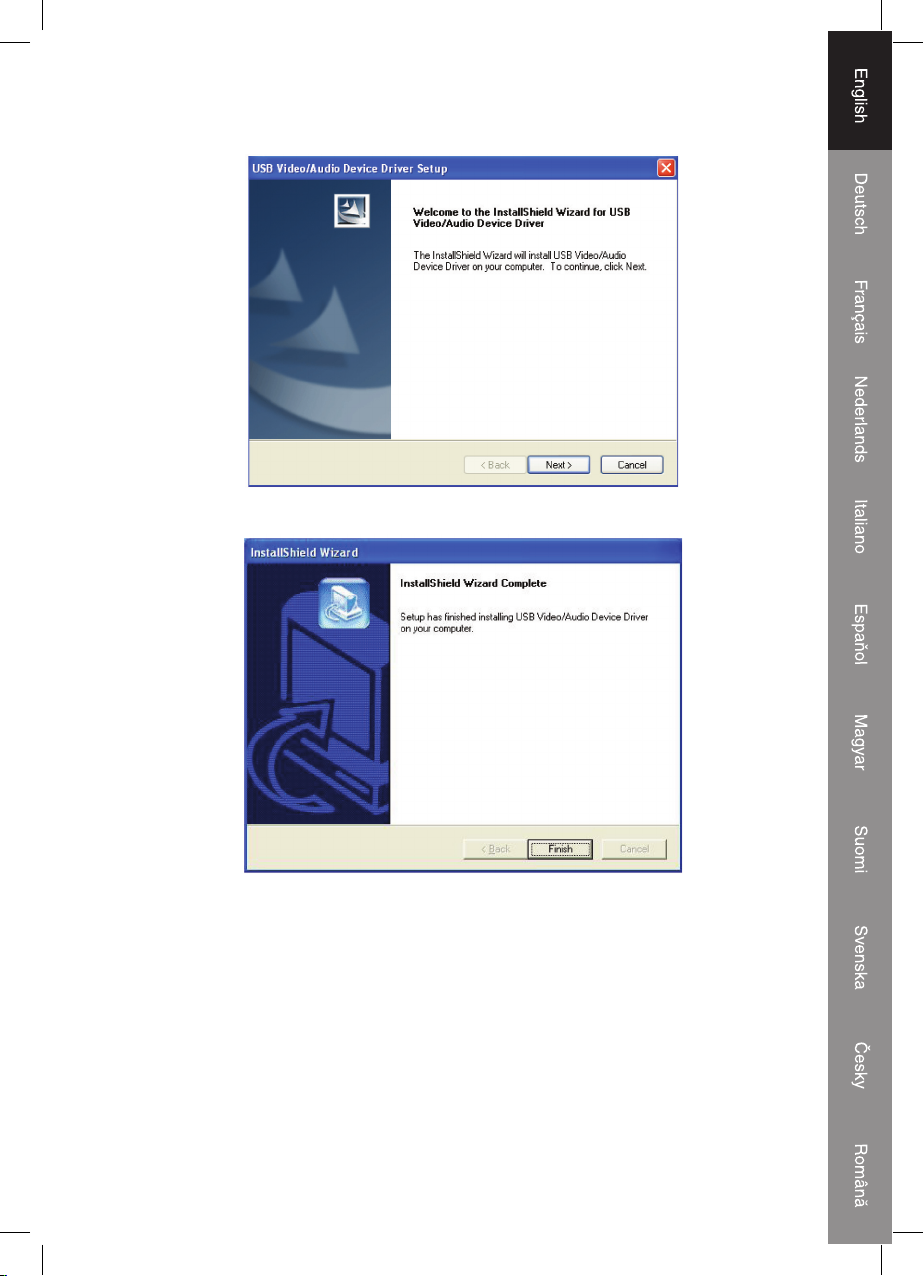

1. Install Video Grabber Driver

1.1 Connect Video Grabber with your PC and insert CD in the CD-ROM drive on your computer, then

run the grabber driver install program.

1.2 Make sure search for a suitable driver for my device is check, click next.

1.3 Click Finish to close the driver installation.

1.4 Please restart computer.

2. Continue to install ShowBiz DVD 2

2.1

Follow install shield wizard step by step. Please refer to the description of how to edit ﬁle from

ShowBiz DVD 2 “Tool Bar.”

3. Please really choose “USB 2861 Device” and “USB EMP Audio Device”.

Declaration of conformity

We,

Nedis B.V.

De Tweeling 28

5215MC ’s-Hertogenbosch

The Netherlands

Tel.: 0031 73 599 1055

Email: info@nedis.com

Declare that product:

Name: USB2.0 AUDIO/VIDEO GRABBER COMPATIBLE WITH VISTA™

Model: CMP-USBVG4

Description: USB2.0 AUDIO/VIDEO GRABBER COMPATIBLE WITH VISTA™

Is in conformity with the following standards

EMC: EN55022: 1998+A1:2000+A2:2003

EN55024: 1998+A1:2001+A2:2003

Following the provisions of the EMC DIRECTIVE 2004/108/EC.

‘s-Hertogenbosch, 29 January 2008

Mrs. J. Gilad

Purchase Director

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or

abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modiﬁcations of the product or

damage caused due to incorrect use of this product.

General:

Designs and speciﬁcations are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective

holders and are hereby recognized as such.

Attention:

This product is marked with this symbol. It means that used electrical and electronic

products should not be mixed with general household waste. There is a separate

collections system for these products.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Vor der Installation:

Um die richtige Installation zu gewährleisten, überprüfen Sie bitte folgende Informationen:

Überprüfen Sie die Version des Windows Service Pack.

Überzeugen Sie sich bitte davon, dass Ihr Windows®-System mit einem Service Pack ausgestattet

ist. Windows®XP muss auf Service Pack 1 aufgerüstet werden, Windows®2000 muss auf Service

Pack 4 aufgerüstet werden.

Downloadadresse für Windows®2000 Service Pack 4:

http://www.microsoft.com/Windows2000/downloads/servicepacks/sp4/download.asp

Downloadadresse für Windows®XP Service Pack 1:

http://www.microsoft.com/windowsxp/pro/downloads/servicepacks/sp1/network.asp

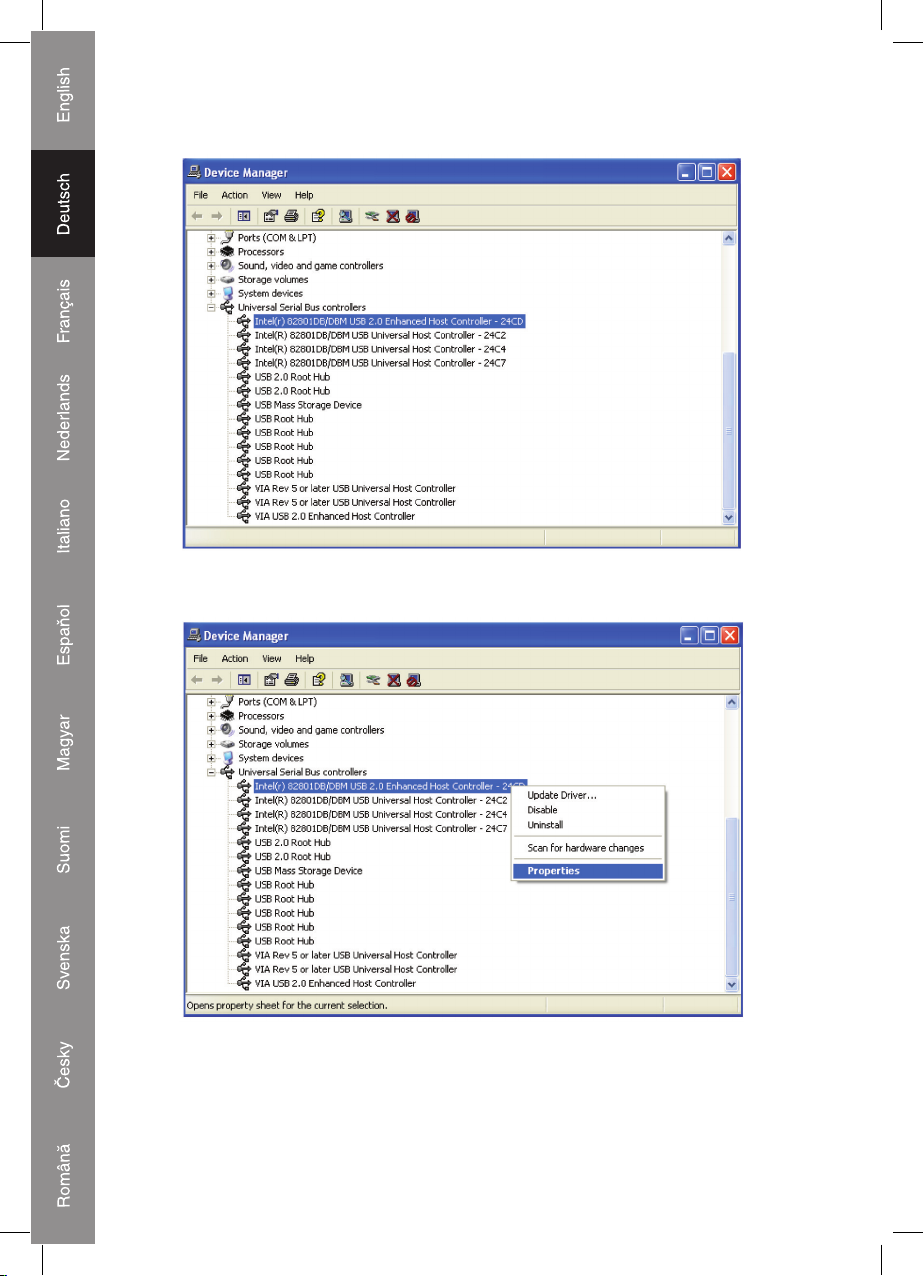

Überprüfen Sie den USB Enhanced Host Controller.

Überprüfen Sie bitte die Gerätetabelle im Geräte-Manager. Der USB Enhanced Host Controller

muss im Abschnitt USB-Controller aufgeführt sein.

Überprüfen Sie die Version des Gerätetreibers für den USB Enhanced Host Controller.
