Konix MYTHICS SPACESHIP COOL & CHARGE Manuale utente
USER MANUAL
SPACESHIP for PS5™
COOL &
CHARGE
2
PRODUCT INTRODUCTION :
The P5 multifunctional cooling stand is designed for P5 consoles
and Dualsense Controllers. The cooling system has two fans
with an intelligent chip, which provides three levels of cooling
solutions. The stand can also charge up to two controllers at the
same time with the Type-C charging slots. It provides eleven P5
game disc slots to keep your desk clean.
PRODUCT IMAGE :
SPACESHIP
FOR PS5
A
PS5 console
Cooling
fan 1
USB 2.0
Type-C interface
Switch for fan
Storage slot for
Type-C dongle (2)
Storage slot for
Type-C dongle (1)
Storage slots
for game discs
Controller
charging slot (1#)
Controller
charging slot (2#)
Cooling fan 2
3
Controller
charging slot (2#)
ACCESSORIES INCLUDED :
How to use :
Step 1 : Fix the console on the cooling stand.
Step 2 : Insert both the 2 USB-A plugs to the back of the P5
console, insert the Type-C plug to the stand.
1 x Fixing
Screw
2 x Type-C
Adapter
1 x 2-in-1 USB 2.0
to Type-C Cable
Installation for P5
Disc Version
Installation for P5
Digital Version
4

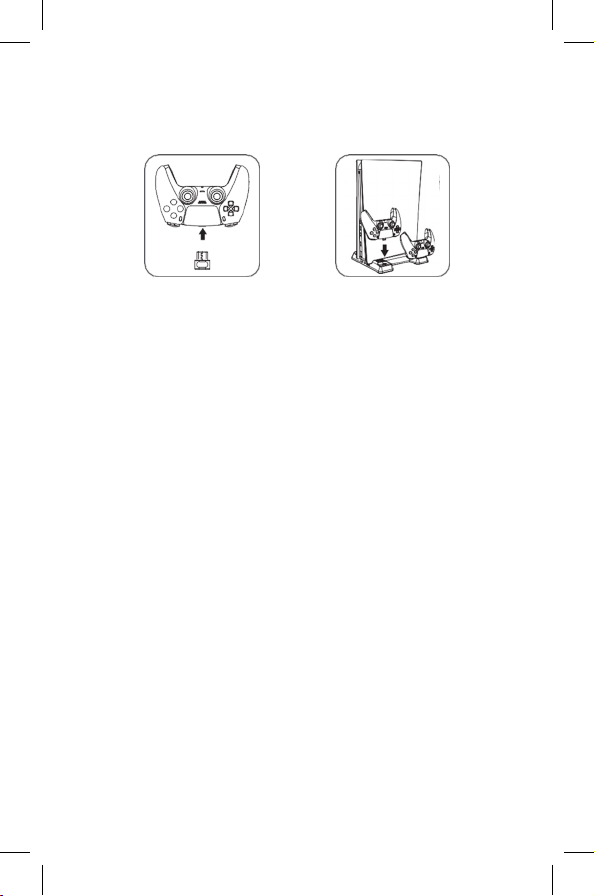

Step 3 : Take the Type-C adapter out from the storage slot,
insert the Type-C adapter to the controller, and place it on the
charging slot to get charge.
PRODUCT FEATURES :
1/ The stand is compatible with both P5 Console digital and disc
versions.
2/ Two cooling fans speed up air circulation at the bottom of the
P5 console to achieve heat dissipation. The fan control button
makes it easy to switch cooling speed: High-Medium-Low-Off.
The power-off memory function remembers the last setting.
3/ 11 disc slots on the back of the stand make it convenient for
users to place their 11 favorite game discs.
4/ With the 2-in-1 connection cable, the stand can be powered
from the two USB 3.0 ports on the back of the P5 console and
leave your front USB port clean and tidy for other purposes of
use.
5/ The stand can charge up to two controllers at the same time.
The LED indicator of the controller clearly shows the charging
status.
6/ The USB 2.0 port on the left side of the stand is mainly used
to connect to external devices like P5 headphones (NOT Com-
5
PRODUCT SPECIFICATIONS :
1/ Type-C Input: 5V 3A (directly powered from the two USB 3.0
ports on the back of the console through the included 2-in-1 USB
cable).
2/ Type-C Output: 5V 500mA*2 ("*2" means two charging
ports).
3/ USB 2.0 Port Output: 5V 1500mA (Max). (Note: Please do not
use the USB 2.0 port to support an external high load device.
This will affect the performance of the controller charging slots.)
4/ Cooling Levels of the Built-in Fans: High Speed: 7000±500
rev/min, Medium Speed: 6000±500 rev/min, Low speed:
5000±500 rev/min.
5/ Full charging time: Fully charge 2 controllers at once in about
4~4.5 hours.
6/ Product Size: 9.25 x 9.06 x 1.18 inches (L x W x H).
7/ Product Material: ABS plastic+ metal plate.
8/ Accessories: 1 x 2-in-1 USB 2.0 to Type-C Cable, 2 x Type-C
Adapters, 1 x Fixing Screw.
patible with USB 3.0 P5 cameras) or other low-load devices
(the compatibility of other USB 2.0 devices is not guaranteed).
Please do not connect the USB 2.0 port to another device when
controllers are being charged. The charging time may be affec-
ted since the power source is directly from the P5 console.
6
PRODUCT INSTRUCTIONS :
1/ Place and x the console on the DOBE cooling stand with the
xing screw that comes with the package. (Please not to use the
original xing screw from the P5 console)
2/ Place the cooling stand on a desk, connect the stand and the
console by inserting both the 2 USB-A plugs to the back of the
P5 console, insert the Type-C plug to the stand.
NOTE :
Both of the two USB 2.0 plugs must be inserted into the two
USB 3.0 female ports on the back of the console at the same
time. If either USB 2.0 plugs is unplugged, the following issues
may arise: insufcient power supply, interruption of data trans-
mission, output voltage below the required 5V standard, ab-
normal charging, or an error message "Excessive external USB
device" on the TV screen.
3/ Remove the Type-C adapter from the controller and place it
in the adapter storage slots on the left /right side of the games
disc slots on the back of this stand.
4/ In order to maintain and maximize the lifespan of P5 control-
lers, please do not remove controllers while they are being
charged. When the battery level of the controller reaches 80% or
above, if you remove the controller and put it back, the control-
ler will not be charged due to the battery
protection function. The dock will continue to charge only after
the battery level of the controller falls below 80%.
7
WARNING :
1. This product cannot be used and stored in a humid or
high-temperature environment.
2. Please ONLY use the USB cable that comes with the
package.
3. Please use this product in natural ventilation and keep it
out from the dust.
4. Do not wipe the product with a wet cloth and any clea-
ning should be under power-off mode. Please do not use
the product when is soaked, crashed, or damaged.
5. Please keep the product away from children under 12
years old.
8
PRÉSENTATION DU PRODUIT :
Le support de refroidissement multifonction PS5 est conçu pour
les consoles PS5 et les contrôleurs Dualsense. Le système de re-
froidissement dispose de deux ventilateurs avec une puce intel-
ligente, qui fournit trois niveaux de solutions de refroidissement.
Le support peut également charger jusqu'à deux contrôleurs
en même temps avec les emplacements de charge de type-C. Il
fournit onze emplacements de stockage pour disques de jeu PS5
an de garder votre bureau propre.
IMAGE DU PRODUIT :
SPACESHIP
POUR PS5
Z
Console PS5
Ventilateur
de refroidis-
sement 1
USB 2.0
Type-C
Bouton de
commande du
ventilateur
Emplacement de stockage
pour clé USB de type-C (2)
Emplacement de
stockage pour clé
USB de type-C (1)
Emplacements de
stockage pour
disques de jeu
Emplacement de
chargement du
contrôleur (1 #)
Emplacement de
chargement du
contrôleur (2 #)
Ventilateur de
refroidissement 2
9
Emplacement de
chargement du
contrôleur (2 #)
Ventilateur de
refroidissement 2

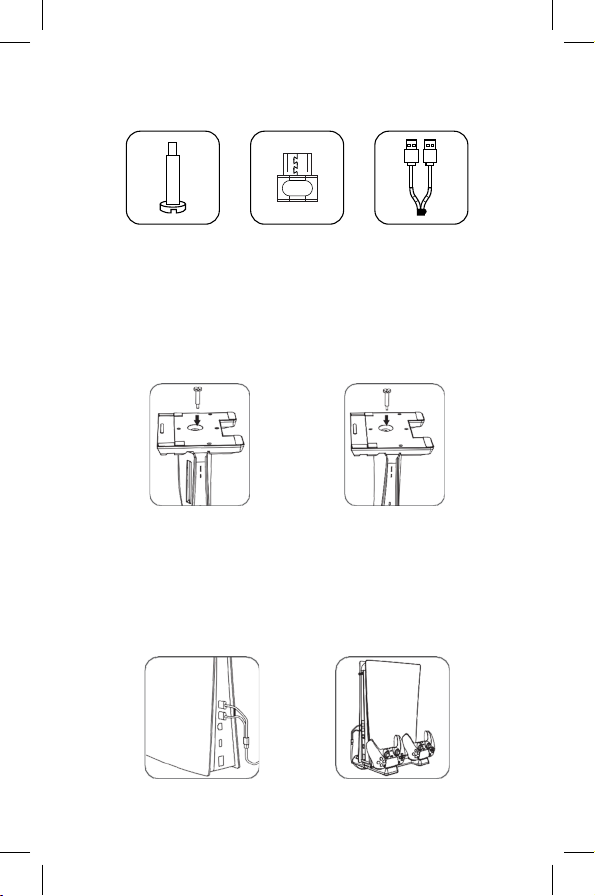

ACCESSOIRES INCLUS :
Comment s'en servir :
Étape 1 : Placez la console sur le support de refroidissement.
Étape 2 : Insérez les deux prises USB-A à l'arrière de la console
PS5, insérez la prise Type-C dans le support.
1 x Vis de
xation
2 x Adaptateur
de type-C
1 x Port USB 2.0
2 en 1 vers câble
de type-C
Installation pour la
version PS5 avec disque
Installation pour la
version PS5 Digital
10
Étape 3 : Retirez l'adaptateur de type-C de l'emplacement de
stockage, insérez l'adaptateur de type-C dans le contrôleur et
placez-le sur l'emplacement de chargement pour recharger.
CARACTÉRISTIQUES DU PRODUIT :
1/ Le support est compatible avec les versions Digital et Clas-
sique avec disque de la console PS5.
2/ Deux ventilateurs de refroidissement accélèrent la circulation
de l'air au bas de la console PS5 pour obtenir une dissipation
thermique. Le bouton de commande du ventilateur facilite la
commutation de la vitesse de refroidissement : Haute-Moyenne-
Faible-Arrêt. La fonction de mémoire de mise hors tension se
souvient du dernier réglage.
3/ 11 emplacements de stockage pour disques à l'arrière du
support permettent aux utilisateurs de placer leurs 11 disques de
jeu préférés.
4/ Avec le câble de connexion 2 en 1, le support peut être ali-
menté par les deux ports USB 3.0 à l'arrière de la console PS5.
Ceci permet de laisser votre port USB avant propre et rangé
pour d'autres utilisations possibles.
5/ Le support peut charger jusqu'à deux contrôleurs en même
temps. L'indicateur LED du contrôleur montre clairement l'état
de charge.
