Korenix JetNet 3006 Series Manuale utente
JetNet 3006 / 3006f Series
Industrial 6-port Fast Ethernet Switch
User’s Manual
Version: 1.0 Date: 28-July, 2010
Korenix JetNet 3006, JetNet 3006f
Industrial 6-port Fast Ethernet Switch
User’s Manual
Copyright Notice
Copyright ©2010 Korenix Technology Co., Ltd.
All rights reserved.
Reproduction in any form or by any means without permission is prohibited.
Declaration of CE
This product has passed the CE certification for environmental specifications.
Test conditions for passing included the equipment being operated within an
industrial enclosure. In order to protect the product from being damaged by ESD
(Electrostatic Discharge) and EMI leakage, we strongly recommend the use of
CE-compliant industrial enclosure products.
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his expense.
The user is cautioned that changes and modifications made to the equipment
without approval of the manufacturer could void the user's authority to operate
this equipment.
Content
1. Introduction.....................................................1
1-1. Features............................................................1
1-2. Packing checklist ..............................................2
2. Hardware Description.....................................3
2-1. Dimensions .......................................................3
2-2. Front Panel .......................................................5
2-3. Bottom View......................................................6
2-4. Wiring the System Power Inputs.......................7
2-5 Connecting the Alarm Relay Output ..................8
2-6. System LED Indicators .....................................9
2-7. Connecting the Ethernet ports..........................9
3. DIN Rail Mounting ........................................12
4. System Configuration...................................13
4-1. Event Alarm Configuration..............................13
5. System Installation .......................................14
5-1. Installation and Testing...................................14
6. Troubleshooting............................................19
JetNet 3006 / JetNet 3006f User’s Manual
1
1. Introduction
The JetNet 3006 and JetNet 3006f series are a new generation of
compact Fast Ethernet switches equipped with 6 ports Fast Ethernet
RJ-45 connectors (JetNet 3006) or 4 ports Fast Ethernet RJ-45
connectors plus 2 ports 100Mbps Fiber connectors (JetNet 3006f) to
achieve longer distance data transmission. Both switches provide a
3.2Gbps switching fabric with non-blocking store and forward technology
to fulfill the high bandwidth industrial communication requirements of full
wire transmission with the excellent data exchange performance. The
following is a brief introduction to JetNet 3006 and JetNet 3006f.
Wide Range Redundant Power Inputs & True Reliability
In the field site applications, unstable power input always impacts on the
reliability of system and causes an interruption of communication. To
provide a higher reliability, JetNet 3006 series have a wide range
redundant power input - 10~60VDC that meets the NEMA-TS2
requirements for power variation. In addition, with -25~75℃(JetNet 3006),
-25~70℃(JetNet 3006f) and -40~75℃wide operating temperature
range the JetNet 3006 series can ensure high performance connectivity
under harsh environments.
Easy and Simple Maintenance
For the field site maintenance, JetNet 3006 series integrate port and
power alarm relay output to alert field engineers when a failure occurs.
This function is configured by series of friendly DIP-Switches for the
purposes of easy maintenance.
1-1. Features
6 10/100TX ports with Auto MDI/MDI-X (JetNet 3006)
4 10/100TX ports plus 2 100Mbps Fiber ports (JetNet 3006f)
3.2Gbps Non-blocking Switch Fabric with excellent data exchange
performance
Port and power event alarm
NEMA TS2 compliance (pending)
Dual DC 10~60V power inputs
Supports AC 1.5KV Hi-pot isolations protection
IP-30 rugged aluminum case
Operating temperature -25~75℃for JetNet 3006, -10~70℃for JetNet
3006f, (-40~75℃wide temperature model available by request)
1-2. Packing checklist
JetNet 3006/JetNet 3006f includes following items:

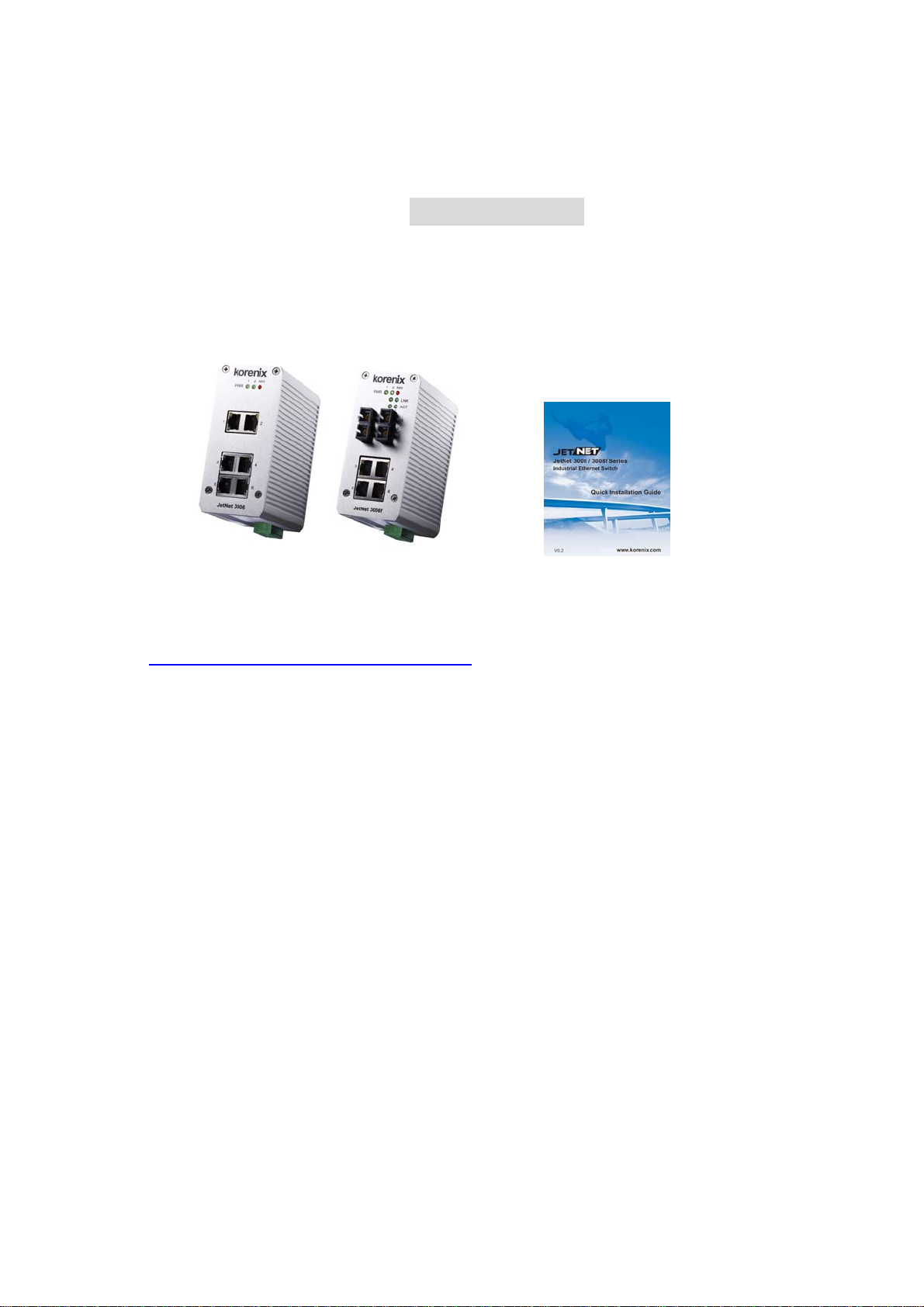

1 set of JetNet 3006 or JetNet 3006f with DIN Rail Clip
Quick Installation Guide x1
JetNet3006 or JetNet 3006f Quick Installation Guide
To get more information about operating instructions, please visit
http://www.korenix.com/downloads.htm for user’s manual download.
2
2. Hardware Description
This session introduces JetNet 3006 and JetNet 3006f enclosure port
information, panel design and describes how to install the system with
other equipments.
2-1. Dimensions
2-2. Front Panel
2-3. Bottom View
2-4. Wiring System Power Inputs
2-5. Wiring the Alarm Event Relay Output
2-6. System LED indicators
2-7. Connecting the Ethernet Port
2-1. Dimensions

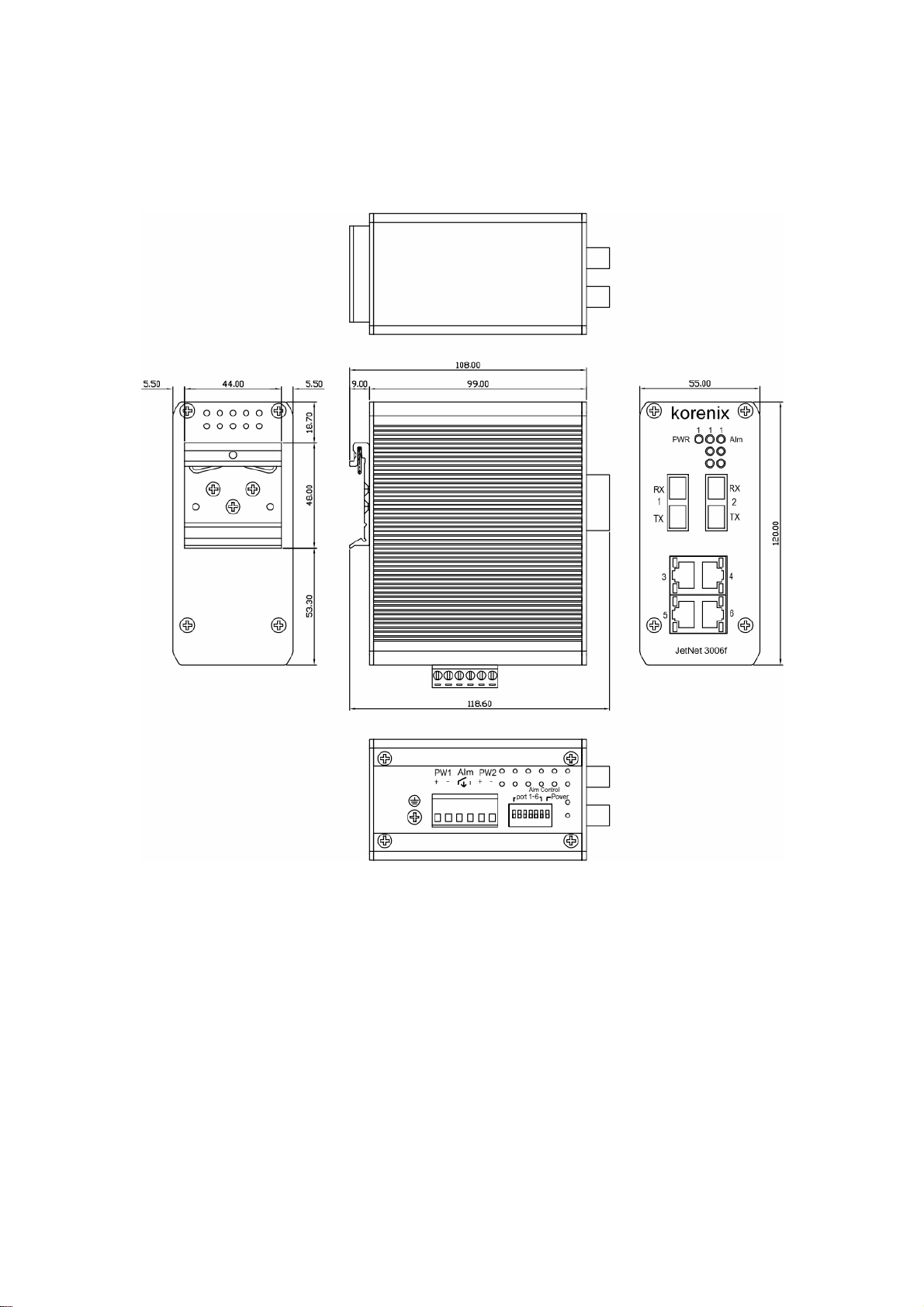

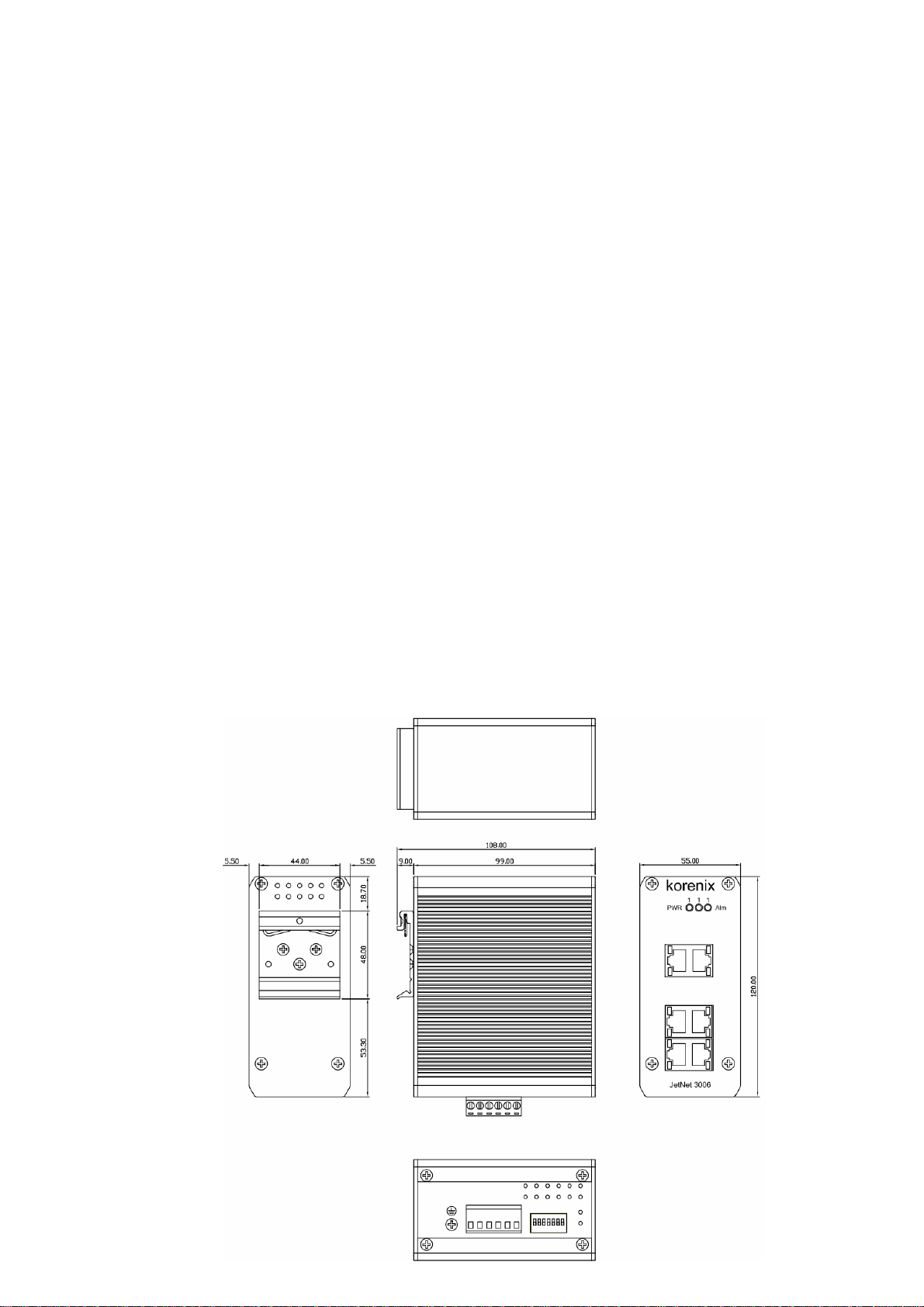

The dimensions of JetNet 3006 / JetNet 3006f are 120 mm (H) x 55 mm
(W) x 108 mm (D). Detailed mechanical design drawings are illustrated
below:
3
J
etNet 3006
JetNet 3006f
4
2-2. Front Panel

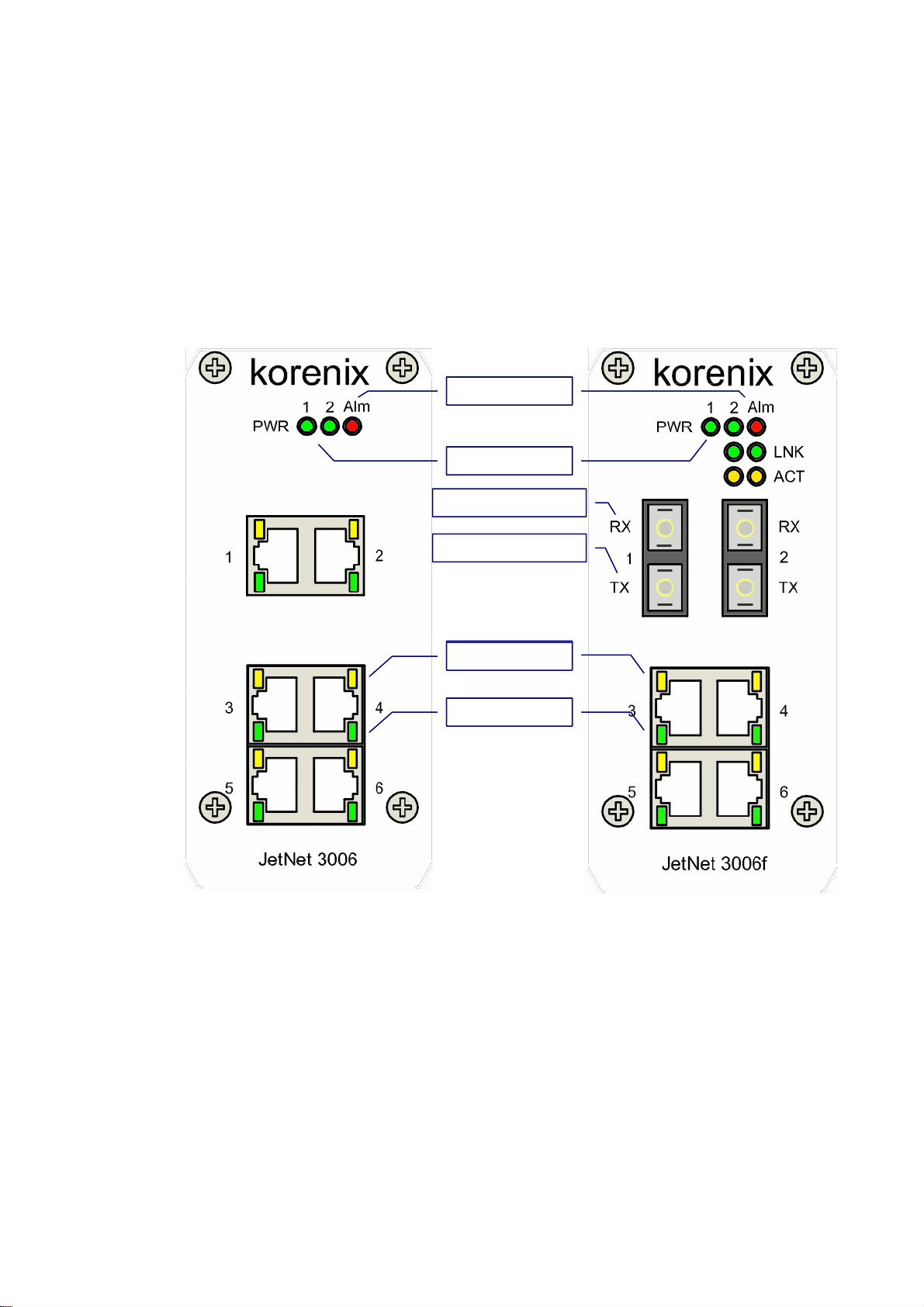

The Front Panel of the JetNet 3006 and JetNet 3006f are shown in Figure
A as below.
Fiber Transmit
Fiber Receive
Link LED
Activity LED
Activity LED
Alarm LED
Alarm LED
Power LED
Power LED
Figure A.
5
2-3. Bottom View

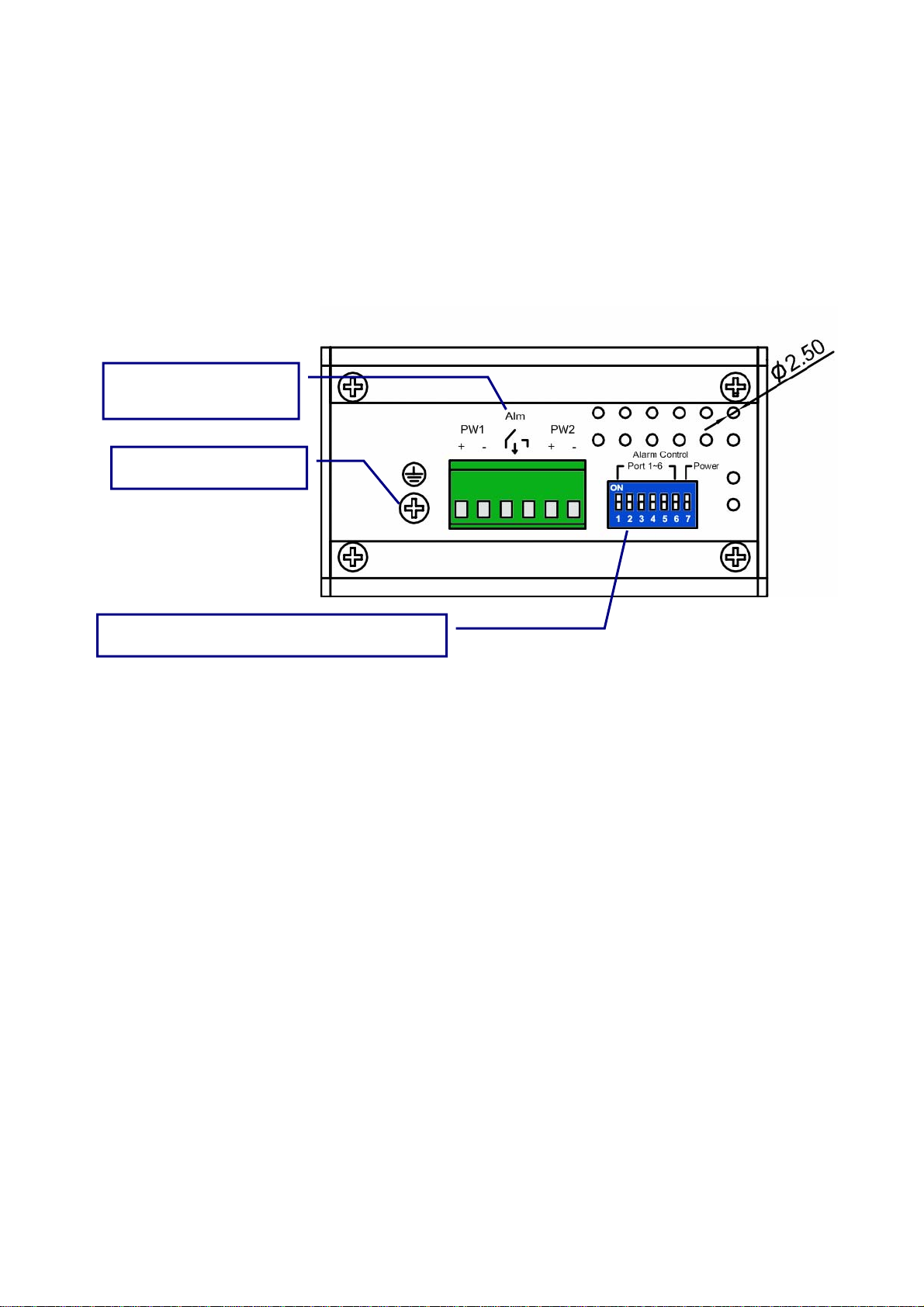

The bottom side of JetNet 3006 and JetNet 3006f is shown in the below
Figure B. It includes one 7-pin DIP switch for system configuration and
one 6-pin removable terminal block for the redundant power inputs and
event alarm relay output.
E
ar
th G
roun
d S
crew
Removable Terminal
Block
Sy
s
t
em
C
on
fig
ura
ti
on
DIP S
w
it
c
h
Figure B.
To provide better communication quality and to prevent the interference,
it is strongly recommended to make well earth grounding by the “Earth
Ground Screw”.
For other configuration of DIP Switch, power input and alarm relay wiring,
please refer to the following sessions.
6
