PT-102VN Quick Start Guide

This guide helps you install and use your PT-102VN for the first time.

Go to www.kramerav.com/downloads/PT-102VN to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

PT-102VN 1:2 Video DA

4 Rubber feet

1 Power supply (12V DC)

1 Quick start guide

Step 2: Get to know your PT-102VN

Feature

Function

OUT 1 BNC Connector

Connects to composite video acceptor 1

OUT 2 BNC Connector

Connects to the composite video acceptor 2

ON LED

Illuminates when receiving power

EQ. Trimmer

Adjusts the cable compensation equalization level

(using a small screwdriver)

LEVEL Trimmer

Adjusts the video signal level for outputs 1 and 2

(using a small screwdriver)

INPUT BNC Connector

Connects to the composite video source

12V DC

+12V DC connector for powering the unit

Step 3: Mount PT-102VN

Install PT-102VN using one of the following methods:

•Attach the rubber feet and place the unit on a flat surface.

•Mount the unit in a rack using the recommended rack adapter

(see www.kramerav.com/product/PT-102VN).

•Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible for the device.

•Avoid uneven mechanical loading.

•Appropriate consideration of equipment nameplate ratings should be used for avoiding overloading of the circuits.

•Reliable earthing of rack-mounted equipment should be maintained.

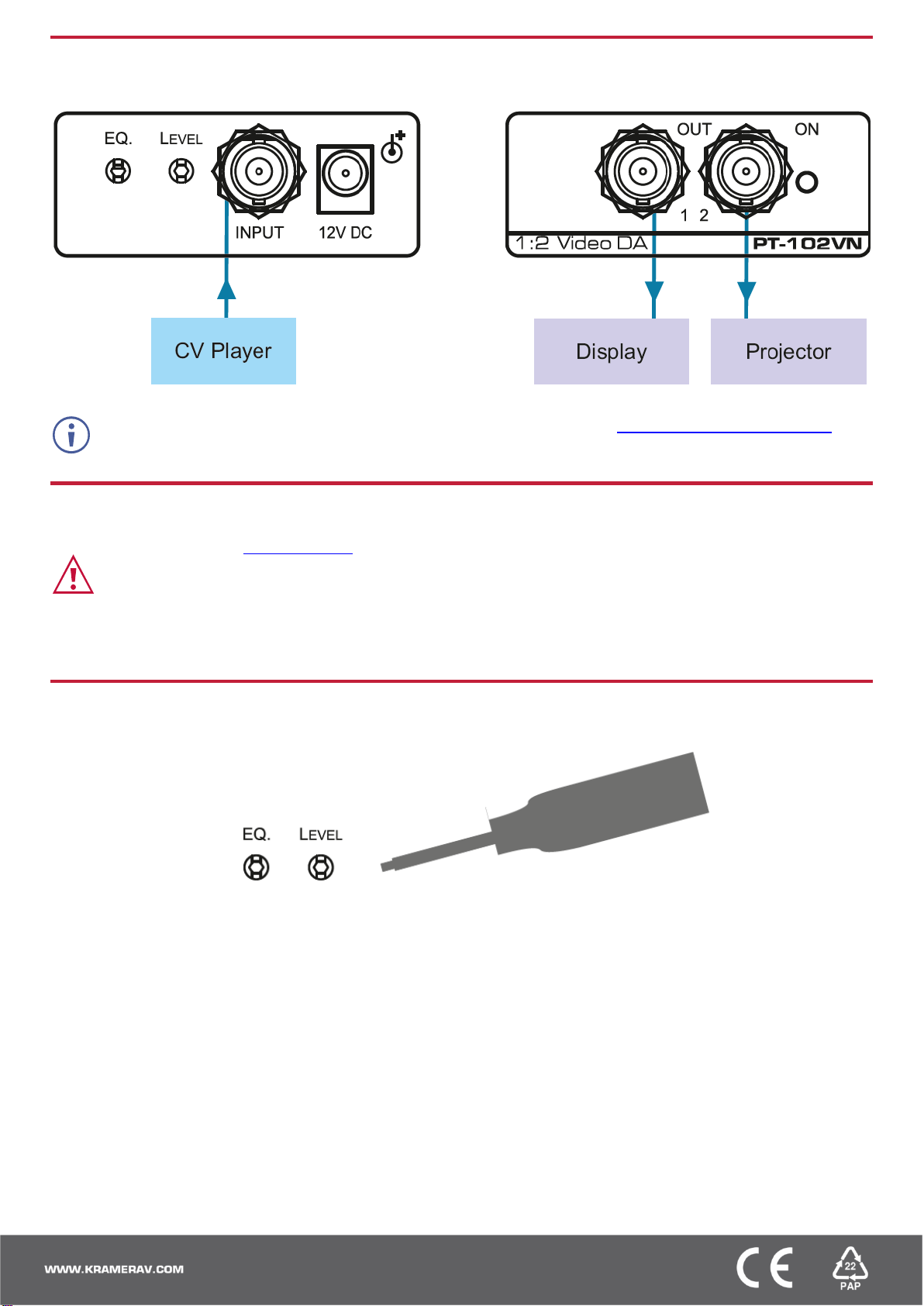

Step 4: Connect inputs and outputs

Always switch OFF the power on each device before connecting it to your PT-102VN.

To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/PT-102VN.

Using third-party cables may cause damage!

Step 5: Connect power

Connect the power cord to PT-102VN and plug it into the mains electricity.

Safety Instructions (See www.kramerav.com for updated safety information)

Caution:

•For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the

terminal or in the User Manual.

•There are no operator serviceable parts inside the unit.

Warning:

•Use only the power cord that is supplied with the unit.

•Disconnect the power and unplug the unit from the wall before installing.

Step 6: Operate PT-102VN

Using a small screwdriver, adjust the EQ. and LEVEL as needed.
