USER MANUAL







Model:

WP-209

Wall Plate

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 1

Overview 3

Your WP-209 4

4.1

Your WP-209 Front Panel 4

4.2

Your WP-209 Right Panel 6

4.3

Your WP-209 Lower Panel 6

Using the WP-209 7

5.1

Installing the WP-209 8

5.2

Operating the WP-209 8

Technical Specifications 10

Figures

Figure 1: WP-209 Front Panel for the US Version 4

Figure 2: WP-209 Front Panel for the European Version 5

Figure 3: WP-209 Right Panel 6

Figure 4: WP-209 Lower Panel 6

Figure 5: Example of Conference Room WP-209 Installation 7

Figure 6: Connecting the AUDIO Output 8

Figure 7: Connecting the WP-209 9

Tables

Table 1: WP-209 Front Panel 5

Table 2: WP-209 Right Panel 6

Table 3: WP-209 Lower Panel 6

Table 4: Technical Specifications of the WP-209 10

Introduction

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and

affordable solutions to the infinite range of problems that confront the video,

audio and presentation professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

500-plus different models now appear in 8 Groups

, which are clearly defined

by function.

Congratulations on purchasing your WP-209 active wall plate, which is ideal for

graphics and audio installations in board, conference and training rooms, as well

as long distance signal distribution.

The package includes the following items:

WP-209

Power supply

This user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Overview

3 Overview

The Kramer WP-209 wall plate features:

A computer graphics PC INPUT on a standard HD-15 connector

An amplified and equalized RGBHV/UXGA/YPbPr output on an HD-15

connector

An unbalanced stereo AUDIO input on a 3.5mm mini jack with a

corresponding balanced stereo AUDIO output on a 5-pole terminal block

In addition, the WP-209 wall plate comes with pass through connectors for:

Composite video on an RCA connector

Unbalanced stereo audio on RCA connectors

Ethernet on an RJ-45 connector

In particular, the WP-209 has:

Trimmer controls for UXGA EQ.

, and UXGA Level

Separate trimmer controls for right and left line audio level

Resolution exceeding UXGA, that ensures transparent operation

A standard 12 Volt DC feed

Achieving the best performance means:

Connecting only good quality connection cables, thus avoiding

interference, deterioration in signal quality due to poor matching, and

elevated noise levels (often associated with low quality cables)

Avoiding interference from neighboring electrical appliances and

positioning your WP-209 away from moisture, excessive sunlight and dust

Caution – No operator-serviceable parts inside unit.

Warning – Use only the Kramer Electronics input power

wall adapter that is provided with this unit

Warning – Disconnect power and unplug unit from wall

before installing or removing device or servicing unit.

1 Cable equalization

2 For example: model number AD2512C, part number 2535-000251

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your WP-209

4 Your WP-209

The Kramer WP-209E XGA/Audio/Video Line Driver is available in two

versions—one for the US and one for Europe.

This section defines the WP-209 front panel (see section 4.1), the right panel

(see section 4.2), and the lower panel (see section 4.3).

4.1 Your WP-209 Front Panel

Figure 1(the US version), Figure 2 (the European version) and Table 1 define

the front panel of the WP-209:

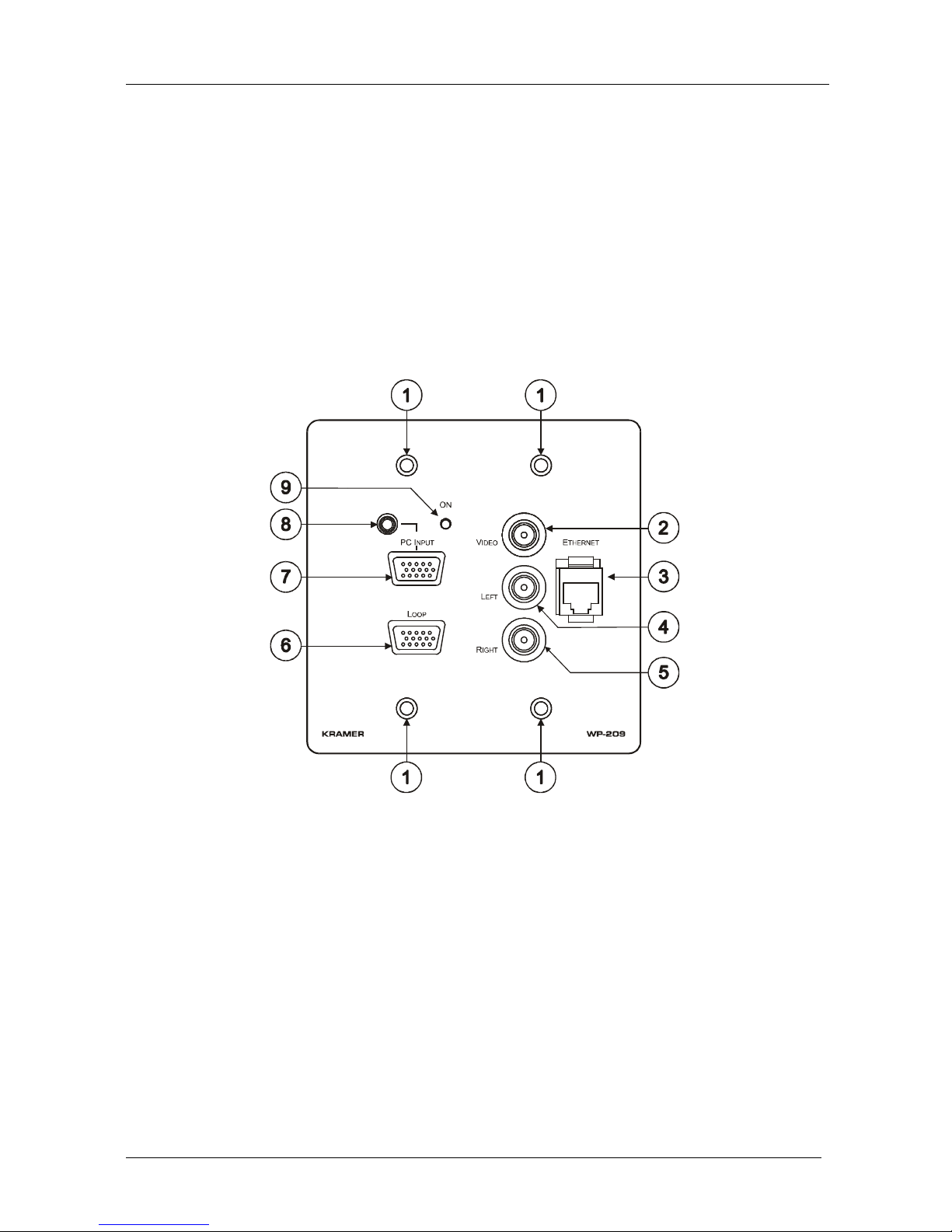

Figure 1: WP-209 Front Panel for the US Version

Your WP-209

Figure 2: WP-209 Front Panel for the European Version

Table 1: WP-209 Front Panel

# Feature Function

1 Holes (4) For fastening the wall plate in place

2 VIDEO RCA Connector

Connects to the composite/SDI video source

3 ETHERNET RJ-45 Connector

Connect to the ETHERNET

4 LEFT RCA Connector

Connects to the unbalanced left stereo audio source

5 RIGHT RCA Connector

Connects to the unbalanced right stereo audio source

6 LOOP HD15F Connector Connect to a local display

7 PC INPUT

HD15F Connector Connect to the computer graphics source

8 PC INPUT AUDIO INPUT 3.5mm

Mini Jack

Connects to the unbalanced stereo audio PC source

9 ON LED Illuminates when receiving power

1 This connector is a pass through connector

2 Can be used for any RGBHV resolution (for example, VGA, XGA, UXGA and so on). You can connect a component HD

source (for example, a set top box with YPbPr outputs), using a breakout VGA-to-RCA/BNC cable (for example, the Kramer

C-GM/3RVF cable). If you have a VGA to a 5 BNC cable, use the RGB wires only. For direct wiring, the input connector

PINOUT is as follows: PIN 1 for Pr; PIN 2 for Y; and PIN 3 for Pb

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your WP-209

4.2 Your WP-209 Right Panel

Figure 3 and Table 2 define the right panel of the WP-209:

Table 2: WP-209 Right Panel

# Feature Function

1 UXGA (PC) EQ.

Trimmer

Adjusts

the cable

compensation equalization

level

2 UXGA (PC) LEVEL

Trimmer

Adjusts

the computer graphics

signal level

3 R Trimmer Adjusts

the right audio output

signal level

AUDIO

LEVEL

L Trimmer Adjusts

the left audio output

signal level

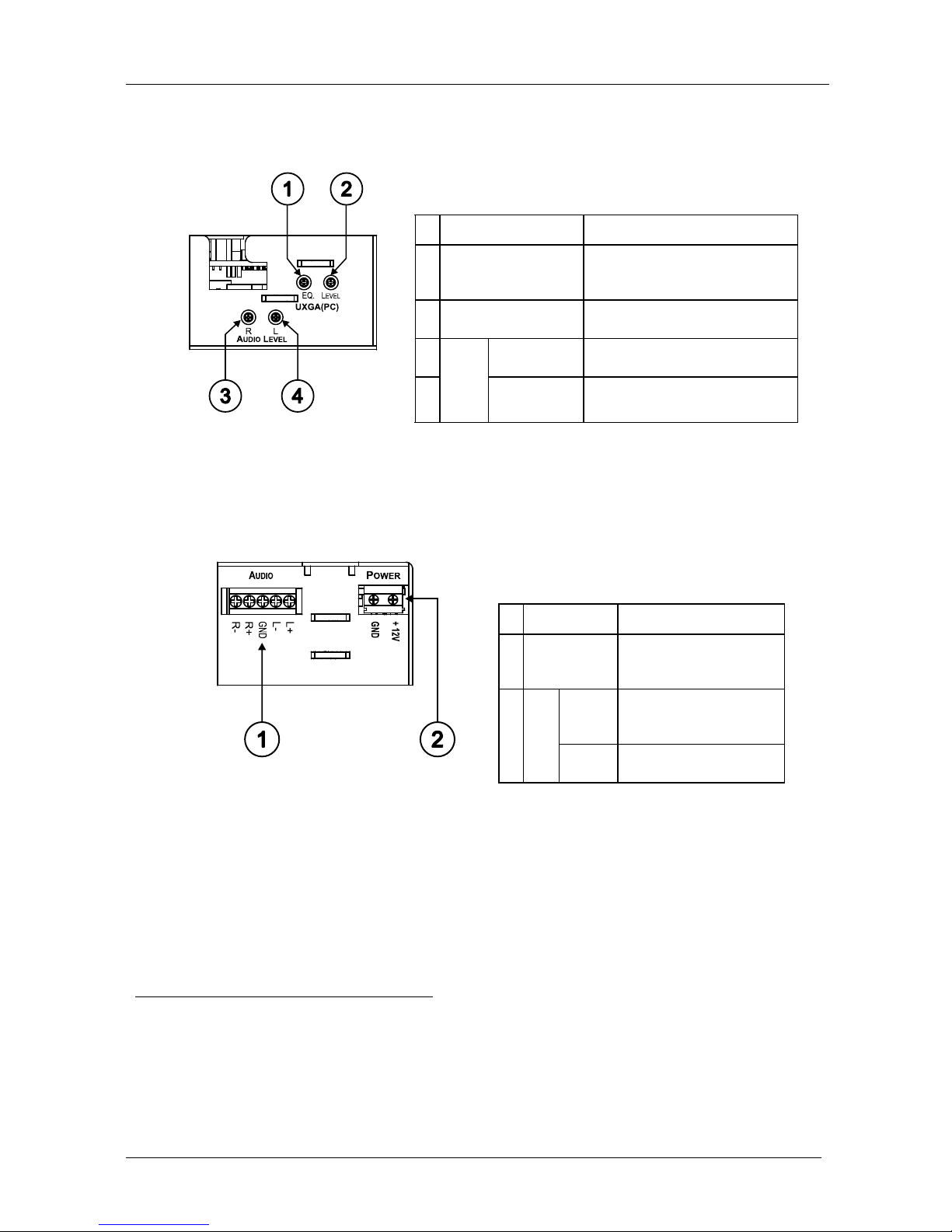

Figure 3: WP-209 Right Panel

4.3 Your WP-209 Lower Panel

Figure 4 and Table 3 define the lower panel of the WP-209:

Table 3: WP-209 Lower Panel

# Feature Function

1 AUDIO

Terminal

Block

Connects to the

balanced stereo audio

acceptor

+12V

Connect (+) to the

connector for powering

the unit

POWER

GND

Connect (-) to the

Ground

Figure 4: WP-209 Lower Panel

1 Degradation and UXGA signal loss can result from using long cables (due to stray capacitance), sometimes leading to a

total loss of sharpness in high-resolution signals

2 Insert a screwdriver into the small hole and carefully rotate it, trimming the appropriate level

3 Can be used for unbalanced audio. To do this, connect using the “+” and “G” terminal only (leave the “–” terminal

unconnected – see Figure 6)

Using the WP-209

5 Using the WP-209

You can use your WP-209, for example, in a conference room, as the example

in Figure 5 illustrates:

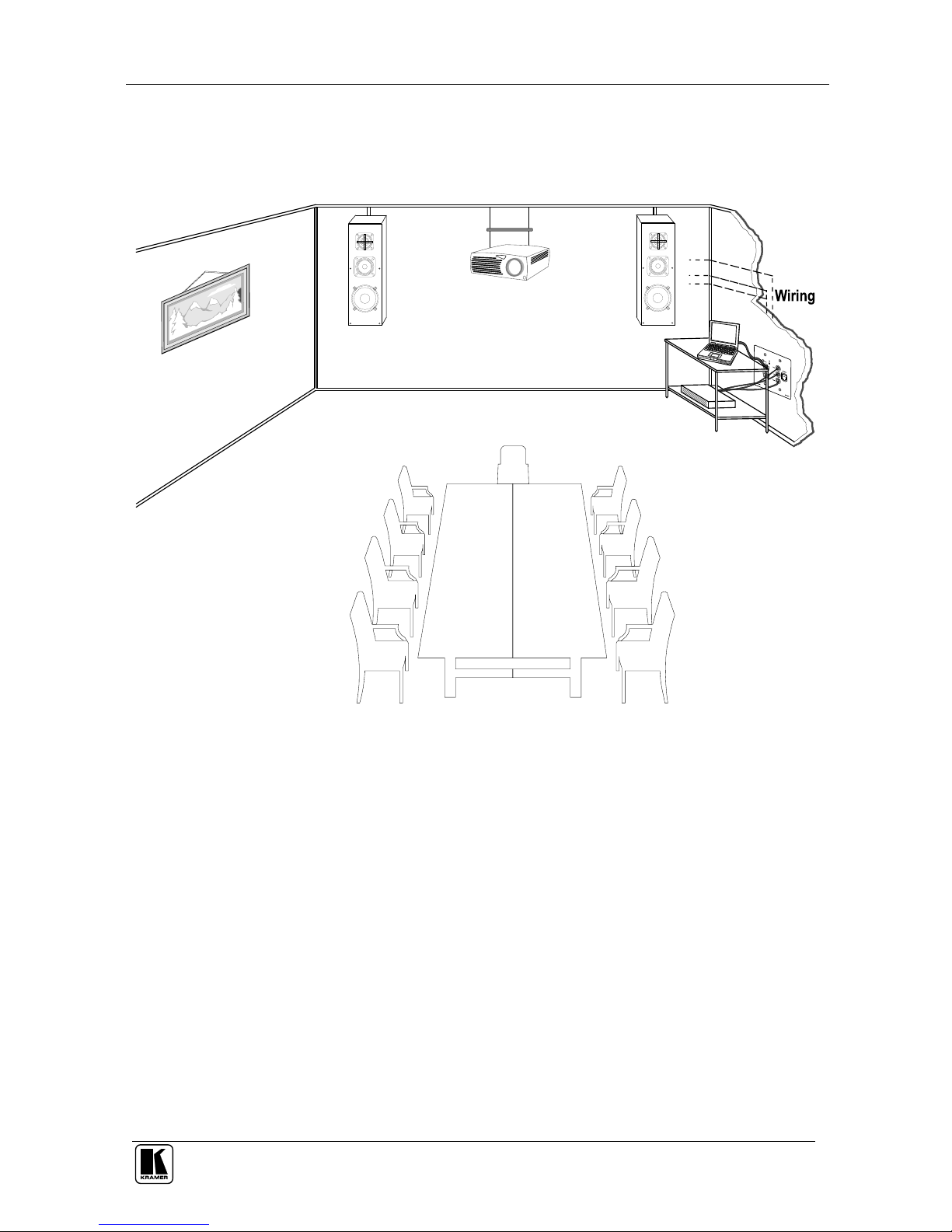

Figure 5: Example of Conference Room WP-209 Installation

For details of how to:

Install your WP-209, see section 5.1

Operate your WP-209, see section 5.2

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Using the WP-209

5.1 Installing the WP-209

To install your WP-209:

1. Connect the HD15M output connector

to the pre-installed wiring in the

wall box opening that connects to the UXGA acceptor (for example, a

projector), as Figure 7 defines.

2. Connect the AUDIO output (for example, to a power amplifier with

speakers), as one of the following:

Figure 6: Connecting the AUDIO Output

3. Connect your 12V DC power supply to the POWER pins

, taking care that

polarity is correct.

4. Insert the WP-209 directly into the wall box opening, and then mount the

front panel securely using the screws.

5.2 Operating the WP-209

To operate your WP-209:

1. Connect your computer graphic’s source (for example, a laptop’s digital

graphics card) to the PC INPUT HD15F connector and to the PC INPUT

audio 3.5mm mini jack, for example, using a Kramer C-GMA/GMA cable

(VGA HD15M +Audio jack to VGA HD15M +Audio jack)

. (Alternatively,

you can connect separate audio source to the PC AUDIO INPUT.).

2. Connect the LOOP HD15F connector to an additional display

3. Connect the video source (for example, a composite video player) to the

VIDEO RCA connector and to the LEFT and RIGHT audio RCA connectors.

4. If required, connect the ETHERNET RJ-45 connector.

1 For component HDTV, use a breakout VGA-to-RCA/BNC cable (for example, the Kramer C-GM/3RVF cable). For direct

wiring, the output connector PINOUT is as follows: PIN 1 for Pr; PIN 2 for Y; and PIN 3 for Pb

2 Connect the wire labeled “+” to the +12V pin, and the wire labeled “–” to the GND pin

3 Not supplied. The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
