Kramer VS-62H Manuale utente

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VS-62H

6x2 HDMI Matrix Switcher

P/N: 2900-300170 Rev 1

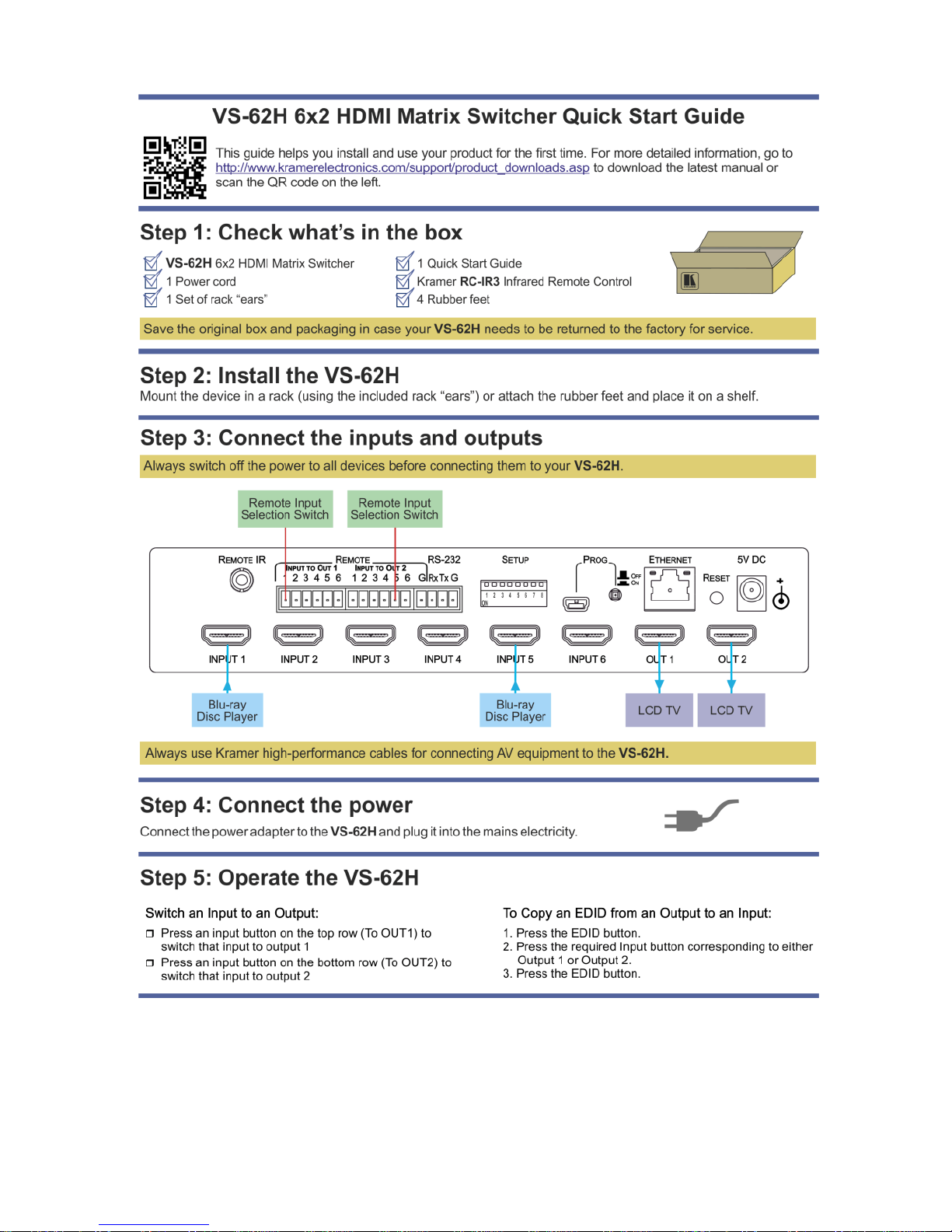

VS-62H - Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Using the IR Transmitter 5

4Defining the VS-62H 6x2 HDMI Matrix Switcher 6

5Installing in a Rack 8

6Connecting the VS-62H 6x2 HDMI Matrix Switcher 9

6.1 Connecting a Serial Controller to the VS-62H via RS-232 10

6.2 Connecting to the VS-62H via Ethernet 10

6.3 Connecting the Remote Contact-closure Switches 13

7Principles of Operation 15

7.1 Automatic Signal Detection 15

7.2 Input Switching Modes 15

7.3 EDID Operation 16

7.4 Step-in Functionality 16

8Operating the VS-62H 6x2 HDMI Matrix Switcher 17

8.1 Switching an Input to an Output 17

8.2 Acquiring an EDID from an Output 17

8.3 Muting and Unmuting the Outputs 18

8.4 Locking and Unlocking the Front Panel Buttons 19

8.5 Generating a Test Pattern 19

9Configuring and Maintaining the VS-62H 21

9.1 Setting the DIP-switches 21

9.2 Resetting the VS-62H to Factory Default Settings 22

9.3 Upgrading the Firmware 22

10 Operating the VS-62H Remotely via the Web Pages 23

10.1 Browsing the VS-62H Web Pages 23

10.2 The Routing Page 25

10.3 The EDID Page 30

10.4 The Device Setting Page 32

10.5 The Firmware Upgrade Page 33

10.6 The About Us Page 34

11 Wiring the Twisted Pair RJ-45 Connectors 35

12 Technical Specifications 36

13 Default Communication Parameters 37

14 Default EDID 38

15 Protocol 3000 40

15.1 Kramer Protocol 3000 Syntax 40

15.2 Kramer Protocol 3000 Commands 43

VS-62H - Introduction

Figures

Figure 1: VS-62H 6x2 HDMI Matrix Switcher Front Panel 6

Figure 2: VS-62H 6x2 HDMI Matrix Switcher Rear Panel 7

Figure 3: Connecting the VS-62H 6x2 HDMI Matrix Switcher 9

Figure 4: Local Area Connection Properties Window 11

Figure 5: Internet Protocol Version 4 Properties Window 12

Figure 6: Internet Protocol Properties Window 13

Figure 7: Remote Contact-closure Switch Connections 14

Figure 8: Available Test Patterns 20

Figure 9: The Loading Page 23

Figure 10: The General Info Page 24

Figure 11: The Lock Button 24

Figure 12: The Routing Page 25

Figure 13: The Output Buttons 26

Figure 14: The Input Buttons 27

Figure 15: The Remote Device Control Window 28

Figure 16: Test Pattern Tab 29

Figure 17: The EDID Page 30

Figure 18: The Device Setting Page 32

Figure 19: The Firmware Upgrade Page 33

Figure 20: The About Us Page 34

Figure 21: TP Pinout Wiring 35

VS-62H - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Video Products.

Congratulations on purchasing your Kramer VS-62H 6x2 HDMI Matrix Switcher

which is ideal for the following typical applications:

Conference rooms

Education

Hospitality

VS-62H - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your VS-62H away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building

VS-62H - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the power cord that is supplied with the unit.

Do not open the unit. High voltages can cause

electrical shock! Servicing by qualified personnel only

Warning:

Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

VS-62H - Overview

3 Overview

The VS-62H is a high quality, 6x2 matrix switcher for HDMI signals. It reclocks and

equalizes the signals and can route any input to either or both outputs

simultaneously.

In particular, the VS-62H features:

Up to 8.91Gbps data rate (2.97Gbps per graphics channel)

Suitable for resolutions up to UXGA and 4K x 2K

Support for HDCP (High Definition Digital Content Protection)

True video clock detection

Automatic switching modes (last connected and priority switching)

HDMI Support –3D, Deep Color, x.v.Color™, Lip Sync , ARC, HEAC pass-

through, Dolby® TrueHD, Dolby Digital Plus, DTS−HD®, and 7.1 multi-

channel audio

I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID

handling & processing algorithm ensures Plug and Play operation for HDMI

systems

Programmable step-in functionality when used in conjunction with

compatible step-in devices, such as the SID-X3N (using an HDMI cable that

supports HEC, the HDMI Ethernet Channel)

Non-volatile EDID storage

Kramer reKlocking™ & Equalization Technology that rebuilds the digital

signal to travel longer distances

Static or dynamic DHCP IP addressing

Embedded Web pages that provide remote configuration and operation

A lock button to prevent unwanted tampering with the buttons on the front

panel

Support for Kramer Protocol 3000

VS-62H - Overview

You can control the VS-62H using the front panel buttons, or remotely via:

RS-232 serial commands transmitted by a PC, touch screen system or other

serial controller

The Kramer RC-IR3 infrared, remote control transmitter

A PC connected via a LAN to the Ethernet port on the VS-62H

An optional, external, remote IR receiver (see Section 3.1)

3.1 Using the IR Transmitter

You can use the RC-IR3 IR transmitter to control the machine via the built-in IR

receiver on the front panel or, instead, via an optional external IR receiver (for

example, P/N C-A35M/IRR-50). The external IR receiver can be located up to 15m

away from the machine. This distance can be extended to up to 60m when used

with three extension cables (for example, P/N C-A35M/A35F-50).

Before using the external IR receiver, be sure to arrange for your Kramer dealer to

insert the internal IR connection cable (for example, P/N: 505-70434010-S) with

the 3.5mm connector that fits into the REMOTE IR opening on the rear panel.

Connect the external IR receiver to the REMOTE IR 3.5mm connector.

VS-62H - Defining the VS-62H 6x2 HDMI Matrix Switcher

4 Defining the VS-62H 6x2 HDMI Matrix

Switcher

Figure 1 defines the front panel of the VS-62H.

Figure 1: VS-62H 6x2 HDMI Matrix Switcher Front Panel

Feature

Function

IR LED

Lights yellow when receiving an IR signal

IR Sensor

Signal receiver for the infrared remote control transmitter

INPUT

SELECTOR

Buttons

TO OUT 2 1~6

Press one of the six inputs to switch it to Output 2

(see Section 8.1).

Press the currently selected input button to mute the output

TO OUT 1 1~6

Press one of the six inputs to switch it to Output 1

Press the currently selected input button to mute the output

MUTE Button

Press to toggle mute of both output signals (see Section 8.3)

EDID Button

Press to capture the EDID (see Section 8.2)

ON LED

Lights green when the device is powered on

LOCK Button

Press and hold to lock the front panel buttons. Press and hold

again to unlock (see Section 8.4)

FUNCTION Button

Press to activate the test pattern generator. When the

generator is active, press one of the input buttons to select a

test pattern
