Kramer ACC3-12-SP Manuale utente

ACC3-12-SP Quick Start

P/N:

2900- 301681QS

Rev:

1

Scan for full manual

ACC3-12-SP Quick Start Guide

This guide helps you install and use your ACC3-12-SP for the first time.

Go to www.kramerav.com/downloads/ACC3-12-SP to download the latest user manual and check if

firmware upgrades are available.

Step 1: Check what’s in the box

ACC3-12-SP 1:2 CAT Cable Splitter

1 Bracket set

4 Rubber feet

1 Quick start guide

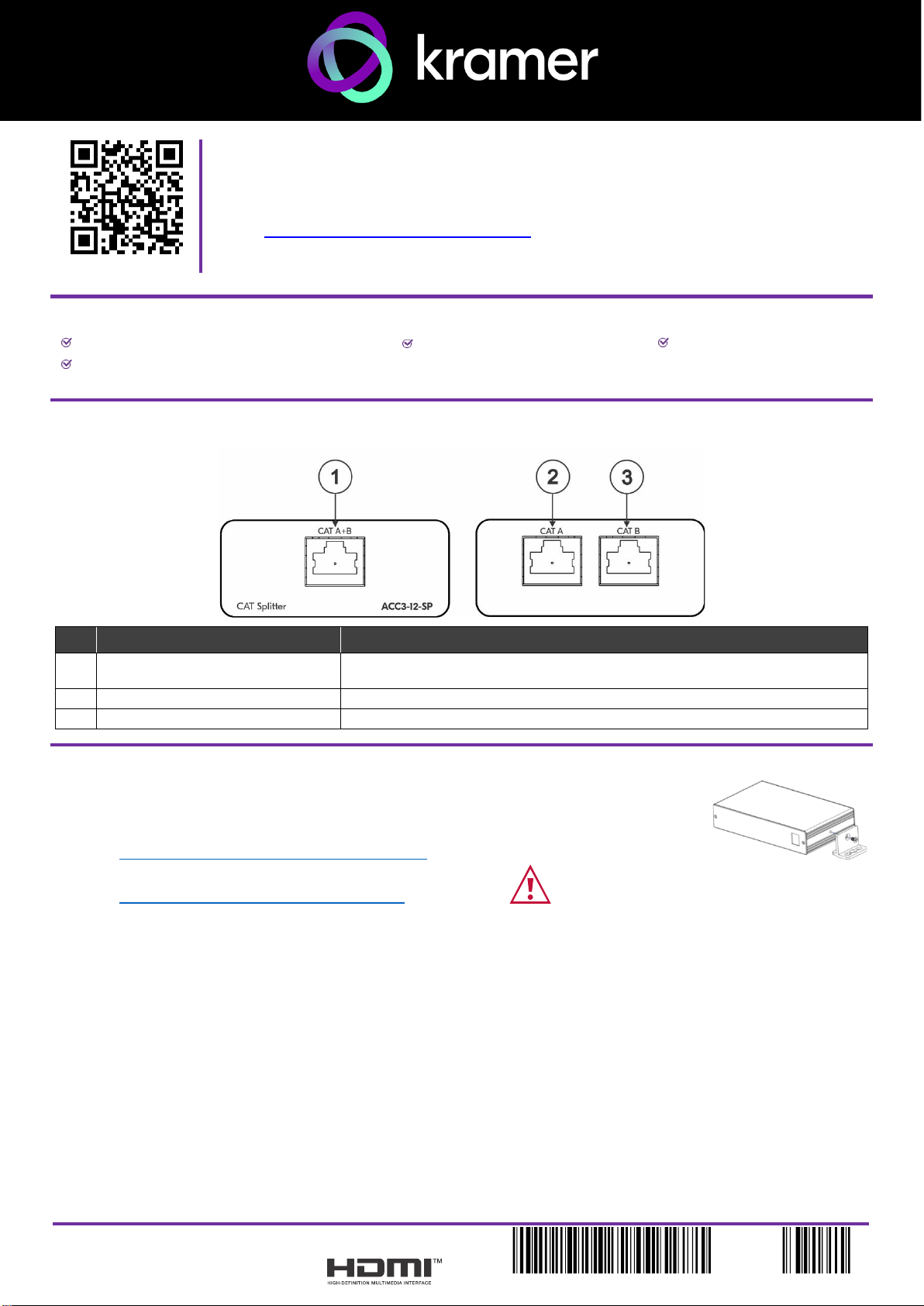

Step 2: Get to know your ACC3-12-SP

#

Feature

Function

1

CAT A+B RJ-45 Port

Connect to a compatible CAT transmitter (for example an SWT3-41-U-T) to send

combined signals over the A+B port.

2

CAT A RJ-45 Port

Connect to a compatible CAT receiver (for example an EXT3-UE-R, EXT3-U-R).

3

CAT B RJ-45 Port

Connect to a compatible CAT receiver (for example an EXT3-UE-R, EXT3-U-R).

Step 3: Mount ACC3-12-SP

Install ACC3-12-SP using one of the following methods:

•Attach the rubber feet and place the unit on a flat surface.

•Fasten a bracket (included) on each side of the unit and attach it to a flat surface

(see www.kramerav.com/downloads/ACC3-12-SP).

•Mount the unit in a rack using the recommended rack adapter

(see www.kramerav.com/product/ACC3-12-SP).

•Ensure that the environment (e.g., maximum ambient temperature &

air flow) is compatible for the device.

•Avoid uneven mechanical loading.

•Appropriate consideration of equipment nameplate ratings should be

used for avoiding overloading of the circuits.

•Reliable earthing of rack-mounted equipment should be maintained.

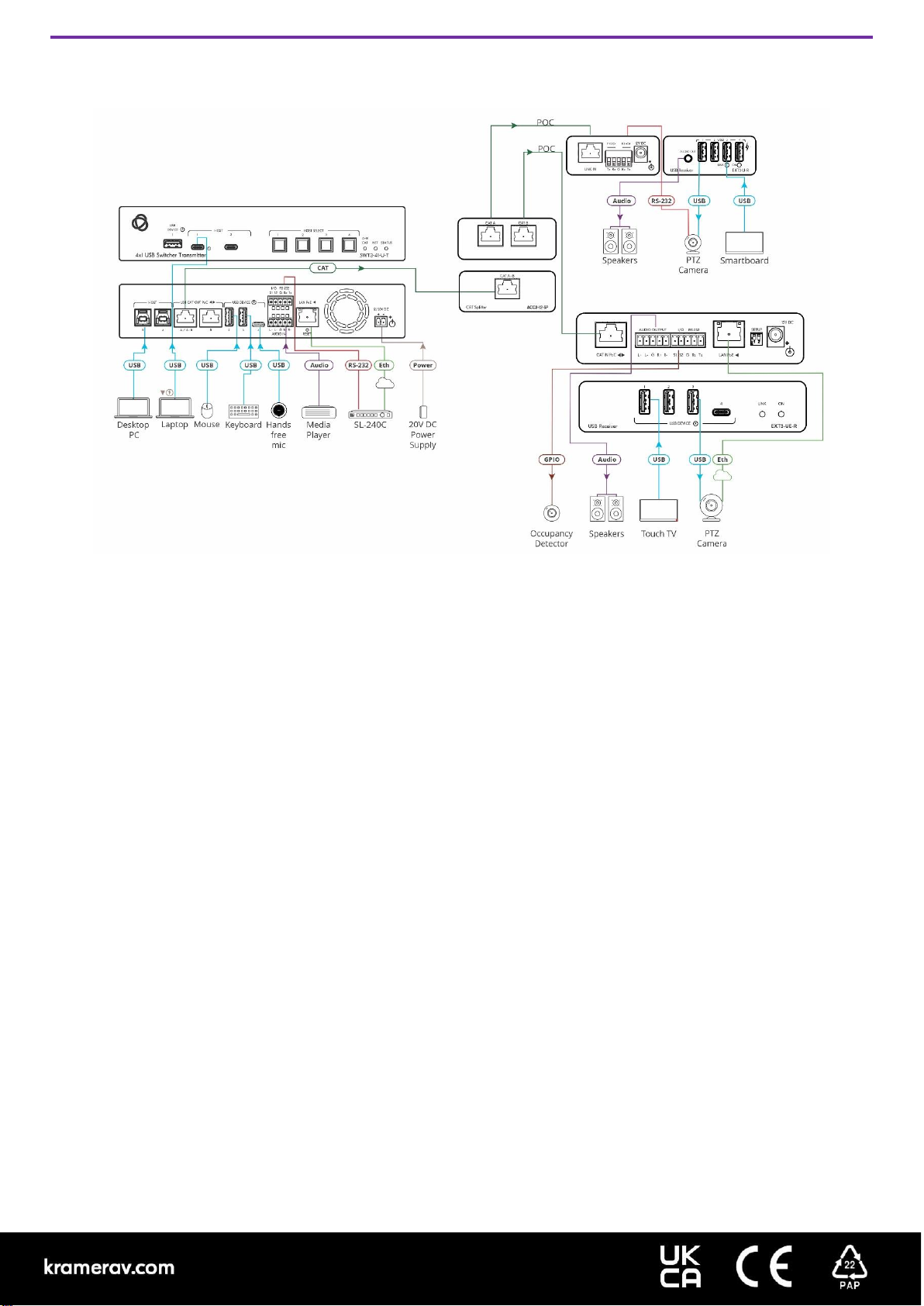

Step 4: Connect inputs and outputs

Always switch OFF the power on each device before connecting it to your ACC3-12-SP.
