Kramer FC-340S Manuale utente

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

FC-340S

SDI Scaler/Embedder/Scan

Converter

P/N: 2900-300082 Rev 2

FC-340S – Contents i

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

3Overview 3

4Defining the FC-340S SDI Scaler/Embedder/Scan Converter 4

5Connecting the FC-340S 6

5.1 Connecting a Serial Controller to the FC-340S 7

5.2 Connecting to the FC-340S via Ethernet 7

5.3 Connecting the Balanced/Unbalanced Stereo Audio Output 10

6Operating the FC-340S 11

6.1 Changing the Output Resolution 11

6.2 Using the Menu 12

6.3 To Reset the Device to Factory Default Configuration 14

6.4 Locking and Unlocking the Front Panel 14

6.5 Updating the Firmware Using the K-Upload Software 15

7Technical Specifications 16

8Default Parameters 17

8.1 Default Communication Parameters 17

9Kramer Protocol 18

9.1 Protocol 3000 Syntax 18

9.2 Command Part Details 19

9.3 Kramer Protocol 3000 Commands 20

Figures

Figure 1: FC-340S SDI Scaler/Embedder/Scan Converter Front Panel 4

Figure 2: FC-340S SDI Scaler/Embedder/Scan Converter Rear Panel 5

Figure 3: Connecting the FC-340S SDI Scaler/Embedder/Scan Converter 6

Figure 4: Local Area Connection Properties Window 8

Figure 5: Internet Protocol (TCP/IP) Properties Window 9

Figure 6: Balanced Stereo Audio Connection 10

Figure 7: Unbalanced Stereo Audio Connection 10

FC-340S - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP

5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP

7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Video Products.

Congratulations on purchasing your FC-340S SDI Scaler/Embedder/Scan

Converter which is ideal for broadcast and production studios as well as

digital/analog AV authoring.

FC-340S - Getting Started

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

Use Kramer high performance, high resolution cables

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs and to check whether firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

•Do not secure the cables in tight bundles or roll the slack into tight coils

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

•Position your Kramer FC-340S away from moisture, excessive sunlight and

dust

Caution: No operator serviceable parts inside the unit

Warning: Disconnect the power and unplug the unit from the wall

before installing

FC-340S - Overview

3 Overview

The FC-340S SDI Scaler/Embedder/Scan Converter is ideal as a broadcast

quality video scaler and audio embedder/de-embedder for digital signals up to 3G

HD-SDI.

All mentions of SDI in this manual include signals up to and including 3G HD-SDI.

The FC-340S features:

•A maximum data rate of 3Gpbs

•One SDI video input and two scaled SDI video outputs

•One re-clocked looping video output

•One composite video output

•One balanced audio output

•Two AES/EBU audio inputs and two AES/EBU audio outputs

•The option to select either the embedded audio or to embed two

independent audio groups

•Kramer reKlocking™ & Equalization Technology that rebuilds the digital

signal to travel longer distances

•An LCD text display for easy configuration and operation

FC-340S - Defining the FC-340S SDI Scaler/Embedder/Scan Converter

4 Defining the FC-340S SDI

Scaler/Embedder/Scan Converter

Figure 1 defines the front panel of the FC-340S.

Figure 1: FC-340S SDI Scaler/Embedder/Scan Converter Front Panel

# Feature Function

1 LCD Readout Displays either the input/output resolution currently

selected or the menu during configuration

2 Menu Navigation

Buttons

Press the Enter, up (▲), down (▼), left (◄) and right (►)

buttons to navigate the menu, and modify parameters or

values

3 PANEL LOCK

Button

Press and hold to lock the front panel buttons. Press and

hold again to unlock the buttons

4 ESC Button Press to move back one level through the menu

FC-340S - Defining the FC-340S SDI Scaler/Embedder/Scan Converter

Figure 2 defines the rear panel of the FC-340S.

Figure 2: FC-340S SDI Scaler/Embedder/Scan Converter Rear Panel

# Feature Function

1 ANALOG

OUTPUT CV

CV BNC Video

Connector

Connect to a composite video acceptor (see the

Note in Section 6.1)

2 5-pin Terminal Block 1 Connect to a balanced audio acceptor

3 5-pin Terminal Block 2 Connect to a balanced audio acceptor

4 RS-232 3-pin Serial Port Terminal

Block

Connect to a serial controller

5 ETHERNET RJ-45 Connector Connect to a PC controller via a LAN

6 IN SDI BNC Connector Connect to an SDI signal source

7 LOOP BNC Connector Connect to an SDI acceptor

8 OUT 1 BNC Connector Connect to an SDI acceptor

9 OUT 2 BNC Connector Connect to an SDI acceptor

10 RESET Button Press and hold while switching on the device to

reset to factory default parameters

(see Section 8)

AES/EBU

IN 1 BNC Connector Connect to an AES/EBU audio source

12 IN 2 BNC Connector Connect to an AES/EBU audio source

13 OUT 1 BNC Connector Connect to an AES/EBU audio acceptor

14 OUT 2 BNC Connector Connect to an AES/EBU audio acceptor

15 12V DC Power Socket Connect to the power adapter

FC-340S - Connecting the FC-340S

5 Connecting the FC-340S

Always switch off the power to any device before connecting it to your

FC-340S. After connecting your FC-340S, connect its power and then

switch on the power to the other devices.

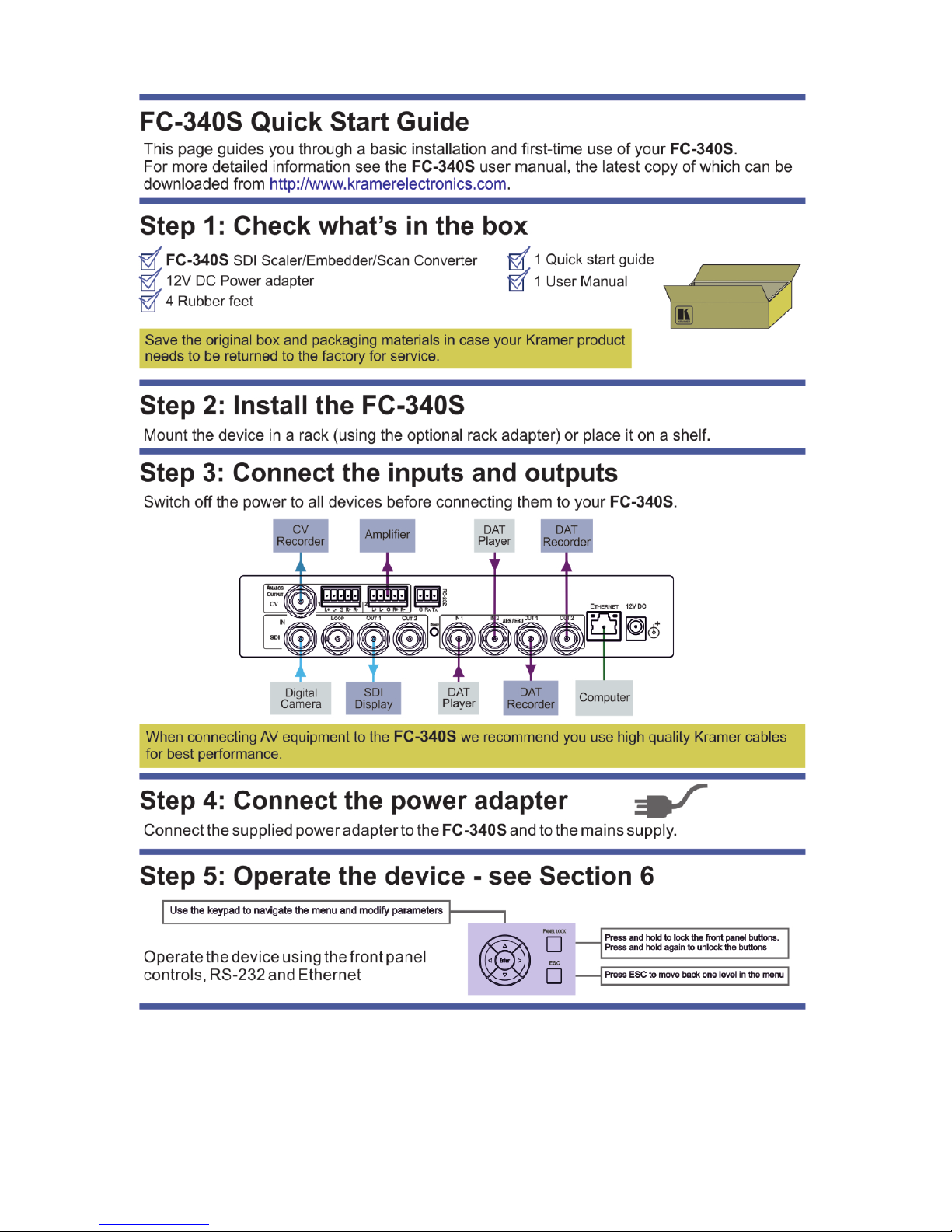

Figure 3: Connecting the FC-340S SDI Scaler/Embedder/Scan Converter

To connect the FC-340S as illustrated in the example in Figure 3:

1. Connect an SD/HD/3G HD-SDI source (for example, an HD digital video

camera) to the SDI IN BNC connector.

2. Connect the SDI OUT 1 BNC connector to an SDI acceptor (for example, an

SDI display).

3. Connect the SDI OUT 2 BNC connector to an SDI acceptor (for example, an

SDI display).

FC-340S - Connecting the FC-340S

4. Connect the CV ANALOG OUTPUT BNC connector to a composite video

acceptor (for example, a composite video recorder). See the Note in

Section 6.1.

5. Connect the 5-pin terminal block to a balanced audio acceptor (for example,

an amplifier).

6. Connect AES digital audio sources (for example, DAT players) to the

AES/EBU IN 1 and IN 2 BNC connectors.

7. Connect the AES/EBU OUT 1 BNC connector to an AES digital audio

acceptor (for example, a DAT recorder).

8. Optional—Connect a controller via either RS-232 and/or a LAN to the

Ethernet RJ-45 connector.

5.1 Connecting a Serial Controller to the FC-340S

You can connect to the FC-340S via an RS-232 connection using, for example, a

PC.

To connect to the FC-340S via RS-232:

•Connect the 3-pin terminal block on the rear panel port of the FC-340S (pin

G to pin 5, pin Rx to pin 3, pin Tx to pin 2) to the RS 232 9-pin D-sub port on

your PC

5.2 Connecting to the FC-340S via Ethernet

You can connect the FC-340S via Ethernet via either of the following methods:

•A crossover cable (see Section 5.2.1) for direct connection to the PC

•A straight through cable (see Section 5.2.2) for connection via a network hub

or network router

After connecting the Ethernet port, you have to install and configure your Ethernet Port. For

detailed instructions, see the Ethernet Configuration Guide (Lantronix) in the technical support

section on our Web site http://www.kramerelectronics.com.
