Kramer VM-2DH Manuale utente

VM-2DH Quick Start

P/N:

2900- 301266QS

Rev:

Scan for full manual

VM-2DH Quick Start Guide

This guide helps you install and use your VM-2DH for the first time.

Go to www.kramerav.com/downloads/VM-2DH to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

VM-2DH DisplayPort to DVI/HDMI Converter

4 Rubber feet

1 Bracket set

1 Power supply (5V DC)

1 Quick start guide

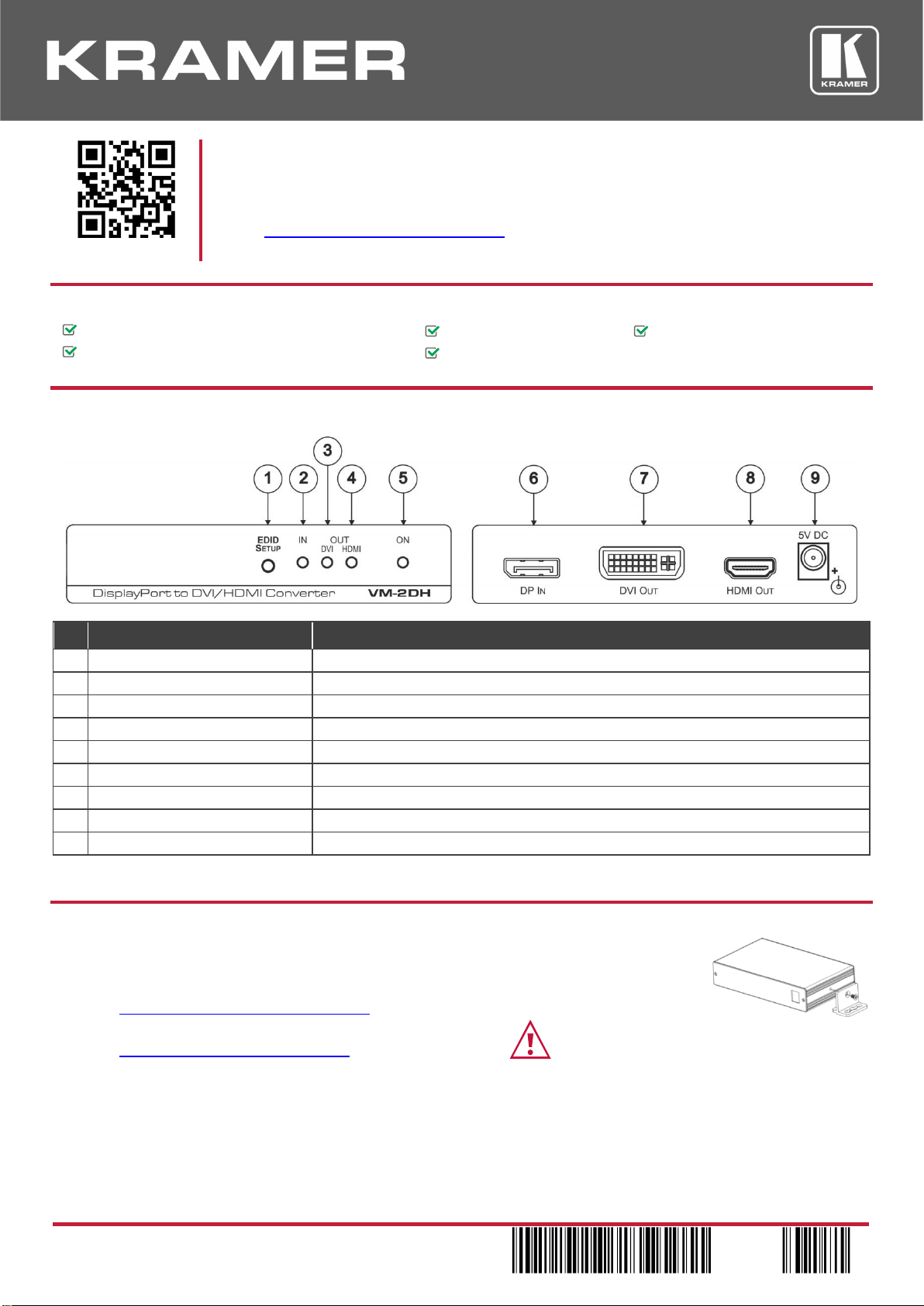

Step 2: Get to know your VM-2DH

Feature

Function

EDID SETUP Button

Press to cycle through the EDID sources and to read the EDID (see Step 6)

IN LED

Lights green when the input is active; flashes when the input is not valid

OUT DVI LED

Lights green when a DVI acceptor output is connected

OUT HDMI™LED

Lights green when an HDMI acceptor is connected

ON LED

Lights green when the unit is powered on

DP IN DisplayPort Connector

Connect to the DisplayPort digital source

DVI OUT Connector

Connect to the DVI acceptor

HDMI OUT Connector

Connect to the HDMI acceptor

5V DC

Connect to the 5V DC power adapter, center pin positive

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Step 3: Mount VM-2DH

Install VM-2DH using one of the following methods:

•Attach the rubber feet and place the unit on a flat surface.

•Fasten a bracket (included) on each side of the unit and attach it to a flat surface

(see www.kramerav.com/downloads/VM-2DH).

•Mount the unit in a rack using the recommended rack adapter

(see www.kramerav.com/product/VM-2DH).

•Ensure that the environment (e.g., maximum ambient temperature &

air flow) is compatible for the device.

•Avoid uneven mechanical loading.

•Appropriate consideration of equipment nameplate ratings should be

used for avoiding overloading of the circuits.

•Reliable earthing of rack-mounted equipment should be maintained.

Step 4: Connect inputs and outputs

Always switch OFF the power on each device before connecting it to your VM-2DH.

To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/VM-2DH.

Using third-party cables may cause damage!

Step 5: Connect power

Connect the power cord to VM-2DH and plug it into the mains electricity.

Safety Instructions (See www.kramerav.com for updated safety information)

Caution:

•For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the

terminal or in the User Manual.

•There are no operator serviceable parts inside the unit.

Warning:

•Use only the power cord that is supplied with the unit.

•Disconnect the power and unplug the unit from the wall before installing.

Step 6: Operate VM-2DH

Initially the VM-2DH operates with the factory default EDID stored in the non-volatile memory. The source reads the EDID

from the device when the device is plugged in or powered on.

If required, acquire the EDID:

•Connect the output(s) from which you want to acquire the EDID.

•Select the required EDID by pressing and holding the EDID SETUP button to cycle through the options; HDMI OUT,

DVI OUT, Auto-Mix, and default.

•When you reach the desired setup, release the EDID SETUP button to acquire the EDID.
